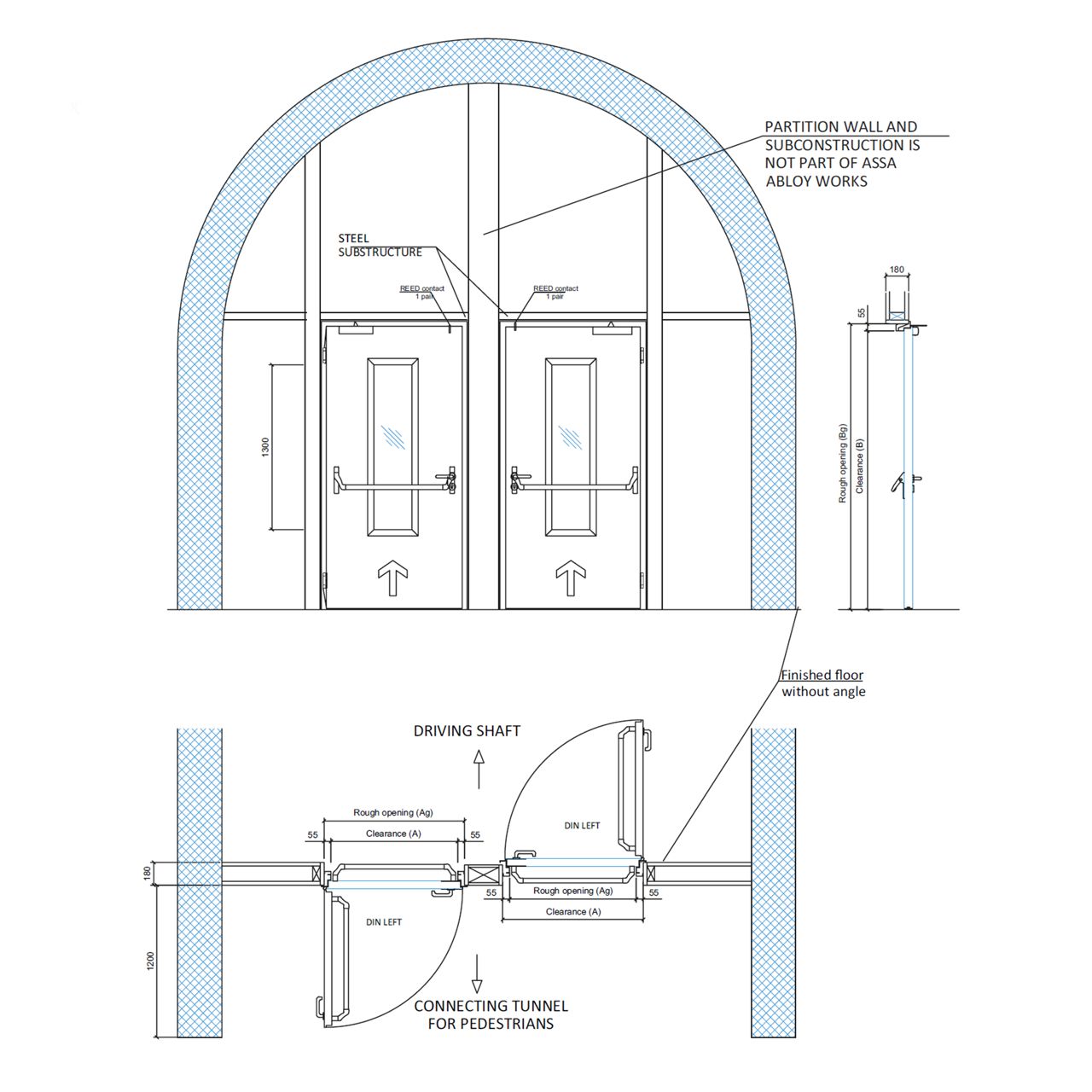

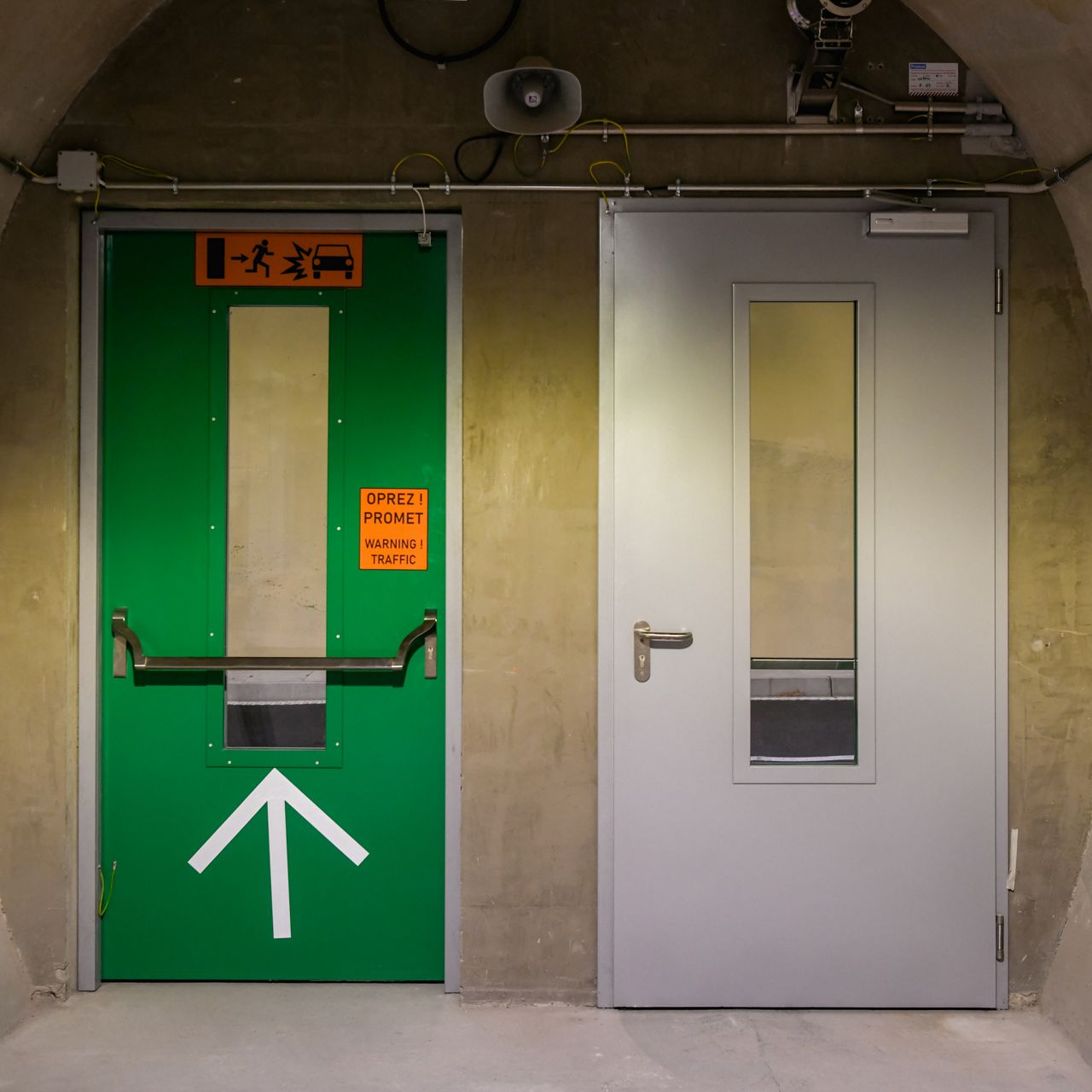

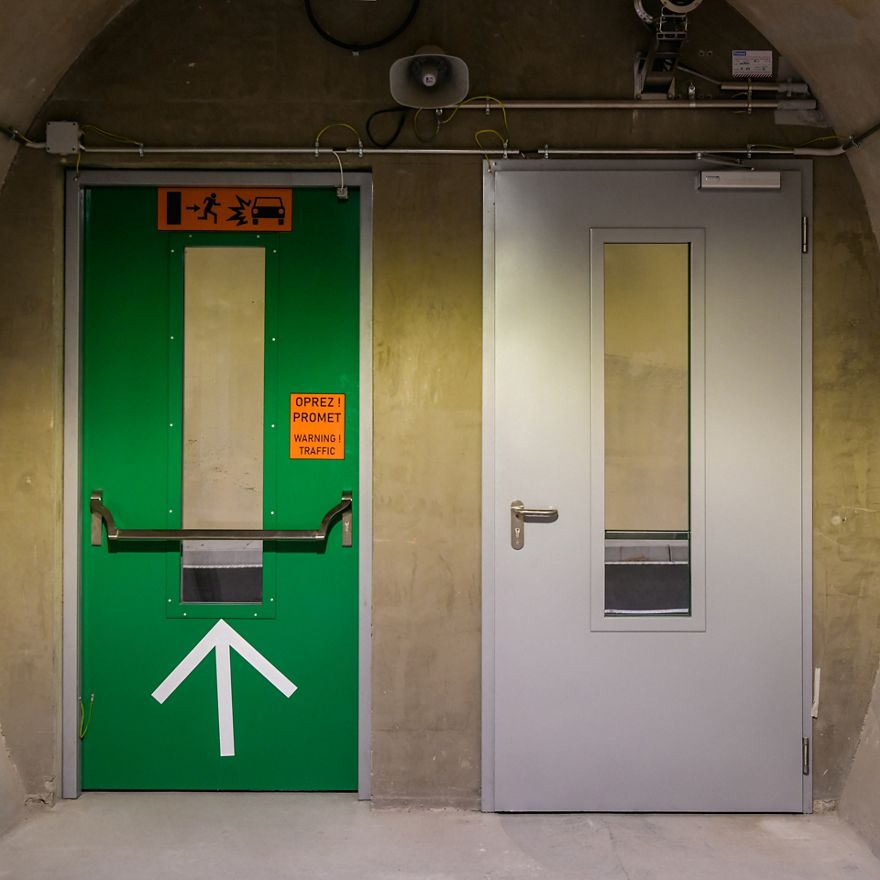

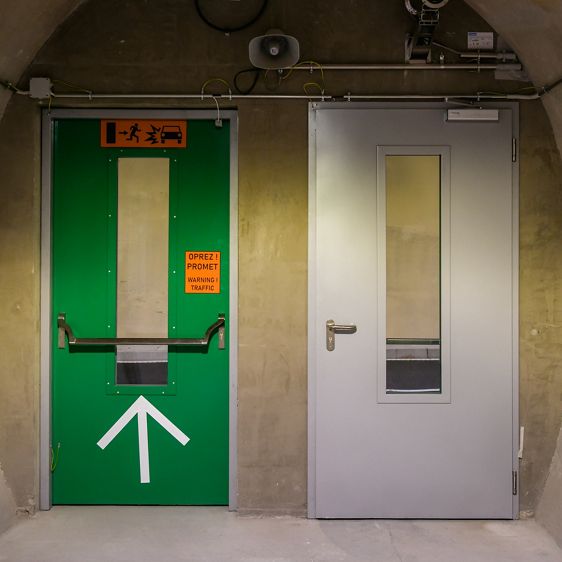

Pedestrian passage

Construction:

• galvanised steel sheet
• door leaf: sheet thickness 0,8 mm
• door jamb: sheet thickness 1,5 mm

Type designations:    EI30                 EI60                EI90

Glass pane                   PV-1/30-S         PV-1/60-S         PV-1/90-S

Solid                             PV-1/30            PV-1/60            PV-1/90

Finishing:

• primer
• plasticised in RAL colours

Gaskets: in door frame (four-sided) rubber – black

Fittings:

• door panic lock
• inox hinges
• door handle / panic lever
• cylinder
• reed contact 2x
• hydraulic door closer
• glass pane
• automatic lowering gasket
• arrows for evacuation direction

Installation: dry installation – door frame and wall joint with finish profile
