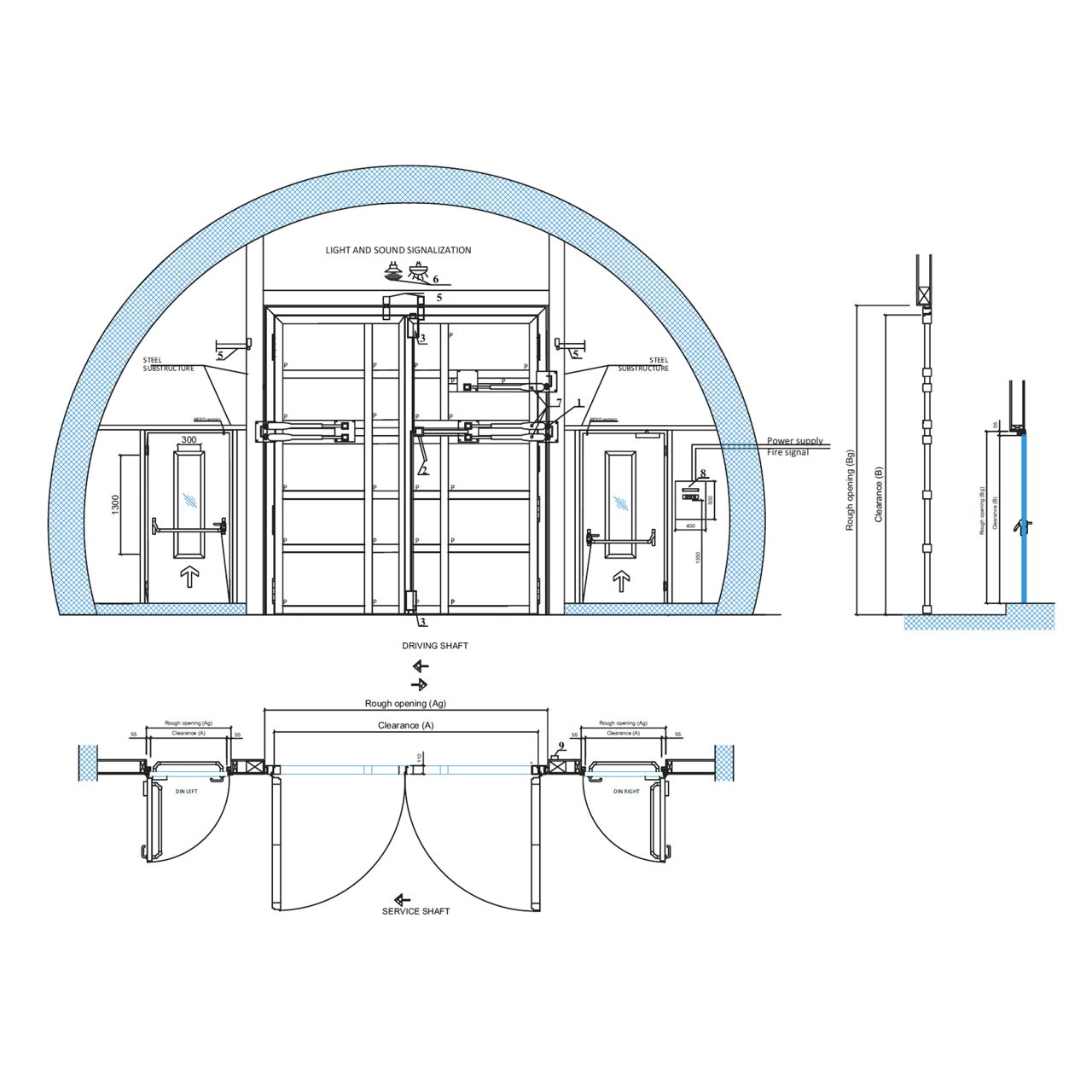

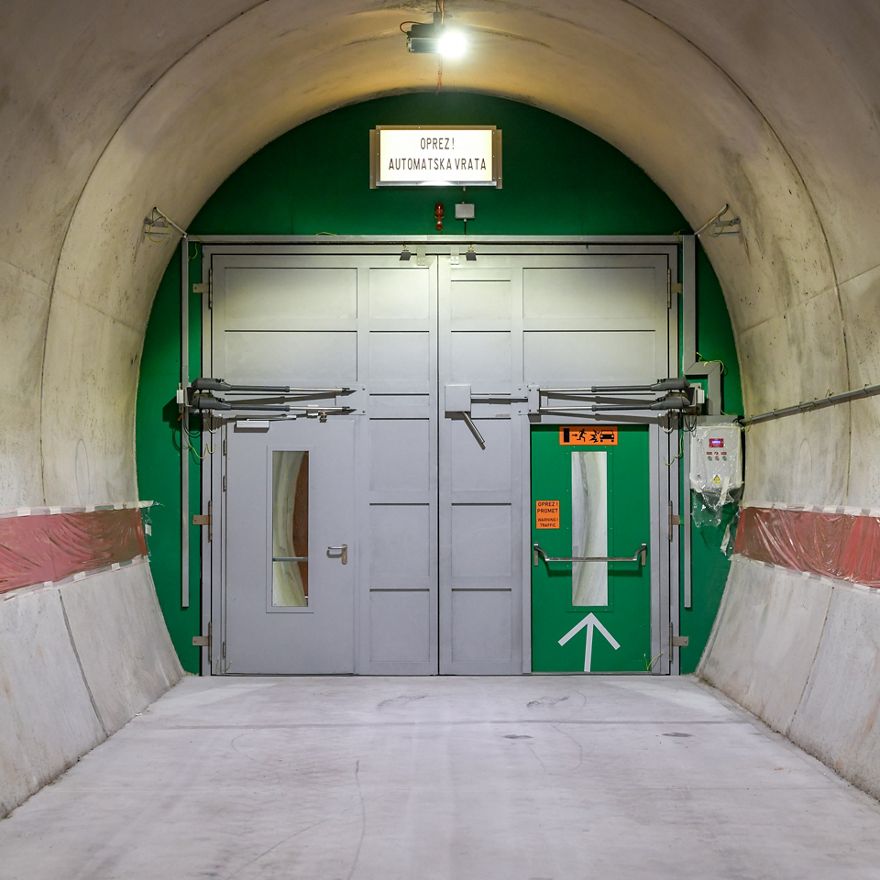

Passage of emergency vehicles

Construction:

• aluminium vehicle doors
• basic supporting structure made od steel pipes / inox fire insulation lining
• finish lining - standard aluminium profiles 70 and 104 mm
• pedestrian passage doors
• galvanised steel sheet / inox
• door leaf: sheet thickness 0,8 mm
• door jamb: sheet thickness 1,5 mm

Type designations:    EI30                      EI60                  EI90

Glass pane                   PV-1/30-S           PV-1/60-S           PV-1/90-S

Solid                             PV-1/30              PV-1/60              PV-1/90

Aluminium                PV-V-2/30-PV    PV-V-2/60-PV    PV-V-2/90-PV

Finishing:

• primer
• plasticised in RAL colours

Gaskets: in door frame (four-sided) rubber black

Fittings:

• aluminium vehicle doors
• control box
• light and sound signaling
• electric opening / closing
• pedestrian passage doors
• handle / panic lever
• glass pane

Installation: dry installation – door frame and wall joint with finish profile
