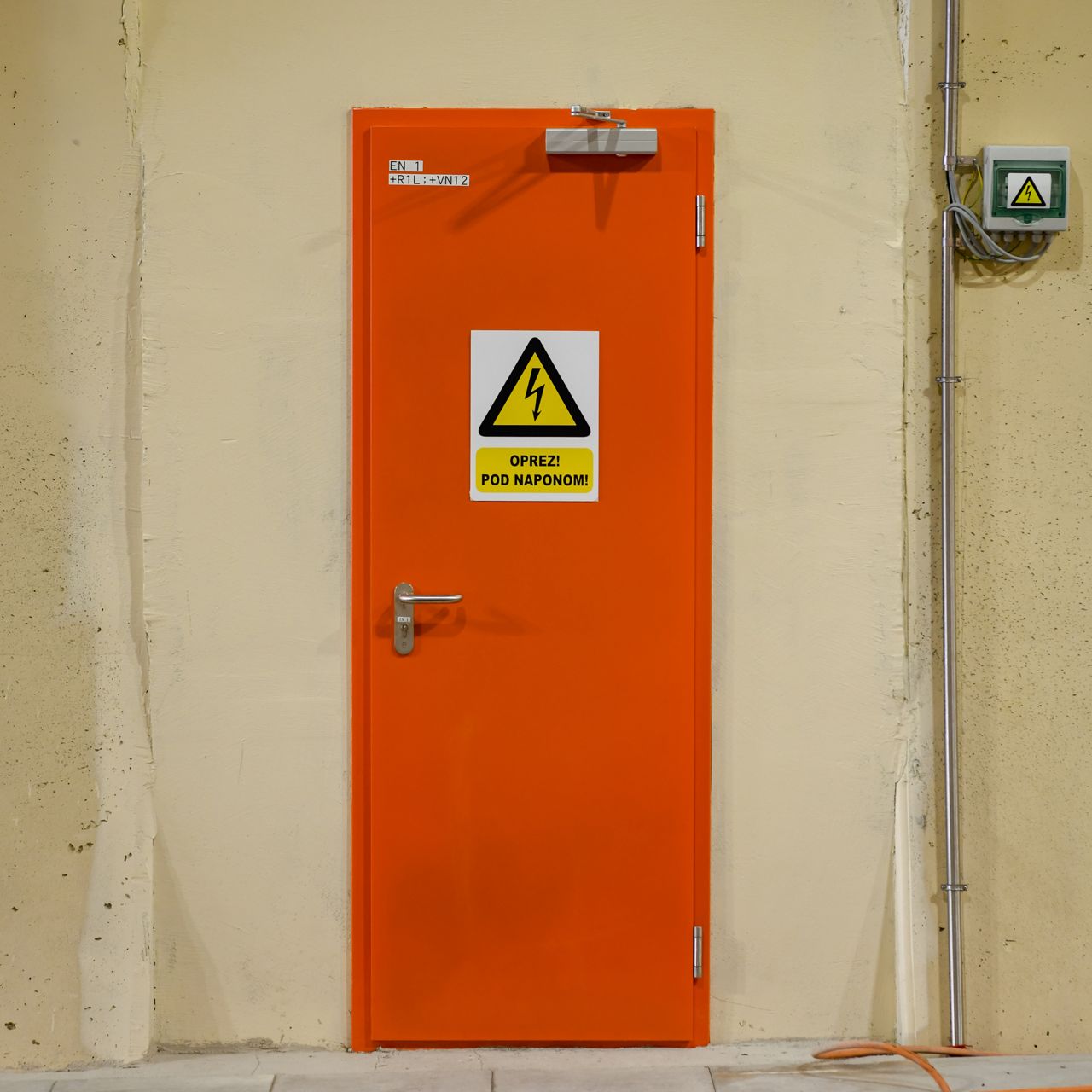

Electro niche

Construction:

• galvanised steel sheet / inox
• door leaf: sheet thickness 0,8 mm
• door jamb: sheet thickness 1,5 mm

Type designations:    EI30                   EI60                   EI90

Glass pane                PV-1/30-S         PV-1/60-S         PV-1/90-S

Solid                          PV-1/30            PV-1/60            PV-1/90

Finishing:

• primer
• plasticised in RAL colours or

Gaskets:

• in door frame (four-sided) rubber black

Fittings:

• door lock

• inox hinges
• door handle with round rosette
• cylinder
• reed contact
• hydraulic door closer

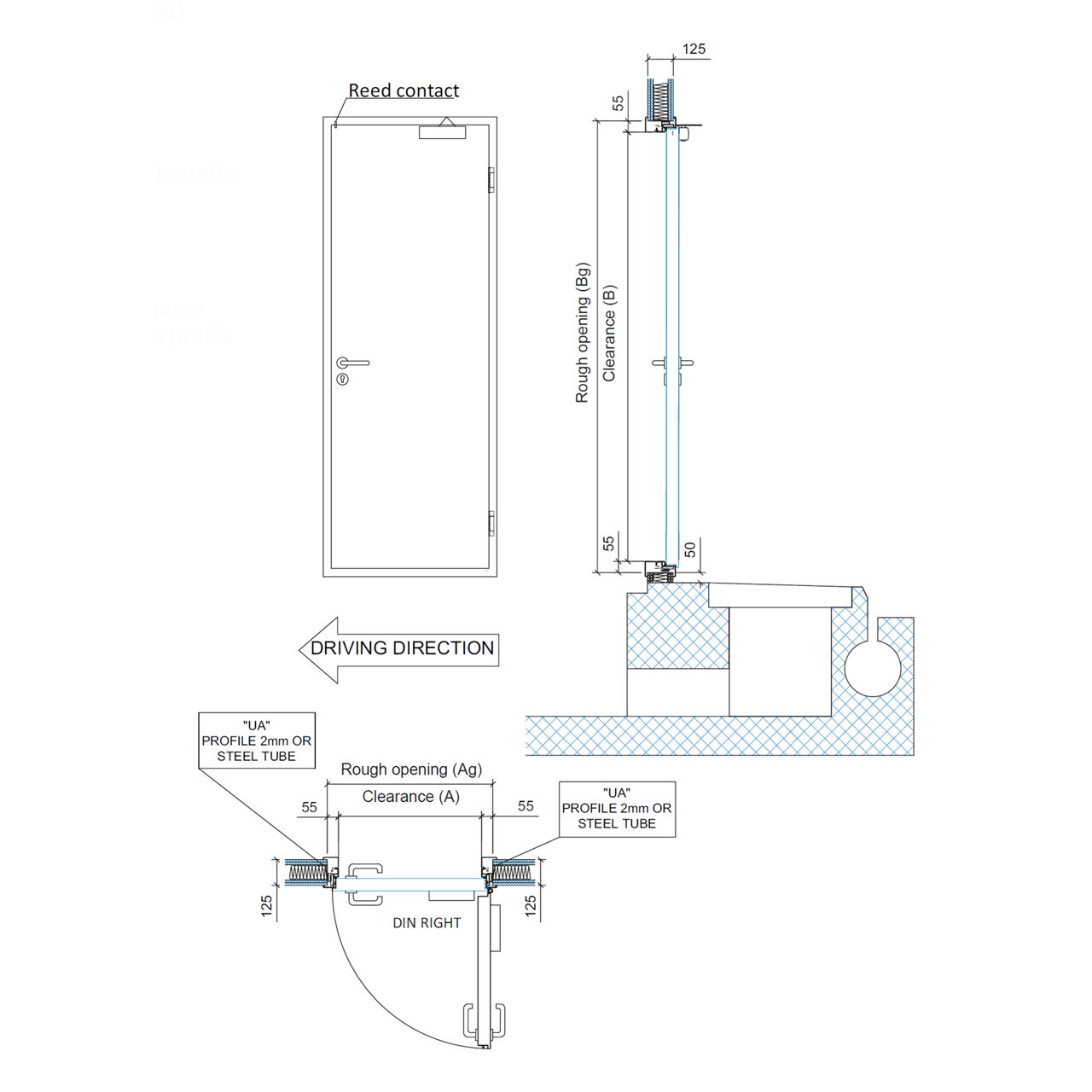

Installation: dry installation – door frame and wall joint with finish profile
