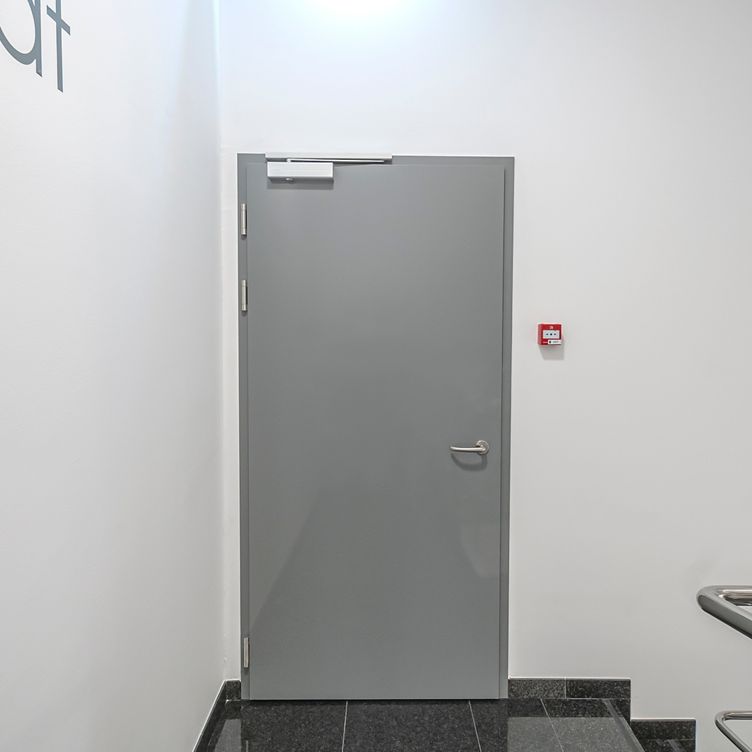

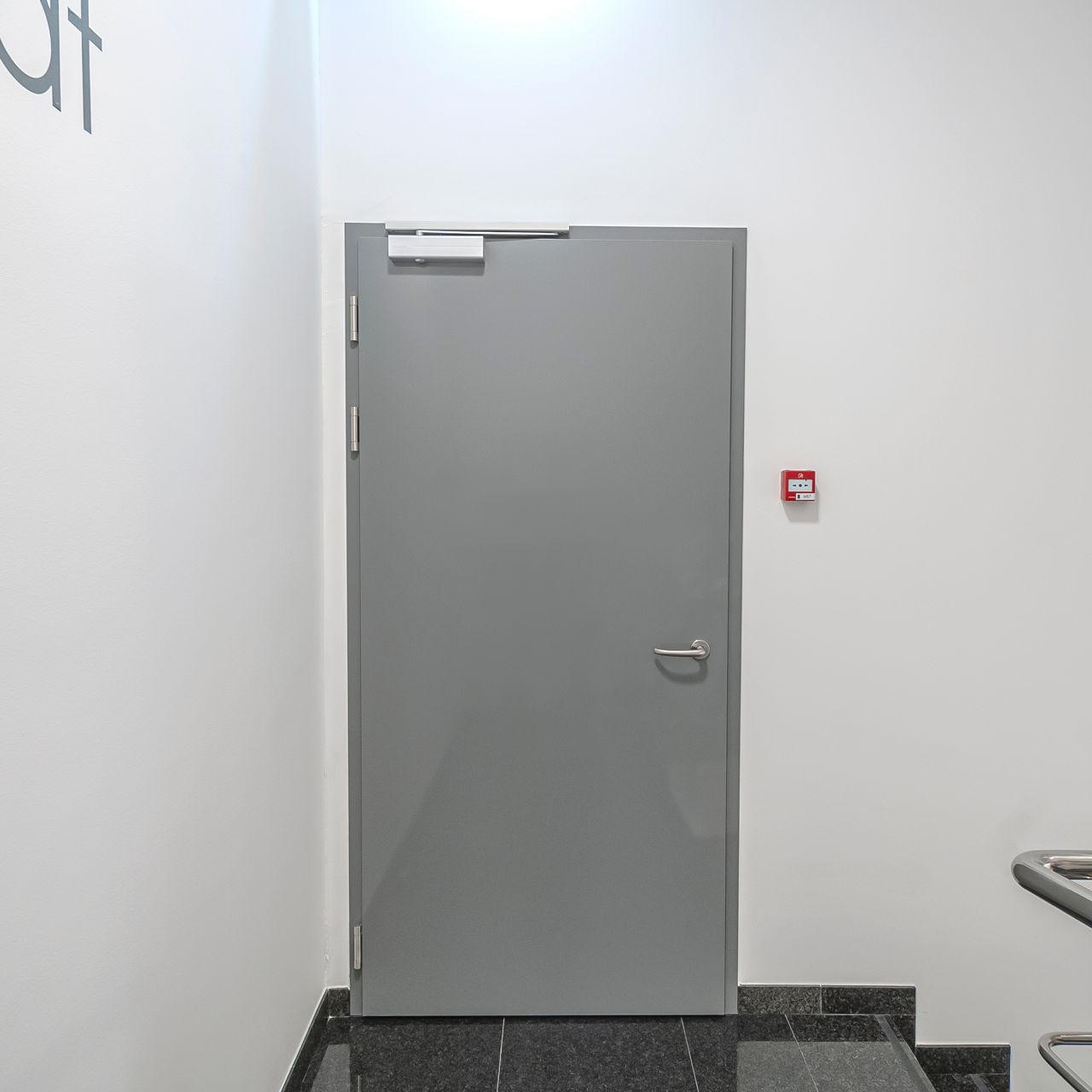

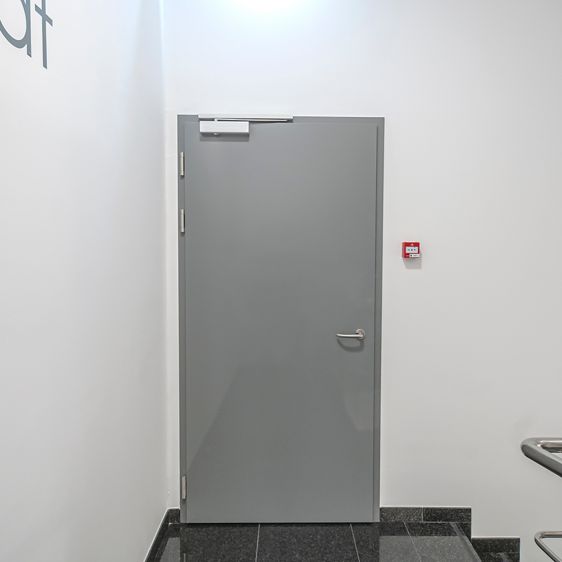

Smoke doors - steel

Construction:

• galvanised steel sheet
• door leaf: sheet thickness 0,8 mm
• door jamb: sheet thickness 1,5 mm

Type designations:

Single-leaf:

Glasss pane DN/1-S
Solid DN/1

Double-leaf:

Glasss pane DN/2-S
Solid DN/2

Finishing:

• galvanised or
• plasticised in RAL colours or
• veneered door leaf, plasticised door frame

Gaskets:

• in door frame (three-sided)rubber black
• in floorwith gasket – drop down seals

Fittings:

• door lock (standard or panic function)
• 3D inox hinges • door handle with round rosette (black PVC or stainless steel)
• cylinder with three keys (standard or with button)
• cylinder and handle rosette are round, separated
• hydraulic door closer with guide rail (standard RAL 9006)

Installation:

• dry installation – door frame and wall joint with finish profile

Leaf thickness: 62 mm

Leaf weight: approx 40 kg/m2

Glazing: glass thicnkess 12 mm
