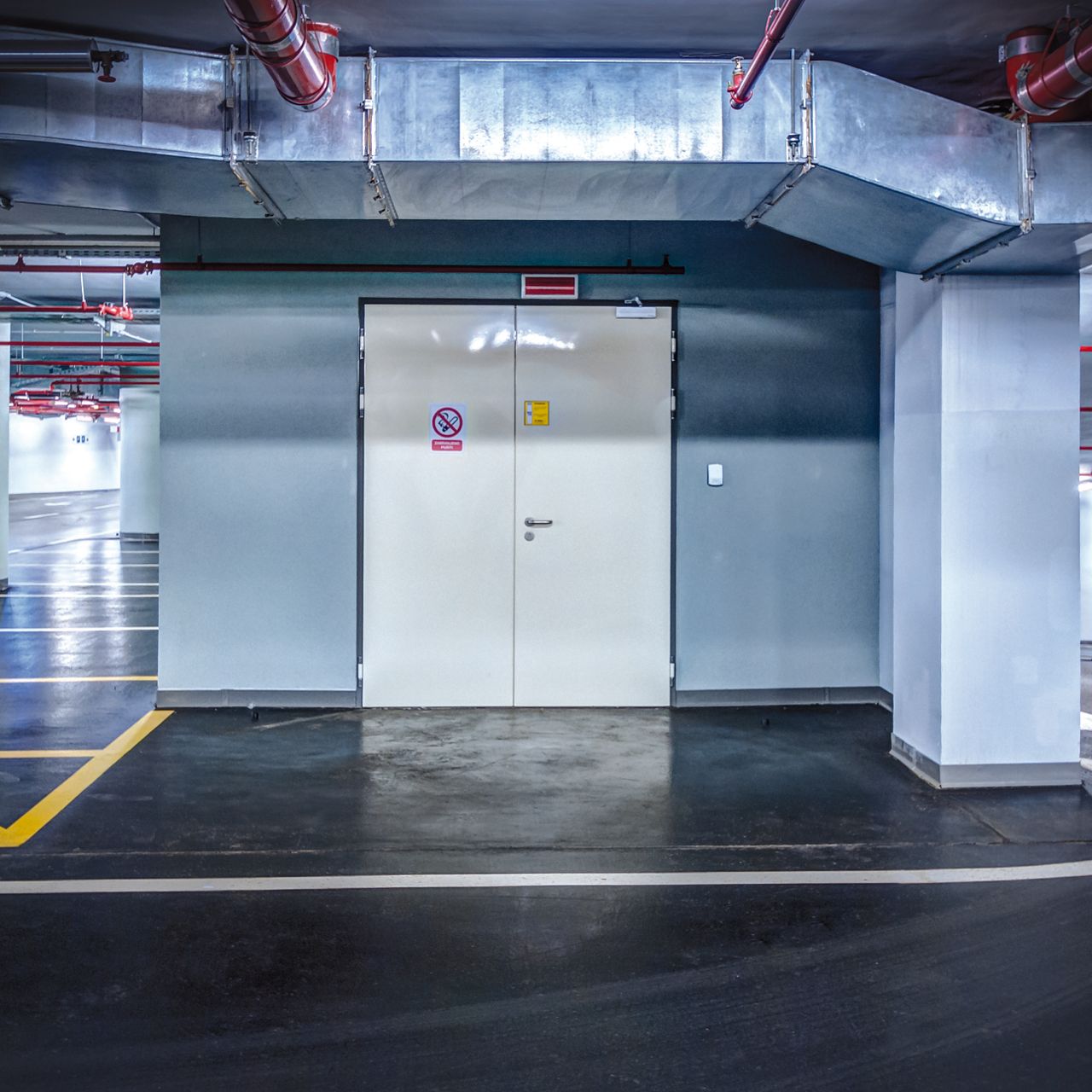

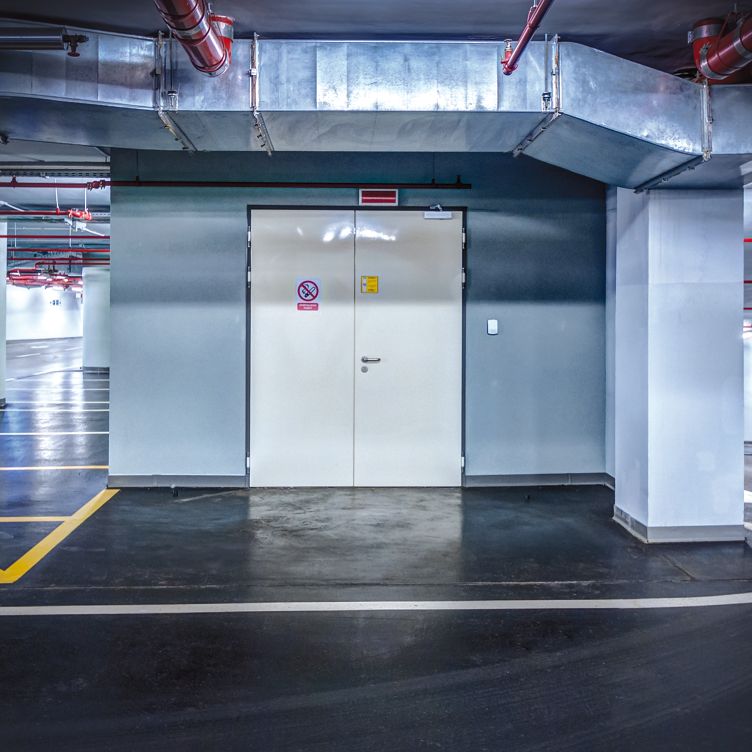

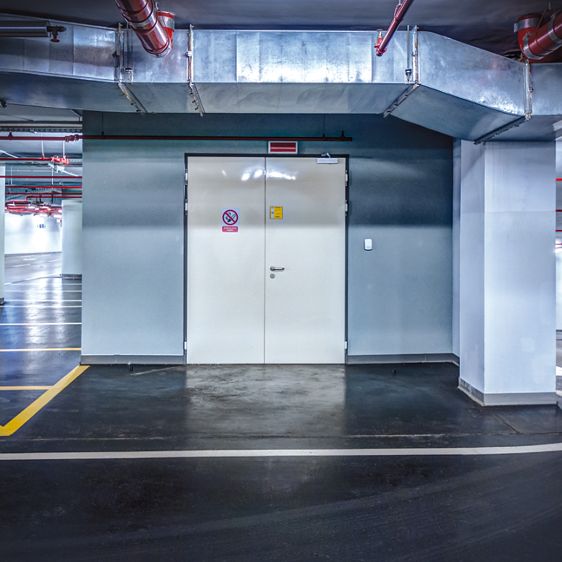

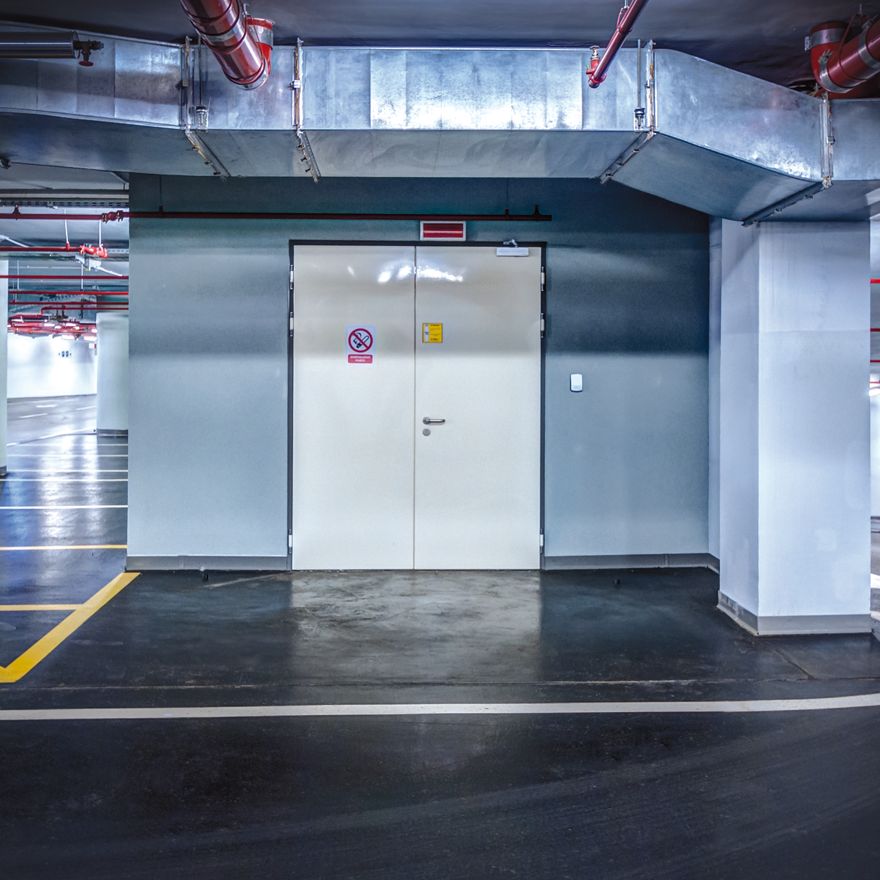

Steel fire doors / double-leaf FERRO 62 fire

Construction:

• galvanised steel sheet
• door leaf: sheet thickness 0,8 mm
• door frame: sheet thickness 1,5 mm

Design:

• glass pane, classes EI30, EI60, EI90
• solid, classes EI30, EI60, EI90 and EI120

TYPE DESIGNATIONS

EI30 glass pane PV-2/30-S solid PV-2/30

EI60 glass pane PV-2/60-S solid PV-2/60

EI90 glass pane PV-2/90-S solid PV-2/90

EI120 solid PV-2/120

Finishing options:

• galvanised
• plasticised in RAL colours
• veneered door leaf, plasticised door frame

Gaskets:

• in door frame (three-sided)
• rubber – self-extinguishing, black
• expanded, black
• in floor without gasket (standard), only fire door
• with gasket – drop down seals or threshold; fire / smoke / soundproof

Fittings:

• fire door lock EN 12209 (standard or panic function)
• 3D inox hinges
• fire door handle with round rosette (black PVC or stainless steel)
• cylinder with three keys (standard or with button)
• cylinder and handle rosette are round, separated
• hydraulic door closer for fire door EN 1154 with guide rail (standard RAL 9006)

Installation: dry installation – door frame and wall joint with finish profile

Leaf thickness: 62 mm

Leaf weight:

EI30 approx 40 kg/m2

EI60 approx 45 kg/m2

EI90 approx 60 kg/m2

EI120 approx 75 kg/m2

Double-leaf steel fire doors may also be available in smokeproof design – with EN 1634-3 certificate.
