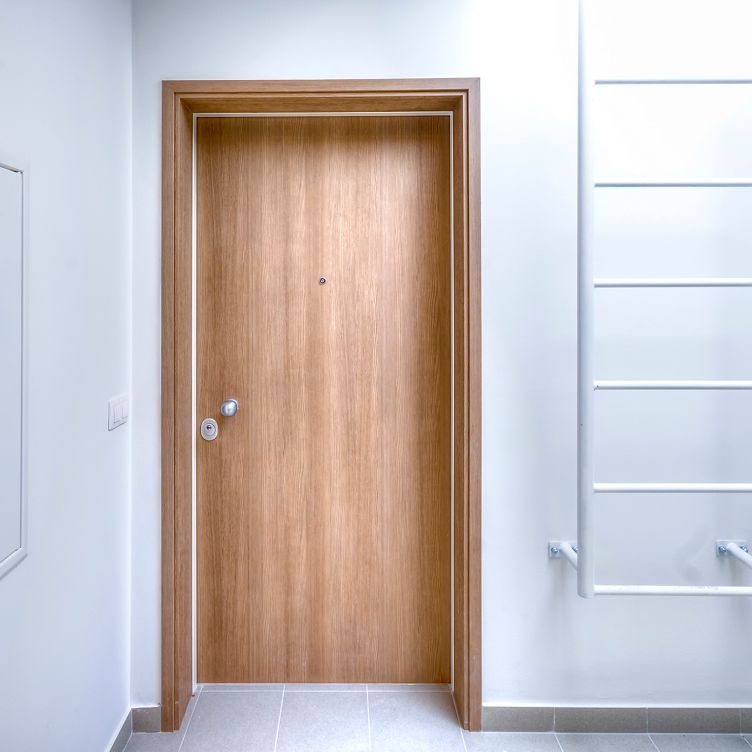

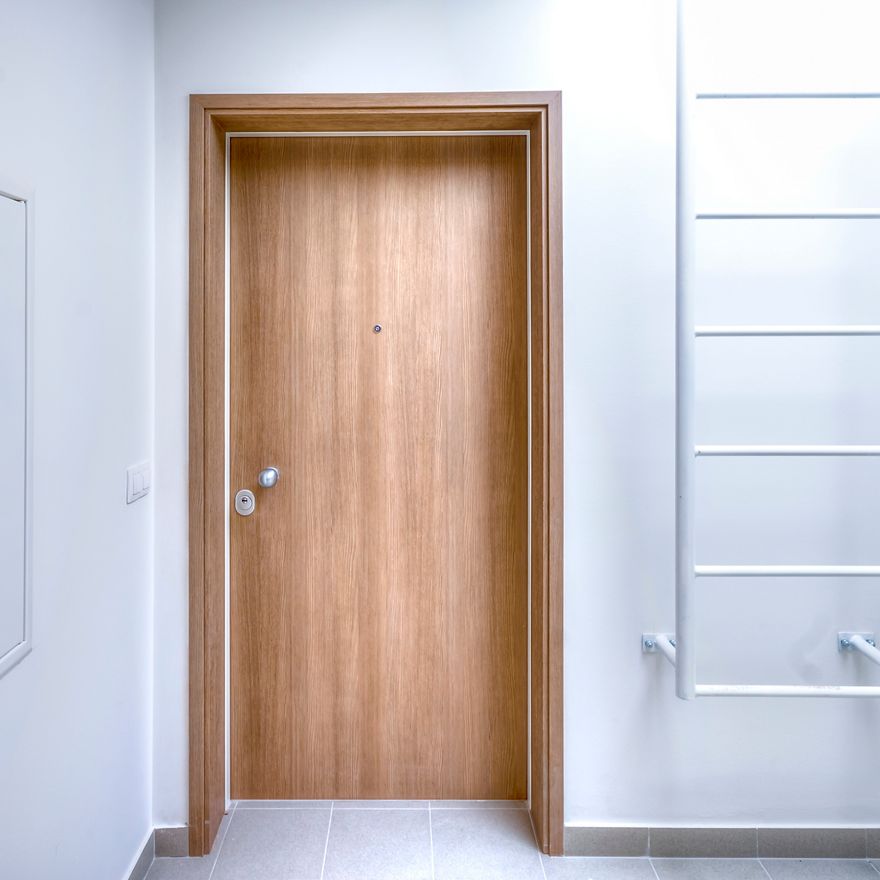

Steel fire-security-soundproof door

Construction:

• galvanised steel sheet
• door leaf: sheet thickness 0,8 mm, steel structure reinforcement on edges and diagonally
• door jamb: sheet thickness 2 mm

Type designations:

• CLASSIC EI30 - in RAL colours PPV30-C
• DECORE EI30 - with veneered door-leaf PPV30-D

Finishing:

• galvanised or
• plasticised in RAL colours or
• veneered door leaf, plasticised door frame

Gaskets:

• in door frame (three-sided) rubber – self-extinguishing, black expanded, black
• in floor
• with gasket – drop down seals or threshold, fire / smoke / soundproof

Fittings:

• fire door lock ASSA ABLOY NEMEF EXCELLENCE LINE 3-POINT LOCK
• 3D inox hinges • fire door handle or knob with round rosette (stainless steel)
• cylinder MAUER ELITE 2 (with 5 keys and the owner’s card)
• cylinder and handle rosette are round, separated
• additional cylinder mechanical protection by defender (stainless steel)
• peephole
• safety fixed pins in door leaf next to hinges, into the door jamb

Installation: dry installation – door frame and wall joint with finish profile

Leaf thickness: 62 mm or 70 mm
