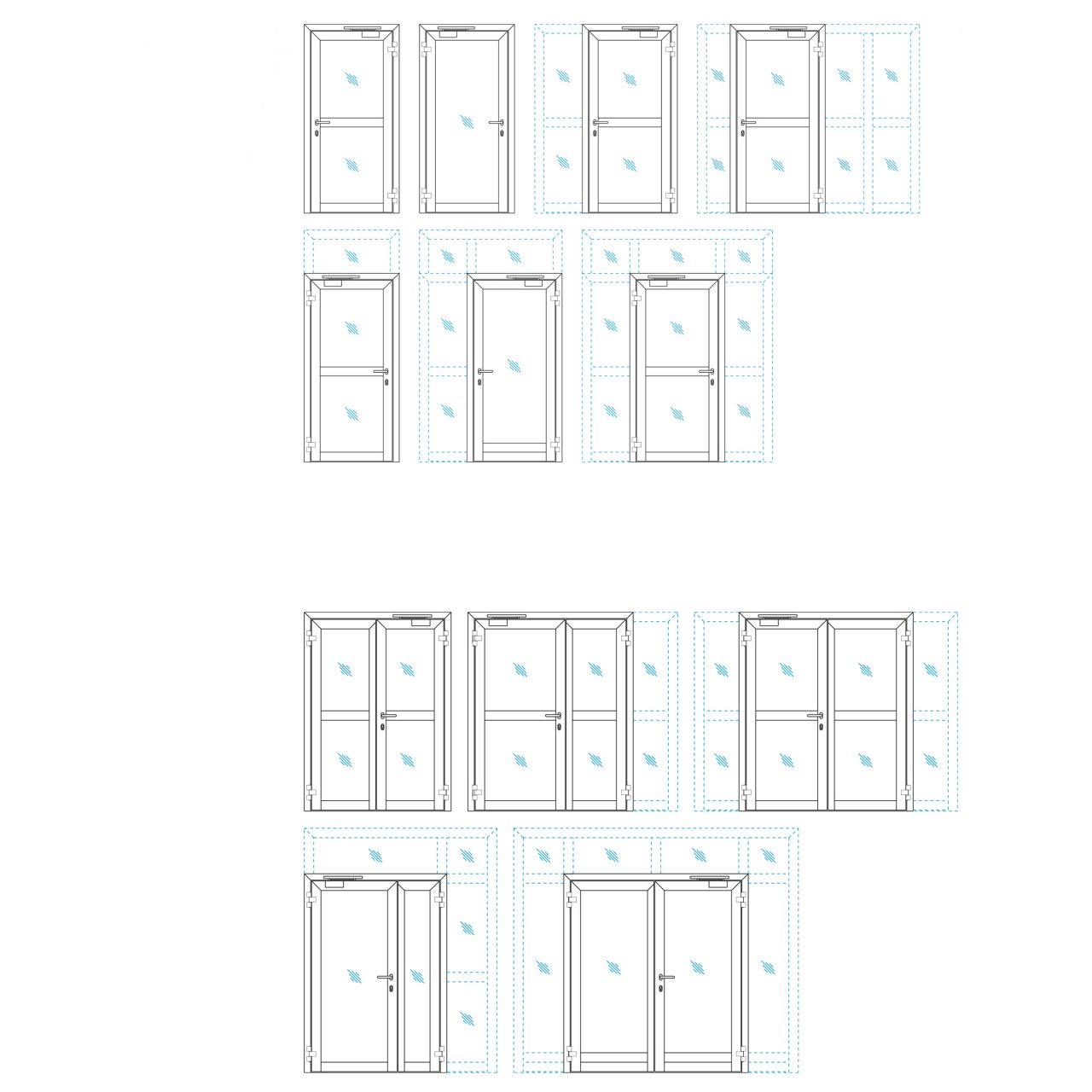

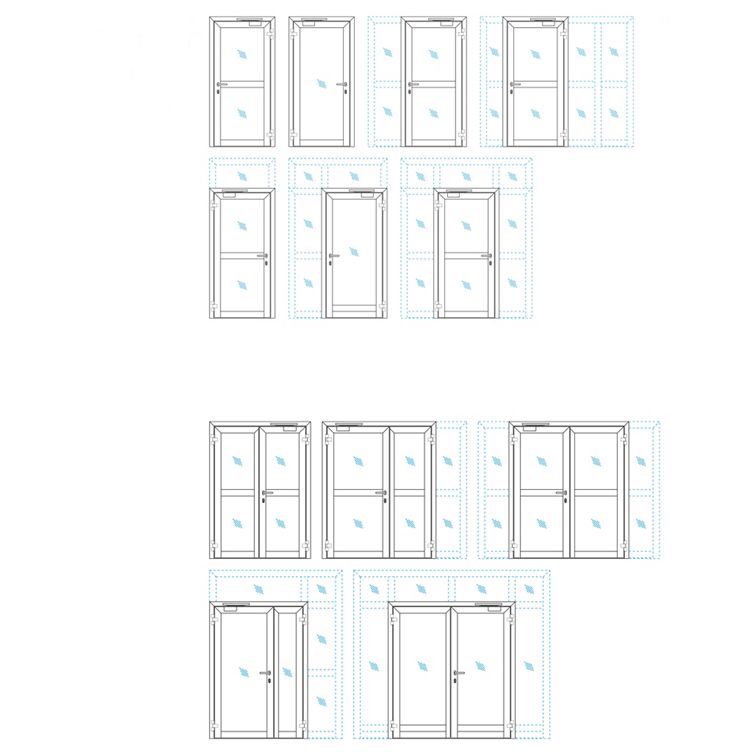

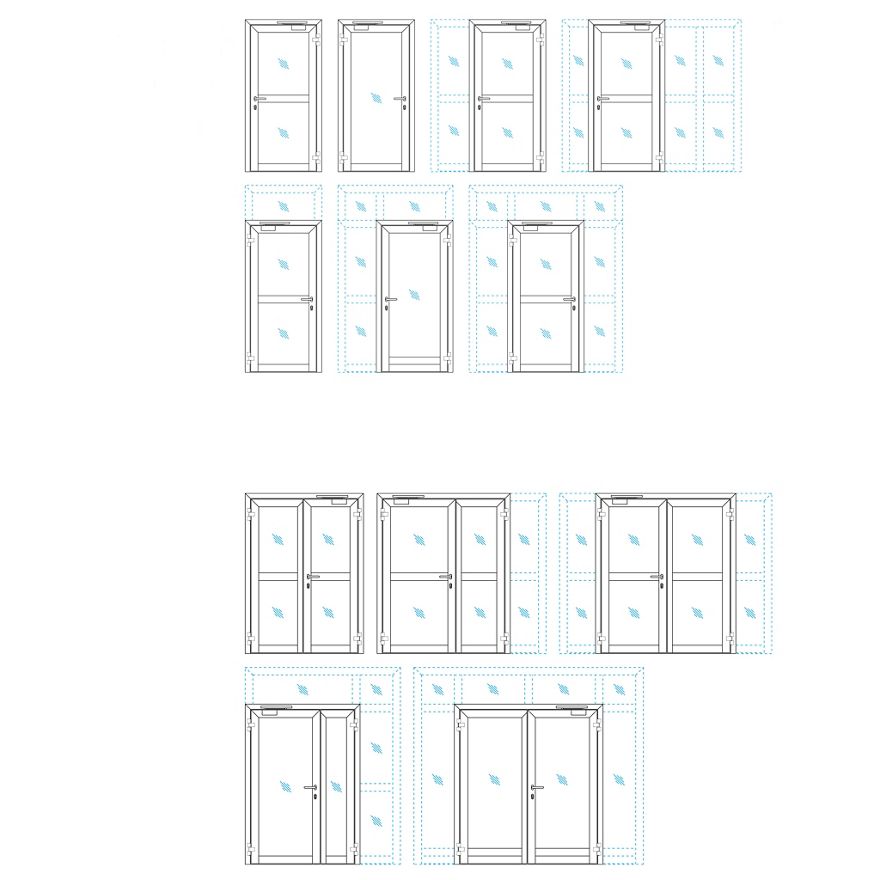

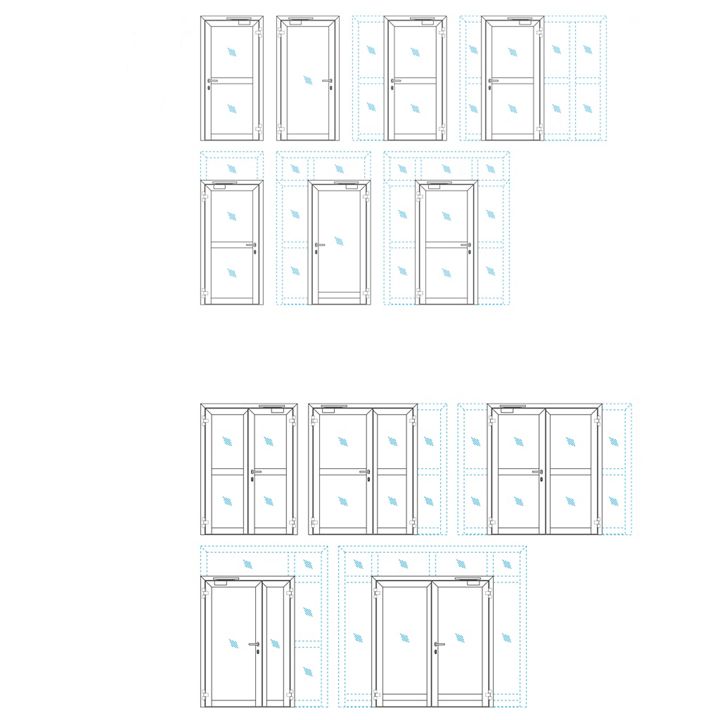

Aluminium fire doors / single-leaf / double leaf / fixed fire wall

Construction:

• fire insulation lining
• finish lining - standard aluminium profiles TM 75 and TM 90

Design: fire resistance classes EI30, EI60 and EI90

Type designations:    EI30                   EI60                   EI90

Glass pane                   PV-1/30-Y          PV-1/60-Y            PV-1/90-Y

Glass pane                   PV-2/30-Y         PV-2/60-Y           PV-2/90-Y

Glass pane                   PS-30-Y             PS-60-Y              PS-90-Y

Finishing: plasticised in RAL colours or

Gaskets:

• in door frame (three-sided) rubber – self-extinguishing, black expanded, black
• in floor
• without gasket (standard), or
• with gasket – drop down seals or threshold

Fittings:

• fire door lock EN 12209 (central)
• 3d adjustable hinge (2 pcs)
• fire door handle with oval rosette EN 1906 – stainless steel
• rosette for cylinder and handle, oval, separated – stainless steel
• cylinder with three keys (standard or with wheel)
• hydraulic door closer for fire door EN 1154

Glazing:

• glazing with fire resistant glass, classes EI30, EI60 and EI90
• maximum glass pane dimensions 1070 x 2370 mm

Installation:

• on finished wall
• on unfinished wall – installation of door buck, wall finishing before door installation

Single-leaf steel fire doors may also be available in smokeproof design – with EN 1634-3 certificate.

The doors are certified by a certified institution as a standard product under an applicable standard, complete classification (according to EN 1634-1 and EN 16034)
