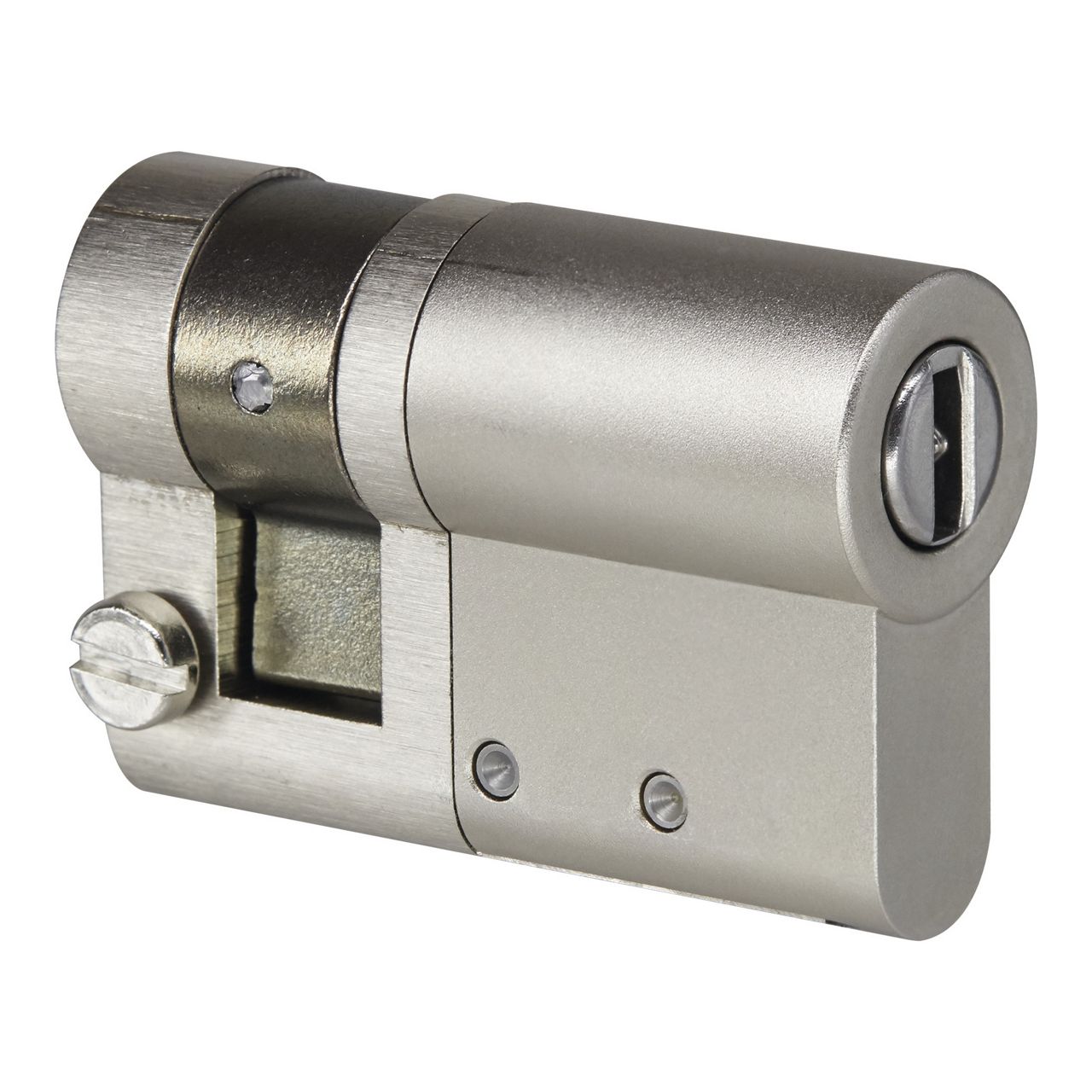

Switch cylinder eCLIQ N098

Product description

Available as electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Steel cam

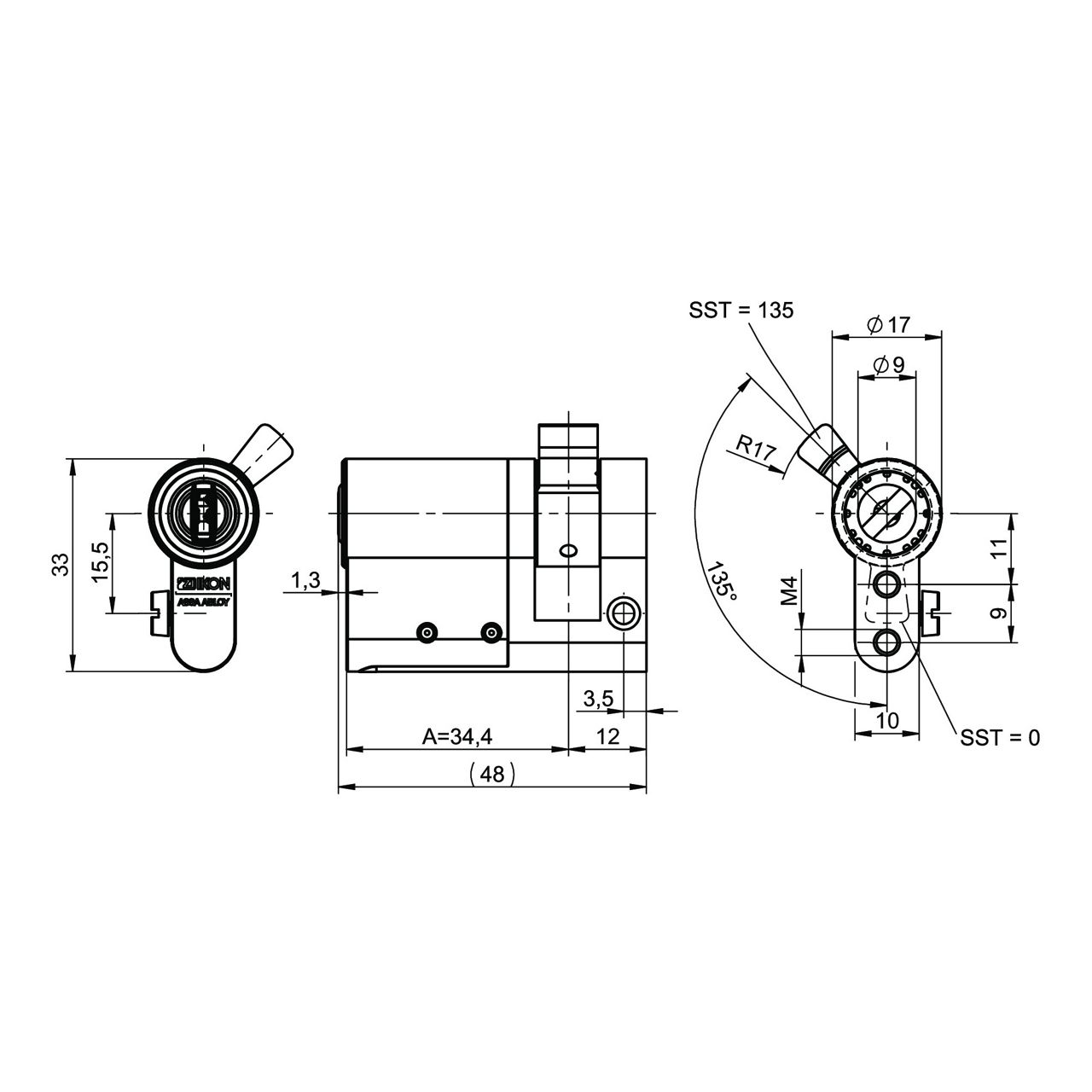

Cam radius 17 mm
Standard cam position 0° (SST=0)
Optionally available with cam position 135° (SST=135)
2 rearward M4 drill holes
1 lateral M4 drilling for ground screw
Fixed total length 47 mm
Maintenance-free for up to 200,000 cycles
Dust and rain cover available (SUR=3) IP55
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery
