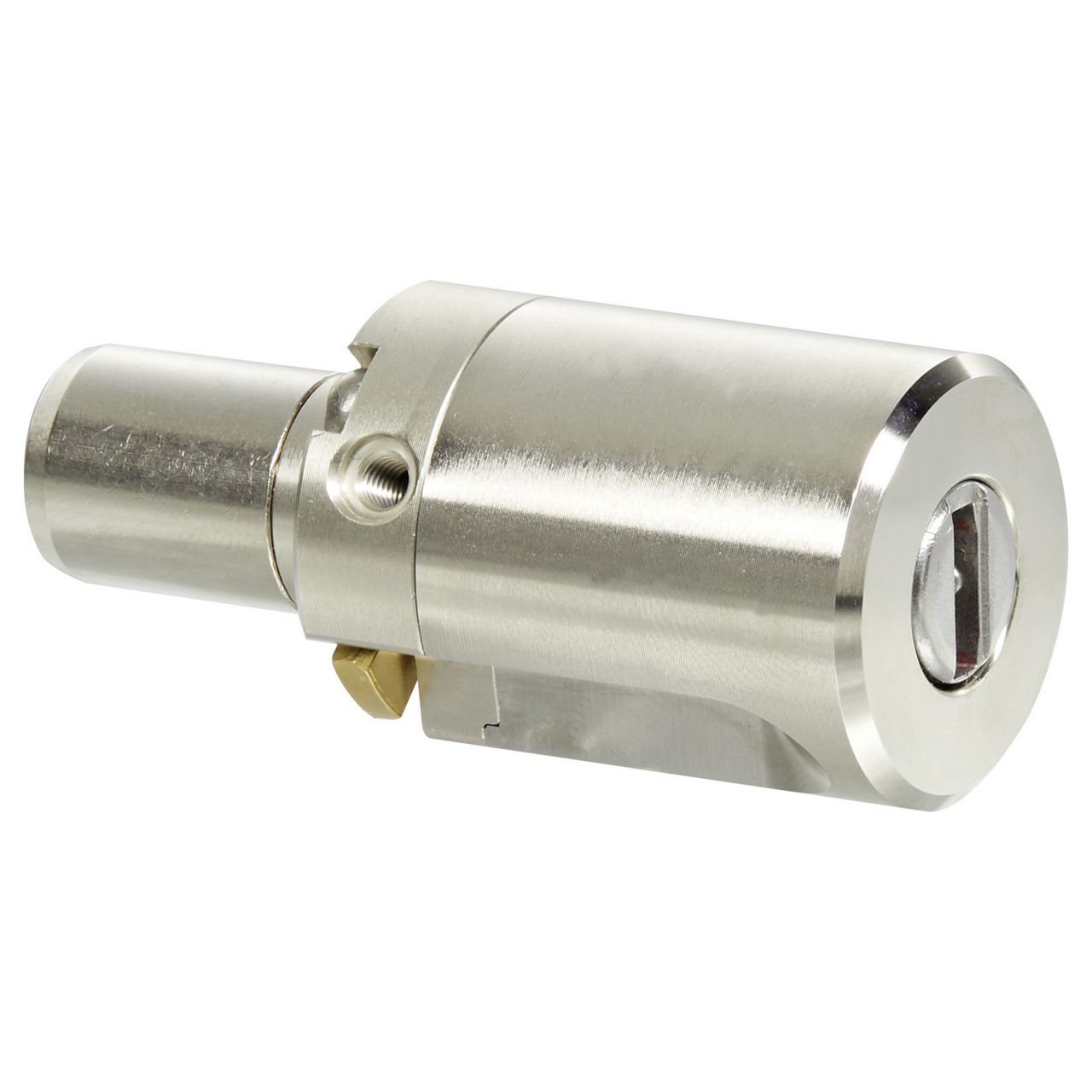

Push cylinder eCLIQ NC40

Product description

Available as electronical version (V=)
Standard finish, satin nickel-plated (OF=MV)
Special cylinder for application in closing sleeves optimal for use in glas sliding doors e.g. in conjuction with KESO closing sleeves G.052

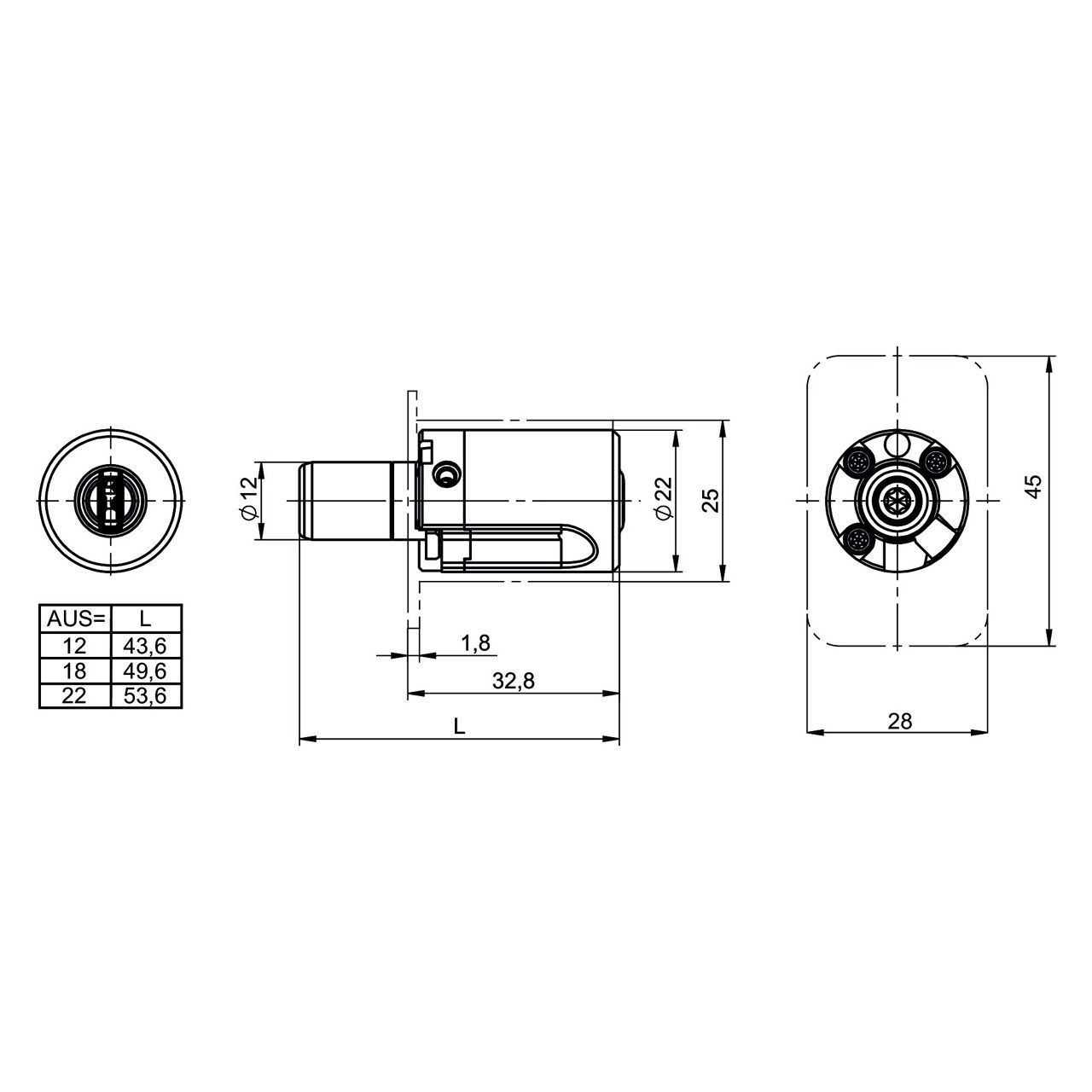

22 mm diameter
Available with 12, 18 or 22 mm hub (AUS=12, AUS=18, AUS=22)
Maintenance-free for up to 200,000 cycles
Splash-proof IP54
Dust and rain cover available (SUR=1) IP55
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery

Ordering Information
