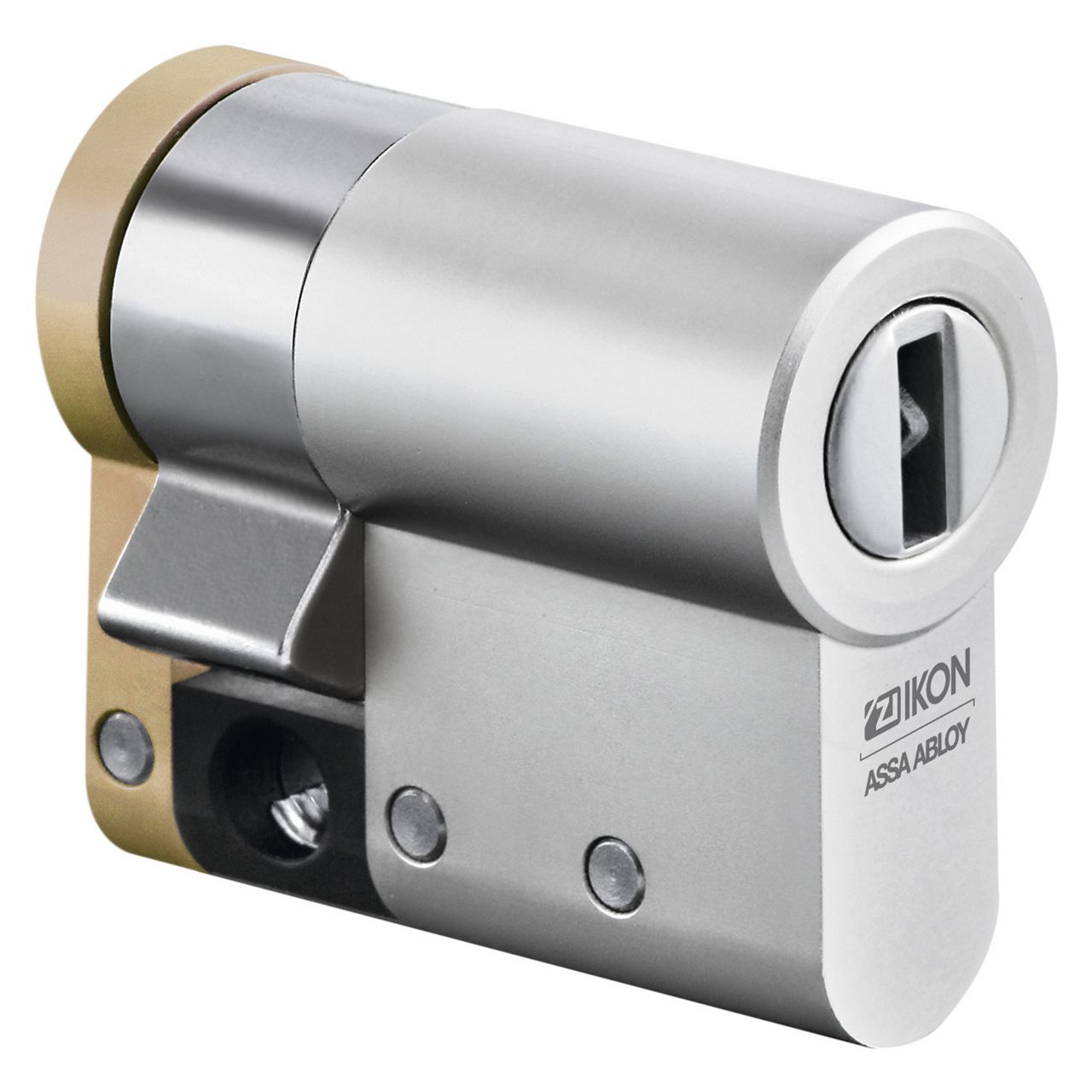

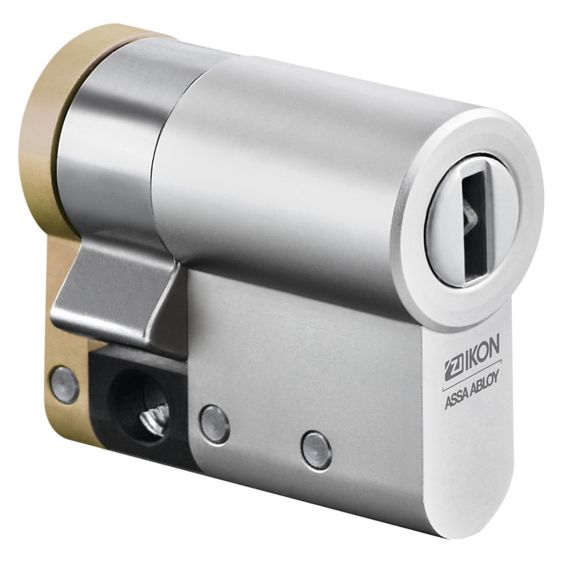

Profile-half cylinder eCLIQ N532

Product description

Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)

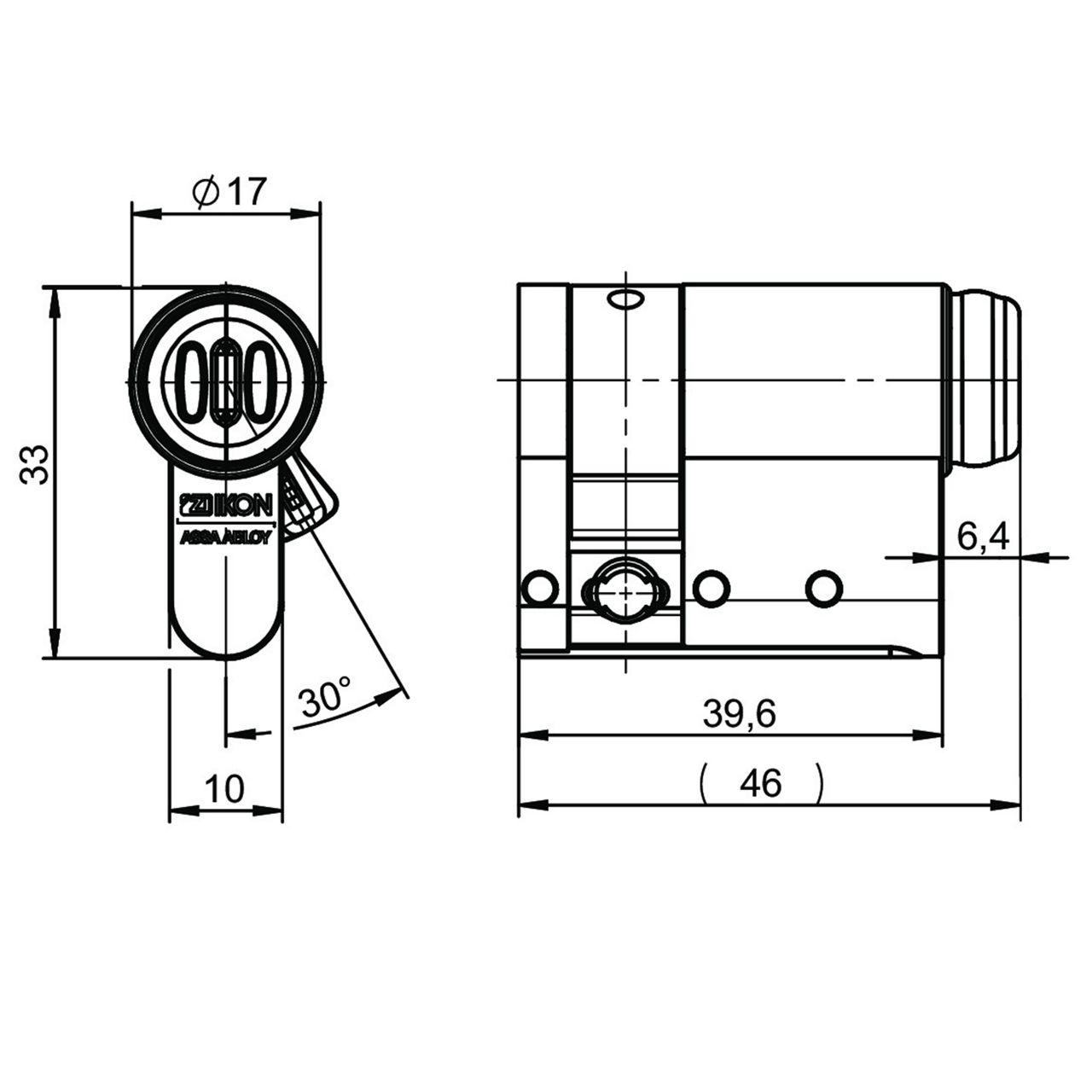

Basic cylinder length of 30 mm (A) (L=30) - Other installation lengths available - Adaptable housing kit

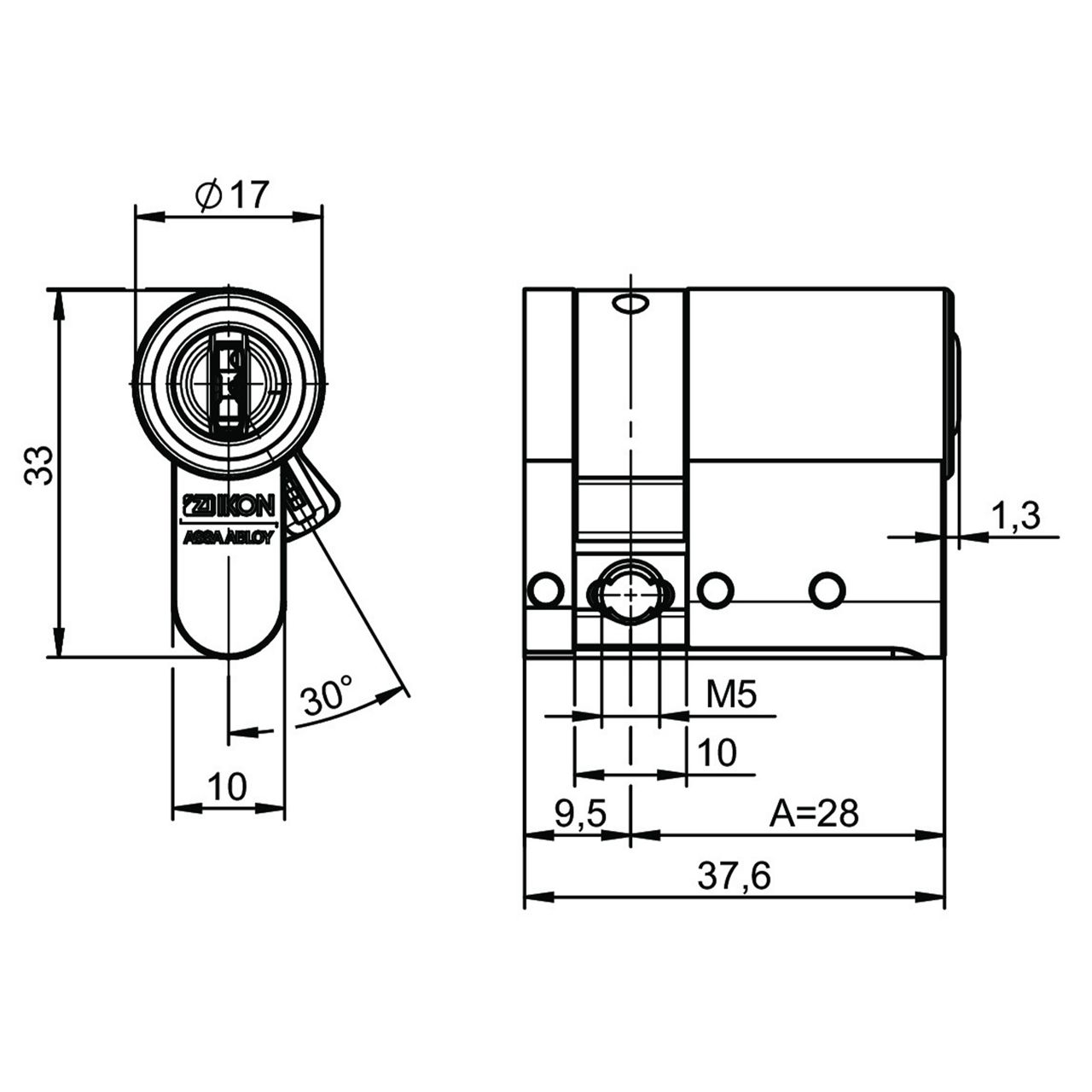

Optional, differing basic cylinder length of 28 mm (A) (L=28)
Standard locking cam position 45°; differing locking cam positions available in 30° and 45° steps
Standard with rigid connection (VAR=STARR) and free adjustable locking cam set to 45° (SST=FLEX). Differing locking cam positions available

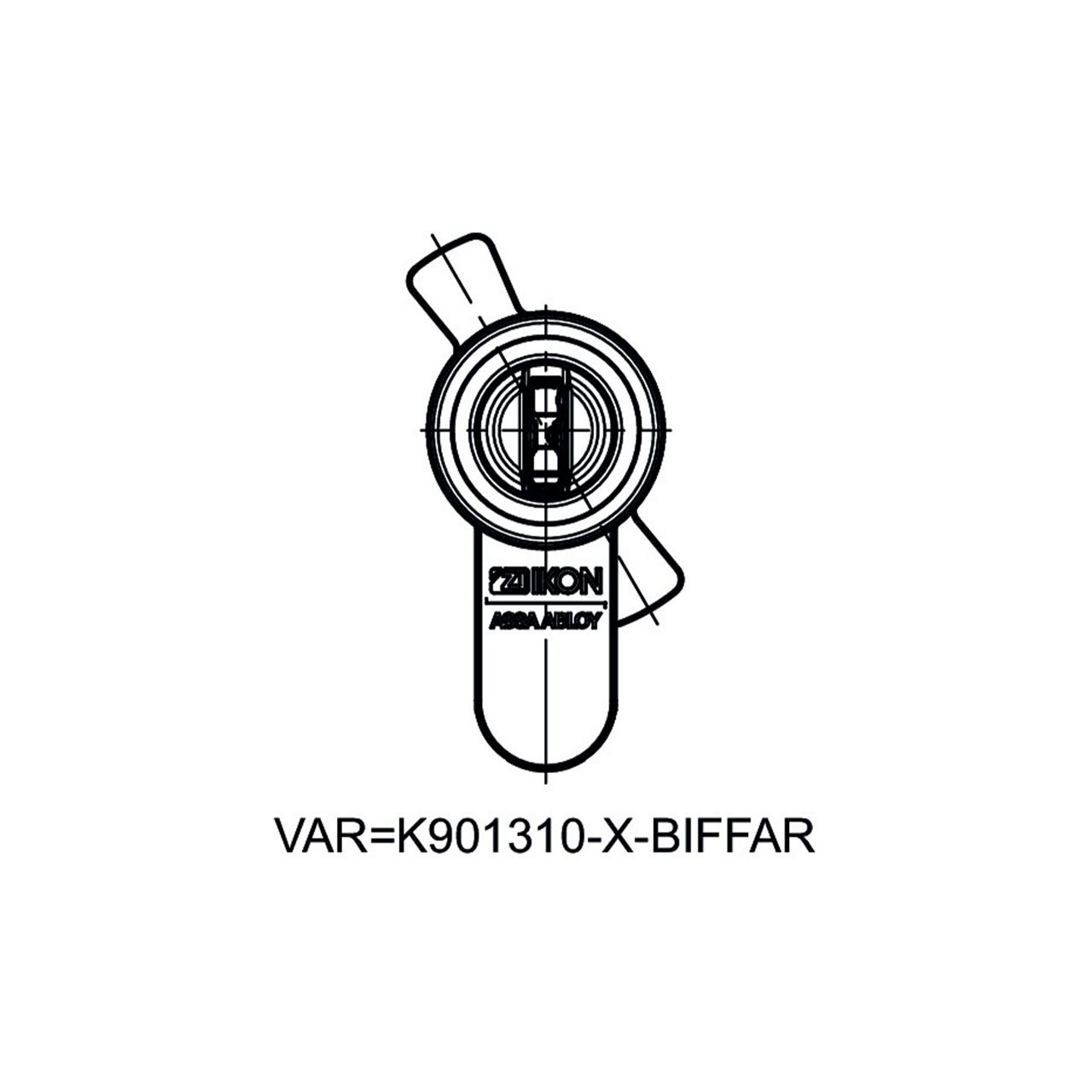

Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
Optional with SST=FZG possible
Free-wheeling function only without VAR=STARR
Optionally available with anti drilling protection class 2 (AB=2)
Cam made of break-proof, corrosion-resistant stainless steel
Maintenance-free for up to 200,000 cycles
Dust and rain cover available (SUR=3) IP55
Splash-proof IP54

Optionally VdS★★★ (SZ=VDS-BZ+, AB=3)

Optionally DIN EN 15684 with anti drilling protection class 2 (SZ=DIN, AB=2)

Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)

Scope of delivery
