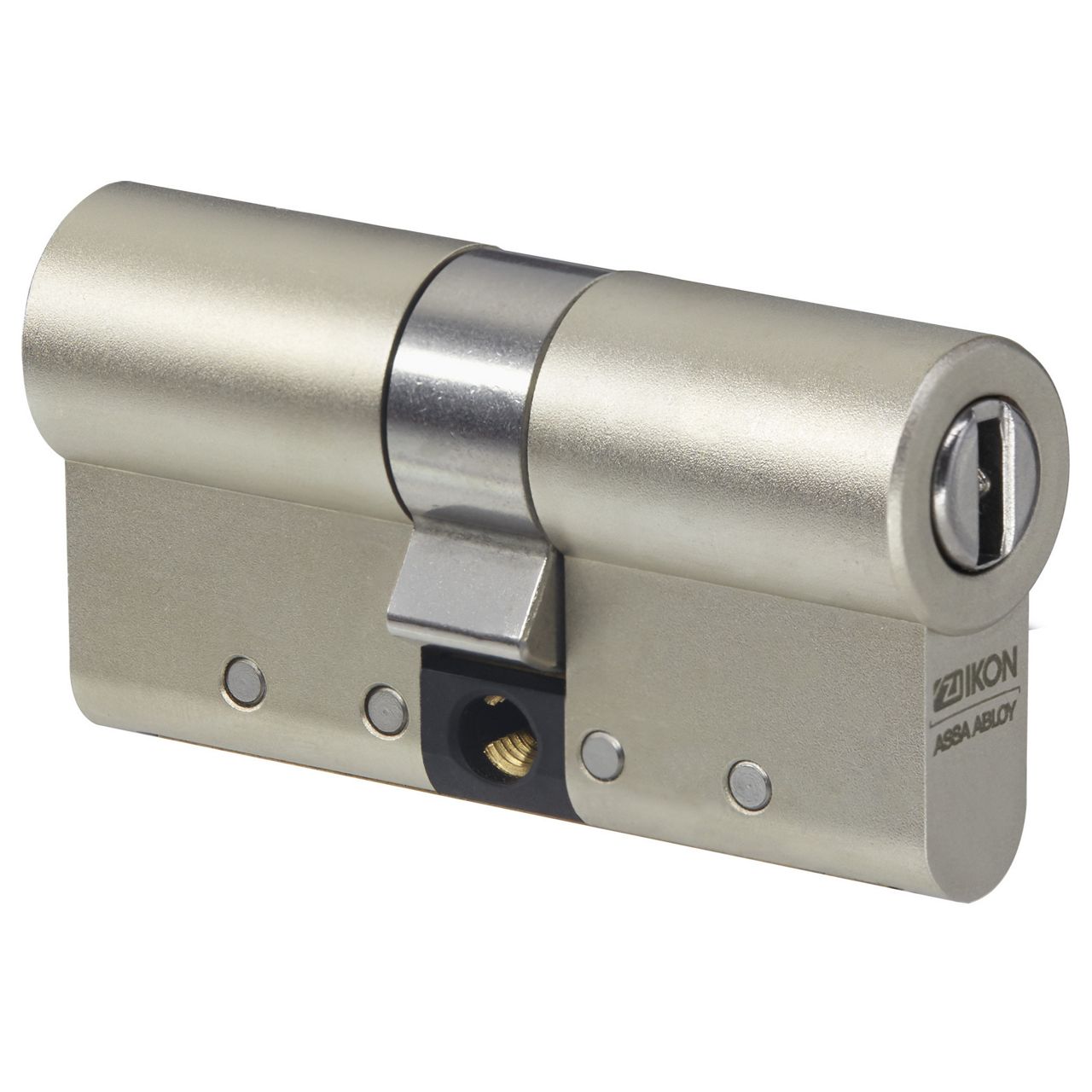

Profile-double cylinder eCLIQ N551

Product description

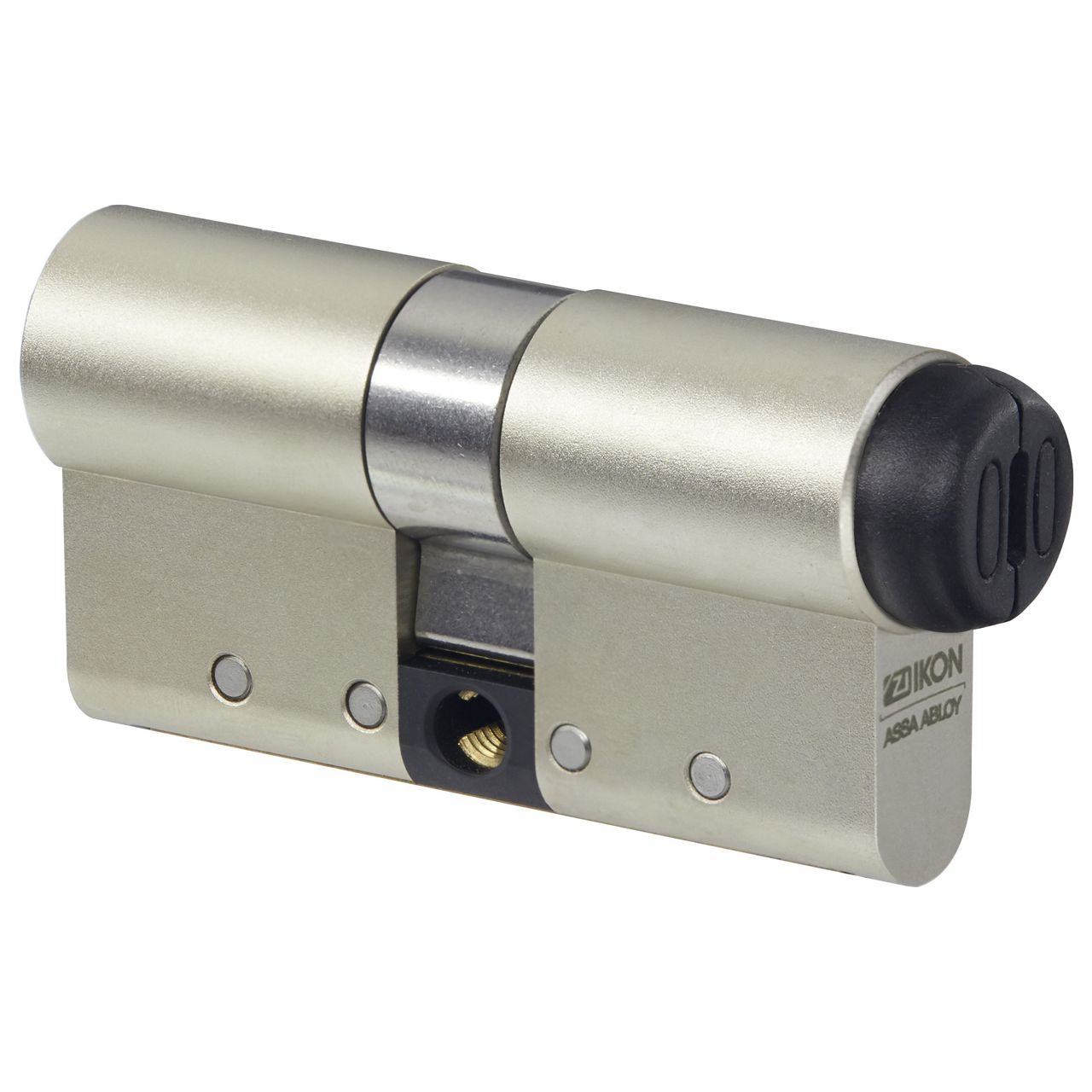

Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)

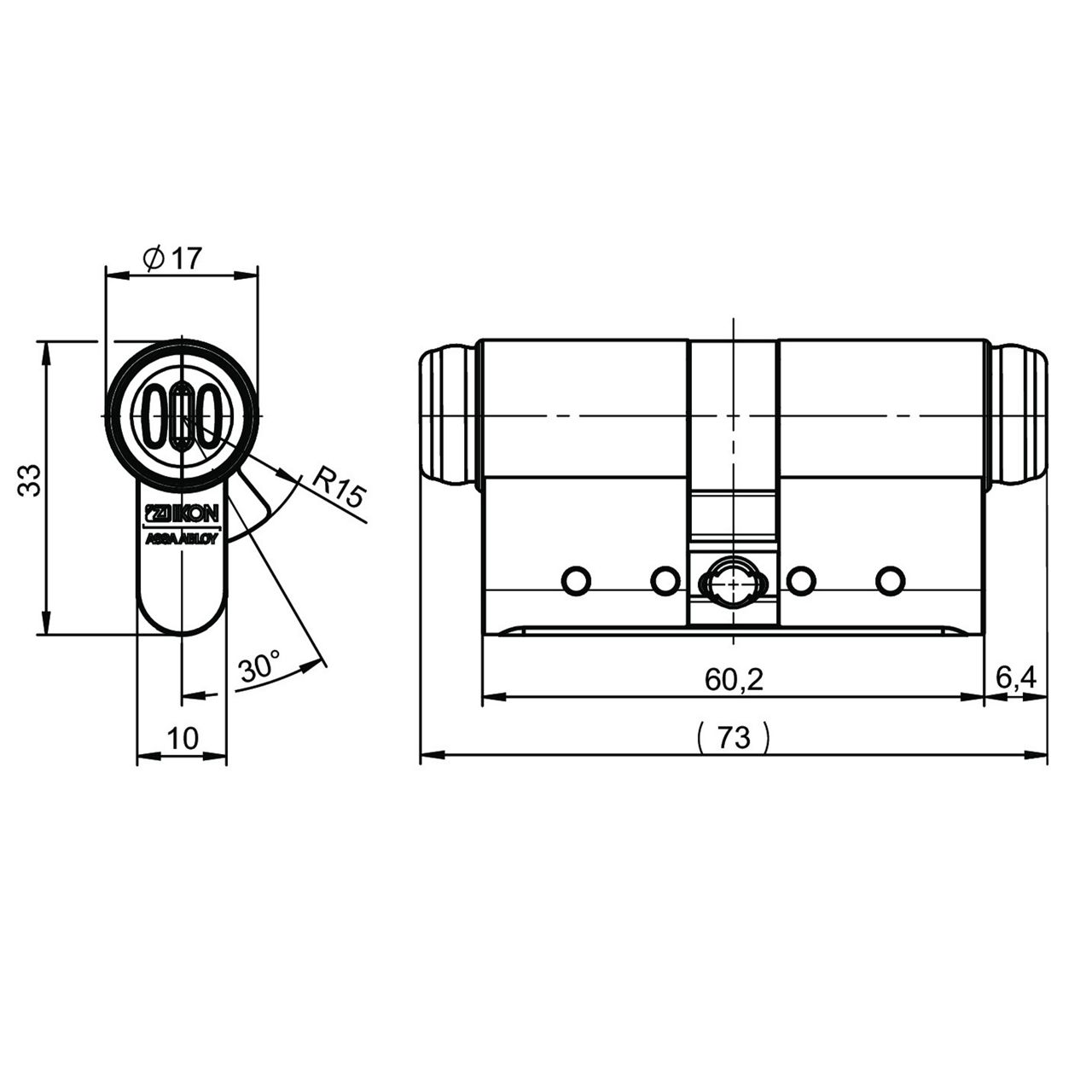

Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system

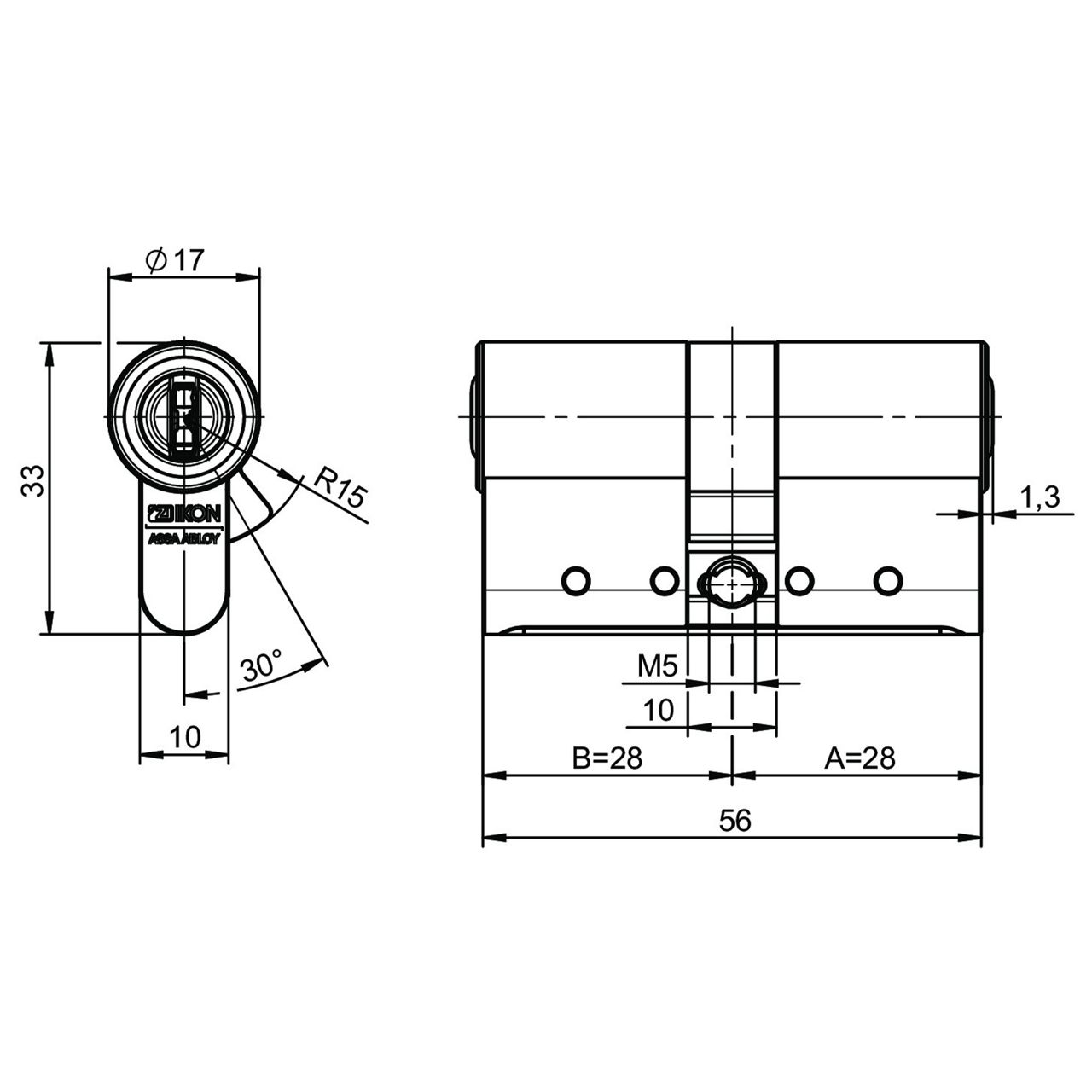

Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX

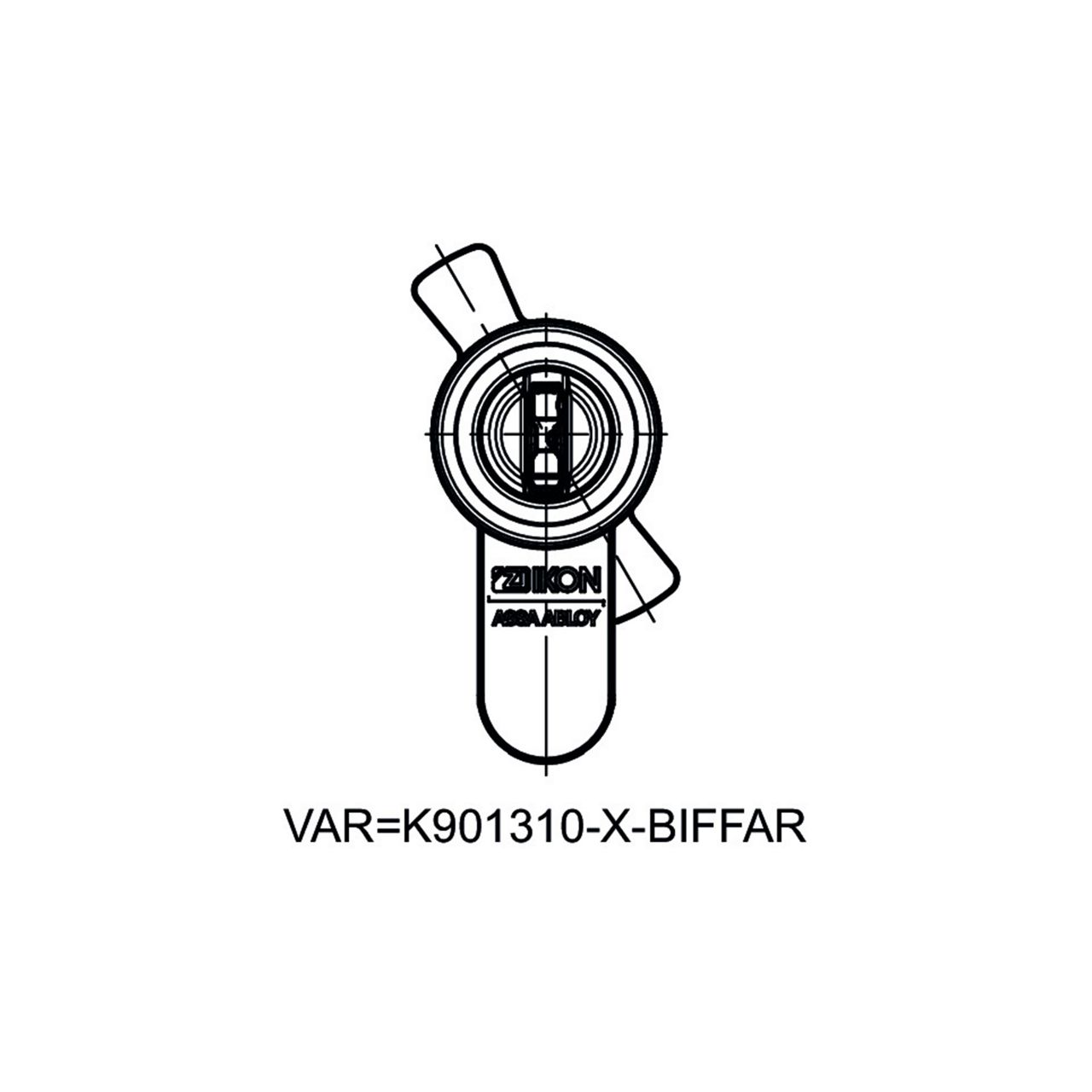

Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
Optionally available with anti drilling protection class 2 (AB=2)
Cam made of break-proof, corrosion-resistant stainless steel
Maintenance-free for up to 200,000 cycles
Splash-proof IP54
Dust and rain cover for one side available (SUR=3) IP55

Optionally VdS★★★ (SZ=VDS-BZ+, AB=3)

Optionally DIN EN 15684 with anti drilling protection class 2 (SZ=DIN, AB=2)

Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
