Cylinder eCLIQ
Locking lever cylinder eCLIQ

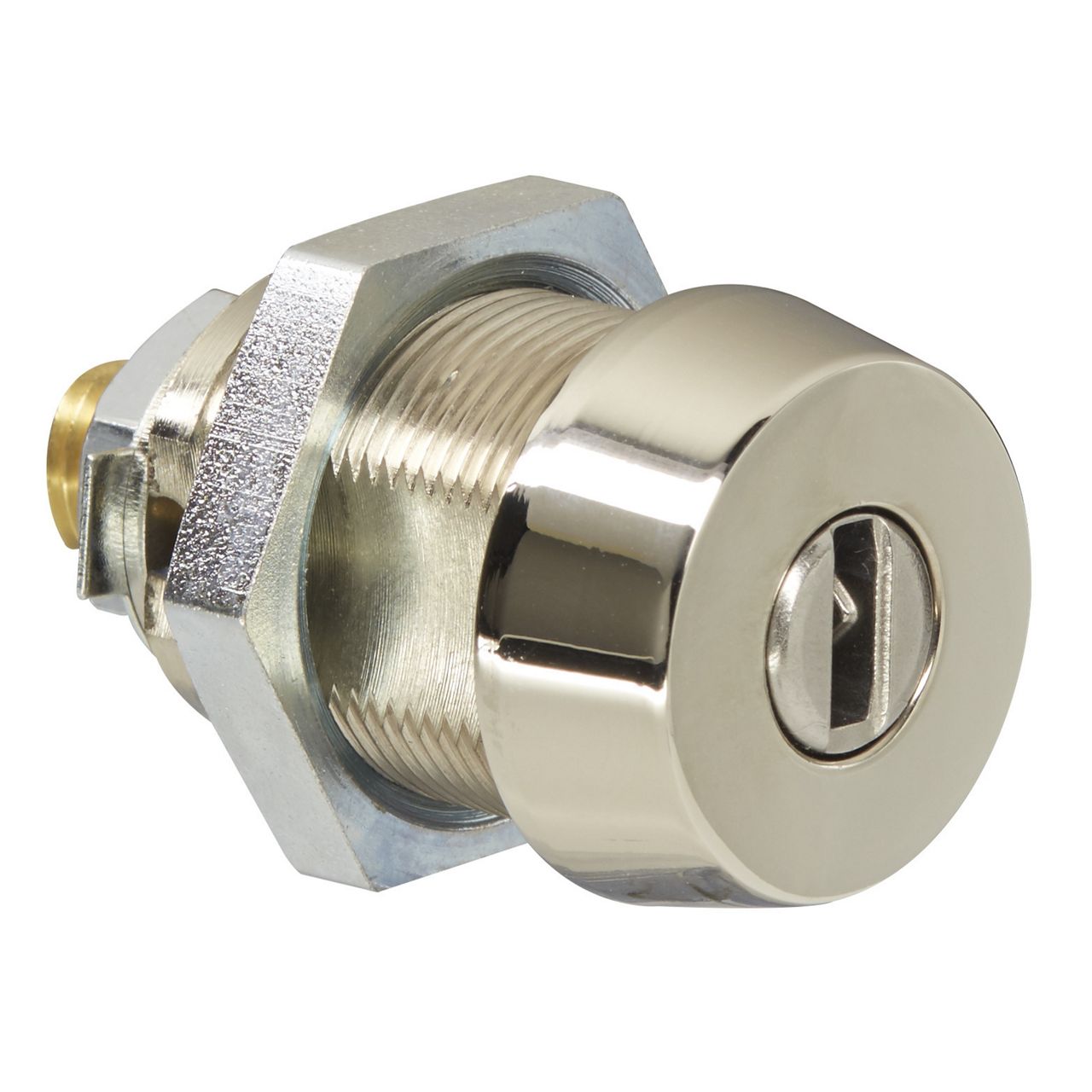

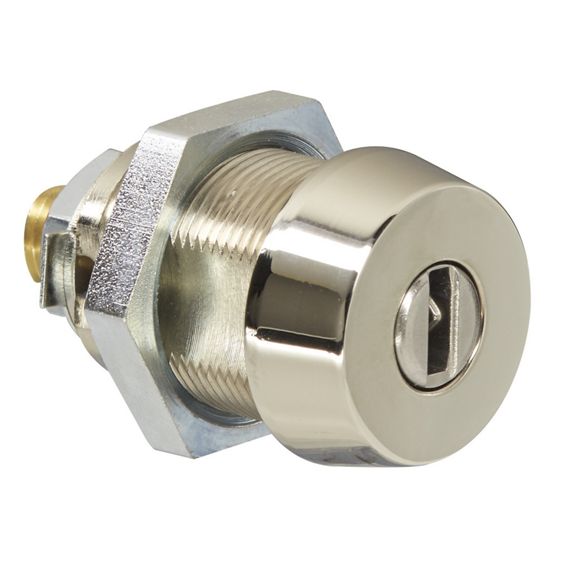

Locking lever cylinder eCLIQ NT02
Product description
Ideal for application in letter boxes, lockers and metal cabinets with cylinder lever locks 21mm

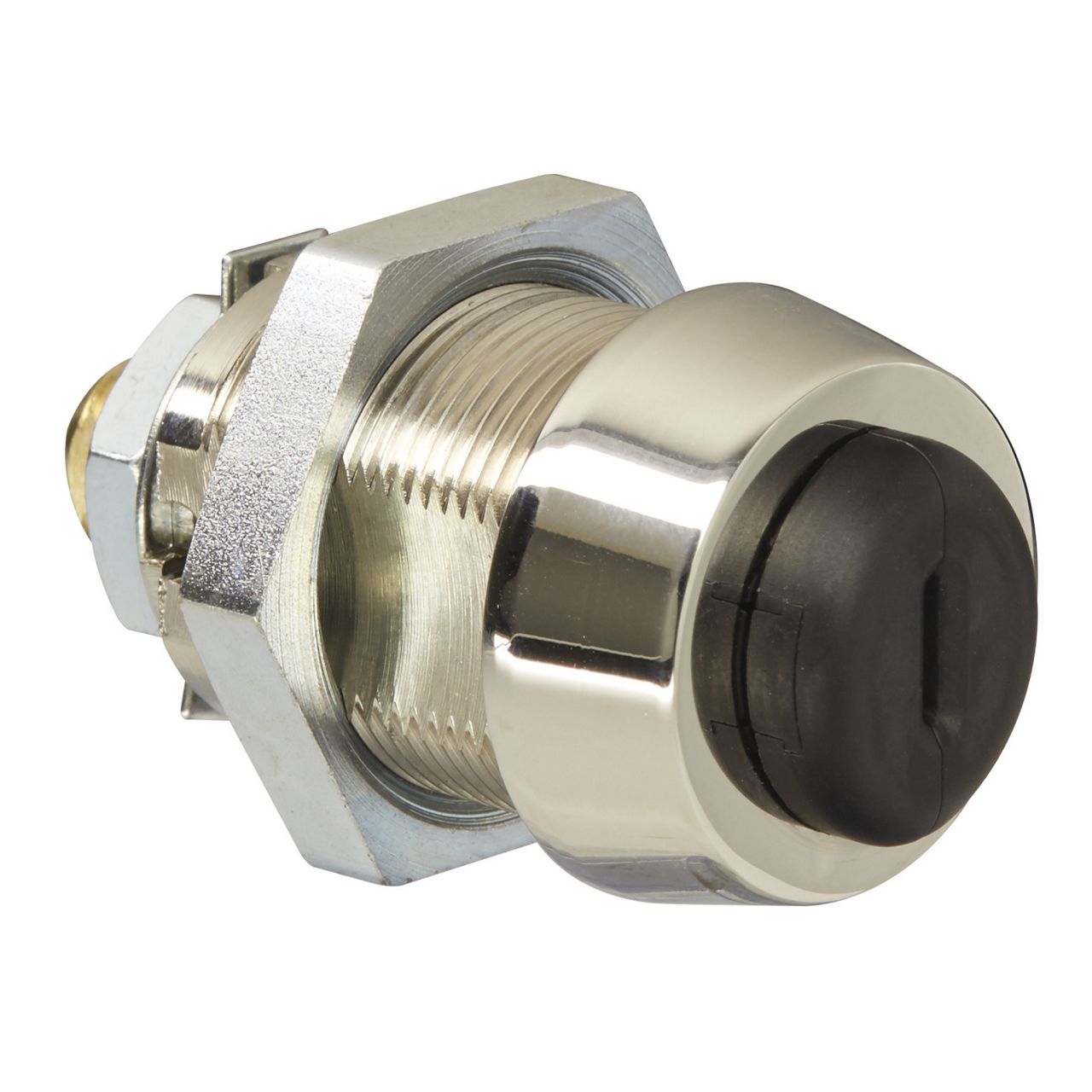

Available as rotary secured or electronical version (V=)
Standard with core output 8x8mm for mounting of locking levers (ABTR=M10S8)
Optionally available with additional core outputs (ABTR=)
Brass cylinder housing components
Matt nickel-plated surface (OF = MV)

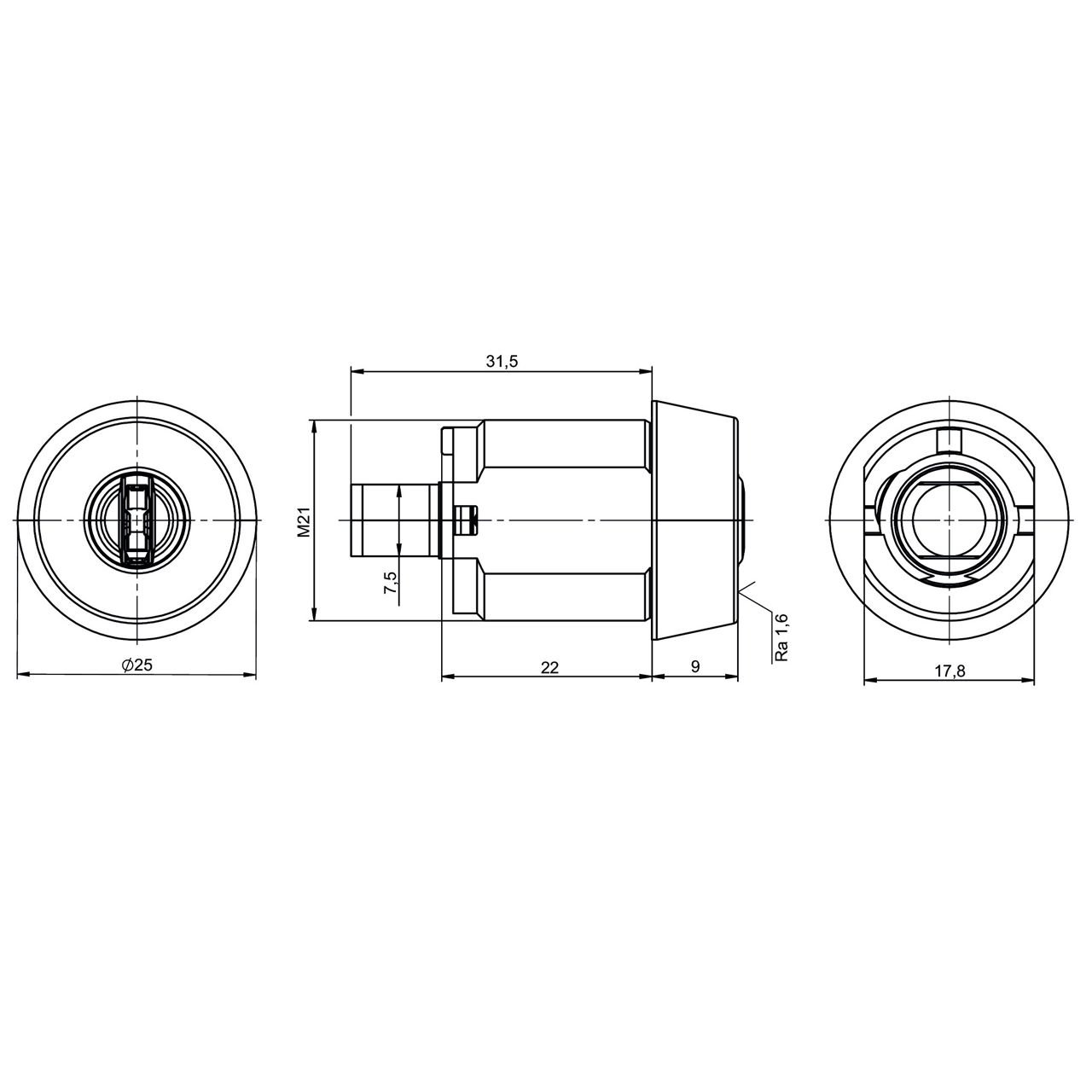

Fixing with M21 x 1 x 5 housing nut
Standard locking path and locking lever path 90º left or right (AUS=0) Key withdrawal at 0° and 180°
Maintenance-free for up to 200,000 cycles
Dust and rain cover available (SUR=1) IP55
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G EX IB IIB T4 Gb)
Scope of delivery
1 locking lever cylinder - without locking lever
1 housing nut M21 x 1 x 5
1 core nut, M7 x 1 (for core output M7V05 and M7S6,) or M10 x 1 (for core output M10S8)
Note
Please order locking levers and other additional parts separately - Part No. NTS1
