Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

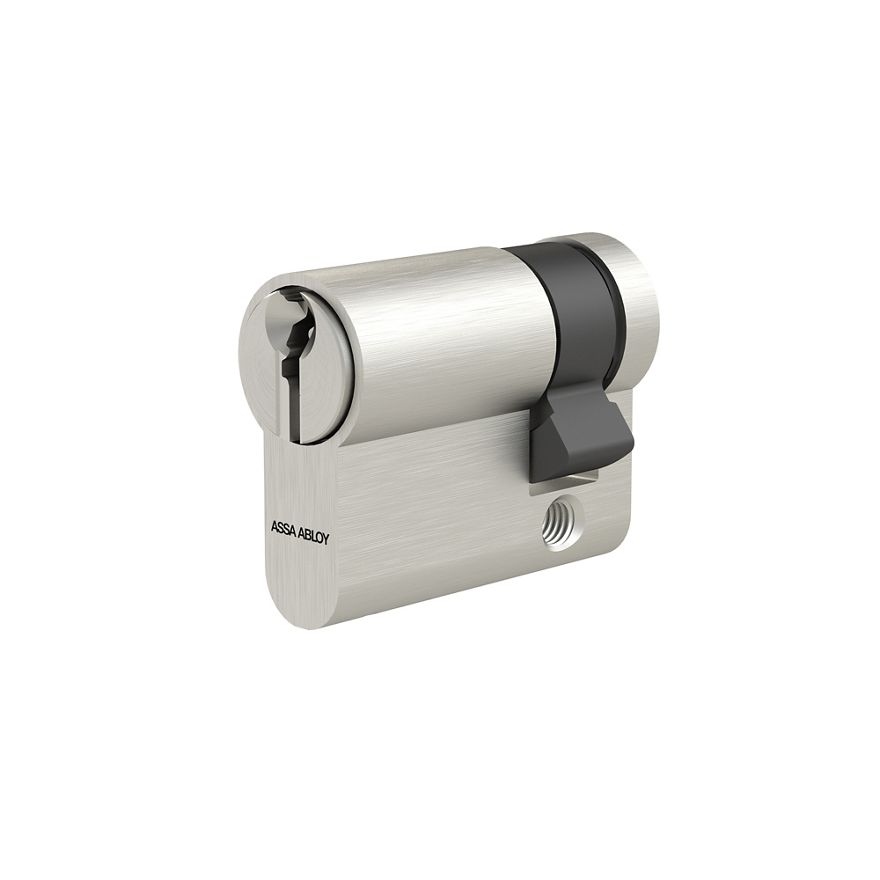

CYS00 Euro single cylinder
Highly durable 6-pin cylinder with the performance to secure your building.
Keep interior spaces secure with the CYS00 single cylinder.
The optional multi-position cam allows the cam to turn into the application‘s required position.
Applications:
- Internal doors
- Keyed to Differ (KD), Keyed Alike (KA)
Optional functionality:
- Adjustable cam (8 positions)
- Thumbturn variant
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.
Feature Detail Security EN 1303:2015 certified, 1 6 0 B 0 C 6 D | SKG** certified (except anti-snap design) | DIN 18252 compliant Attack resistance Anti-pick (TS 007) | Anti-bump (TS 007) | Anti-drill ‒ 5 minutes' drilling resistance (optional) | Anti-pull ‒ 15 kN pulling resistance (optional) | Anti-snap (optional) Number of keys 3 Max. number of effective key differs 108,547 Number of pins 6 Raw material Brass Finish Satin nickel | Optional: Polished brass; Black chrome Cylinder length Minimum: 27.5/10 mm | Maximum: 80/10 mm | Increments: 5 mm (starting from 30/10 mm) Weight 136 g (length 30/10 mm)
