Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

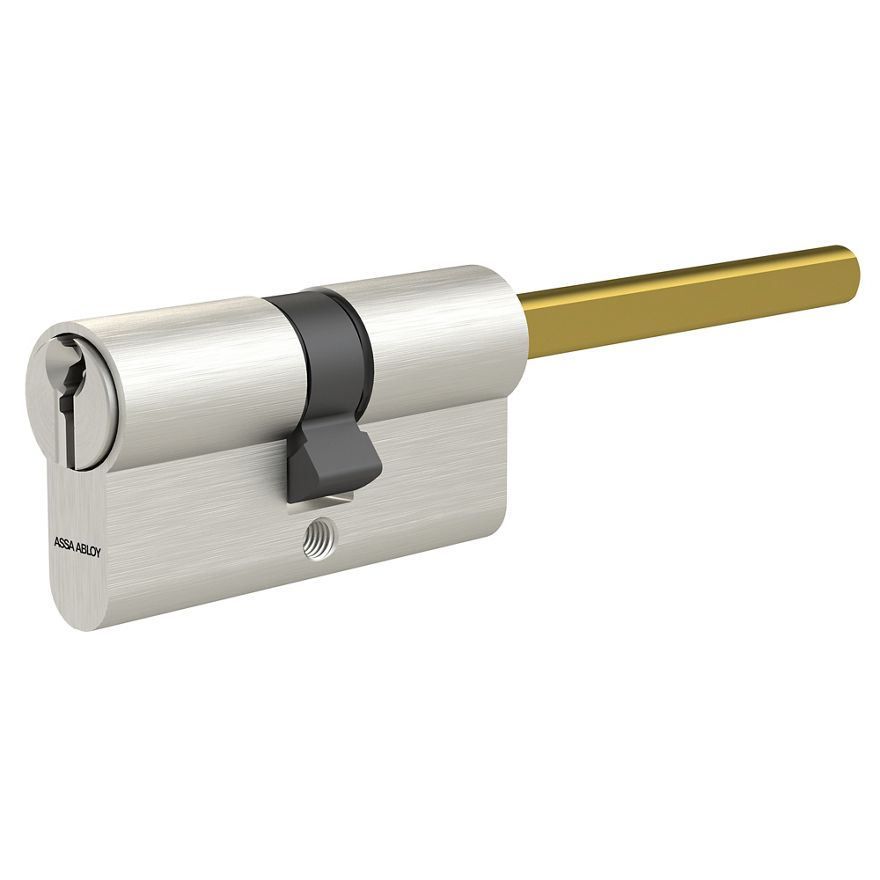

CYS00 Euro double cylinder with thumbturn axis
Durable and secure, the CYS00 double cylinder with 6-pin technology provides the protection you need to lock your building‘s doors.
The cylinder is assembled with a thumbturn axis to cut it to a preferred size and fit a custom design.
Applications:
- External and internal doors
- Keyed to Differ (KD), Keyed Alike (KA)
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.
Feature Detail Security EN 1303:2015 certified, 1 6 0 B 0 C 6 D | SKG** certified (except anti-snap design) | DIN 18252 compliant Attack resistance Anti-pick (TS 007) | Anti-bump (TS 007) | Anti-drill ‒ 5 minutes' drilling resistance (optional) | Anti-pull ‒ 15 kN pulling resistance (optional) | Anti-snap (optional) Number of keys 3 Max. number of effective key differs 108,547 Number of pins 6 Raw material Brass Finish Satin nickel | Optional: Polished brass; Black chrome Cylinder length Minimum: 27.5/27.5 mm | Maximum: 80/80 mm | Increments: 5 mm (starting from 30/30 mm) Weight 201 g (length 30/30 mm)
