Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

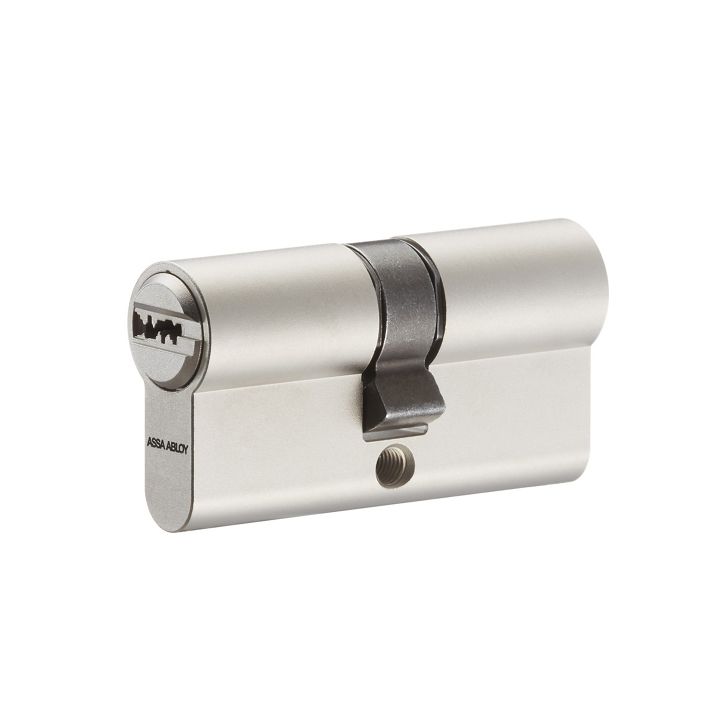

CY110 Euro double cylinder
Durable and secure, the CY110 double cylinder with 6-pin technology provides the protection you need to lock your building's doors ‒ inside or out.
The optional emergency clutch offers additional security. When a key is accidentally left in the keyway on one side, you can still operate the cylinder from the other.
FZG function combines free wheeling cam and emergency clutch. It is often used in motor-driven locking cylinders.
Applications:
- External and internal doors
- Master Key System (MKS), Keyed Alike (KA), Keyed to Differ (KD)
Optional functionality:
- Emergency clutch
- Free wheeling cam
- Gear wheel cam
- FZG function
Optional: Black chrome finish
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance and bumping resistance (for keyed alike and keyed to differ).
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 500,000 lock/unlock cycles.
Feature Detail Security EN 1303:2015 certified, 1 6 0 B 0 C 6 D | SKG** certified (except anti-snap design) | DIN 18252 compliant Attack resistance Anti-pick | Anti-bump (only for KA and KD) Number of keys MKS and KA: according to order | KD: 3 Max. number of effective key differs 92,232 Max. number of MKS profiles 20 Number of pins 6 (optional side/top pins) Raw material Brass Finish Satin nickel | Optional: Polished brass; Black chrome Cylinder length Minimum: 30/30 mm; 28/30 mm | Maximum: 80/80 mm; 28/65 mm | Increments: 5 mm (starting from 30/30 mm) | Additional: 32.5/32.5 Weight 235 g (length 30/30 mm)
