Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

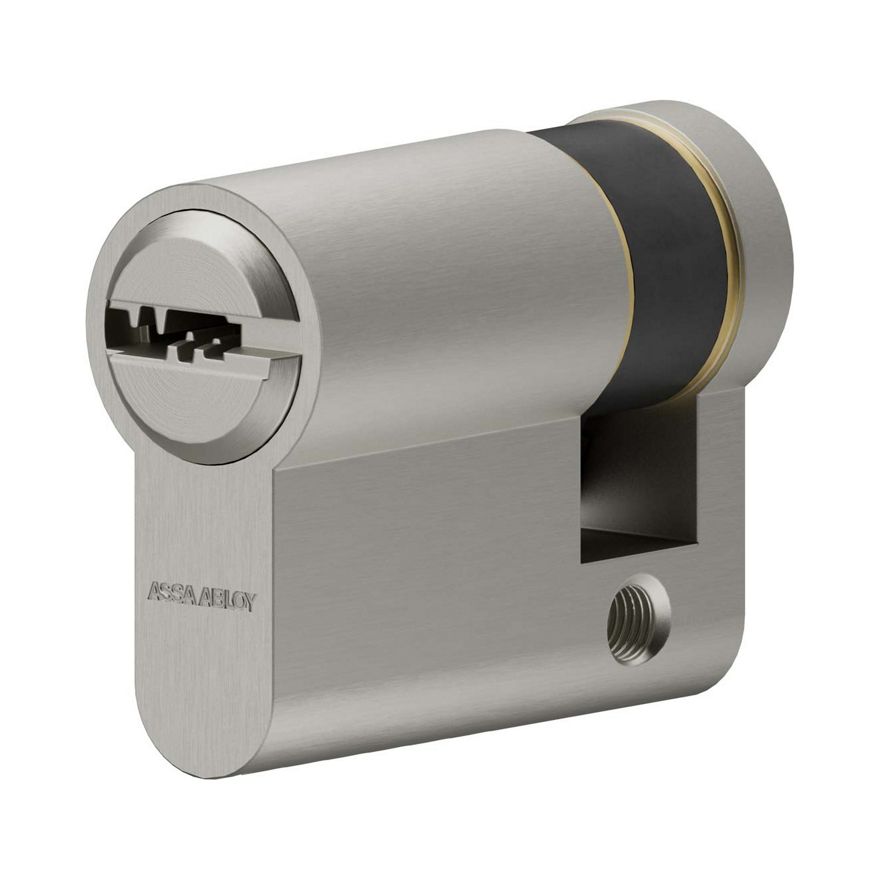

CY100 Euro single cylinder
Highly durable 6-pin cylinder with the performance to secure your building.
Keep your interior spaces secure with the CY100 single cylinder.
The optional multi-position cam allows to turn the cam into the application's required position.
Applications:
- Internal doors
- Master Key System (MKS), Keyed Alike (KA), Keyed to Differ (KD)
Optional functionality:
- Adjustable cam (12 positions)
- Gear wheel cam
- Construction keying
- Thumbturn variant
Optional: Adjustable cam
Optional: Thumbturn variant
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance and bumping resistance (for keyed alike and keyed to differ).
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 100,000 lock/unlock cycles.

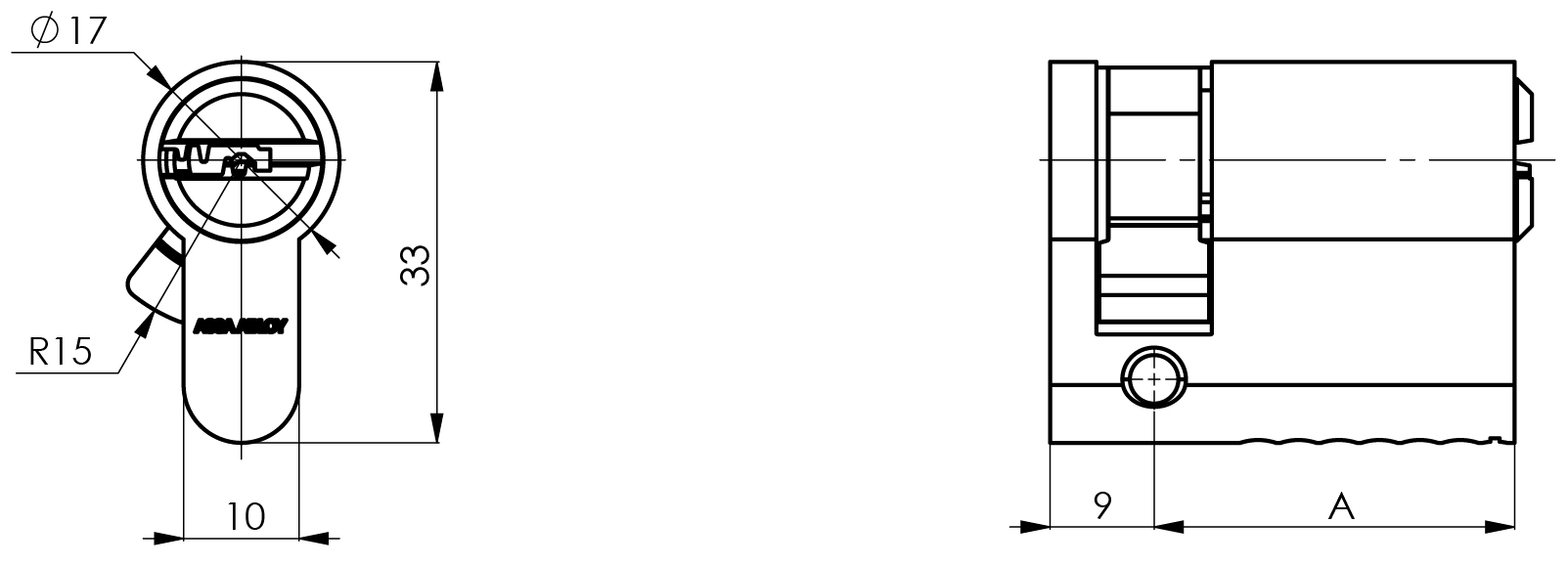

Feature Detail Security EN 1303:2015 certified, 1 6 0 B 0 C 6 D | SKG** certified (except anti-snap design) | DIN 18252 compliant Attack resistance Anti-pick | Anti-drill ‒ 5 minutes' drilling resistance | Anti-pull ‒ 15 kN pulling resistance | Anti-bump (only for KA and KD) | Anti-snap (optional) Number of keys MKS and KA: according to order | KD: 3 Max. number of effective key differs 101,000 Max. number of MKS profiles 4 Number of pins 6 Raw material Brass Finish Satin nickel Cylinder length Minimum: 31/9 mm | Maximum: 71/9 mm | Increments: 5 mm (starting from 31|9 mm) Weight 115 g
