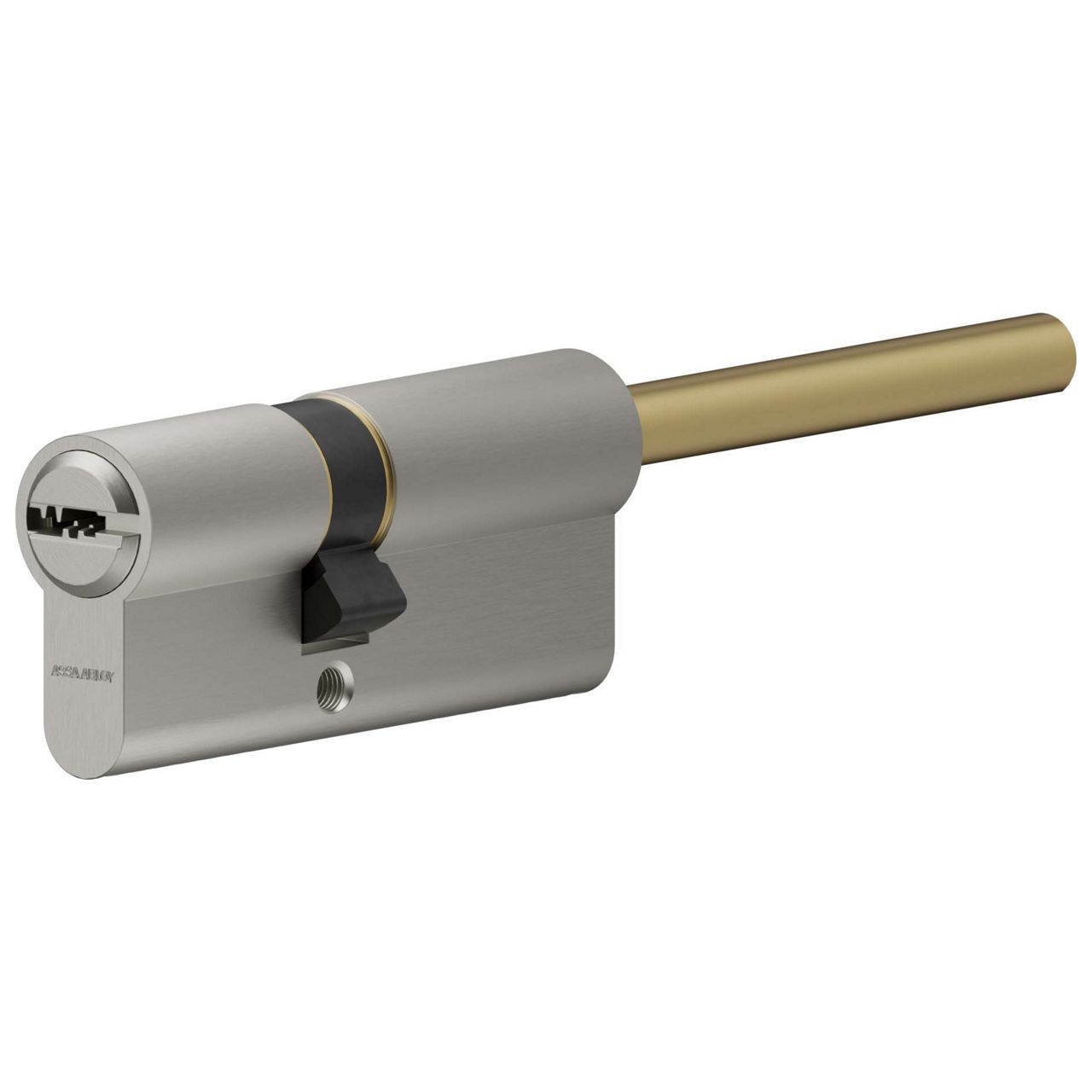

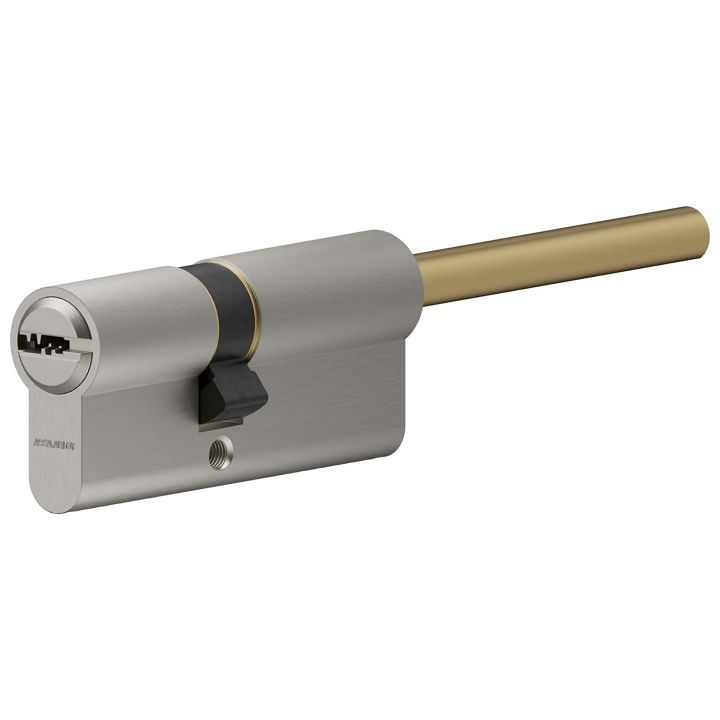

CY100 Euro double cylinder with thumbturn axis

Residential

Durable and secure, the CY100 double cylinder provides the protection you need to lock your building‘s doors.

The cylinder is assembled with a thumbturn axis to cut it to a preferred size and fit a custom design.

Applications:

External and internal doors
Master Key System (MKS), Keyed Alike (KA), Keyed to Differ (KD)

Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance and bumping resistance (for keyed alike and keyed to differ).
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 100,000 lock/unlock cycles.

Feature	Detail
Security	EN 1303:2015 certified, 1 6 0 B 0 C 6 D \| SKG** certified (except anti-snap design) \| DIN 18252 compliant
Attack resistance	Anti-pick \| Anti-drill ‒ 5 minutes' drilling resistance \| Anti-pull ‒ 15 kN pulling resistance \| Anti-bump (only for KA and KD) \| Anti-snap (optional)
Number of keys	3
Max. number of effective key differs	101,000
Max. number of MKS profiles	4
Number of pins	6
Raw material	Brass
Finish	Satin nickel
Cylinder length	Minimum: 31/31 mm \| Maximum: 76/76 mm \| Increments: 5 mm (starting from 31/31 mm)
Weight	180 g (31/31 mm)
