Height-adjustable spindle
Offers flexibility, compensates installation mistakes and enables later adjustment without cost or time delays
DC700G-FT
Security door closer with Cam-Motion® technology, integrated latch bolt and escape door strike – for single leaf doors, size 3-6
The DC700 series brings precise control for doors which must balance access and protection, contained within a stylish exterior to meet the demands of discerning environments. The rapidly decreasing opening force of Cam-Motion technology ensures doors open with less effort. The latch bolt is integrated into the extended mounting plate and the escape door strike is integrated into the extended guide rail.
- Certified in compliance with EN 1154, size 3-6
- Suitable for fire and smoke protection doors
- For single leaf doors up to 1200 mm width
- Barrier-free according to CEN/TR 15894
- Escape door strike tested according to EltVTR
Colours
Silver, EV1
Stainless steel, design and full cover

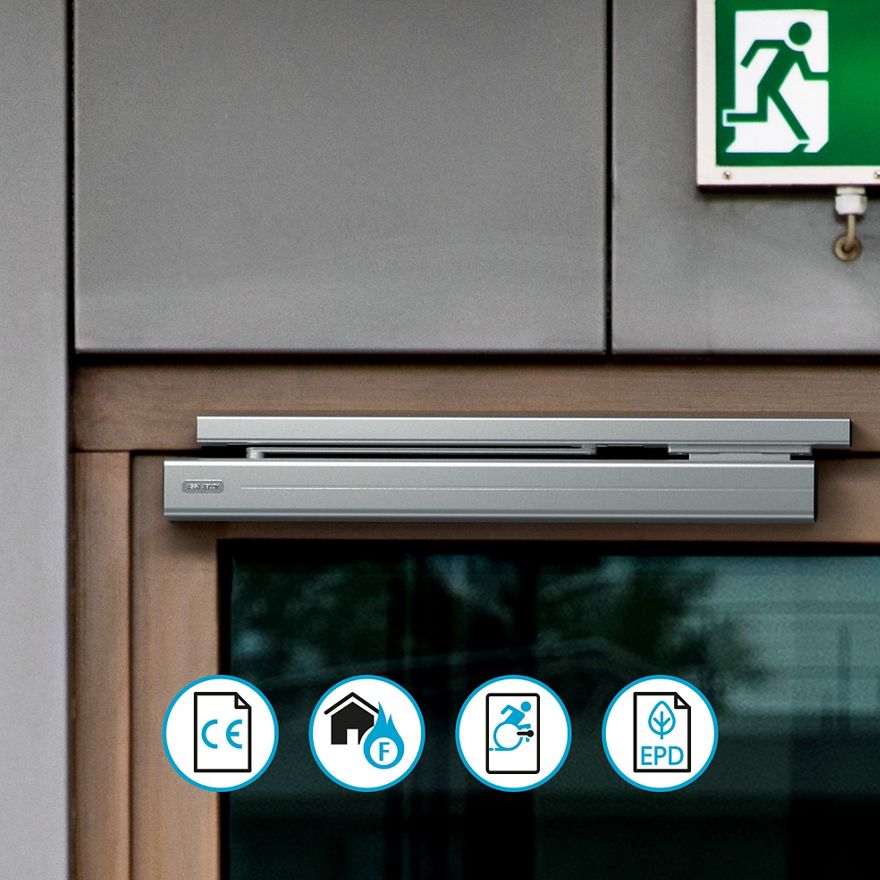

DC700G-FT BGS, door leaf mounting on non-hinge side
DC700G-FT BGS, door leaf mounting on non-hinge side

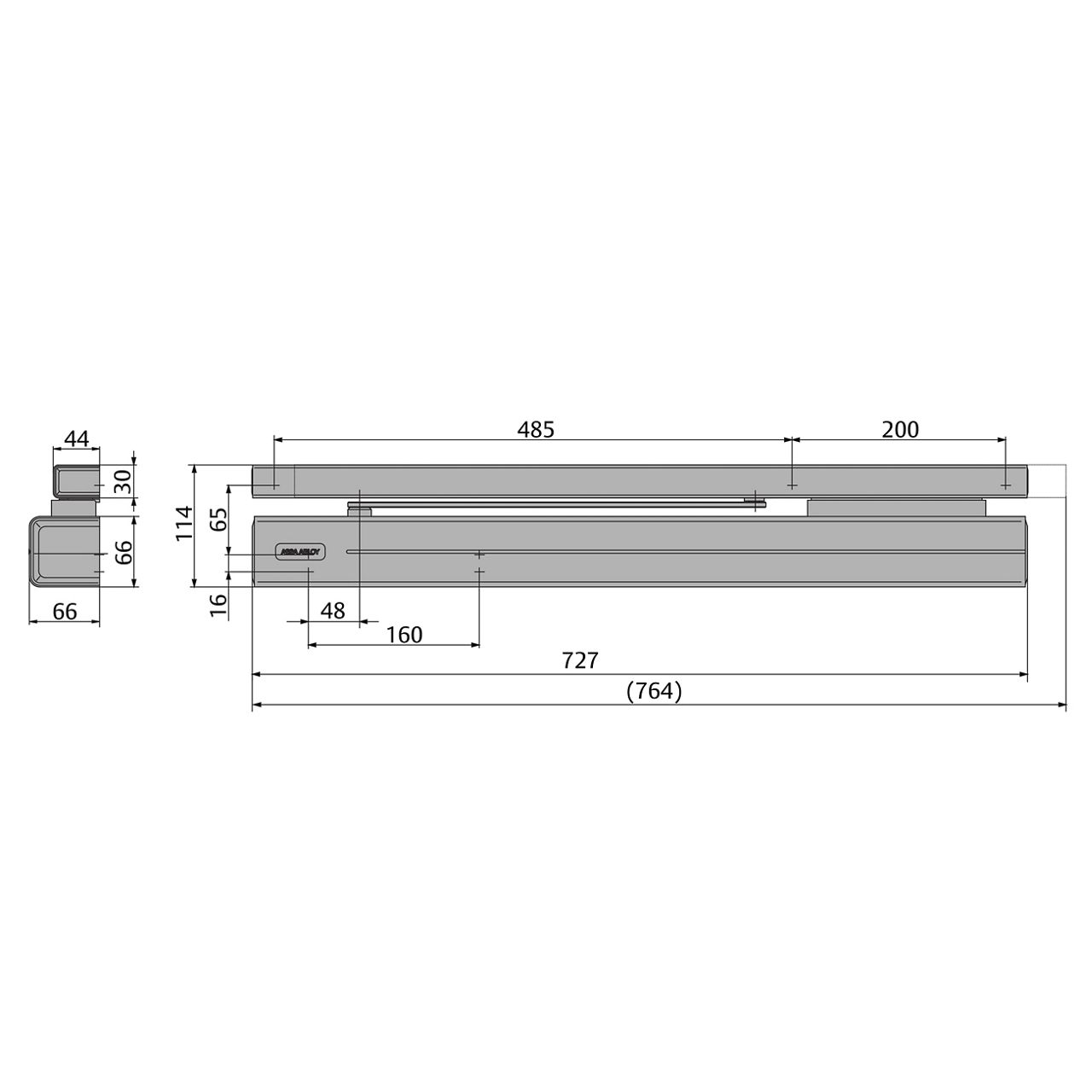

DC700G-FT (DC700G-FT BGS), dimensions in mm
DC700G-FT, silver, EV1

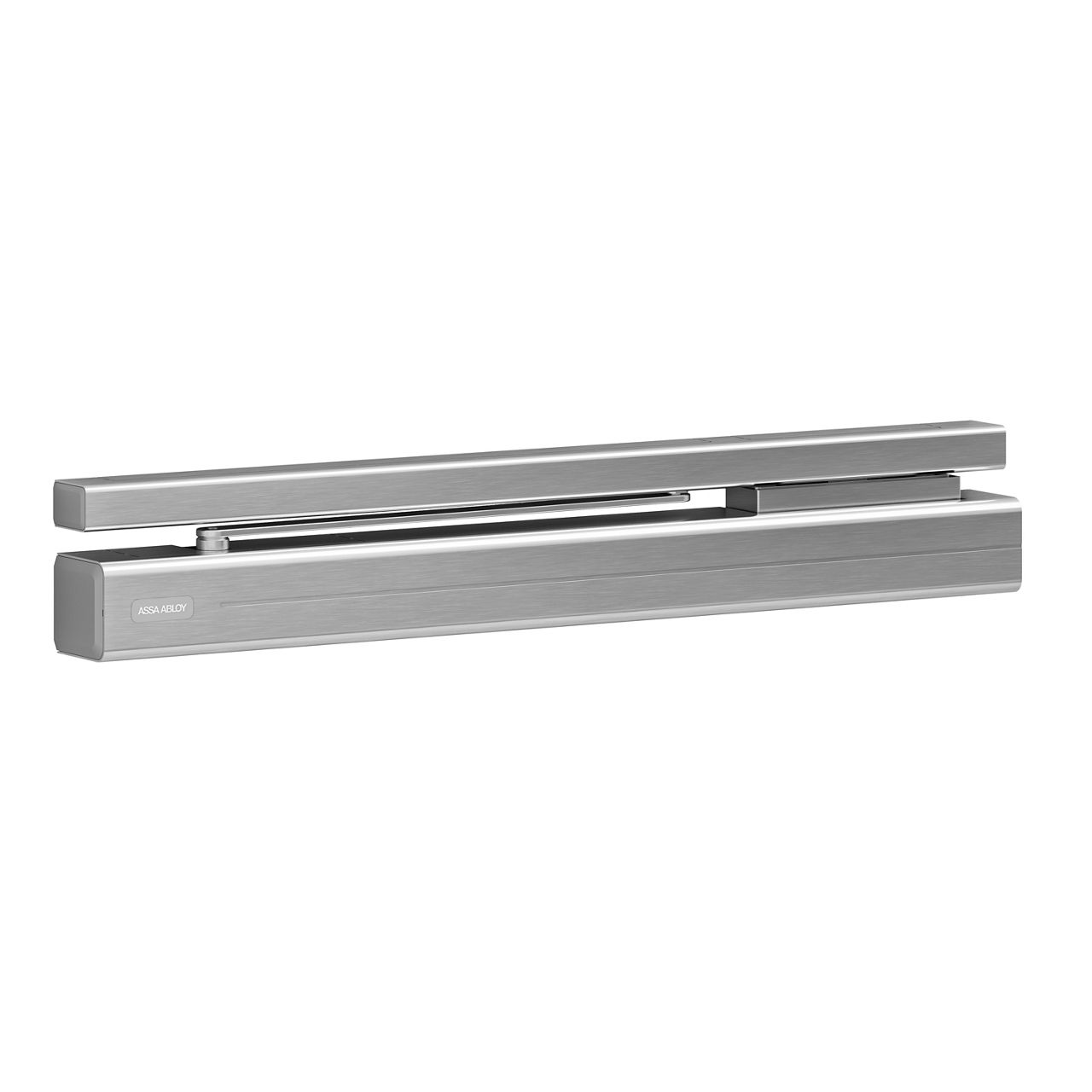

DC700G-FT, stainless steel design
DC700G-FT BGS, silver, EV1
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
Backcheck as standard
Prevents the door from slamming, reducing the risk of damage to the door, frame, or surrounding area
Features
- Height-adjustable, grooved spindle and guide rail compensate installation mistakes
- Closing and latch speeds can be raised and lowered independently
- Durable, front-facing metal valves make adjustments easy and reliable
- Consistent performance in a wide range of temperatures
- Backcheck functionality as standard protects frame and surrounding areas
- Easy to retrofit using drilling template compliant with EN 1154, supplementary sheet 1
Product variants
- DC700G-FT for hinge side installation
- DC700G-FT BGS for non-hinge side installation
Accessories
- DCFA01/DCFA02 spacer plates for shimming the guide rail over ASSA ABLOY drilling pattern, hinge side
- DCFA03/DCFA04 replacement plates for mounting the guide rail over competitor's drilling pattern, hinge side
- DCFA05/DCFA06 mounting and replacement plates for mounting the guide rail over ASSA ABLOY drilling pattern and over existing drill holes, hinge side
- DCFA08 replacement plate for mounting the guide rail over existing drill holes, non-hinge side
- DCFA09 mounting and replacement plate for mounting the guide rail over ASSA ABLOY drilling pattern and over existing drill holes, non-hinge side
- A188 mechanical opening damper, continuously adjustable up to an opening angle of max. 130° (does not replace door stop)
Installation instructions and drilling templates
Certificates
Specification texts
Drawings in pdf format
Description Part number Type DC700G-FT, complete, 24 V DC, silver, EV1 DC700FT0-FDEV1- Door closer DC700G-FT, complete, 24 V DC, stainless steel design DC700FT0-FD35-- Door closer DC700G-FT, complete, 12 V DC, silver, EV1 DC700FT0-EDEV1- Door closer DC700G-FT, complete, 12 V DC, stainless steel design DC700FT0-ED35-- Door closer DC700G-FT BGS, complete, 24 V DC, silver, EV1 DC700FT1-FDEV1- Door closer DC700G-FT BGS, complete, 24 V DC, stainless steel design DC700FT1-FD35-- Door closer DC700G-FT BGS, complete, 12 V DC, silver, EV1 DC700FT1-EDEV1- Door closer DC700G-FT BGS, complete, 12 V DC, stainless steel design DC700FT1-ED35-- Door closer Spacer plate for DC700G-FT, 5 mm, for narrow rebate doors, silver, EV1 DCFA01-----EV1- Accessory Spacer plate for DC700G-FT, 15 mm, for wide rebate doors, silver, EV1 DCFA02-----EV1- Accessory Spacer / replacement plate for DC700G-FT, 5 mm, for competitor‘s guide rail drilling pattern, silver, EV1 DCFA03-----EV1- Accessory Spacer / replacement plate for DC700G-FT, 15 mm, for competitor‘s guide rail drilling pattern, silver, EV1 DCFA04-----EV1- Accessory Mounting / replacement plate for DC700G-FT, 5 mm, for narrow frame, silver, EV1 DCFA05-----EV1- Accessory Mounting / replacement plate for DC700G-FT, 15 mm, for narrow frame, silver, EV1 DCFA06-----EV1- Accessory Replacement plate for DC700G-FT BGS, 5 mm, for flush doors, silver, EV1 DCFA08-----EV1- Accessory Mounting / replacement plate for DC700G-FT BGS, 5 mm, for narrow frame, silver, EV1 DCFA09-----EV1- Accessory Opening damper A188 DCA188--------- Accessory Name Value Door closer Closing force EN size 3-6 Maximum leaf width 950 – 1200 mm Closing speed (C) Variable between 170°/120° and 15° (hinge side / non-hinge side) Latch speed (L) Variable between 15° and 0° Backcheck (B) Variable above 75° Maximum opening angle ~170°/120° (hinge side / non-hinge side) Door system Single leaf Handing Left- / right-handed Mounting options Leaf mounting on hinge side Force adjustment Yes Height adjustment Yes Corrosion resistance Grade 4 (240 hours) Dimensions (H x D x L) 66 x 66 x 727 mm Escape door strike Holding force 2000 N Required power supply 12 V DC / 24 V DC Rated current 190 mA / 12 V; 95 mA / 24 V Rated operational voltage tolerance +/- 10 % Anchor contact Yes Free-wheeling diode Yes Operating temperature range -15 °C to +40 °C Certified in compliance with EN 1154 (door closer) | EN 1158 (coordinator) | EltVTR (escape route controller) CE classification 3 | 8 | 3-6 | 1 | 1 | 4 CE / UKCA mark Yes Suitable for fireand smoke protection doors Yes Barrier-free according to CEN/TR 15894 Third-party verified EPD ISO 14025, EN 15804
