Height-adjustable spindle
Offers flexibility, compensates installation mistakes and enables later adjustment without cost or time delays
DC200
Rack and pinion door closer with link arm – for single leaf doors, size 2-4
The DC200 rack and pinion door closer is a functional and universal solution. Its modern and compact design, with a choice of finishes, is both sleek and durable and blends seamlessly into any environment. With the DC200, doors open comfortably and close securely.
- Certified in compliance with EN 1154, size 2-4 (size 2-3 with parallel arm)
- Suitable for fire and smoke protection doors (not for hold-open link arm)
- For single leaf doors up to 1100 mm width
- Barrier-free according to DIN 18040 and CEN/TR 15894
Colours
Silver, EV1
White, similar to RAL 9016
Brown, similar to RAL 8014
Black, similar to RAL 9004
Customized colours on request

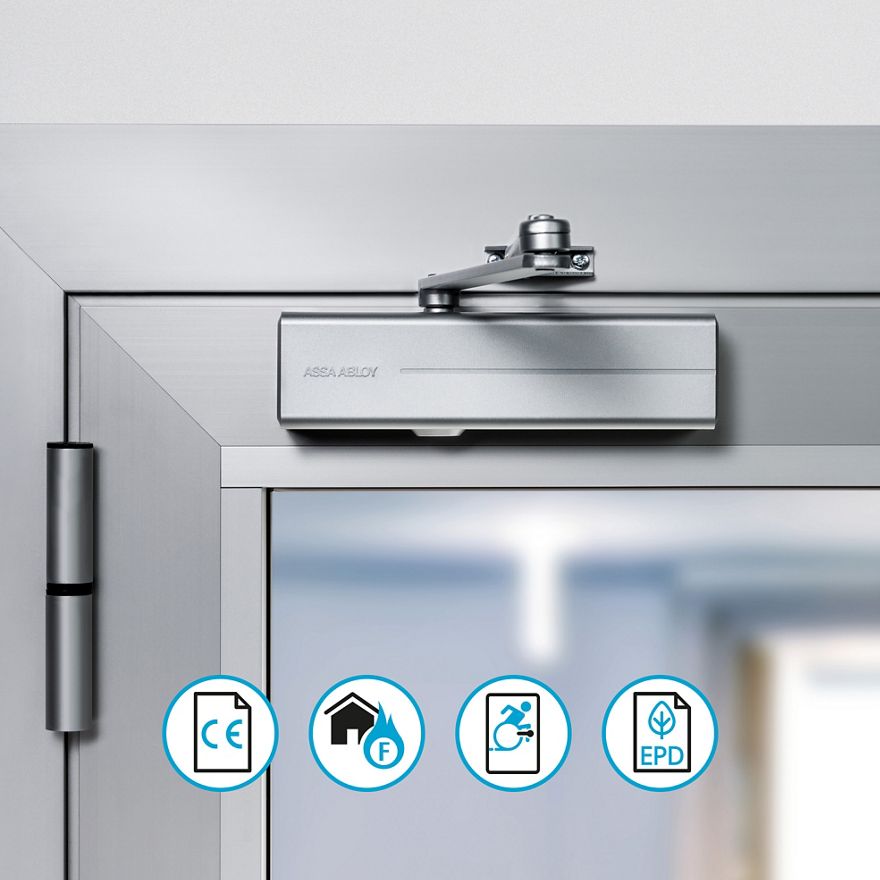

DC200 with link arm L190, door leaf mounting on hinge side
DC200 with link arm L190, door leaf mounting on hinge side
DC200, dimensions in mm
DC200 with link arm L190, silver, EV1
DC200 with link arm L190, white, similar to RAL 9016
DC200 with link arm L190, brown, similar to RAL 8014
DC200 with link arm L190, black, similar to RAL 9005
DC200 with link arm L190 and stainless steel full cover A172
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
Backcheck as standard
Prevents the door from slamming, reducing the risk of damage to the door, frame, or surrounding area
Multiple finishes
Modern, elegant design with a choice of finishes and colours ensure door closers do not disrupt any interior design
Features
- Can be used for left- and right-handed doors, door leaf or frame mounted
- Height-adjustable, grooved spindle (14 mm) compensates installation mistakes
- Closing and latch speeds can be raised and lowered independently
- Durable, front-facing metal valves make adjustments easy and reliable
- Consistent performance in a wide range of temperatures
- Backcheck functionality as standard protects frame and surrounding areas (not for parallel arm installation)
- Simplified stock management with universal parts and adaptable solutions
Link arms and accessories
- L190 standard link arm
- L191 hold-open link arm with adjustable hold-open angle from 75° to 120° – can be enabled and disabled (cannot be used on fire doors)
- A120 mounting plate for door closer
- A122 angle bracket for door closer
- A154 parallel arm bracket for parallel arm installation (does not provide full closing force)
- A164 glass door shoe for mounting the door closer on a solid glass door
- A168 mounting plate for link arm
- A172 stainless steel full cover
Datasheet
Installation instructions and drilling templates
Specification texts
Drawings in pdf format
Description Part number Type DC200, EN size 2-4, silver, EV1 DC200-----DEV1- Door closer DC200, EN size 2-4, white, similar to RAL 9016 DC200-----D9016 Door closer DC200, EN size 2-4, brown, similar to RAL 8014 DC200-----D8014 Door closer DC200, EN size 2-4, black, similar to RAL 9005 DC200-----D9005 Door closer DC200, EN size 2-4, customized finish DC200-----DXXXX Door closer Link arm L190, silver, EV1 DCL190-----EV1- Link arm Link arm L190, white, similar to RAL 9016 DCL190-----9016 Link arm Link arm L190, brown, similar to RAL 9005 DCL190-----8014 Link arm Link arm L190, black, similar to RAL 8014 DCL190-----9005 Link arm Link arm L190, customized finish DCL190-----XXXX Link arm Hold-open link arm L191, silver, EV1 DCL191-----EV1- Link arm Hold-open link arm L191, white, similar to RAL 9016 DCL191-----9016 Link arm Hold-open link arm L191, brown, similar to RAL 9005 DCL191-----8014 Link arm Hold-open link arm L191, black, similar to RAL 8014 DCL191-----9005 Link arm Hold-open link arm L191, customized finish DCL191-----XXXX Link arm Mounting plate A120, galvanized DCA120-------40 Accessory Angle bracket A123, silver, EV1 DCA122-----EV1- Accessory Angle bracket A122, white, similar to RAL 9016 DCA122-----9016 Accessory Angle bracket A122, brown, similar to RAL 8014 DCA122-----8014 Accessory Angle bracket A122, black, similar to RAL 9005 DCA122-----9005 Accessory Angle bracket A122, customized finish DCA122-----XXXX Accessory Parallel arm bracket A154, silver, EV1 DCA154-----EV1- Accessory Parallel arm bracket A154, white, similar to RAL 9016 DCA154-----9016 Accessory Parallel arm bracket A154, brown, similar to RAL 8014 DCA154-----8014 Accessory Parallel arm bracket A154, black, similar to RAL 9005 DCA154-----9005 Accessory Parallel arm bracket A154, customized finish DCA154-----XXXX Accessory Glass door shoe A164, silver, EV1 DCA165-----EV1- Accessory Mounting plate A168, for link arm, silver, EV1 DCA168-----EV1- Accessory Stainless steel full cover A172 DCA172-----35-- Accessory Name Value Closing force EN size 2-4 (parallel arm EN size 2-3) Maximum leaf width 1100 mm Closing speed (S) Variable between 180° and 15° Latch speed (L) Variable between 15° and 0° Backcheck (BC) Variable above 75° Maximum opening angle ~180° Hold-open angle 75°–120° (for L191) Door system Single leaf Handing Left- / right-handed Mounting options Leaf mounting on hinge-side | Frame mounting on non-hinge side Force adjustment Yes Height adjustment Yes Corrosion resistance Grade 3 (96 hours) Dimensions (H x D x L) 60 x 50 x 223 mm Certified in compliance with EN 1154 CE classification 4 | 8 | 2-4 | 1 | 1 | 3 CE / UKCA mark Yes Suitable for fire and smoke protection doors Yes Barrier-free according to CEN/TR 15894 | DIN 18040 Third-party verified EPD ISO 14025, EN 15804
