Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
DC140
Rack and pinion door closer with link arm or guide rail – for single leaf doors, size 2/3/4/5
The DC140 is an economic and compact rack and pinion door closer. With its modern design and choice of finishes, it blends seamlessly into any environment. With the DC140, doors open comfortably and close securely.
- Certified in compliance with EN 1154, size 2/3/4/5 (size 3 with parallel arm)
- Suitable for fire and smoke protection doors (not for hold-open link arm and guide rail)
- For single leaf doors up to 1250 mm width
- Barrier-free according to DIN 18040 and CEN/TR 15894
Colours
Silver, EV1
White, similar to RAL 9016
Brown, similar to RAL 8014
Black, similar to RAL 9004

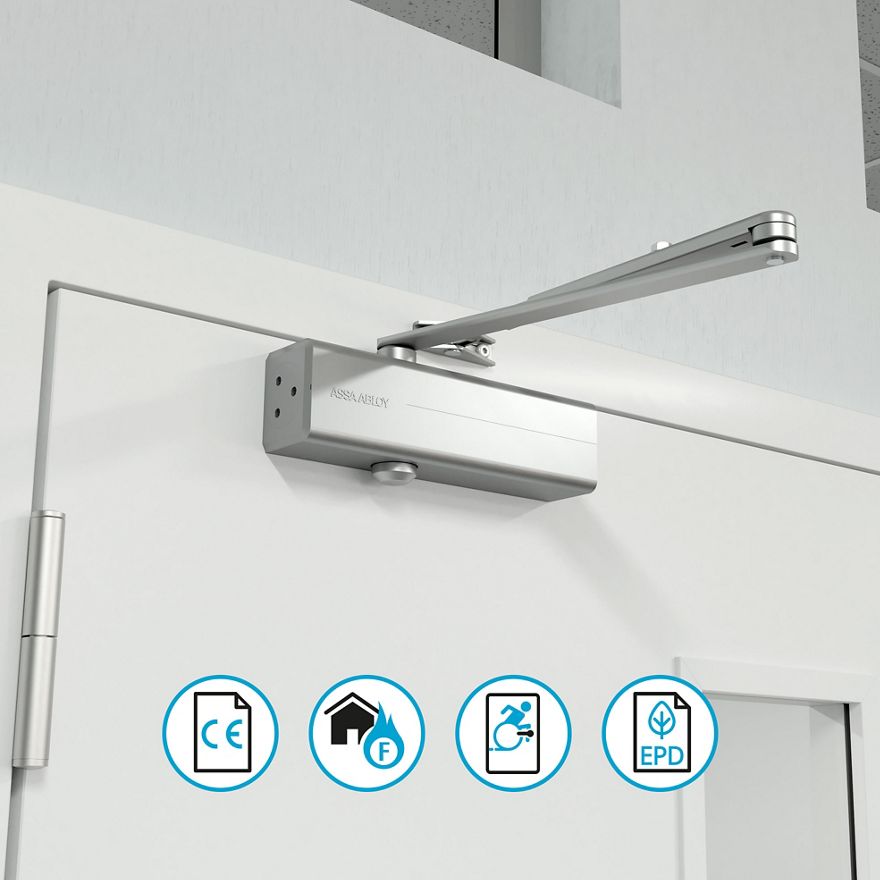

DC140 with link arm L140, door leaf mounting on hinge side
DC140 with link arm L140, door leaf mounting on hinge side
DC140, dimensions in mm
DC140 with link arm L140, silver, EV1
DC140 with link arm L140, white, similar to RAL 9016
DC140 with link arm L140, brown, similar to RAL 8014
DC140 with link arm L140, black, similar to RAL 9005
Backcheck as standard
Prevents the door from slamming, reducing the risk of damage to the door, frame, or surrounding area
Multiple finishes
Modern, elegant design with a choice of finishes and colours ensure door closers do not disrupt any interior design
Features
- Can be used for left- and right-handed doors
- Closing and latch speeds can be raised and lowered independently
- Durable, front-facing metal valves make adjustments easy and reliable
- Consistent performance in a wide range of temperatures
- Backcheck functionality as standard protects frame and surrounding areas (not for parallel arm installation)
- Simplified stock management with universal parts and adaptable solutions
Link arms, guide rails and accessories
- L140 standard link arm
- L141 hold-open link arm with adjustable hold-open angle from 75° to 120° (cannot be used on fire doors)
- G143 guide rail (cannot be used on fire doors)
- A161 mounting plate for door closer
- A168 mounting plate for link arm
- A154 parallel arm bracket for parallel arm installation (does not provide full closing force)
Datasheet
Installation instructions and drilling templates
Specification texts
Drawings in pdf format
Description Part number Type DC140, EN size 2/3/4/5, silver, EV1 DC140-----DEV1- Door closer DC140, EN size 2/3/4/5, white, similar to RAL 9016 DC140-----D9016 Door closer DC140, EN size 2/3/4/5, brown, similar to RAL 8014 DC140-----D8014 Door closer DC140, EN size 2/3/4/5, black, similar to RAL 9005 DC140-----D9005 Door closer DC140 body, EN size 2/3/4/5, silver, EV1 DC140-0---DEV1- Door closer DC140 body, EN size 2/3/4/5, white, similar to RAL 9016 DC140-0---D9016 Door closer DC140 body, EN size 2/3/4/5, brown, similar to RAL 8014 DC140-0---D8014 Door closer DC140 body, EN size 2/3/4/5, black, similar to RAL 9005 DC140-0---D9005 Door closer Link arm L140, silver, EV1 DCL140-----EV1- Link arm Link arm L140, white, similar to RAL 9016 DCL140-----9016 Link arm Link arm L140, brown, similar to RAL 9005 DCL140-----8014 Link arm Link arm L140, black, similar to RAL 8014 DCL140-----9005 Link arm Hold-open link arm L141, silver, EV1 DCL141-----EV1- Link arm Hold-open link arm L141, white, similar to RAL 9016 DCL141-----9016 Link arm Hold-open link arm L141, brown, similar to RAL 9005 DCL141-----8014 Link arm Hold-open link arm L141, black, similar to RAL 8014 DCL141-----9005 Link arm Guide rail G143, silver, EV1 DCG143-----EV1- Guide rail Guide rail G143, white, similar to RAL 9016 DCG143-----9016 Guide rail Guide rail G143, brown, similar to RAL 8014 DCG143-----8014 Guide rail Guide rail G143, black, similar to RAL 9005 DCG143-----9005 Guide rail Parallel arm bracket A154, silver, EV1 DCA154-----EV1- Accessory Parallel arm bracket A154, white, similar to RAL 9016 DCA154-----9016 Accessory Parallel arm bracket A154, brown, similar to RAL 8014 DCA154-----8014 Accessory Parallel arm bracket A154, black, similar to RAL 9005 DCA154-----9005 Accessory Mounting plate A161, silver, EV1 DCA161-----EV1- Accessory Mounting plate A161, white, similar to RAL 9016 DCA161-----9016 Accessory Mounting plate A161, brown, similar to RAL 8014 DCA161-----8014 Accessory Mounting plate A161, black, similar to RAL 9005 DCA161-----35-- Accessory Mounting plate A168, for link arm, silver, EV1 DCA168-----EV1- Accessory Name Value Closing force EN size 2/3/4/5 (guide rail EN size 2, parallel arm EN size 3) Maximum leaf width 1250 mm Closing speed (S) Variable between 180° and 15° Latch speed (L) Variable between 15° and 0° Backcheck (BC) Variable above 75° Maximum opening angle ~180° (120° for EN size 5) Hold-open angle 75°–120° (for L141) Door system Single leaf Handing Left- / right-handed Mounting options Leaf mounting on hinge side Force adjustment No Height adjustment No Corrosion resistance Grade 3 (96 hours) Dimensions (H x D x L) 55 x 43 x 206 mm Certified in compliance with EN 1154 CE classification EN size 2/3/4: 4 | 8 | 2/3/4 | 1 | 1 | 3 ; EN size 5: 3 | 8 | 5 | 1 | 1 | 3 CE / UKCA mark Yes Suitable for fire and smoke protection doors Yes (≥EN3) Barrier-free according to CEN/TR 15894 | DIN 18040 Third-party verified EPD ISO 14025, EN 15804
