Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
DC135

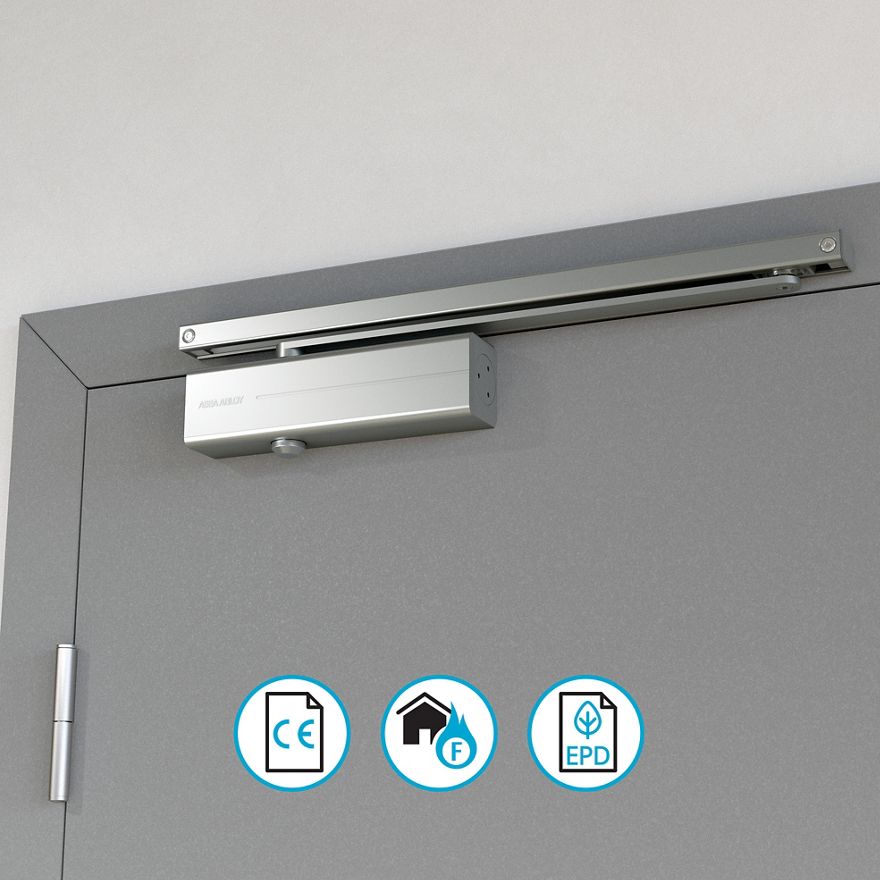

Rack and pinion door closer with guide rail – for single leaf doors, size 3
The DC135 is an economic and compact rack and pinion door closer with guide rail. With its modern design and choice of finishes, it blends seamlessly into any environment. The DC135 comes complete with body and guide rail.
- Certified in compliance with EN 1154, size 3
- Suitable for fire and smoke protection doors
- For single leaf doors up to 950 mm width
Colours
Silver, EV1
White, similar to RAL 9016
Brown, similar to RAL 8014
Black, similar to RAL 9004
DC135, door leaf mounting on hinge side
DC135, door leaf mounting on hinge side
DC135, dimensions in mm
DC135, silver, EV1
DC135, white, similar to RAL 9016
DC135, brown, similar to RAL 8014
DC135, black, similar to RAL 9005
Backcheck as standard
Prevents the door from slamming, reducing the risk of damage to the door, frame, or surrounding area
Multiple finishes
Modern, elegant design with a choice of finishes and colours ensure door closers do not disrupt any interior design
Features
- Can be used for left- and right-handed doors
- Closing and latch speeds can be raised and lowered independently
- Durable, front-facing metal valves make adjustments easy and reliable
- Consistent performance in a wide range of temperatures
- Backcheck functionality as standard protects frame and surrounding areas
Accessories
- A187 mounting plate for door closer
- A130 mounting plate for guide rail
- A152 mechanical hold-open device with adjustable hold-open force, keeps doors open at an angle between 80° and 130° (not approved for use on fire and smoke protection doors)
- A153 mechanical opening damper, continuously adjustable up to an opening angle of max. 130° (does not replace door stop)
Datasheet
Installation instructions and drilling templates
Description Part number Type DC135, EN size 3, silver, EV1 DC135-----DEV1- Door closer DC135, EN size 3, white, similar to RAL 9016 DC135-----D9016 Door closer DC135, EN size 3, brown, similar to RAL 8014 DC135-----D8014 Door closer DC135, EN size 3, black, similar to RAL 9005 DC135-----D9005 Door closer Mounting plate A187, silver, EV1 DCA187-----EV1- Accessory Mounting plate A187, white, similar to RAL 9016 DCA187-----9016 Accessory Mounting plate A187, brown, similar to RAL 8014 DCA187-----8014 Accessory Mounting plate A187, black, similar to RAL 9005 DCA187-----9005 Accessory Mounting plate A130, silver, EV1 DCA130-----EV1- Accessory Mounting plate A130, white, similar to RAL 9016 DCA130-----9016 Accessory Mounting plate A130, brown, similar to RAL 8014 DCA130-----8014 Accessory Mounting plate A130, black, similar to RAL 9005 DCA130-----35-- Accessory Mechanical hold-open device A152 DCA152--------- Accessory Mechanical opening damper A153 DCA153--------- Accessory Name Value Closing force EN size 3 Maximum leaf width 950 mm Closing speed (S) Variable between 180° and 15° Latch speed (L) Variable between 15° and 0° Backcheck (BC) Variable above 75° Maximum opening angle ~180° Door system Single leaf Handing Left- / right-handed Mounting options Leaf mounting on hinge-side | Frame mounting on non-hinge side Force adjustment No Height adjustment No Corrosion resistance Grade 4 (240 hours) Dimensions (H x D x L) 60 x 44 x 233 mm Certified in compliance with EN 1154 CE classification 4 | 8 | 3 | 1 | 1 | 4 CE / UKCA mark Yes Suitable for fire and smoke protection doors Yes Third-party verified EPD ISO 14025, EN 15804
