Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
DC120
Rack and pinion door closer with link arm – for single leaf doors, size 2/3/4
The DC120 series is an economical and compact rack and pinion door closer for a wide range of applications. It has ASSA ABLOY's renowned design style and comes complete with body and arm.
- Certified in compliance with EN 1154, size 2/3/4
- Suitable for fire and smoke protection doors (not for hold-open link arm)
- For single leaf doors up to 1100 mm width
Colours
Silver, EV1
White, similar to RAL 9016
Black, similar to RAL 9004

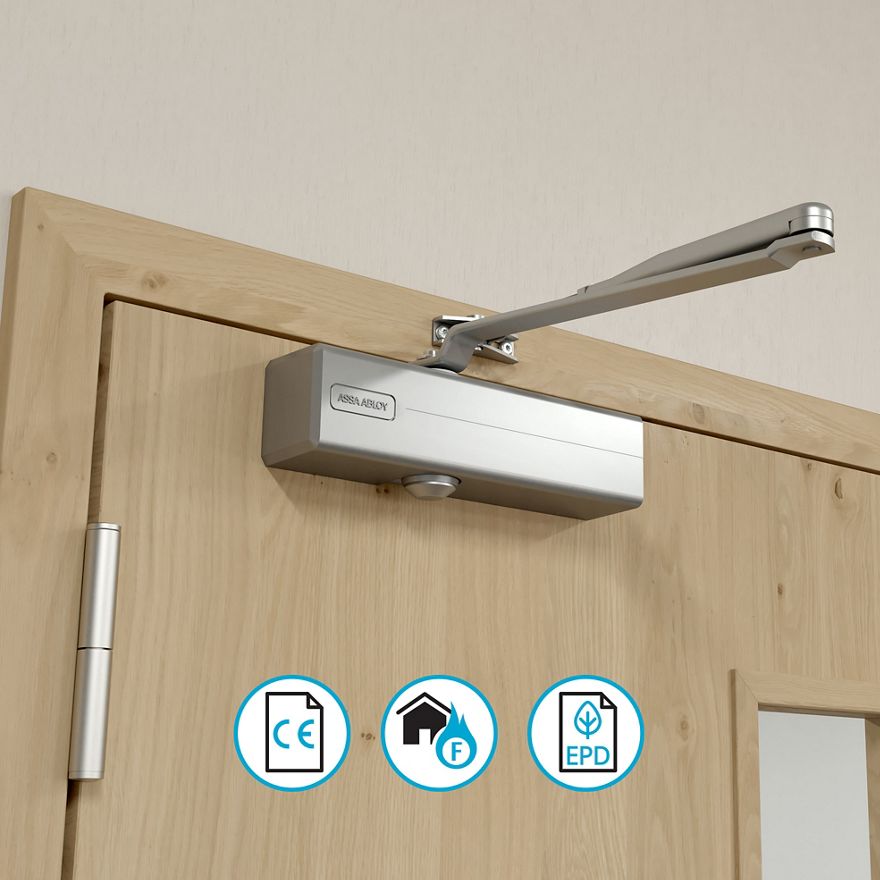

DC120 with link arm, door leaf mounting on hinge side
DC120 with link arm, door leaf mounting on hinge side
DC120, dimensions in mm
DC120 with link arm, silver, EV1
DC120 with link arm, white, similar to RAL 9016
DC120 with link arm, black, similar to RAL 9005
DC120 with hold-open link arm, silver, EV1
DC120 with link arm without cover, silver, EV1
Backcheck as standard
Prevents the door from slamming, reducing the risk of damage to the door, frame, or surrounding area
Multiple finishes
Modern, elegant design with a choice of finishes and colours ensure door closers do not disrupt any interior design
Features
- Can be used for left- and right-handed doors
- Closing and latch speeds can be raised and lowered independently
- Durable metal valves make adjustments reliable
- Consistent performance in a wide range of temperatures
- Backcheck functionality as standard protects frame and surrounding areas
- ASSA ABLOY design painted plastic cover with reversible logo tag included
Variants
- Standard link arm
- Hold-open link arm (cannot be used on fire doors)
Datasheet
Installation instructions and drilling templates
Description Part number Type DC120 with standard arm and cover, EN size 2/3/4, silver, EV1 DC120-----DEV1- Door closer DC120 with standard arm and cover, EN size 2/3/4, white, similar to RAL 9016 DC120-----D9016 Door closer DC120 with standard arm and cover, EN size 2/3/4, black, similar to RAL 9005 DC120-----D9005 Door closer DC120 with hold-open arm and cover, EN size 2/3/4, silver, EV1 DC120-1---DEV1- Door closer DC120 with hold-open arm and cover, EN size 2/3/4, white, similar to RAL 9016 DC120-1---D9016 Door closer DC120 with hold-open arm and cover, EN size 2/3/4, black, similar to RAL 9005 DC120-1---D9005 Door closer DC120 with standard arm, EN size 2/3/4, silver, EV1 DC120------EV1- Door closer DC120 with standard arm, EN size 2/3/4, white, similar to RAL 9016 DC120------9016 Door closer DC120 with standard arm, EN size 2/3/4, black, similar to RAL 9005 DC120------9005 Door closer Name Value Closing force EN size 2/3/4 Maximum leaf width 1100 mm Closing speed (S) Variable between 180° and 15° Latch speed (L) Variable between 15° and 0° Backcheck (BC) Variable above 75° Maximum opening angle ~180° (115° for EN size 4) Hold-open angle 75°–120° Door system Single leaf Handing Left- / right-handed Mounting options Leaf mounting on hinge-side | Frame mounting on non-hinge side Force adjustment No Height adjustment No Corrosion resistance Grade 3 (96 hours) Dimensions (H x D x L) 57x 50.5 x 226.5 mm (52 x 47 x 220 mm without cover) Certified in compliance with EN 1154 CE classification EN size 2/3: 4 | 8 | 2/3 | 1 | 1 | 3 ; EN size 4: 3 | 8 | 4 | 1 | 1 | 3 CE / UKCA mark Yes Suitable for fire and smoke protection doors Yes (≥EN3) Third-party verified EPD ISO 14025, EN 15804
