Resistance-free opening
Even heavy fire and smoke doors open almost weightlessly providing greater freedom of movement
DC700G-FM
Free-Motion door closer with Cam-Motion® technology, free-swing function and guide rail – for single leaf doors, size 3-6
The DC700 series brings precise control for doors which must balance access and protection, contained within a stylish exterior to meet the demands of discerning environments. Combining Cam-Motion technology with free-swing function, Free-Motion door closers are designed for smooth opening with almost zero force.
- Certified in compliance with EN 1154/1155, size 3-6
- Suitable for fire and smoke protection doors
- For single leaf doors up to 1400 mm width
- Barrier-free according to DIN 18040 (max. leaf width 1250 mm) and CEN/TR 15894
- DIBt tested as a hold-open system with various smoke detector systems
Colours
Silver, EV1
White, similar to RAL 9016
Brown, similar to RAL 8014
Black, similar to RAL 9004
Stainless steel, design and full cover
Customized colours on request

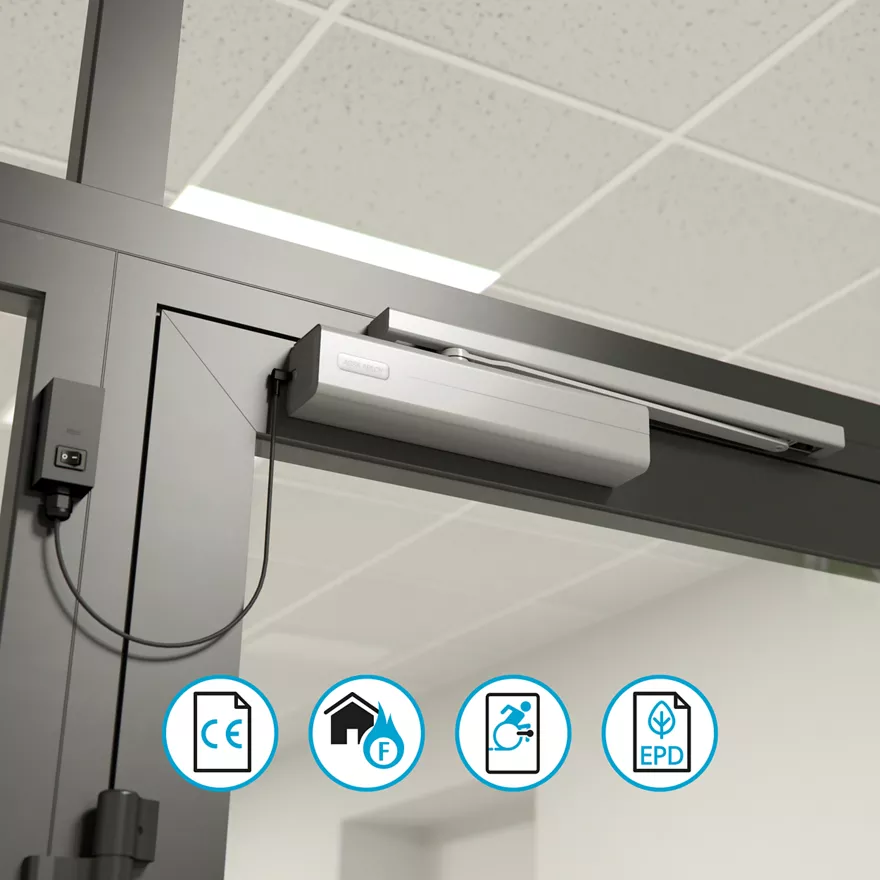

DC700G-FM with connection box and guide rail G795, door leaf mounting on hinge side
DC700G-FM with connection box and guide rail G795, door leaf mounting on hinge side
DC700G-FM, dimensions in mm
DC700G-FM with connection box and guide rail G795, silver, EV1
DC700G-FM with connection box and guide rail G795, white, similar to RAL 9016
DC700G-FM with connection box and guide rail G795, brown, similar to RAL 8014
DC700G-FM with connection box and guide rail G795, black, similar to RAL 9005
DC700G-FM with connection box and guide rail G795, stainless steel design
Step-by-step activation
Door can be left open at any angle from the very first degree allowing building users to circulate freely
Height-adjustable spindle
Offers flexibility, compensates installation mistakes and enables later adjustment without cost or time delays
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
Features
- Rapidly decreasing opening force allows easy and barrier-free initial door opening
- Free-swing function starts from a door opening angle ≥ 0° and is active until power supply is switched off
- Height-adjustable, grooved spindle (14 mm) compensates installation mistakes
- Closing and latch speeds can be raised and lowered independently
- Durable, front-facing metal valves make adjustments easy and reliable
- Consistent performance in a wide range of temperatures
- Simplified stock management with universal parts and adaptable solutions
Guide rails and accessories
- G795 height-adjustable (2 mm) free-swing guide rail with concealed fastening screws
- A120 mounting plate for door closer
- A130 mounting plate for guide rail G795
- A153 mechanical opening damper, continuously adjustable up to an opening angle of max. 130° (does not replace door stop)
- A189 connection box for leaf mounting
- 1317-10 flush-mounted release button and
- 1316-10 surface-mounted release button for controlling fail-unlocked components, such as holding magnets and fail-unlocked strikes, and as a manual switch / control for arrester systems
- RZ100 smoke detector station with integrated power supply and smoke detector to control arrester devices
- ORS 142 / TDS 247 ceiling smoke detector
Datasheet
Installation instructions and drilling template
Specification texts
Drawings in pdf format
Description Part number Type DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, silver, EV1 DC700FMB--DEV1- Door closer DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, white, similar to RAL 9016 DC700FMB--D9016 Door closer DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, brown, similar to RAL 8014 DC700FMB--D8014 Door closer DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, black, similar to RAL 9005 DC700FMB--D9005 Door closer DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, stainless steel design DC700FMB--D35- Door closer DC700G-FMB, door leaf mounting with cable and connection box, EN size 3-6, customized finish DC700FMB--DXXXX Door closer DC700G-FM, frame mounting, EN size 3-6, silver, EV1 DC700FM---DEV1- Door closer DC700G-FM, frame mounting, EN size 3-6, white, similar to RAL 9016 DC700FM---D9016 Door closer DC700G-FM, frame mounting, EN size 3-6, brown, similar to RAL 8014 DC700FM---D8014 Door closer DC700G-FM, frame mounting, EN size 3-6, black, similar to RAL 9005 DC700FM---D9005 Door closer DC700G-FM, frame mounting, EN size 3-6, stainless steel design DC700FM---D35-- Door closer DC700G-FM, frame mounting, EN size 3-6, customized finish DC700FM---DXXXX Door closer Guide rail G795, silver, EV1 DCG795----DEV1- Guide rail Guide rail G795, white, similar to RAL 9016 DCG795----D9016 Guide rail Guide rail G795, brown, similar to RAL 8014 DCG795----D8014 Guide rail Guide rail G795, black, similar to RAL 9005 DCG795----D9005 Guide rail Guide rail G795, stainless steel DCG795----D35-- Guide rail Guide rail G795, customized finish DCG795----DXXXX Guide rail Mounting plate A120, galvanized DCA120-------40 Accessory Mounting plate A130, silver, EV1 DCA130-----EV1- Accessory Mounting plate A130, white, similar to RAL 9016 DCA130-----9016 Accessory Mounting plate A130, brown, similar to RAL 8014 DCA130-----8014 Accessory Mounting plate A130, black, similar to RAL 9005 DCA130-----9005 Accessory Mounting plate A130, customized finish DCA130-----XXXX Accessory Mechanical opening damper A153 DCA153--------- Accessory Connection box A189 DCA189--------- Accessory Interrupter push-button 1316-10, surface-mounted 1316-10------00 Accessory Interrupter push-button 1317-10, flush-mounted 1317-10------00 Accessory Smoke detector station RZ100, silver, EV1 DCRZ100---DEV1- Accessory Smoke detector station RZ100, white, similar to RAL 9016 DCRZ100---D9016 Accessory Smoke detector station RZ100, stainless steel design DCRZ100---D35-- Accessory Smoke detector station RZ100, customized finish DCRZ100---DXXXX Accessory Ceiling mounted smoke detector ORS 142 with base, white, similar to RAL 9010 DCRZ101----9010 Accessory Name Value Closing force EN size 3-6 Maximum leaf width 1400 mm Closing speed (C) Variable between 170° and 15° Latch speed (L) Variable between 10° and 0° Maximum opening angle Hinge side ~170° | Non-hinge side ~125° Door system Single leaf Handing Left- / right-handed Mounting options Leaf mounting on hinge side Force adjustment Yes Height adjustment Yes Corrosion resistance Grade 3 (96 hours) Dimensions (H x D x L) 64 x 58 x 325 mm Required power supply 24 V DC Rated power consumption ~90 mA Duty cycle 100% Certified in compliance with EN 1155 CE classification 3 | 8 | 3-6 | 1 | 1 | 3 CE / UKCA mark Yes Suitable for fire and smoke protection doors Yes Barrier-free according to CEN/TR 15894 | DIN 18040 Third-party verified EPD ISO 14025, EN 15804 Protection class IP 43
