4 mounting options
Door closer fits door or frame mount, push or pull side – right out of the box
DC500
Door closer with Cam-Motion® technology and guide rail – for single leaf doors, size 1-4
The DC500 series brings precise control for doors which must balance access and protection, contained within a stylish exterior to meet the demands of discerning environments. The rapidly decreasing opening force of Cam-Motion technology ensures doors open with less effort.
- Certified in compliance with EN 1154, size 1-4
- Suitable for fire and smoke protection doors
- For single leaf doors up to 1100 mm width
- Barrier-free according to DIN 18040 and CEN/TR 15894
Colours
Silver, EV1
White, similar to RAL 9016
Brown, similar to RAL 8014
Black, similar to RAL 9004
Stainless steel, design and full cover
Customized colours on request

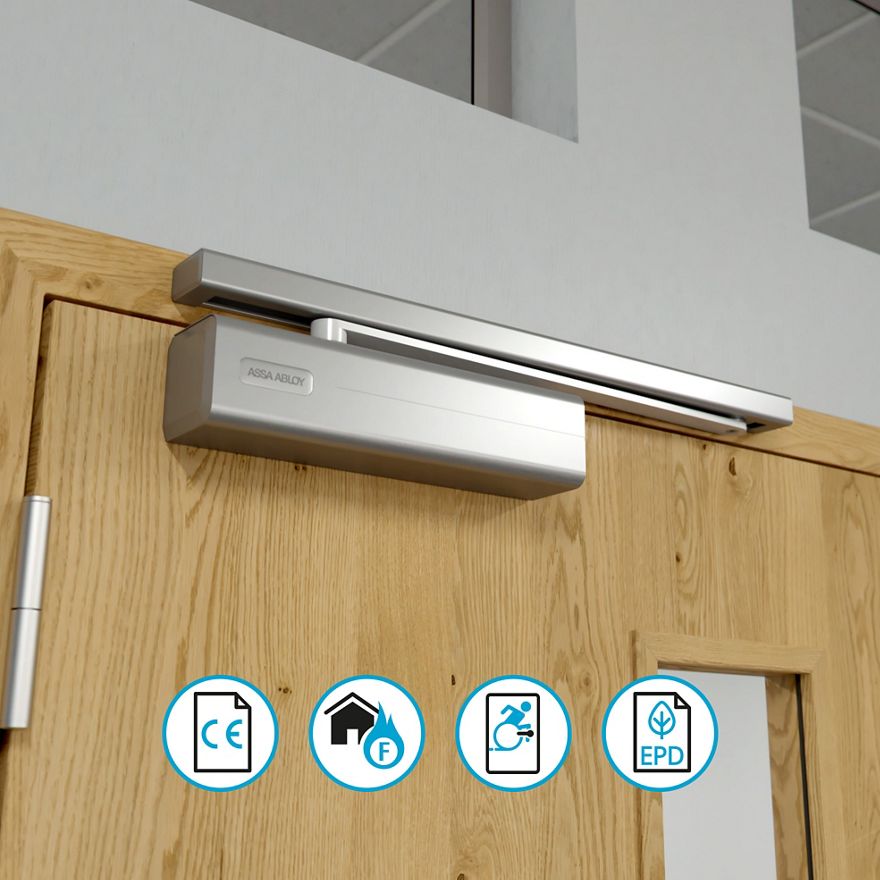

DC500 with guide rail G195, door leaf mounting on hinge side
DC500 with guide rail G195, door leaf mounting on hinge side
DC500, G195 (G193) dimensions in mm
Mounting options
Colour options
- DC500 with guide rail G195, Silver, EV1
- DC500 with guide rail G195, White, similar to RAL 9016
- DC500 with guide rail G195, Brown, similar to RAL 8014
- DC500 with guide rail G195, Black, similar to RAL 9005
DC500 with guide rail G195, Stainless steel design
DC500 with guide rail G195, Stainless steel full cover
Height-adjustable spindle
Offers flexibility, compensates installation mistakes and enables later adjustment without cost or time delays
Independent adjustments
Closing and latch speeds can be raised and lowered independently, so closing performance matches the door’s use
Multiple finishes
Modern, elegant design with a choice of finishes and colours ensure door closers do not disrupt any interior design
Features
- Symmetric cam design allows 4 mounting options
- Height-adjustable, grooved spindle (14 mm) compensates installation mistakes
- Closing and latch speeds can be raised and lowered independently
- Durable, front-facing metal valves make adjustments easy and reliable
- Consistent performance in a wide range of temperatures
- Backcheck functionality as standard protects the frame and surrounding areas (not for DC500Basic)
- Simplified stock management with universal parts and adaptable solutions
Product variants
- DC500Basic without backcheck functionality, with plastic cover
Guide rails and accessories
- G195 height-adjustable guide rail (2 mm) with concealed fastening screws
- G193 standard guide rail with visible fastening screws
- A152 mechancial hold-open device with adjustable hold-open force, keeps doors open at an angle between 80° and 130° (not approved for use on fire and smoke protection doors)
- A153 mechancial opening damper, continuously adjustable up to an opening angle of max. 130° (does not replace door stop)
- A120 mounting plate for door closer
- A124 replacement plate for renovation applications
- A130 mounting plate for guide rail
- A136 mounting plate for guide rail, non-hinge side
- A104 angle bracket for guide rail
- A166 glass door shoe for mounting the door closer on a solid glass door
- A190 screening plate for doors with narrow profiles and glass filling as cover of the back of the door
- A176 universal drilling gauge
Installation instructions and drilling templates
Certificates
Specification texts
Drawings in pdf format
Description Part number Type DC500, EN size 1-4, silver, EV1 DC500-----DEV1- Door closer DC500, EN size 1-4, white, similar to RAL 9016 DC500-----D9016 Door closer DC500, EN size 1-4, brown, similar to RAL 8014 DC500-----D8014 Door closer DC500, EN size 1-4, black, similar to RAL 9005 DC500-----D9005 Door closer DC500, EN size 1-4, stainless steel design DC500-----D35-- Door closer DC500, EN size 1-4, stainless steel, full cover DC500-1-----35- Door closer DC500, EN size 1-4, customized finish DC500-----DXXXX Door closer DC500Basic, EN size 1-4, without backcheck, silver, plastic cover DC501----PDSIL- Door closer Guide rail G195, silver, EV1 DCG195----DEV1- Guide rail Guide rail G195, white, similar to RAL 9016 DCG195----D9016 Guide rail Guide rail G195, brown, similar to RAL 8014 DCG195----D8014 Guide rail Guide rail G195, black, similar to RAL 9005 DCG195----D9005 Guide rail Guide rail G195, stainless steel DCG195----D35-- Guide rail Guide rail G195, customized finish DCG195----DXXXX Guide rail Guide rail G193, silver, EV1 DCG193-----EV1- Guide rail Guide rail G193, white, similar to RAL 9016 DCG193-----9016 Guide rail Guide rail G193, brown, similar to RAL 8014 DCG193-----8014 Guide rail Guide rail G193, black, similar to RAL 9005 DCG193-----9005 Guide rail Mounting plate A120, galvanized DCA120-------40 Accessory Mounting plate A130, silver, EV1 DCA130-----EV1- Accessory Mounting plate A130, white, similar to RAL 9016 DCA130-----9016 Accessory Mounting plate A130, brown, similar to RAL 8014 DCA130-----8014 Accessory Mounting plate A130, black, similar to RAL 9005 DCA130-----9005 Accessory Mounting plate A130, customized finish DCA130-----XXXX Accessory Mounting plate A136, silver, EV1 DCA136-----EV1- Accessory Angle bracket A104, silver, EV1 DCA104-----EV1- Accessory Angle bracket A104, white, RAL 9016 DCA104-----9016 Accessory Angle bracket A104, brown, similar to RAL 8014 DCA104-----8014 Accessory Angle bracket A104, black, similar to RAL 9005 DCA104-----9005 Accessory Replacement plate A124, galvanized DCA124-------40 Accessory Glass door shoe A166, silver, EV1 DCA166-----EV1- Accessory Screening plate A190, stainless steel DCA190-----35-- Accessory Universal drilling gauge A176 DCA176--------- Accessory Mechanical hold-open device A152 DCA152--------- Accessory Mechanical opening damper A153 DCA153--------- Accessory Name Value Closing force EN size 1-4 Maximum leaf width 1100 mm Closing speed (C) Variable between 170° and 15° Latch speed (L) Variable between 10° and 0° Backcheck (B) Variable above 75° (not for DC500Basic) Maximum opening angle ~170°/125° (hinge side / non-hinge side) Door system Single leaf Handing Left- / right-handed Mounting options Leaf or frame mounting | Hinge or non-hinge side Force adjustment Yes Height adjustment Yes Corrosion resistance Grade 4 (240 hours) Dimensions (H x D x L) 64 x 58 x 272 mm Certified in compliance with EN 1154 CE classification 3 | 8 | 1-4 | 1 | 1 | 4 CE / UKCA mark Yes Suitable for fire and smoke protection doors Yes Third-party verified EPD ISO 14025, EN 15804 Barrier-free according to CEN/TR 15894 | DIN 18040
