Cancel or reprogram anytime
Facility managers have total flexibility to issue, amend or revoke access

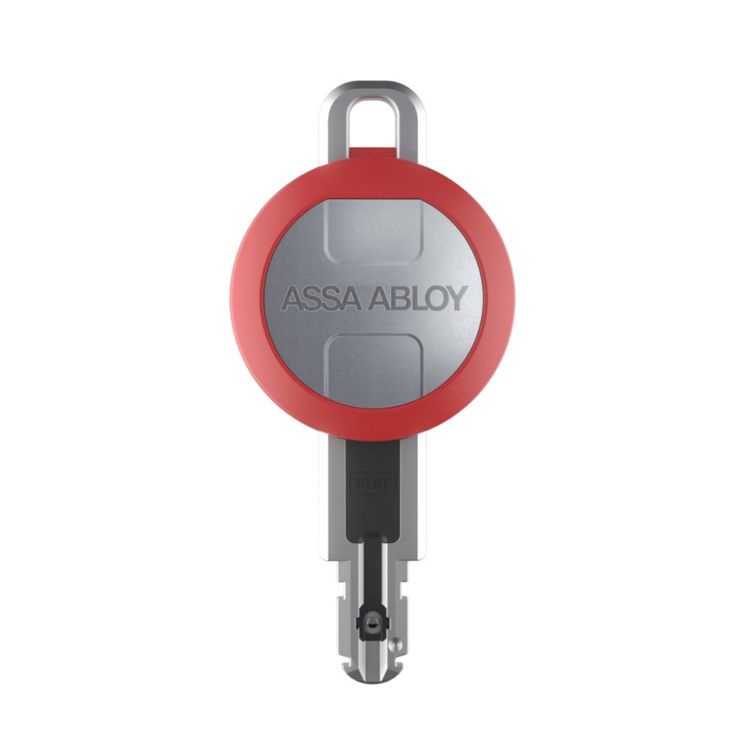

eCLIQ Programming Key
eCLIQ keys come in several different types to match your fine-grained security needs.
Programming keys are used as a hardware login credential to the management software, acting as a link between CLIQ admin software and eCLIQ cylinders. They can be used to transport access changes to individual eCLIQ cylinders or for retrieving audit trails.
Hundreds of tasks and/or audit trails can be loaded on a single eCLIQ programming key.
The fully electronic key is rigorously tested to withstand extreme weather conditions and is operated by a single battery with a 10-year lifespan.
Programming key
Programming key
Programming key used with desktop programmer
Product
- Transmits up to 3,000 programming steps to the cylinders
- Can read up to 6,000 events from cylinders and transfer them to the software
- Electronic proof of eligibility within the software
- Protected by 6-digit personal PIN code
- Electronic unique and locking system coding
- Visual and audible indication indicates programming processes and battery status
- The data and energy transmission to the cylinder is contact-based
- Data transmission to the cylinder is highly encrypted
- Temperature range 0° C to +70° C
- Protected against temporary immersion in water (IP67)
- Power supply via standard lithium battery (CR2450)
- Battery can be easily and independently changed by the user, without tools
- Optionally, additional subordinate programming keys can be supplied for a locking system (N109,V=PN and N109,V=PSM)
- Optional for use in Zone 1 potentially explosive atmospheres (ATEX=II 2G EX IB IIB T4 Gb)
Scope of delivery
- 1 programming key incl. battery
