J-Series

• UNION

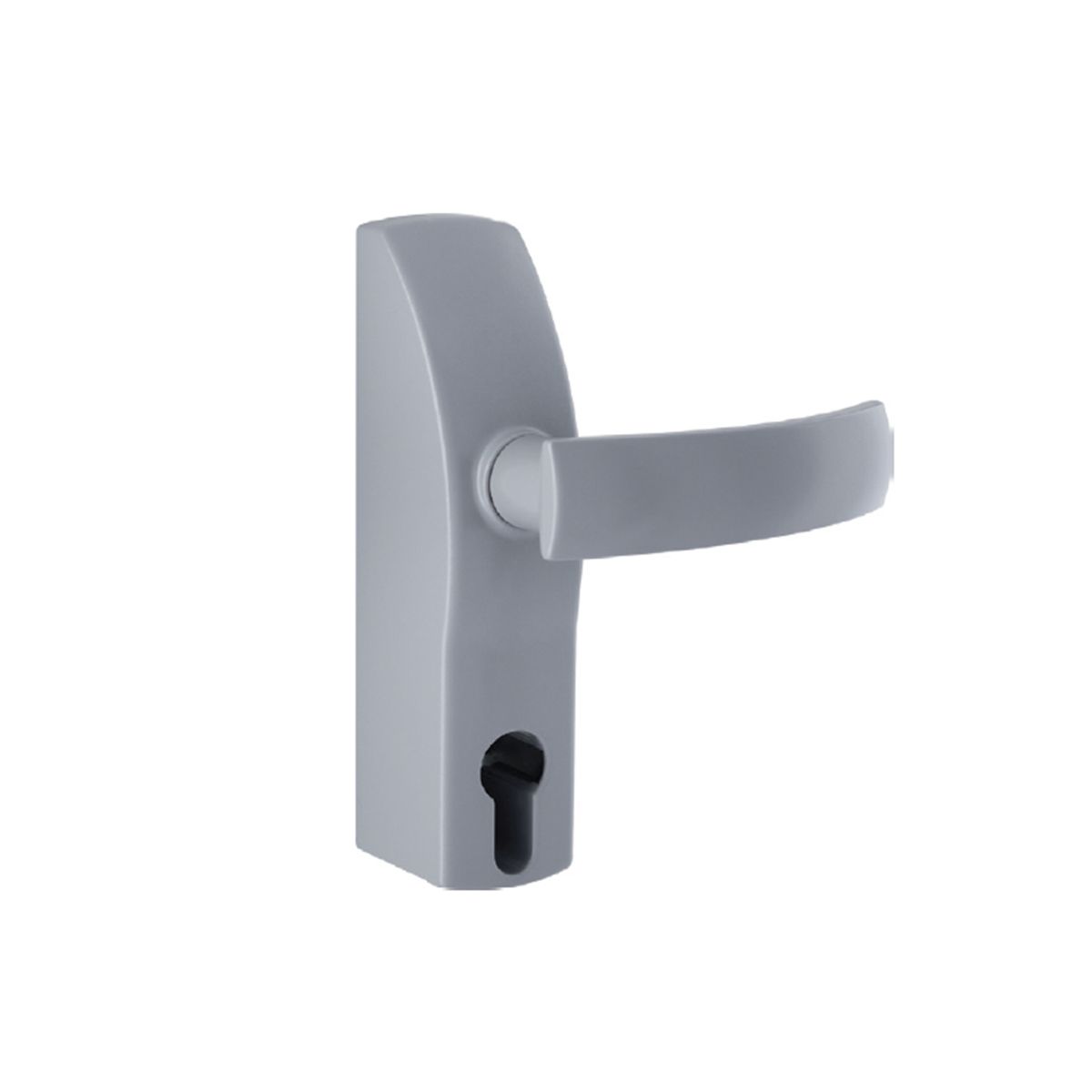

• J-885-SIL

Technical Attributes

• Suitable for timber and metal doors
• Lever outside access device for fire exit door which need to be accessed from the outside
• Clutch Release Protection System (CRPS) to protect against abuse
• Excludes cylinder

Certification

• BS EN 1634-1

Variations

Variant 1

• UNION
• J-883-SIL (900mm)
• J-883-W-SIL (1200mm)

Technical Attributes

• Suitable for rebated double doors
• 3 point locking
• Max. door width 900mm/1200mm
• Max. door height 2350mm
• Anti-thrust steel deadlatch
• Optional outside access device:
• J-885-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

Variant 2

• UNION
• J-883TD-SIL (900mm)
• J-883-TD-W-SIL (1200mm)

Technical Attributes

• Suitable for rebated double doors
• 3 point locking
• Low projection touch bar
• Max. door width 900mm/1200mm
• Max. door height 2350mm
• Anti-thrust steel deadlatch
• Optional outside access device:
• J-885-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A

Variations

Variant 1

• UNION
• J-881-SIL (900mm)
• J-881-W-SIL (1200mm)

Technical Attributes

• Single point lateral locking touch bar
• Max. door width 900mm/1200mm
• Max. door height 2350mm
• Anti-thrust steel deadlatch
• Optional outside access device:
• J-885-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

Variant 2

• UNION
• J-881TD-SIL (900mm)
• J-881TD-W-SIL (1200mm)

Technical Attributes

• Single point lateral locking touch bar
• Low projection touch bar
• Max. door width 900mm/1200mm
• Max. door height 2350mm
• Anti-thrust steel deadlatch
• Integrated dogging device
• Optional outside access device:
• J-885-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A

Variant 3

• UNION
• J-882-SIL (900mm)
• J-882-W-SIL (1200mm)

Technical Attributes

• Suitable for non-rebated double doors (will require 2 units)
• 3 point locking
• Max. door width 900mm/1200mm
• Max. door height 2350mm
• Anti-thrust steel deadlatch
• Optional outside access device:
• J-885-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | A | A

Variant 4

• UNION
• J-882TD-SIL (900mm)
• J-882TD-W-SIL (1200mm)

Technical Attributes

• Suitable for non-rebated double doors (will require 2 units)
• 3 point locking
• Low projection touch bar
• Max. door width 900mm/1200mm
• Max. door height 2350mm
• Anti-thrust steel deadlatch
• Optional outside access device:
• J-885-SIL

Certification

• BS EN 1125
• 3 | 7 | 6 | B | 1 | 3 | 2 | 2 | B | A
