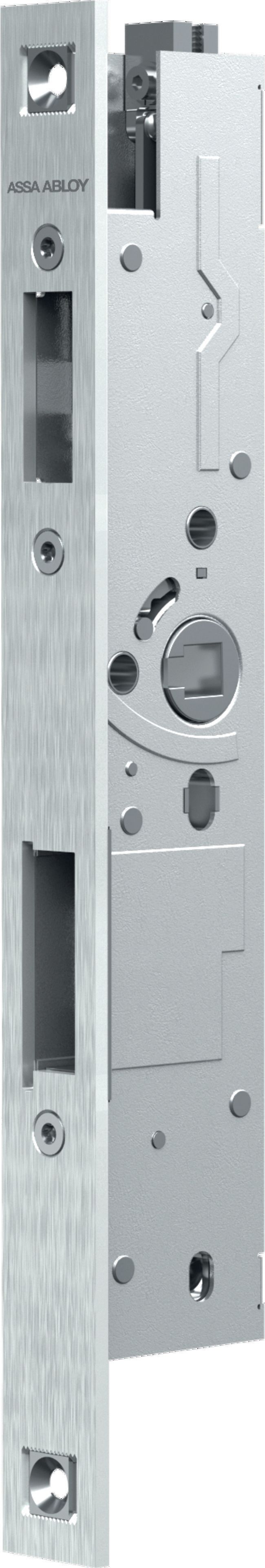

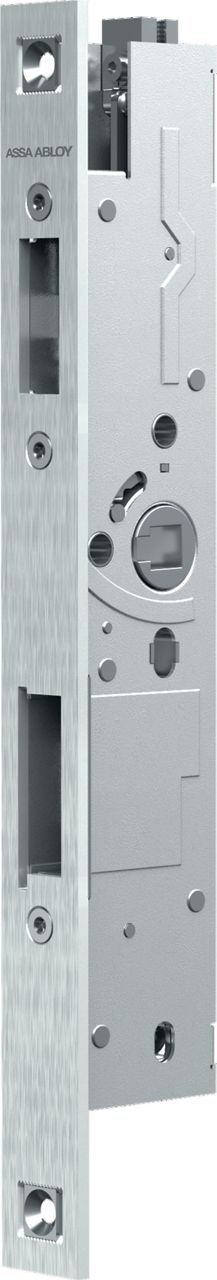

Standard passive leaf lock N1920
Overview of Advantages
- Environmental product declaration (EPD) in accordance with EN 15804
- Tested for 1,000,000 cycles and 300 kg door weight
- Compliance with EN 179/EN 1125, EN 12209
- Optional: Bus system with integrated monitoring sensors and simplified connection via 5-wire cable
- Closed lock case
- Latch, reversible between DIN left and right in new design for greater strength and with integrated noise reduction
- Deadbolt with anti-tampering design
- Optional: Bus System with integrated monitoring function
- Developed for Euro profile cylinder and Swiss round Profile cylinder
Product description
- OneSystem standard passive leaf lock N1920 for automatic locking of the inactive leaf upwards or downwards for double-leaf doors. For use with OneSystem locks from the N1600 series on the active leaf / approved for fire barriers according to EN 1634 / product-specific environmental product declaration (EPD) according to EN 15804 with article-specific parameters / tested for 1,000,000 cycles and 300 kg door weight.
