Rapid, straightforward mounting onto a wide variety of door frame and profiles.
Product description

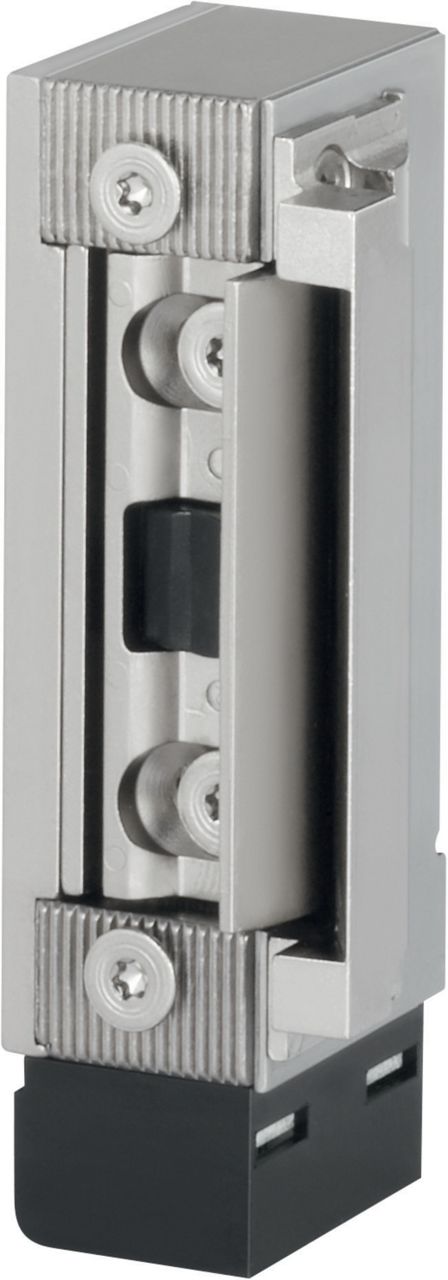

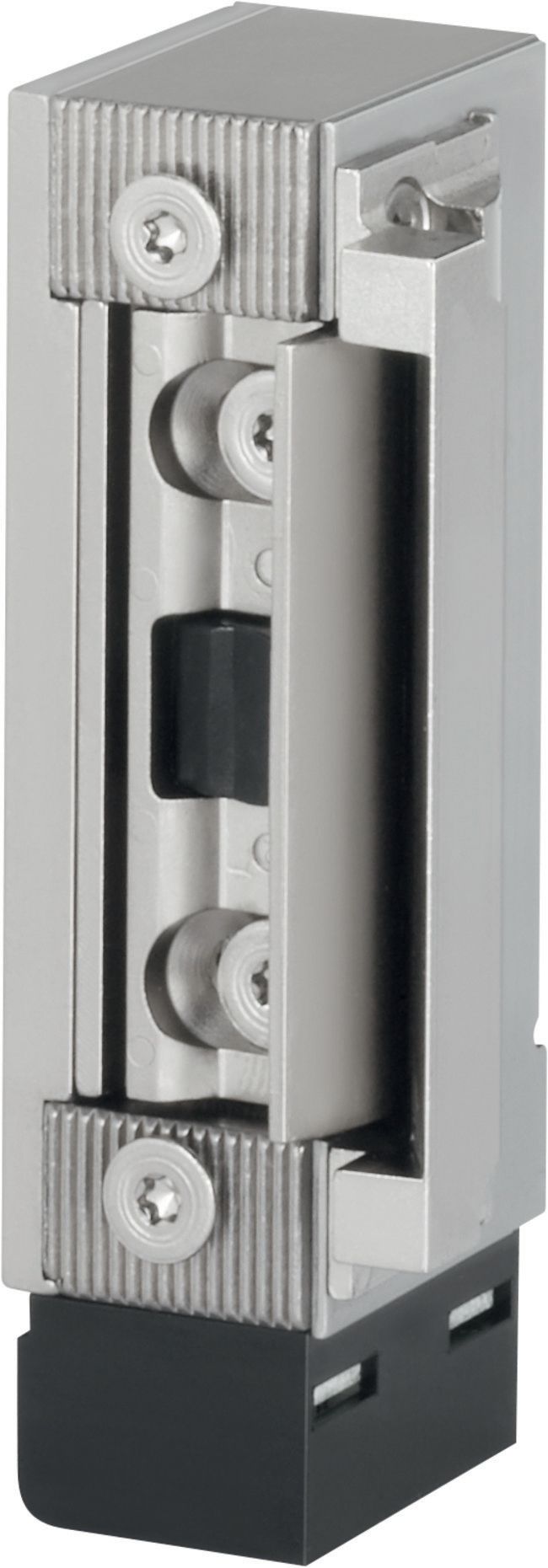

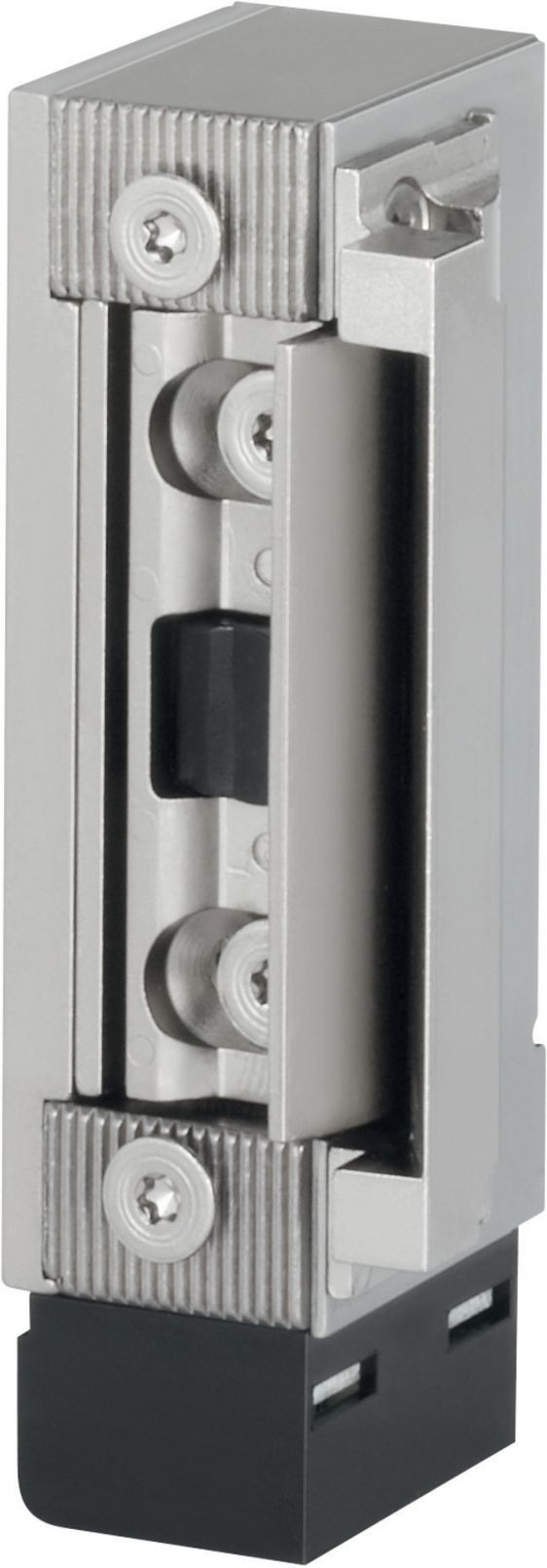

The compact construction of the effeff 332,208 allows rapid, straightforward mounting onto a wide variety of door frame and profiles.
Overview of Advantages
- Radius latch
- Compact symmetrical design
- Min. 2000 N, max. 3000 N holding power according to prEN13633 and prEN 13637
- Unlocking under preload with 100% holding power
- Monitoring contact is potential-free and armature contact is non-isolated *
- Suitable for DL/DR and horizontal installation

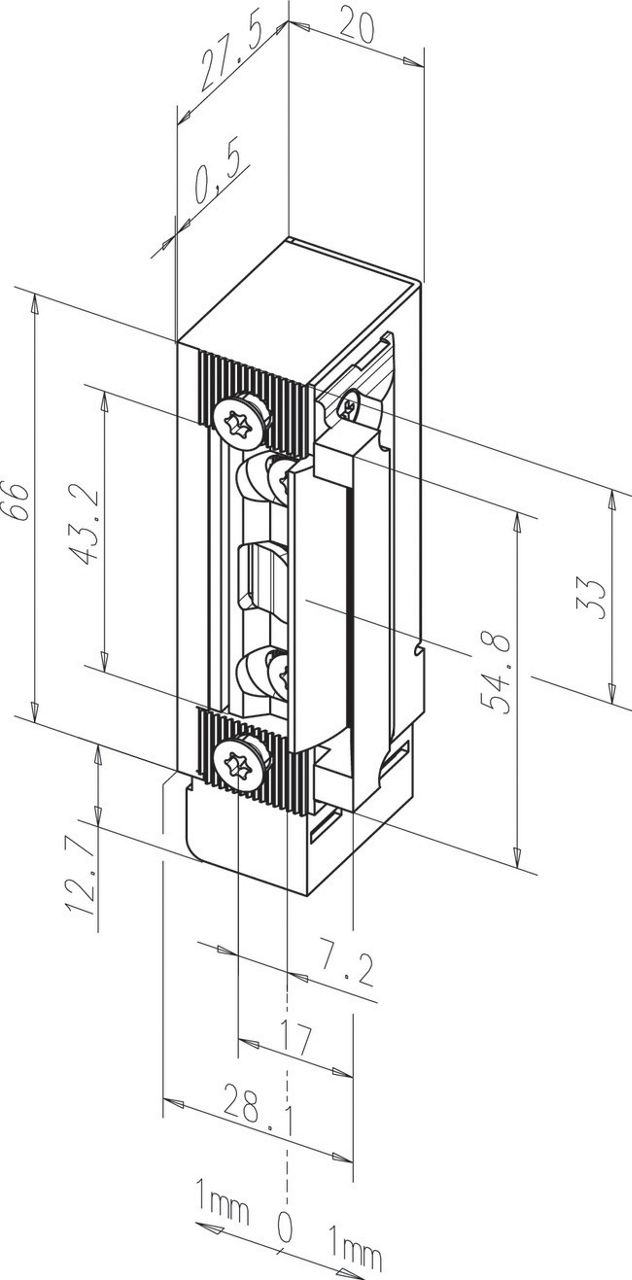

- Compact fitting dimensions
- Adjustable FaFix® latch: 2 mm adjustment range with 0.5 mm increments
- Compatible with ProFix® 1 striking plates
- Monitoring contact integrated in housing
- Monitoring flap moves together with the FaFix® screw-on attachment, i.e. the switching point always remains the same
Note
- Can only be used as a supplementary locking device on fire doors
- * Coupling Relay 7480 is required for parallel operation.
