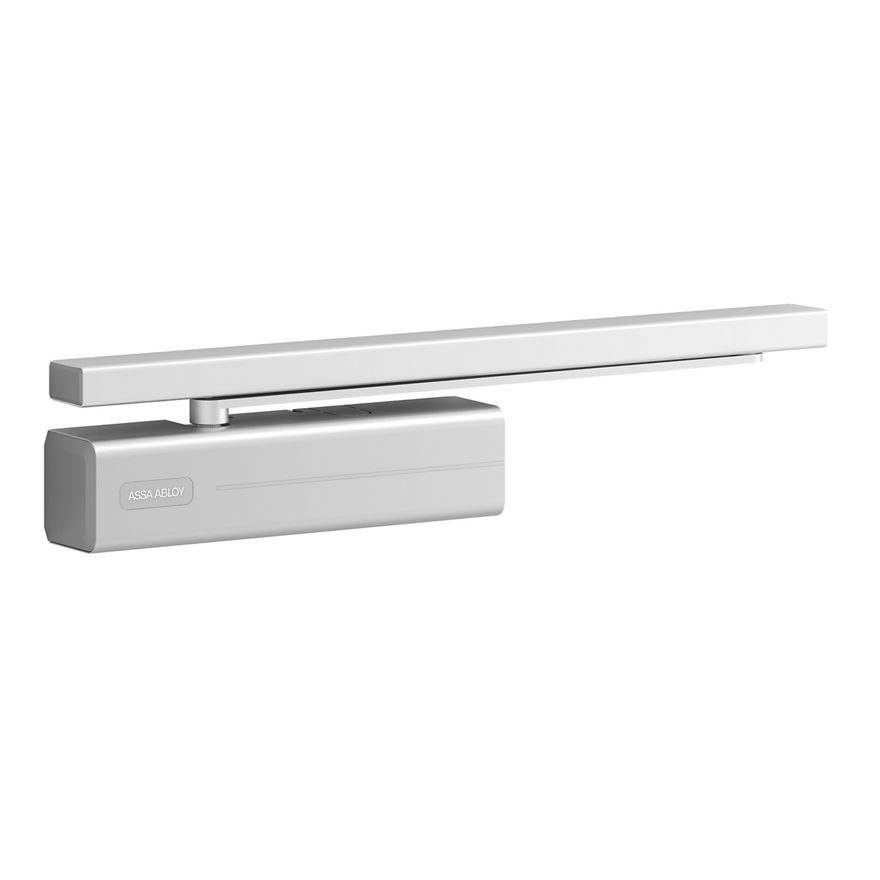

DC700
EN power size 3-6
Door closer with Cam-Motion® technology and height adjustable guide rail with rapidly decreasing opening torque.
- Fulfils barrier-free building requirements (EA / CENTR 15894)
- Certified in compliance with EN 1154, size 3-6
- Suitable for fire and smoke protection doors
- For single action doors up to 1400 mm wide
- Can be used in four installation types: hinge andnon-hinge sides in standard and frame installation
- Closing power adjustable, EN size 3-6, for doors upto 1400 mm wide
- Closing speed, latching speed and backcheck adjustable via front facing regulating valves
- Can be used with integrated concealed mountingplate, suitable for fire and smoke protection doors
- CE approved
- 14 mm height adjustable arm system for ease of fitting
- Standard and frame mounting on hinge andnon-hinge side of the door
- Suitable for left and right handed doors
- Hold-open device continuously adjustable between ca. 80° and 130°
- Hold-open device is traversable
