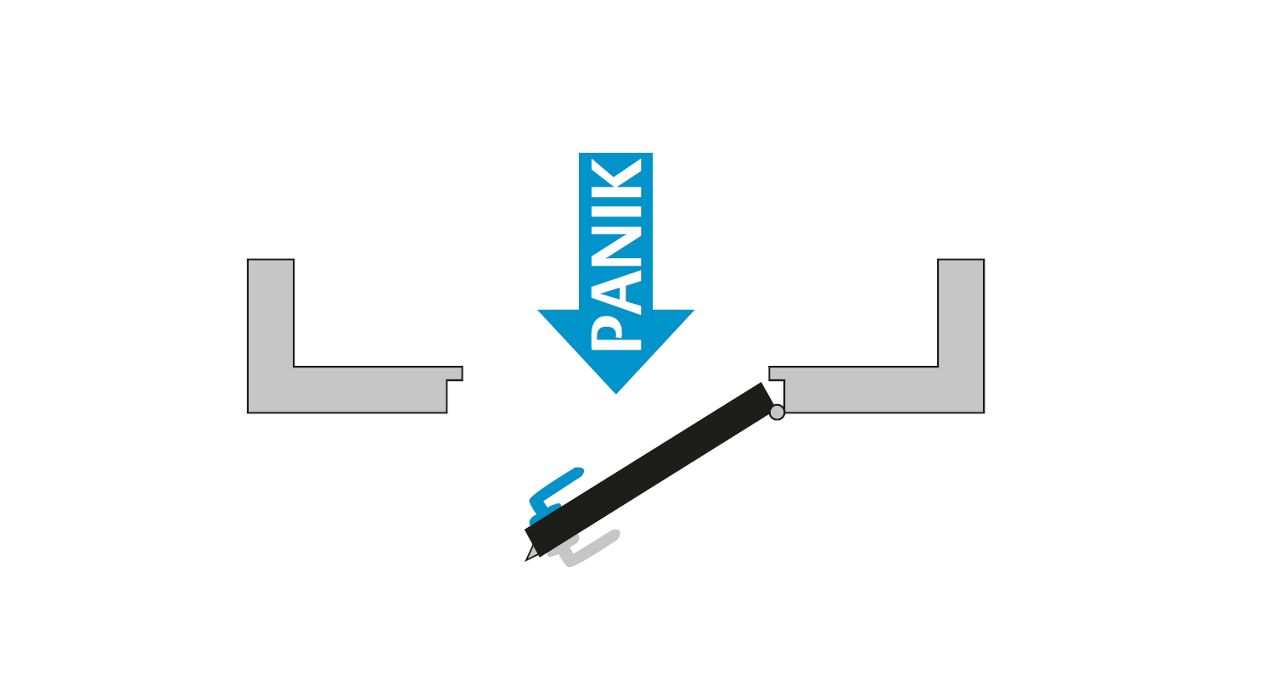

Panic function B
With the change-over function, the door is equipped with a handle on both sides. The handle is always engaged in the direction of escape, enabling the door to be used at all times.
MSL FlipLock
Convertible lock with fliplatch for all tubular frame doors
Planning security with the modular door lock family
Whether wooden, metal, tubular frame or plastic doors, FlipLock always fits. With the wide door lock system, all doors can be equipped with either mortise locks or multi-point locking systems, from the mechanical basic version to motorised versions. The patented fliplatch also makes it easy to change direction on site. While the high-quality components always guarantee low-noise and easy opening of the door – even under high pre-load.
The advantages at a glance:
- Versatile use thanks to a wide range of variants
- Reversible door opening direction thanks to innovative fliplatch
- Even under preload or with warping
- Quiet and easy to operate
- Swiss quality made of high-strength special steel
- Meets all standards for burglary and fire doors as well as escape doors
- Combination options with electrical, mechatronic and mechanical locking systems
Areas of application
- Commercial properties or security institutions such as courts, hospital or bank
- Private apartment buildings and single-family homes
- Public buildings such as schools or universities.
- Access and fire doors
Convertible door lock – popular with tradesmen
Joiners, door manufacturers, door planners and architects value the FlipLock locks in particular for their ease of use and the countless design options:
- Opening direction and panic side reversible
- Mortise lock or multi-point locking system
- Mechanical and motorised
- Single and double-leaf doors
- Self-locking option
- Daytime function option
- Backset 30 to 80 mm

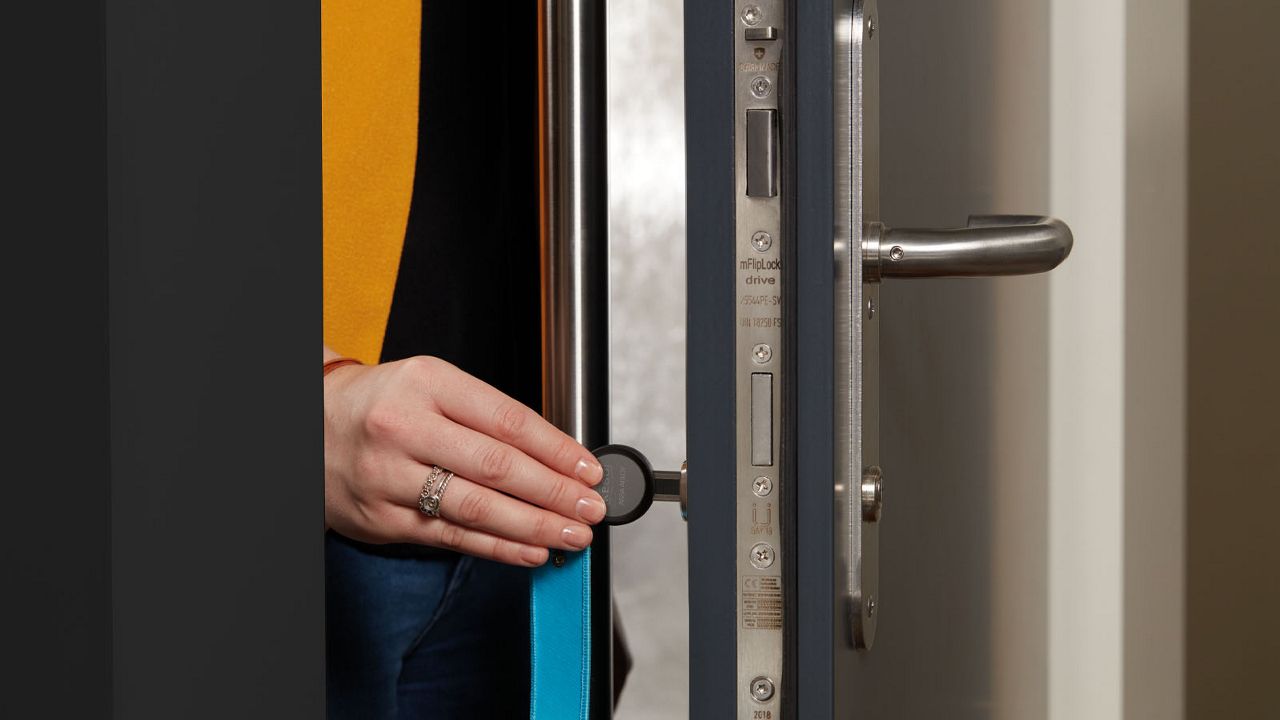

Patented fliplatch in Swiss quality
The rotatable fliplatch is the heart of the FlipLock door locks. The direction can be changed in just a few simple steps. While the integrated noise insulation makes opening with pre-load and warping on the door child’s play.
Temperature fluctuations or significant differences in climate on the inside and outside of the door are no longer a problem.
Panic functions and safety requirements
Whether as a security door with panic function or day and night settings, FlipLock locks are available in all common versions.
Panic function D
The passage function is suitable for pure escape doors. Panic actuation from the inside not only opens the door, but also engages the outer handle.
Panic function E
With the reversing function, the door can only be opened from the outside with a key, while the door remains open in the direction of escape at all times.
Panic function E-SV
The reversing function with automatic locking works in the same way as panic function E, with the difference that the lock is automatically locked again after each opening.
Connection to electronic locking systems made easy
The MSL lock technology develops its full potential with FlipLock Drive and eDrive as well as FlipLock access and e-access and enables expansion with the following applications:

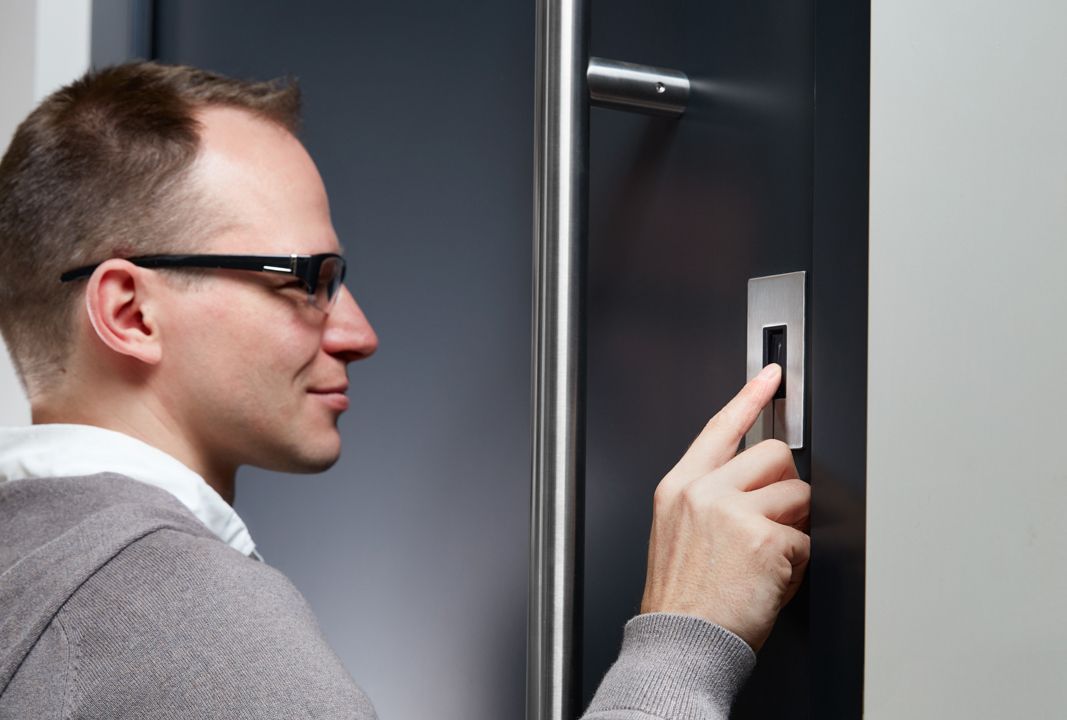

- Opening impulse with badge or fingerprint
- Access control
- Automatic day/night function
- Integration into Integra system
Functional test without an electrician
With the separately available MSL test box, ASSA ABLOY specialist partners have the option of testing motorised FlipLock locks – without the presence of an installer. Correct installation and functionality can be tested and demonstrated right after installation. Independent from power supply thanks to battery operation.
Other solutions for high door security
Discover our locking systems.
