DC700

Door closer with Cam-Motion^® technology for Single leaf doors up to size EN6 (1400 mm)

Features of DC700

• Door closer with Cam-Motion^® technology and height-adjustable guide rail G195 or standard guide rail G193
• Fulfils barrier-free building requirements (EA / CEN TR 15894)
• Certified in compliance with EN 1154, size 3-6
• Suitable for fire and smoke protection doors
• For single action doors up to 1400 mm wide
• Can be used in four installation types: hinge and non-hinge sides in standard and frame installation

Characteristics of DC700

• Can be used with integrated concealed mounting plate, suitable for fire and smoke protection doors
• Can be used for left and right-handed doors
• 14 mm height adjustable arm system for ease of fitting
• Closing speed, latching speed and backcheck adjustable via front facing regulating valves
• Thermodynamic valves for consistent performance
• Variable adjustable closing force
• Opening angle up to 160°
• Effective backcheck and latching speed range adjustable
• Large range of applications

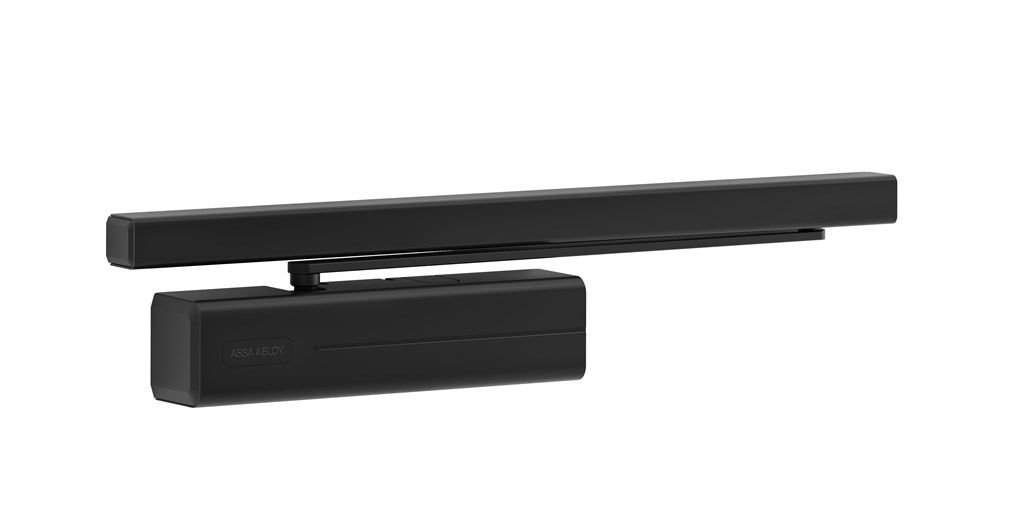

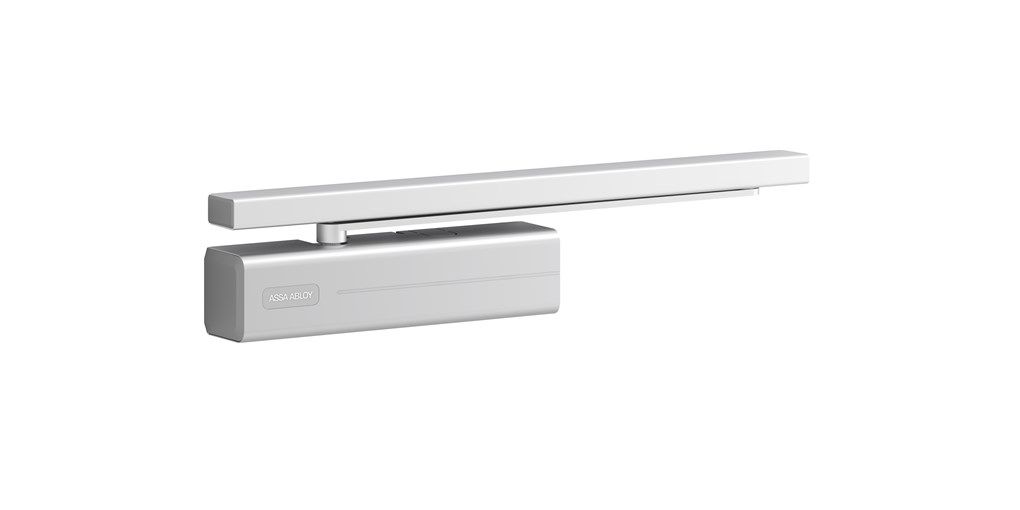

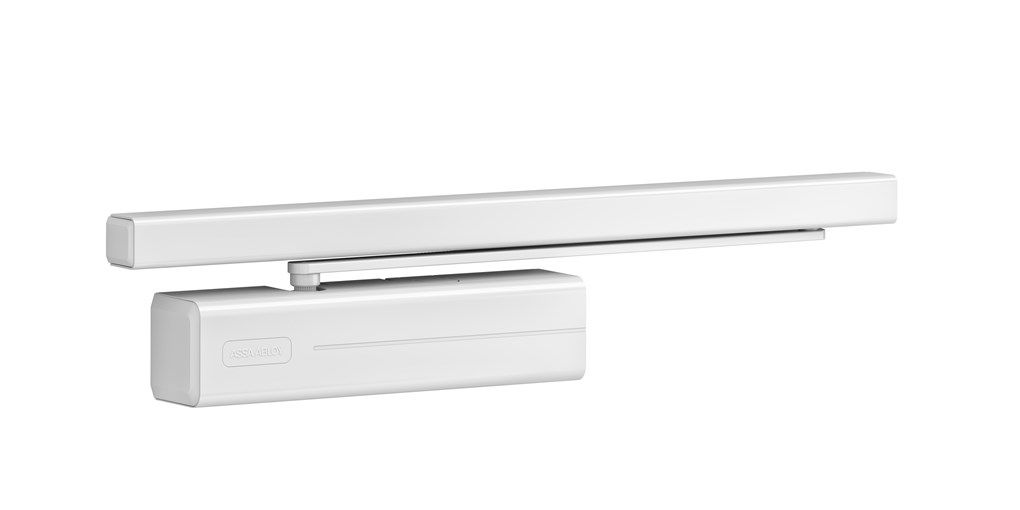

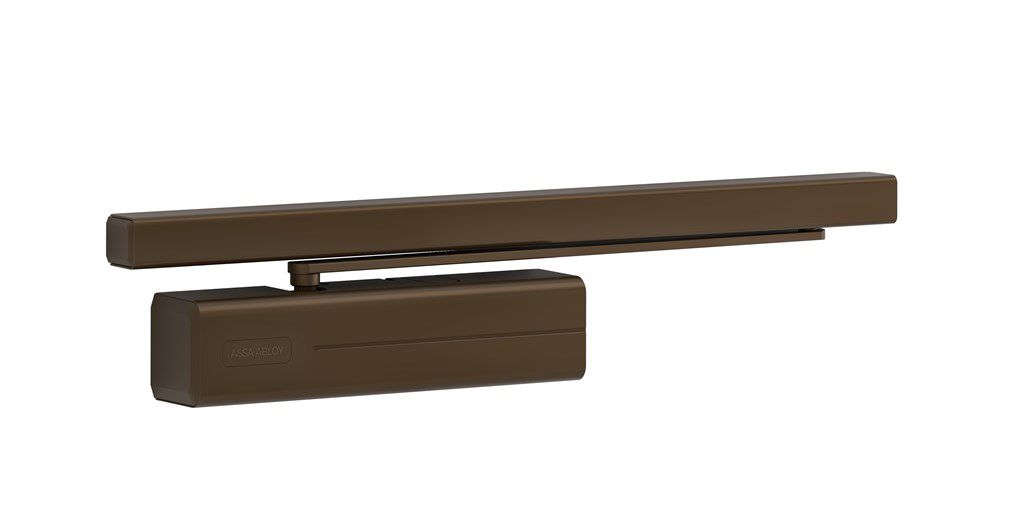

• Standard colours: silver EV1; white, similar to RAL9016; brown, similar to RAL8014; black, similar to RAL9005, stainless steel
• Customised finishes available on request
