AAF-U70
High-Security doors and screens with Thermal Insulation
This system is a thermally insulated profile system used for flush mounted single or double-leaf swing doors, windows and glazed partitions.

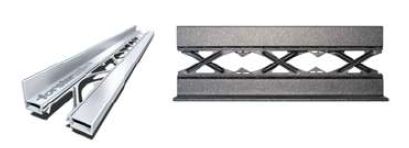

It is manufactured from cold rolled mild steel with a zinc magnesium coating or stainless steel profiles, square cut Snap-on glazing beads, and can include aluminum reinforcement embedded in the profiles. With a nominal depth of 70mm, the profiles can also be welded together to form complex constructions.
The system has been comprehensively tested to both the European and North American standards for high-security parameters; which includes burglary, ballistic, and blast resistance.

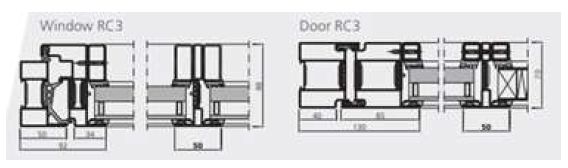

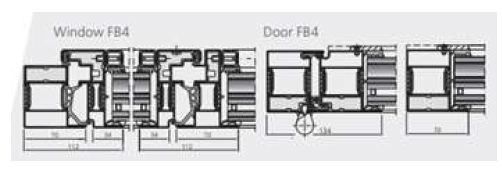

Description Result Standard Material Options Zinc magnesium (ZM) coated steel Stainless steel grade 304 (brush finish grain 220-240) Various profile depths availible, depending on the fire rating & security requirements Fire resistant options Fixed partitions EW60 EN 1634-1 Single and double doors Fire code compliance European and North American Standards NFPA101 and NFPA80 GCC Civil Defence Approved through local forster fabricators Tested design variants Classification from CE-tests according to EN13830: Thermal insulation: U-Values Up to1.2 W/(m2∙K) Resistance to wind load Class C3/B3 EN 12210 Air permeability Class C3 EN 12207 Sound insulation Rw up to 46 dB EN ISO140-3 Burglary resistance RC 2-3 EN 1627-1630 Ballistic rating FB4, FB5, and FB6 EN 1522/1523 Blast resistant EPR1(S) EN 13123-1 Fittings UL listed hardware available Door closers complete within house cycling testing Latch locks and lever handles Compatable with access control devices System properties Extremely slender visible section width sand depth Can be powder coated or wet paint coated (To be checked with local applicator) Large glass panels available Large door sizes available Extremely economical manufacturing without special equipment Robust system, resistant to damage Can be used in conjunction with forster thermfix vario facades Environmental & Sustainability Credentials Environmental Product Declaration (EPD) Can apply online High Recycle Content Project specific declaration can be provided on request
