XD 2R - Rim Exit Device
Characteristics:
- XD 2R Series have a full line of heavy-duty narrow stile Panic and Fire-Rated
- Exit Hardware are designed for using on narrow stile doors in all public buildings, resort hotels, shopping stores, and all types of aluminum doors or aesthetic requirements

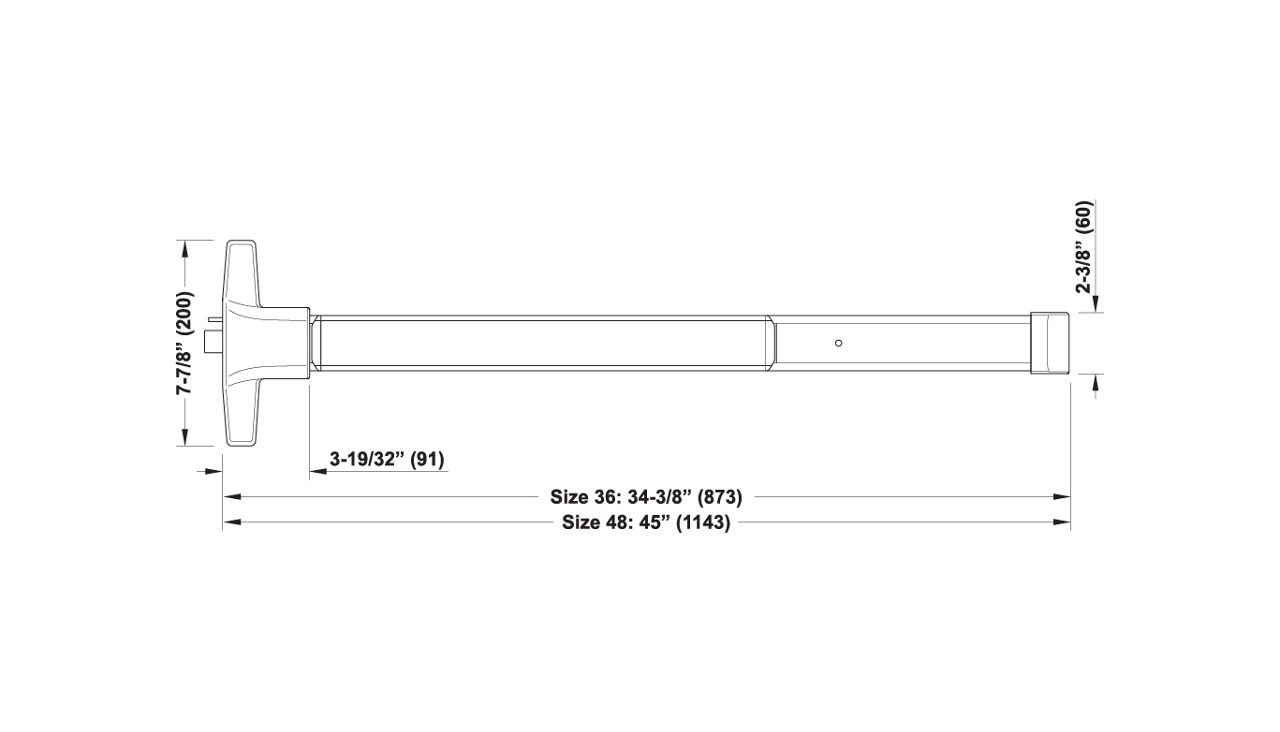

Material Stainless steel and steel components on aluminum chassis Strikes Steel Handing Non-handed Device Lengths Short - 36” : 33-15/32” (850mm)
Long - 48” : 44-3/4” (1137mm)
Door Width 36”- (736mm to 914mm) door size
48” - (838mm to 1219mm) door size
Minimum Stile Width 66mm Latch Bolt (19mm) throw, deadlocking design Dogging Kit Panic device - Hex key dogging (RD) standard
Fire device - No mechanical dogging (ND)
Dogging Options Cylinder Dogging (CD)
Less Dogging (LD)
Mounting Fasteners Panic device - Machine screws furnished standard
Optional SNB are available for device, order SNB separately
Fire device - Six nuts and bolts (SNB) supplied standard

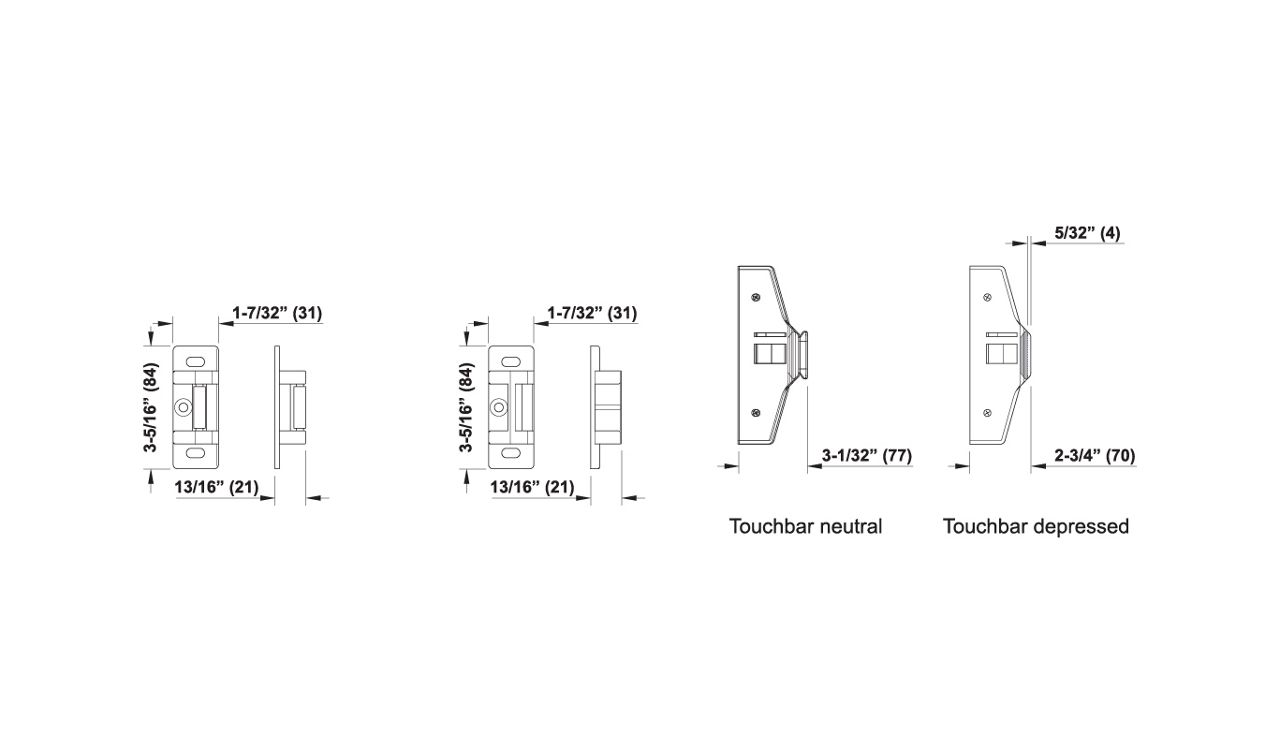

Mounting Height Device centerline from finished floor is (1016mm) standard Projection Pushbar Neutral:3-1/16” (78mm), Pushbar Depresesed: 2-19/32” (66mm) Finish 603, 605, 612, 613, 625, 626, 630, 689 Certifications ANSI/BHMA: Tested and certified to the requirements of ANSI/BHMA A 156.3 Exit Devices Grade 1
UL Listed: Panic Exit Hardware or 3 Hour fire exit hardware
