Standard project locks wide stile

6 results

  • Sash Lock N1000

    Product description

    • OneSystem sash lock N1000 according to EN 12209 for single-leaf standard doors, product-specific environmental product declaration (EPD) according to EN 15804 with article-specific parameters / tested for 1,000,000 cycles and 300 kg door weight

    Features

    • Environmental product declaration (EPD) in accordance with EN 15804
    • Tested for 1,000,000 cycles and 300 kg door weight
    • Compliance with EN 12209
    • Small rear backset 17 mm
    • Continuous screw connection of fittings
    • Suitable espagnolette integrated in the striking plate
    • 20 mm bolt throw with a single rotation
    • Also available as a fire protection version
    • Closed lock case
    • Latch DIN left/right reversible without tools
    • Security fittings and oval roses can be screwed on through the lock
    • Stainless steel faceplate
    • Deadbolt with anti-tampering design
    • Developed for Euro profile cylinder and Swiss round Profile cylinder
    See product

  • Latch Lock N1002

    Product description

    • OneSystem latch lock N1002 for single-leaf standard doors, product-specific environmental product declaration (EPD) in accordance with EN 15804 with article-specific Parameters.

    Features

    • Environmental product declaration (EPD) in accordance with EN 15804
    • Tested for 1,000,000 cycles and 300 kg door weight
    • Compliance with EN 12209
    • Small rear backset 17 mm
    • Continuous screw connection of fittings
    • Suitable espagnolette integrated in the striking plate
    • Also available as a fire protection version
    • Closed lock case
    • Latch DIN left/right reversible without tools
    • Security fittings and oval roses can be screwed on through the lock
    • Stainless steel faceplate
    • Developed for Euro profile cylinder and Swiss round Profile cylinder
    See product

  • Sash lock for fire doors N1050

    Product description

    • OneSystem sash lock N1050 according to EN 12209 for single-leaf standard doors/ approved for fire barriers according to EN 1634 / product-specific environmentalproduct declaration (EPD) according to EN 15804 with article-specific parameters /tested for 1,000,000 cycles and 300 kg door weight

    Features

    • Environmental product declaration (EPD) in accordance with EN 15804
    • Tested for 1,000,000 cycles and 300 kg door weight
    • Compliance with EN 12209
    • Small rear backset 17 mm
    • Continuous screw connection of fittings
    • Suitable espagnolette integrated in the striking plate
    • 20 mm bolt throw with a single rotation
    • Also available as a fire protection version
    • Closed lock case
    • Latch DIN left/right reversible without tools
    • Security fittings and oval roses can be screwed on through the lock
    • Stainless steel faceplate
    • Deadbolt with anti-tampering design
    • Developed for Euro profile cylinder and Swiss round Profile cylinder
    See product

  • Bathroom lock N1001

    Product description

    • OneSystem bathroom lock N1001 for single-leaf standard doors, product-specific environmental product declaration (EPD) in accordance with EN 15804 with article-specific Parameters.

    Features

    • Environmental product declaration (EPD) in accordance with EN 15804
    • Tested for 1,000,000 cycles and 300 kg door weight
    • Compliance with EN 12209
    • Small rear backset 17 mm
    • Continuous screw connection of fittings
    • Suitable espagnolette integrated in the striking plate
    • 20 mm bolt throw with a single rotation
    • Also available as a fire protection version
    • Closed lock case
    • Latch DIN left/right reversible without tools
    • Security fittings and oval roses can be screwed on through the lock
    • Stainless steel faceplate
    • Deadbolt with anti-tampering design
    • Developed for Euro profile cylinder and Swiss round Profile cylinder
    See product

  • Deadbolt lock N1003

    Product description

    • OneSystem deadbolt lock N1003 for single-leaf standard doors, product-specific environmental product declaration (EPD) in accordance with EN 15804 with article-specific Parameters.

    Features

    • Environmental product declaration (EPD) in accordance with EN 15804
    • Tested for 1,000,000 cycles and 300 kg door weight
    • Compliance with EN 12209
    • Small rear backset 17 mm
    • Continuous screw connection of fittings
    • Suitable espagnolette integrated in the striking plate
    • 20 mm bolt throw with a single rotation
    • Also available as a fire protection version
    • Closed lock case
    • Latch DIN left/right reversible without tools
    • Security fittings and oval roses can be screwed on through the lock
    • Stainless steel faceplate
    • Deadbolt with anti-tampering design
    • Developed for Euro profile cylinder and Swiss round Profile cylinder
    See product

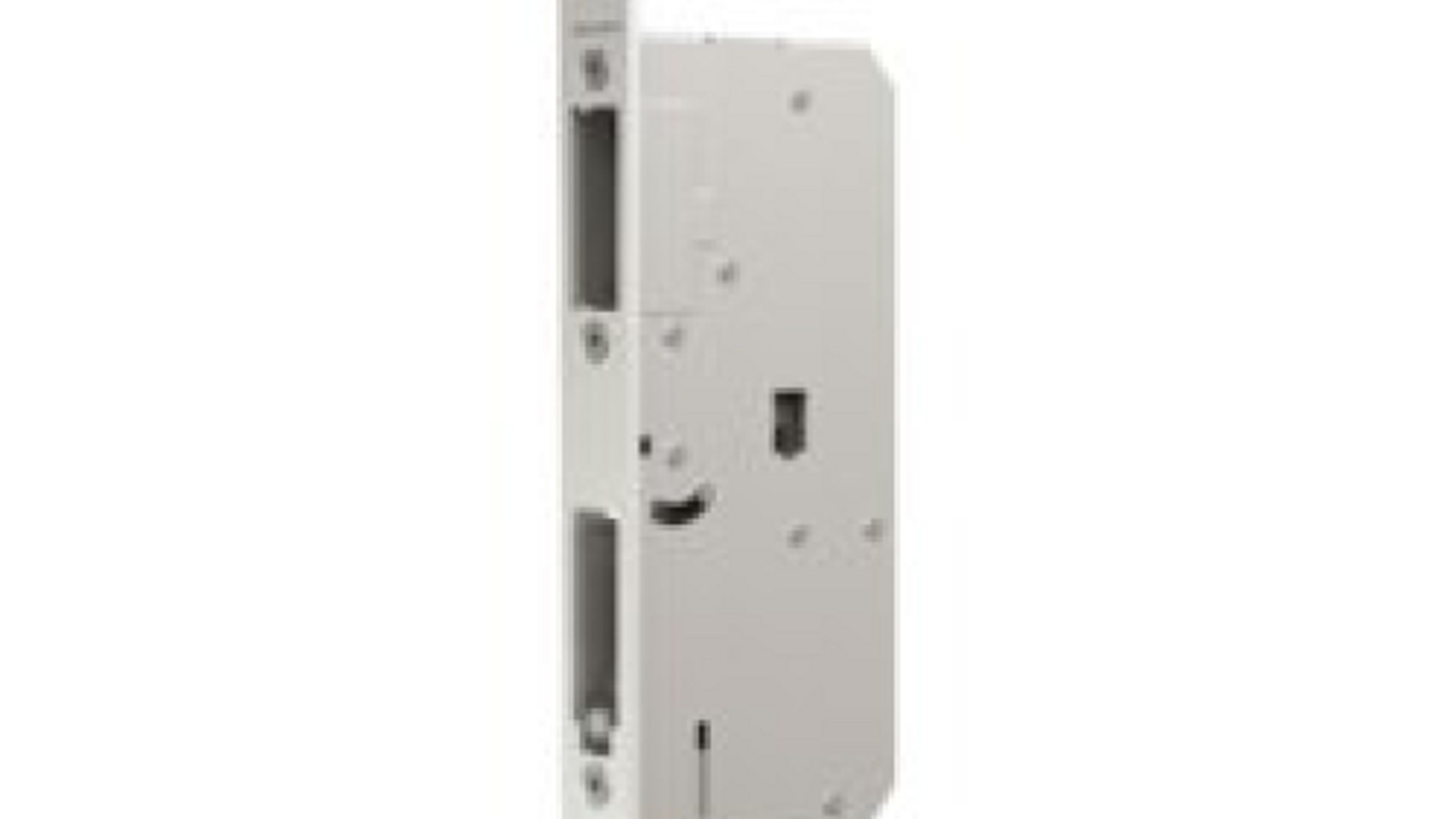

  • Espagnolette N1410

    Product description

    • OneSystem espagnolette N1410 for automatic locking of the inactive leaf upwards or downwards for double-leaf doors. For use with OneSystem locks from the series N1000, N1050 and N11XX on the active leaf of double-leaf doors.

    Features

    • Environmental product declaration (EPD) in accordance with EN 15804
    • Tested for 1,000,000 cycles and 300 kg door weight
    • Compliance with EN 12209
    • Automatic locking up- and downward pasive leaf
    • Small rear backset 17 mm
    • VarioFix for subsequent adjustment
    • Patented "Easy Installation" for easy mounting of the rods
    • Continuous screw connection of fittings
    • Suitable espagnolette integrated in the striking plate
    • 20 mm bolt throw with a single rotation
    • Also available as a fire protection version
    • Closed lock case
    • Latch DIN left/right reversible without tools
    • Stainless steel faceplate
    • Deadbolt with anti-tampering design
    • Developed for Euro profile cylinder and Swiss round Profile cylinder
    See product
Showing 6 of 6
