NEWSProduct Update
Aperio H100 DDA Compliant Grip, H100 530 Adaption Plates and H100 Cylinder Escutcheons
2022-10-25
2 min read
Expanding on the accessory suite for the Aperio H100 Handle range, particularly in retrofit and Key Override applications, ASSA ABLOY Opening Solutions Australia is pleased to introduce the H100 DDA Compliant Grip, available in both Satin Chrome and Satin Pearl, along with Adaption Plates when the H100 is used with the 530 Latch and the H100 Cylinder Escutcheons for Key Override applications, also available in Satin Chrome and Satin Pearl.
 |  |

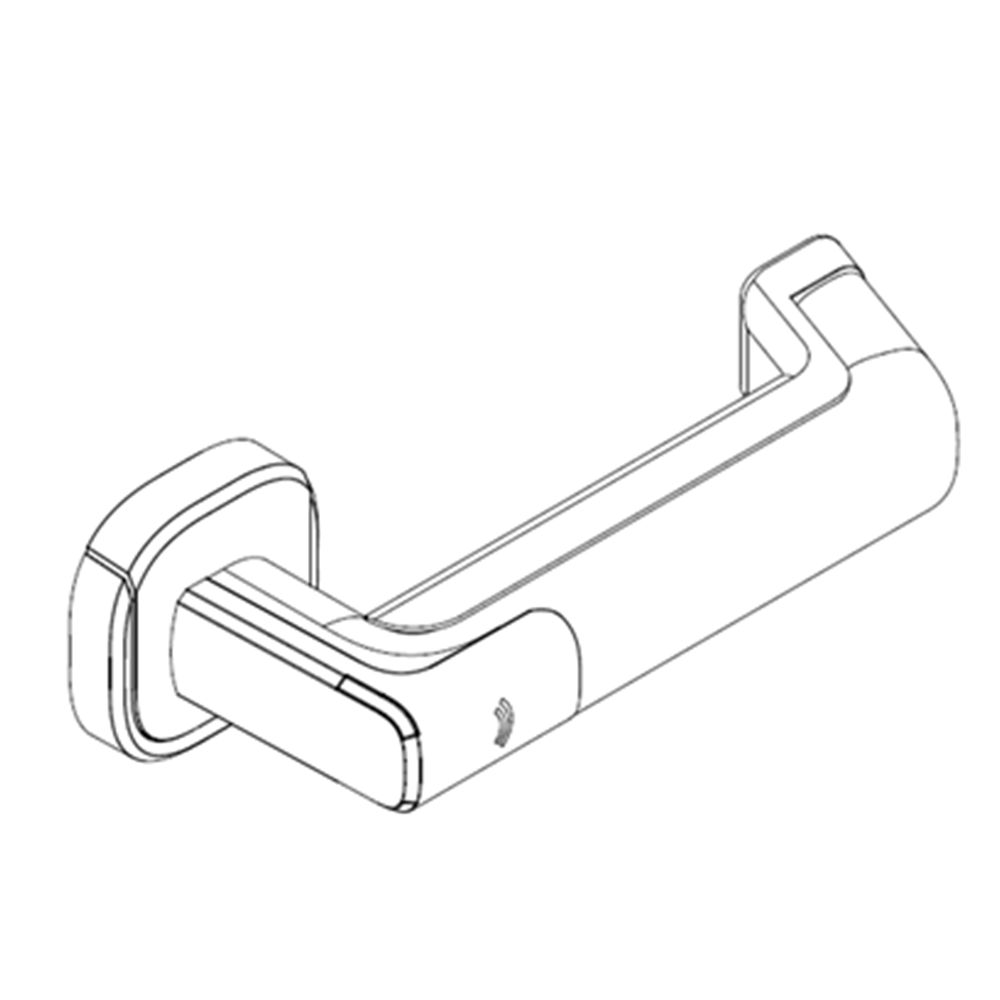

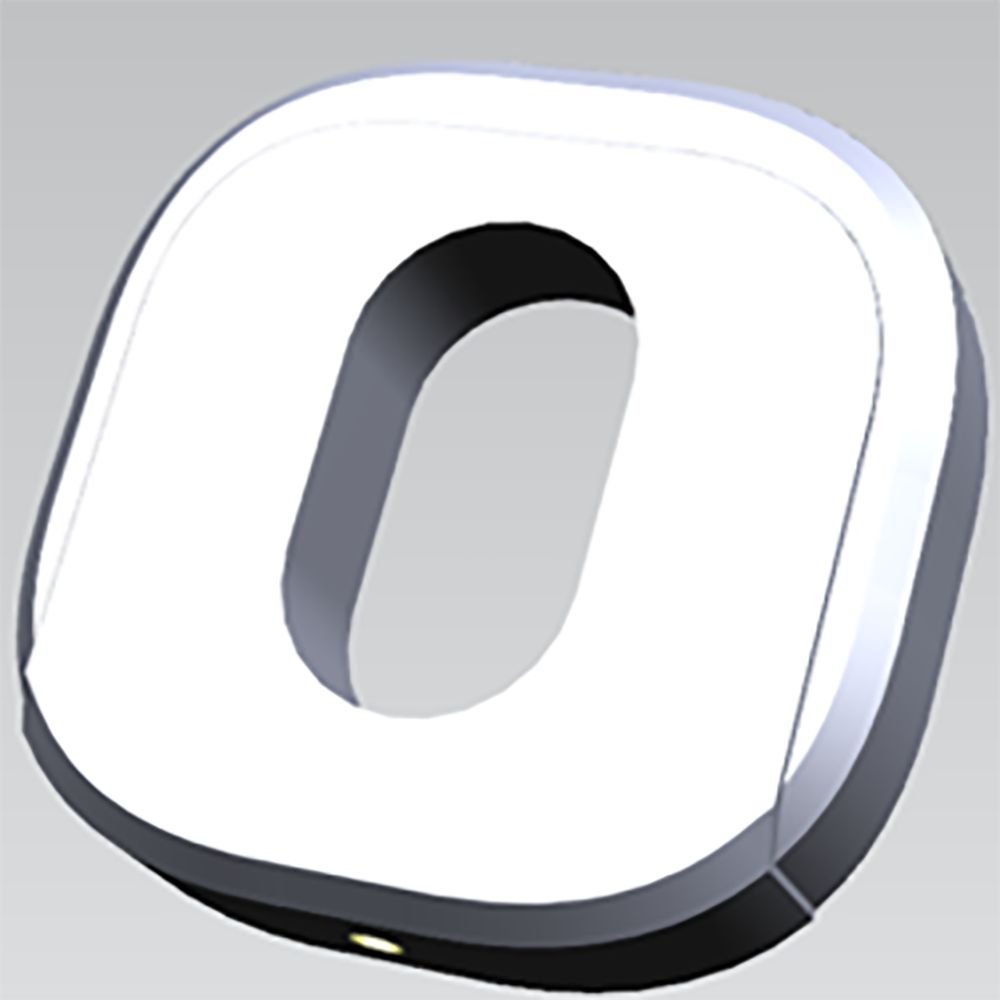

| Aperio H100 DDA Compliant Grip | Aperio H100 – Cylinder Escutcheon |
 |  |

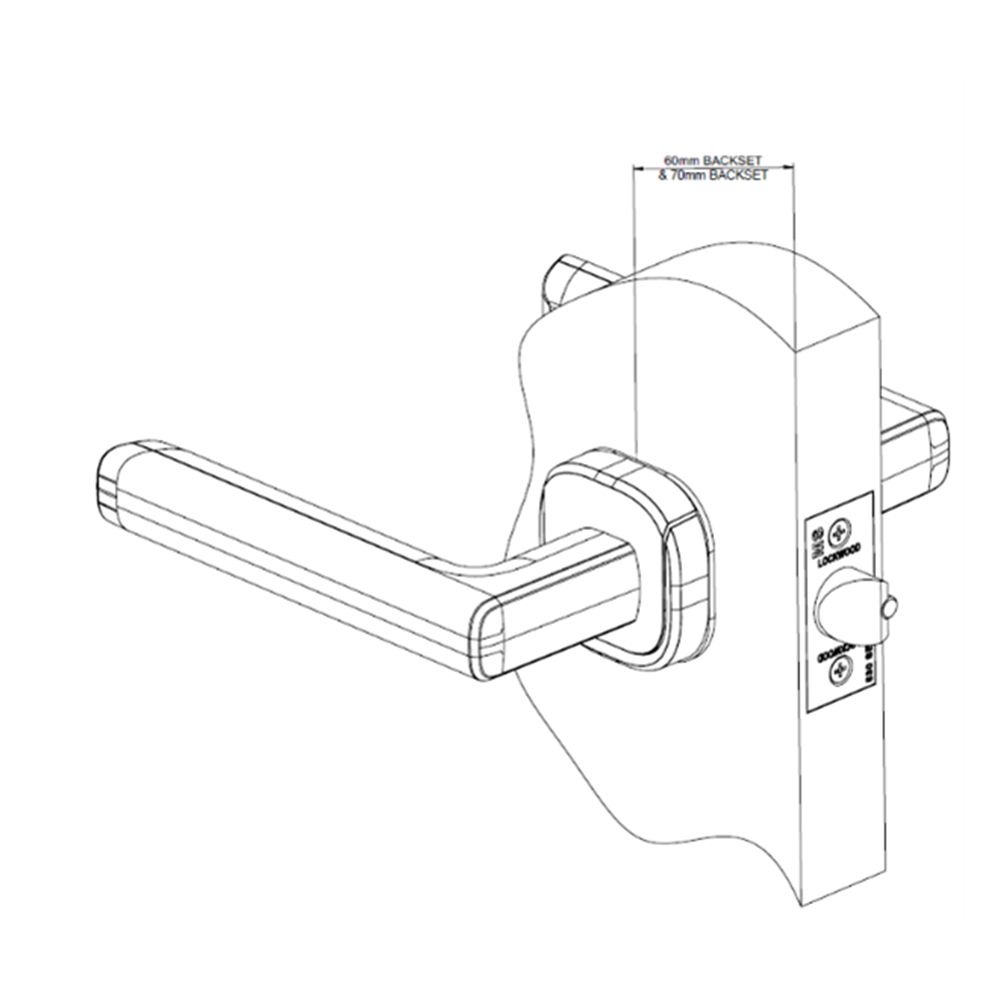

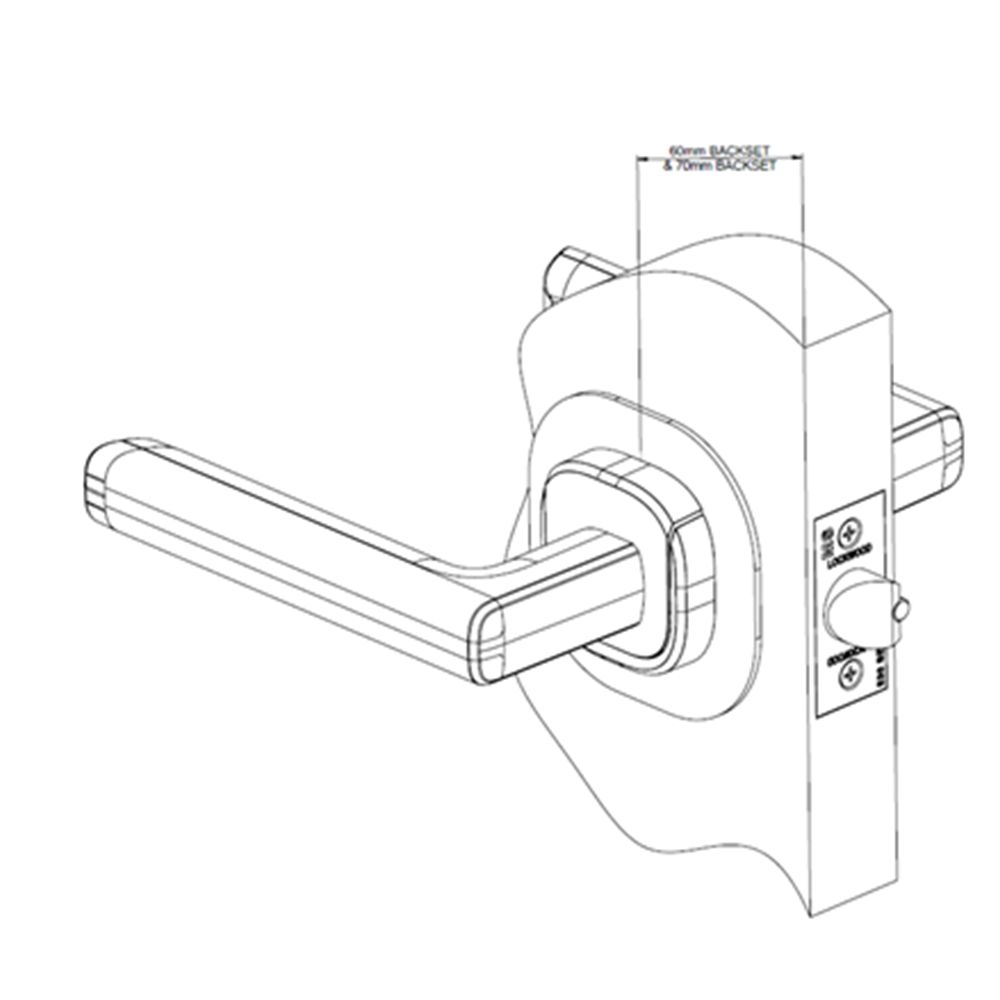

| Aperio H100 530 Adaption Plate - Large | Aperio H100 530 Adaption Plate - Small |
Key Features
- Communication from hub via RS485 bus to the Online Access Control System (addressable) - access decision in the EAC system
- Compatible with Australian standard 570, 201 and Kawneer Cylinders
- Main electronics (RFID + radio) in the outside knob - secure electronics inside cylinder core
- Freely rotating lock cam
- Override Credentials: Up to 10 override credentials can be stored for an emergency access in case of failure or no communication with the access control or the hub
- Smart Credential Handling: In addition to the override credentials, the last valid credentials (up to1000) can be cached automatically and for a limited time (up to 30 days), so that an opening can still be made without the intervention of the administrator
- LED for status visualisation (red/green/orange)
- Works with an online system or as an offline lock
- Supports the following RFID technologies: MIFARE Classic®, MIFARE Ultralight®, MIFARE® DESFire®, MIFARE Plus®, MIFARE® SE, MIFARE® DESFire® SE; iCLASS SE; iCLASS Seos®, iCLASS Seos Elite
| Part Numbers | Description |
| AH100-001 | ‘U-Handle’ or RTD Adapter (set of 2) – Satin Chrome |
| AH100-002 | ‘U-Handle’ or RTD Adapter (set of 2) – Satin Pearl |
| AH100-005 | H100 DDA Grip for Disability Access |
| AH100-006 | Kit comprising AH100-001 ‘U-Handle’ Satin Chrome & H100 DDA Grip |
| AH100-106 | Kit comprising AH100-002 ‘U-Handle’ Satin Pearl & H100 DDA Grip |
| AH100-085 | H100 530 Latch 8mm plus Adaption Plate Small 60mm Backset |
| AH100-086 | H100 530 Latch 8mm plus Adaption Plate Large 60mm Backset |
| AH100-095 | H100 530 Latch 8mm plus Adaption Plate Small 70mm Backset |
| AH100-096 | H100 530 Latch 8mm plus Adaption Plate Large 70mm Backset |
| AH100-070 | H100 Cylinder Escutcheon – Satin Chrome |
| AH100-071 | H100 Cylinder Escutcheon – Satin Pearl |
