Runs online and/or offline
Compatible with Standalone, Update on Card, Openow and Wireless online management systems
SMARTair® i-reader
Streamlined digital access for any opening where locking or blocking is automated - from entrance doors and turnstiles to lifts and car parks, including outdoors.
The SMARTair® i-reader enables fast, hassle-free digital access via a range of credentials, including cards, fobs, badges, and mobile keys stored on a smartphone. It is mobile ready from day one, for deploying encrypted mobile keys today or in the future.
Key Features:
- Contemporary aesthetics: Glossy finish, sleek design with customizable LEDs that harmonize with other SMARTair devices for a cohesive interior look.
- Versatile access: Use cards, fobs, badges, or mobile keys stored on your smartphone.
- Choice of options: Two model sizes to fit different locations and applications.
- Fast communication: Fitted at parking barriers, the i-reader detects mobile credentials from up to 5 meters away.
- Reliability and durability: Boasting IP56 rate and IK09 certifications.
- Energy efficient: Consumes up to 70% less energy than previous models, supporting your energy-efficiency goals.
The new i-reader effortlessly integrates with new or existing SMARTair systems for real-time management and remote operation.

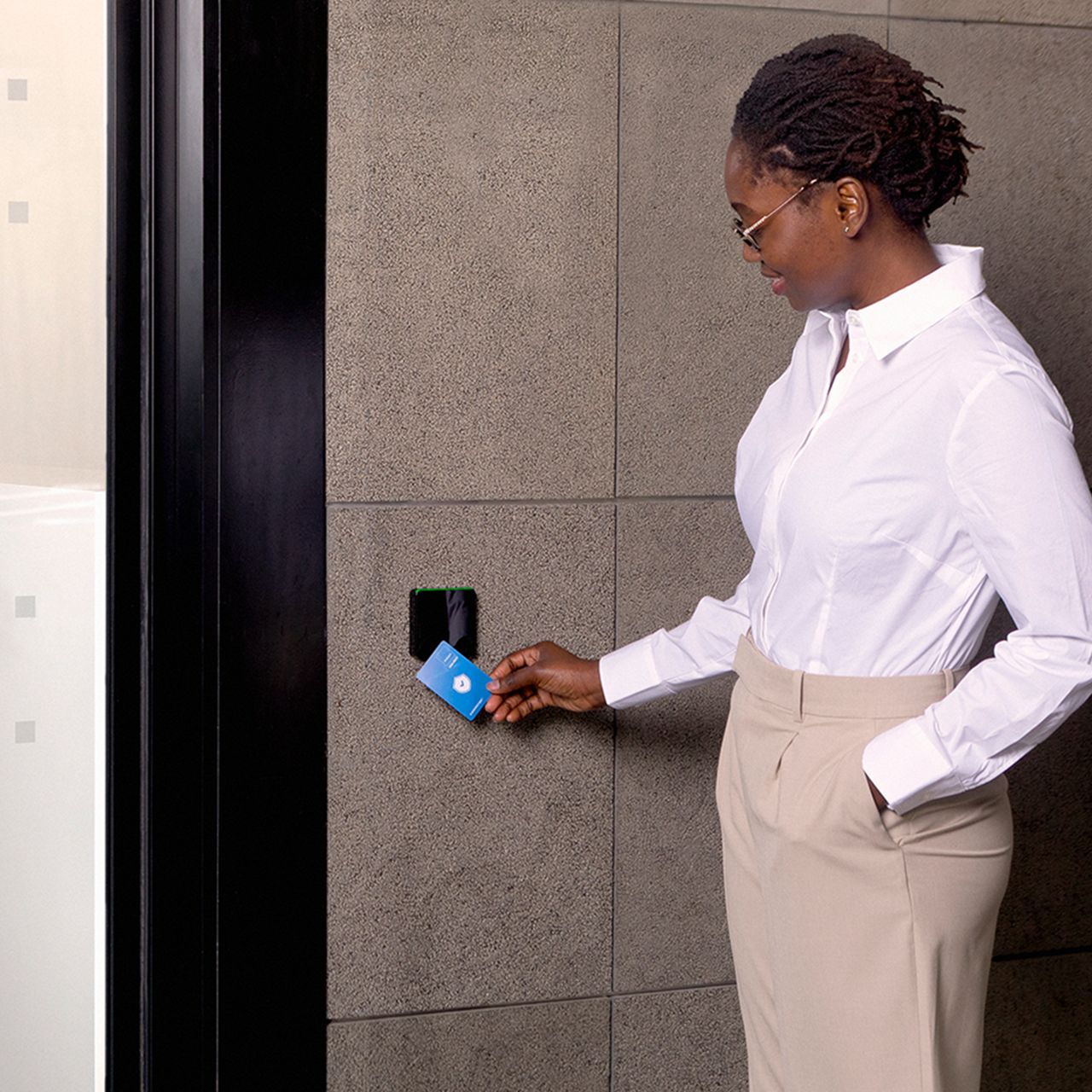

Reads all type of credentials including cards, phones, fobs and bracelets

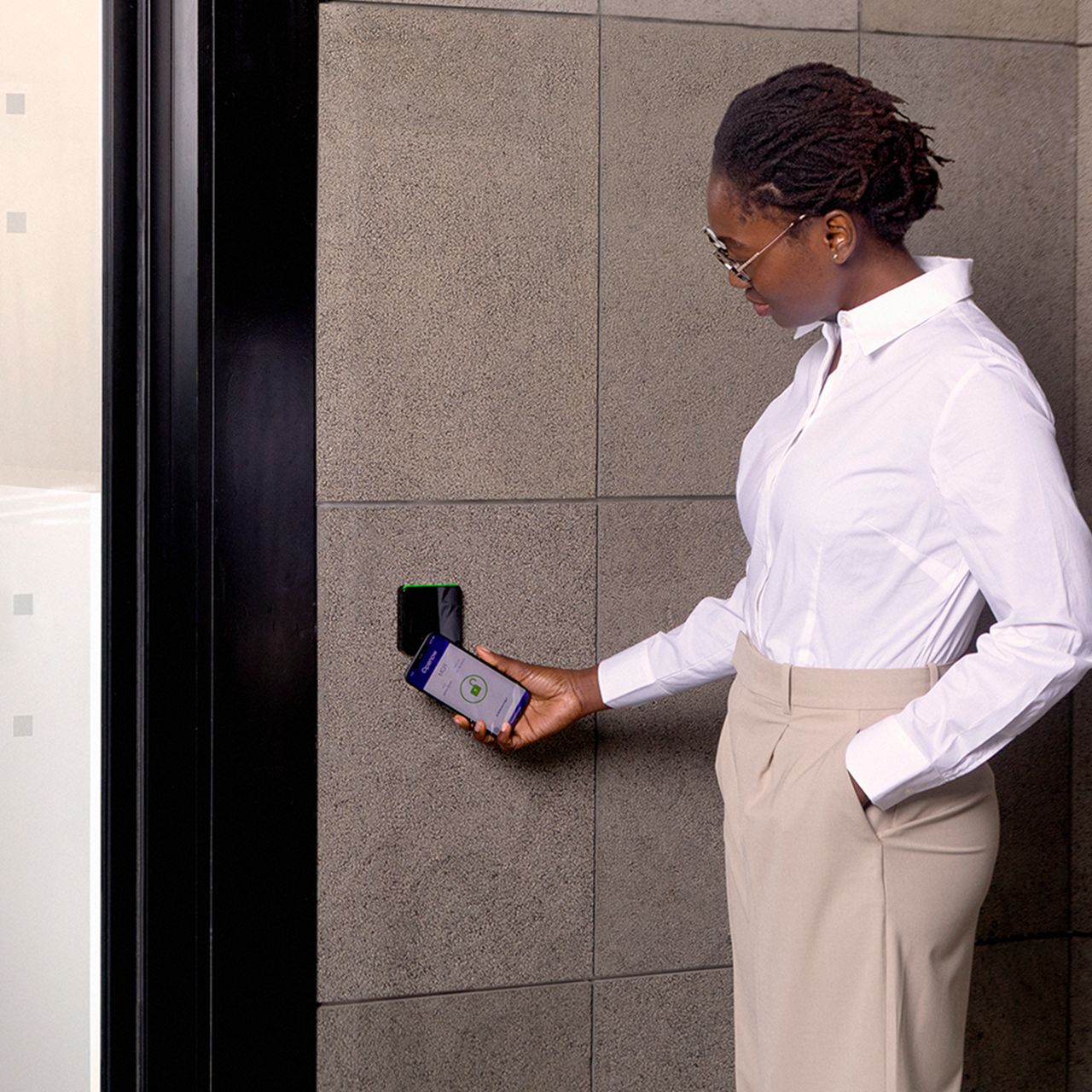

Reads all type of credentials including cards, phones, fobs and bracelets

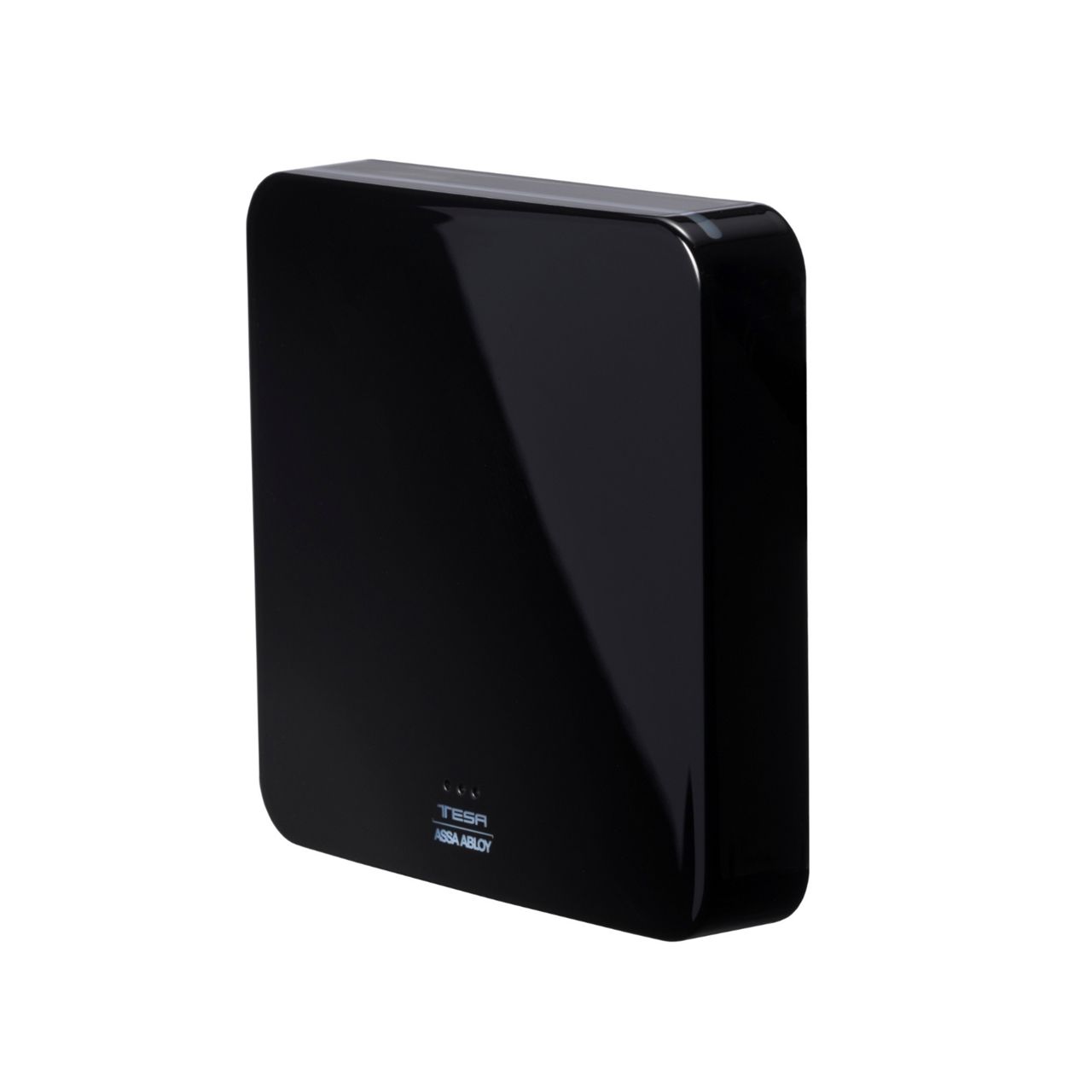

SMARTair i-reader

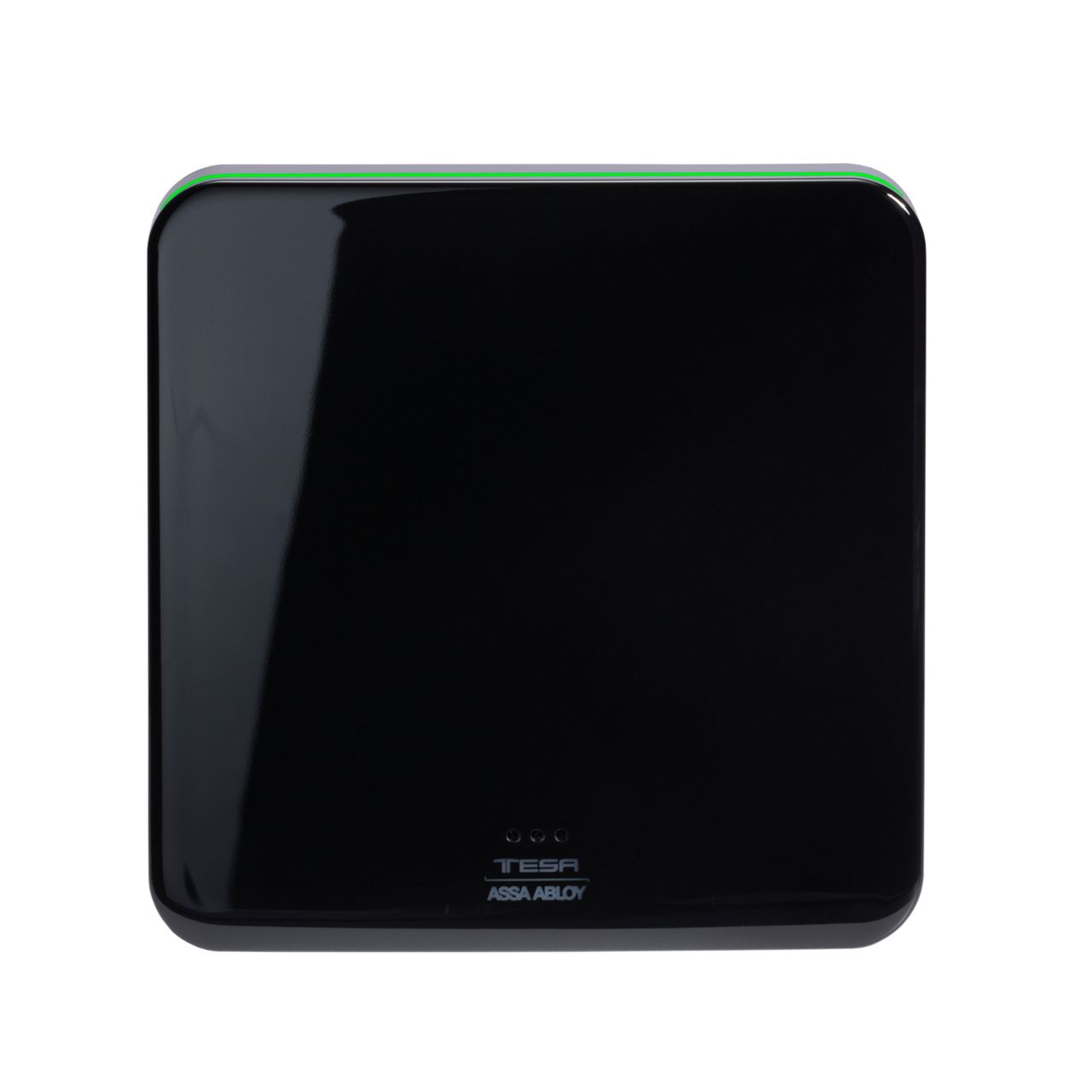

SMARTair i-reader - green LED on

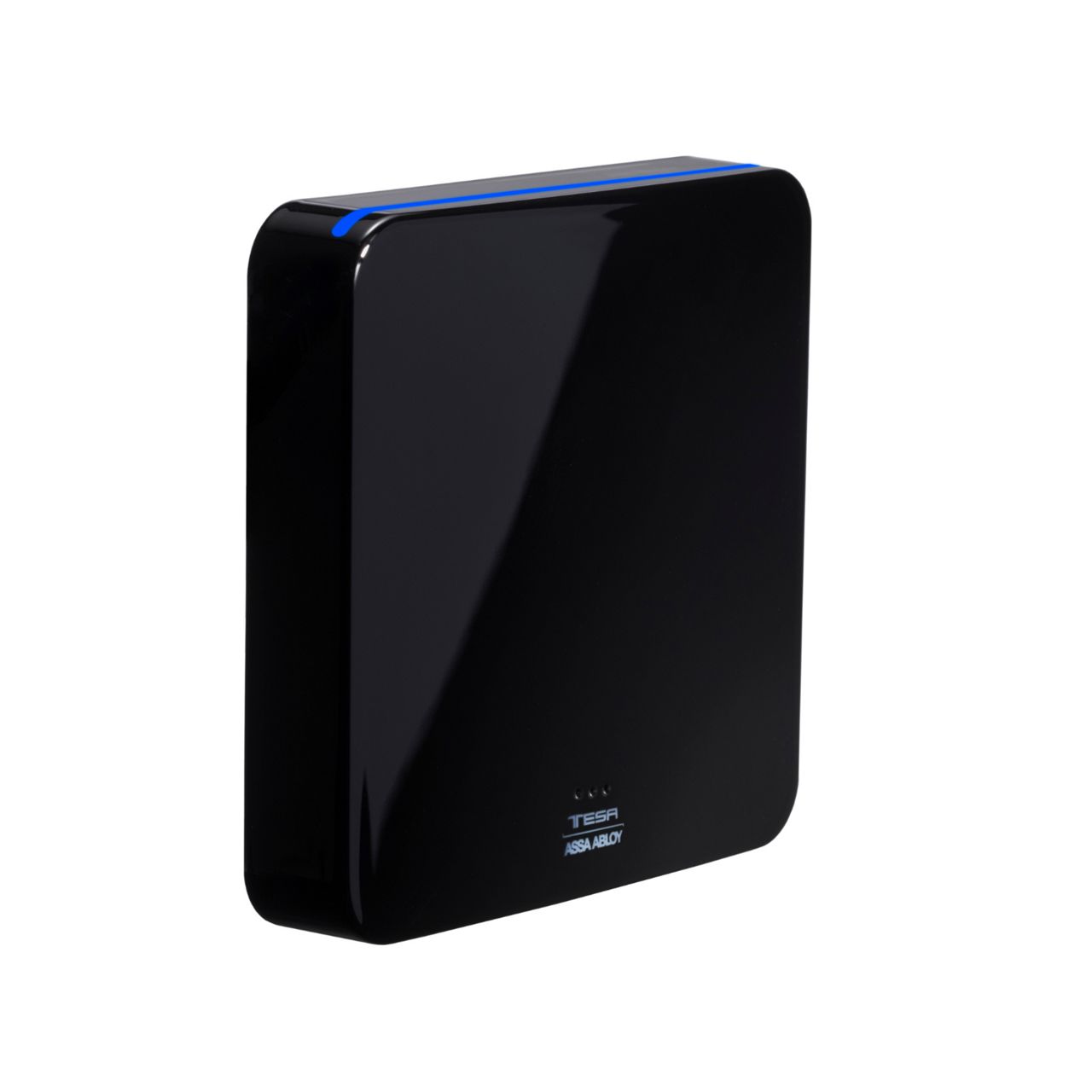

SMARTair i-reader - blue LED on

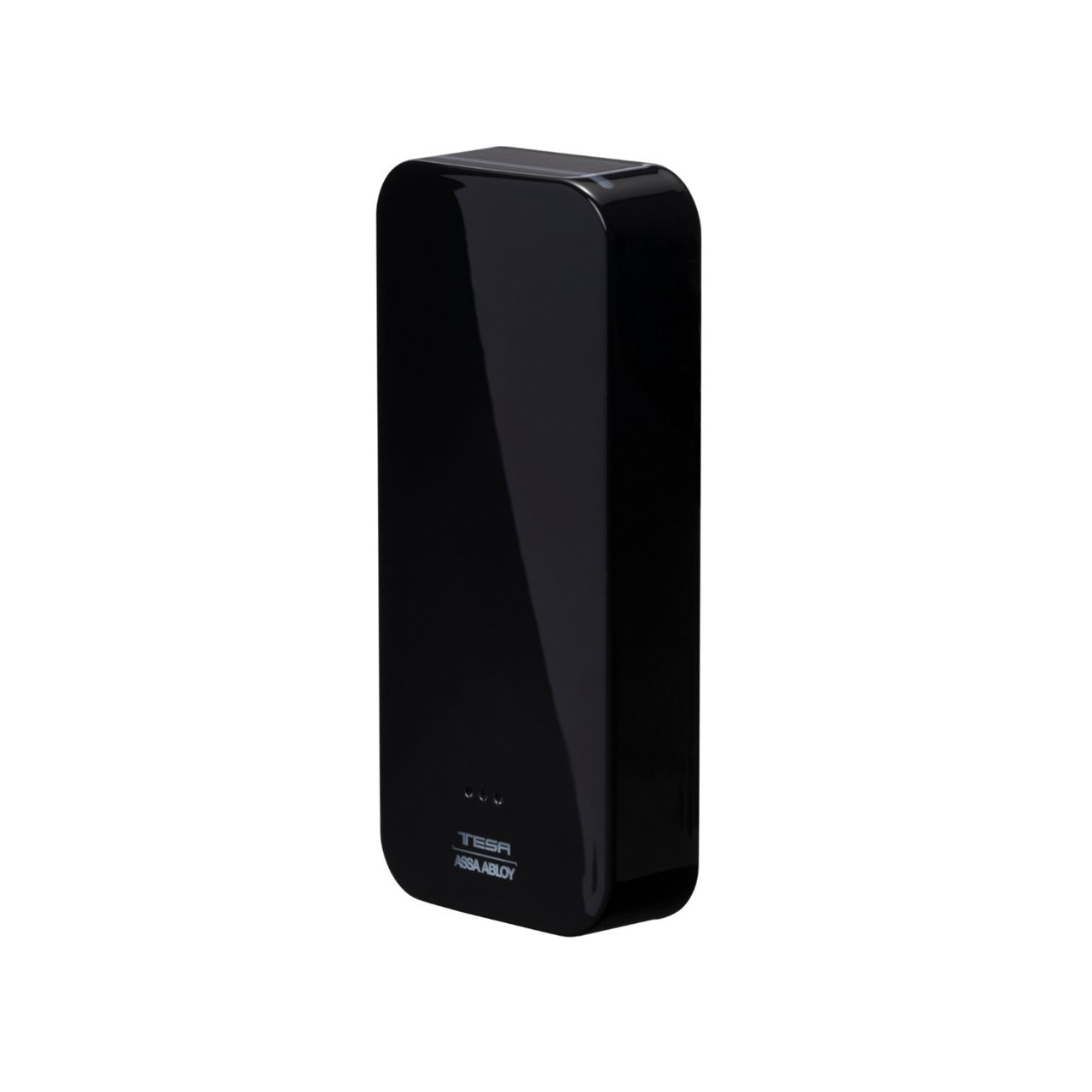

SMARTair i-reader Design

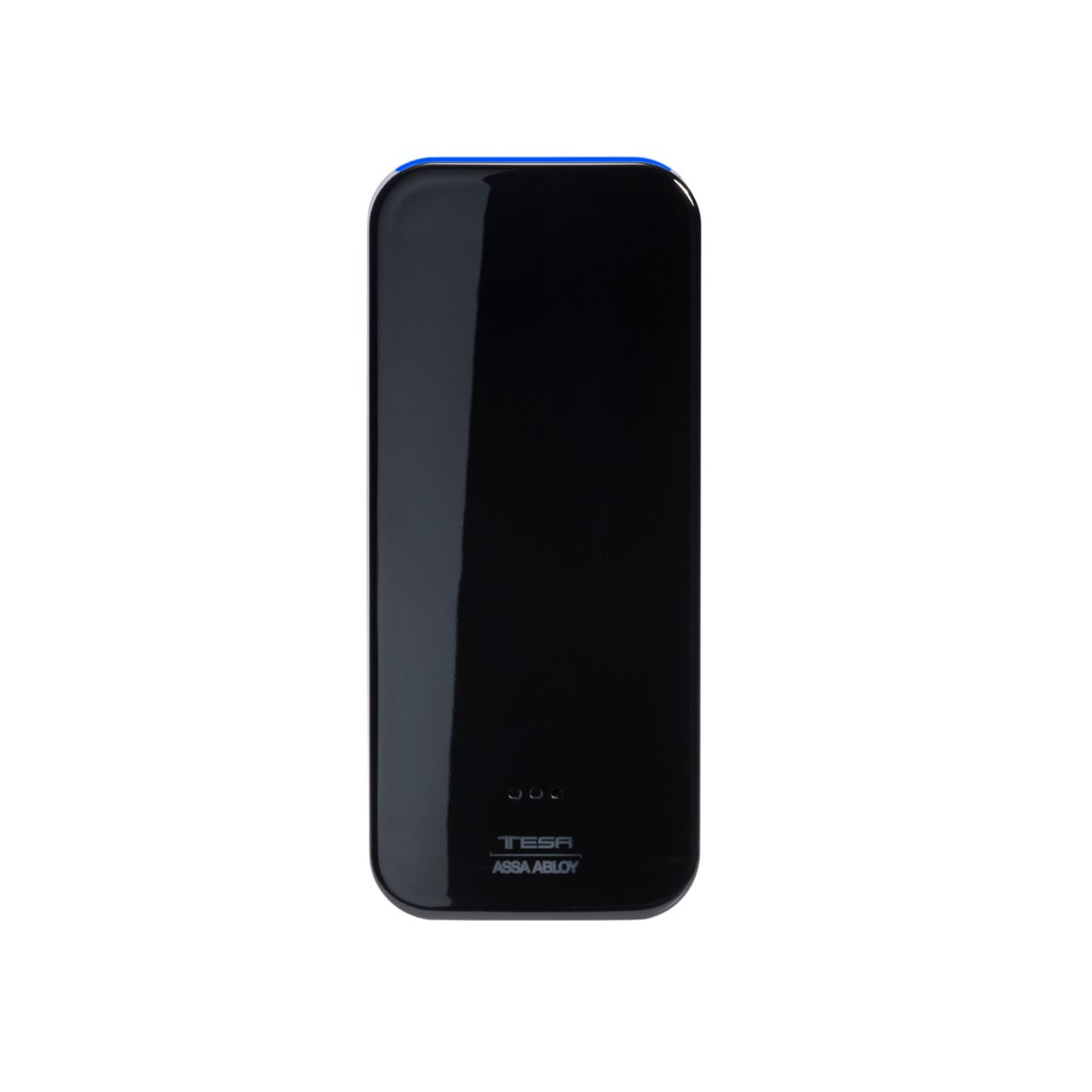

SMARTair i-reader Design - blue LED on

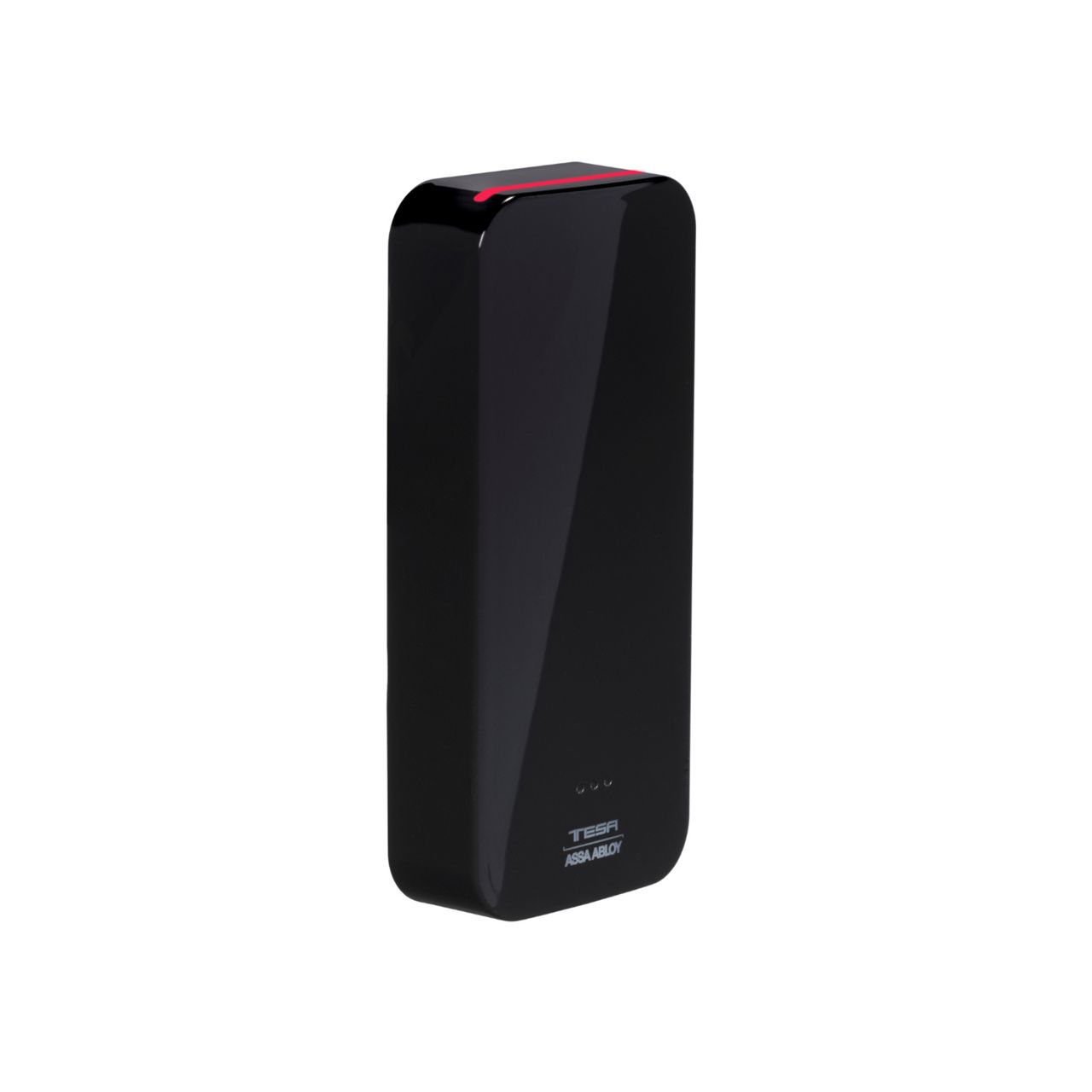

SMARTair i-reader Design - Red LED on

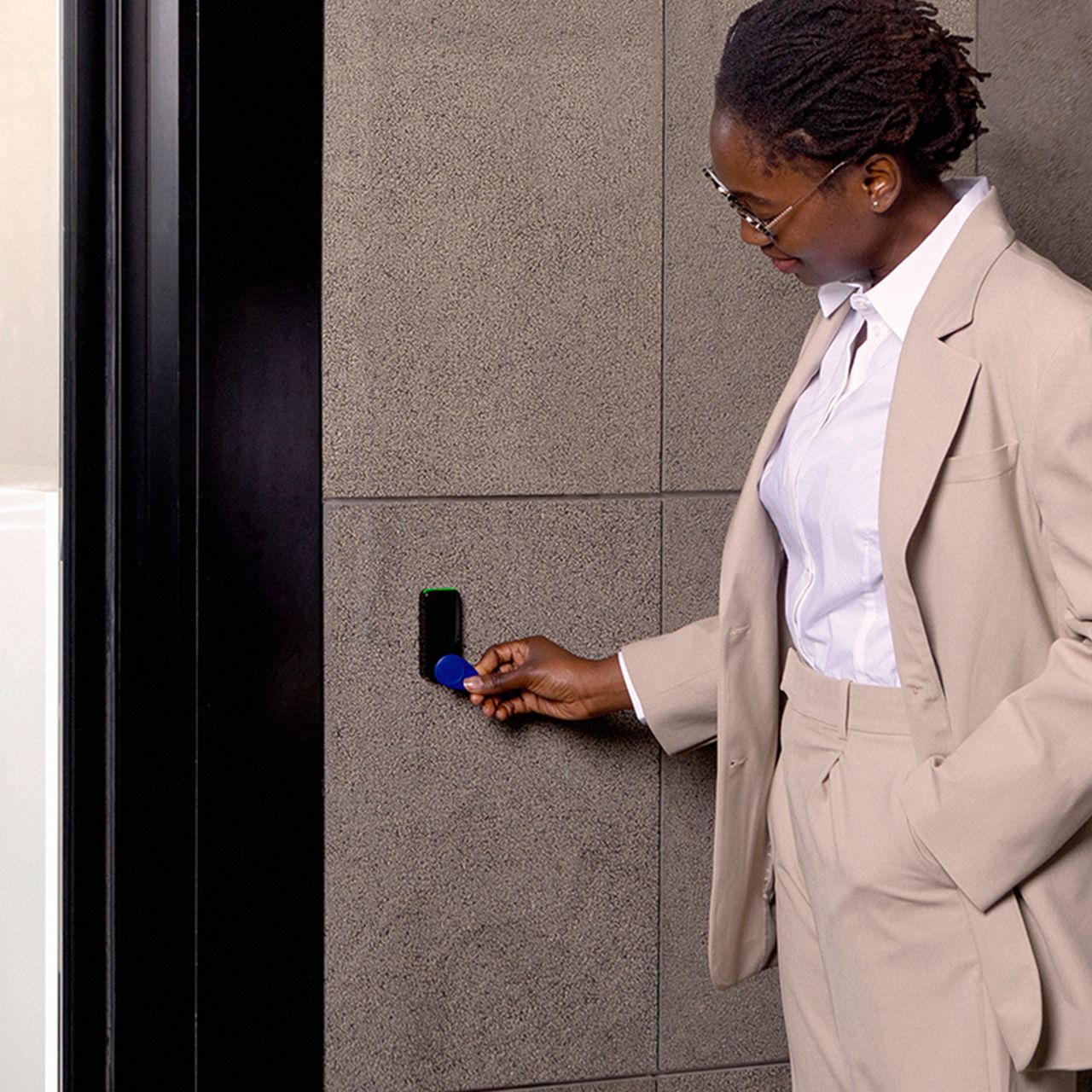

Reads all type of credentials including cards, phones, fobs and bracelets

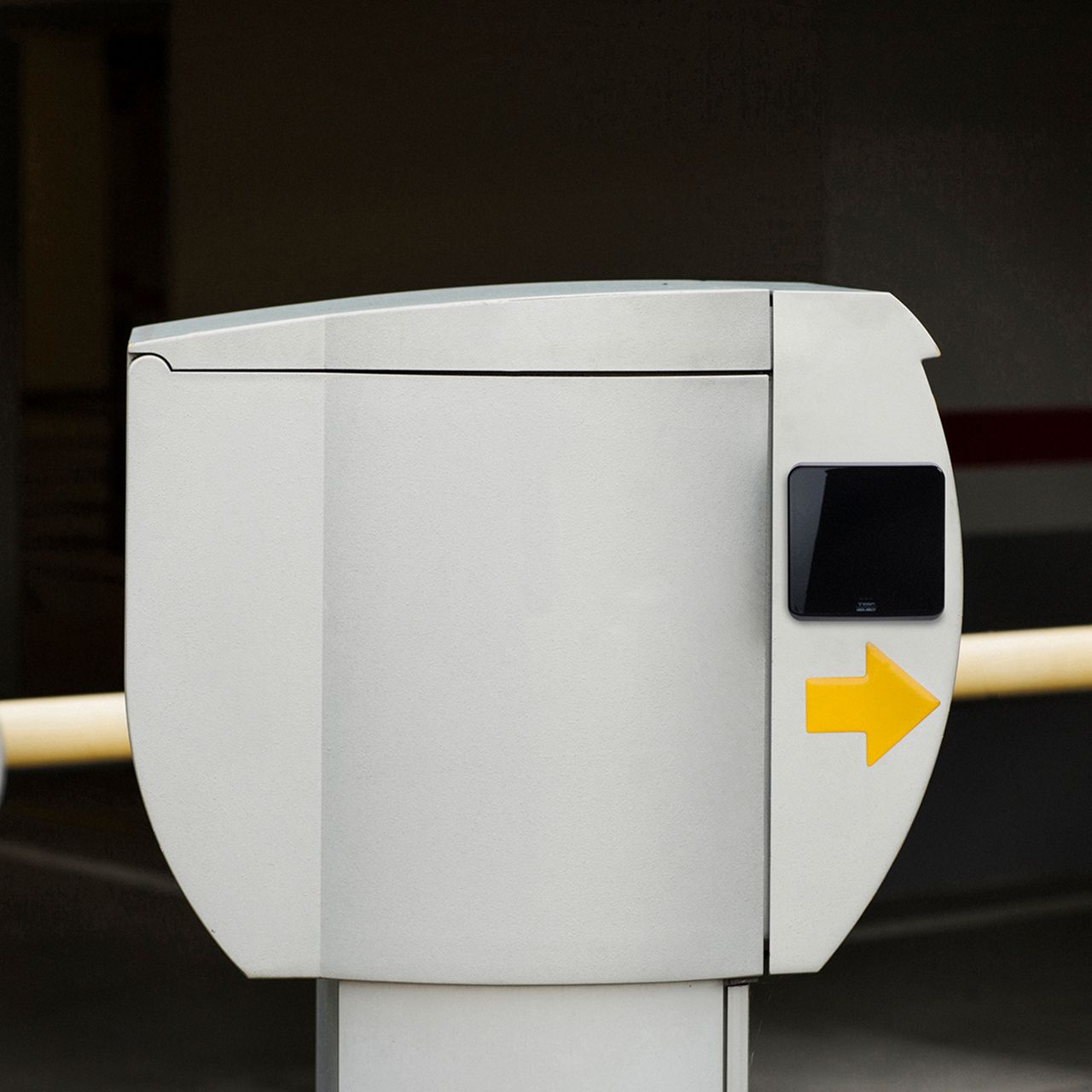

Open doors from a distance of 3 to 5 meters with the Openow Parking Mode

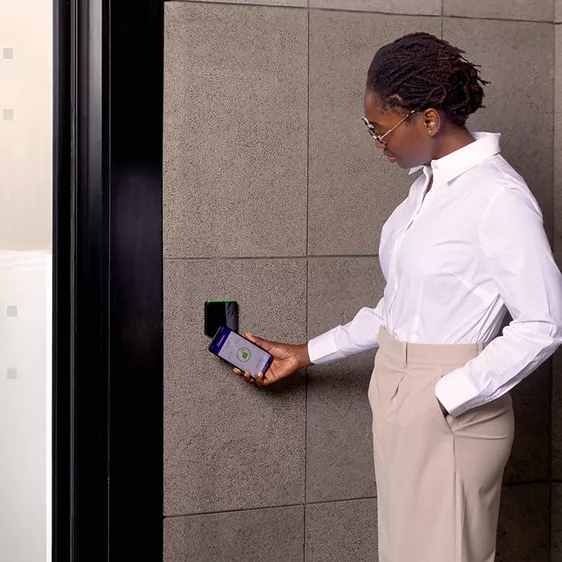

Reads RFID credentials and mobile keys
Compatible with leading RFID credentials and BLE (Bluetooth Low Energy)
For electrified doors
Suitable for automated doors, turnstiles, barriers, elevators and more
Slim design version
For narrow or aluminium profile doors
Easy installation, powerful management features
It’s seamless to add an i-reader to any new or existing SMARTair system, whatever management option is in use. It offers real-time control and remote operation in Online mode.
A choice of model sizes and mounts adapts to different locations and applications. For safety and convenience, an i-reader fitted at a parking barrier can detect a driver’s mobile credential from up to 5 metres away.
Robust design and contemporary aesthetics
The i-reader‘s contemporary aesthetics and customizable LED simplify use and blend with other devices in the SMARTair family to harmonize interior design. A robust build quality – including IP56, IK09 certification – minimizes ongoing maintenance needs.
Recognizing a growing focus on sustainability, the i-reader consumes up to 70 percent less energy than previous models.
Traffic volume
HighEnvironment
P56 (Wall reader) Up to 85% humidity without condensation -20°C to +70°CHardware compatibility and installation
To be combined with electromechanical and electromagnetic locks, turnstiles, boom gates, auto doors, liftsPower supply
12-24 VAC/VDC: powered through control/relay board
Max power consumption (reader + relay board):
300mA @ 12V /150mA @ 24V
Class 6 UTP cable or higher between reader and control relay board
Power supply and cable not includedMulti-Technology
MIFARE Classic and Ultralight, ISO 15693, SKIDATA, DESFire, Mobile AppsCertifications
CE (EMC, R&TTE), UKCA, ROHS, REACH, WEE, IP56 and IK09Upgradability
Wall readers can be upgraded in the field:- Openow-BLE by Openow activation card/s. No extra hardware is needed
- To Wireless Online by adding RF module to control/relay board
Compatible mobile solutions
Openow® (Bluetooth Low Energy ), TESA SMARTairRelay Board
Board, with one relay to manage the door blocking device and two extra inputs for:- Request to exit button
- Door sensor
Dimensions
Description Part number UPDATE ON CARD SMARTair i-Reader R4N, BLK, UOC, Mifare, No Relay S4CR2P0 SMARTair i-Reader R4N, BLK, UOC, Mifare, 1 Relay S4CR2P1 SMARTair i-Reader Design R4N, BLK, UOC, Mifare, No Relay S4CR2D0 SMARTair i-Reader Design R4N, BLK, UOC, Mifare, 1 Relay S4CR2D1 UPDATE ON CARD/OPEN NOW SMARTair i-Reader R4N, BLK, UOC/OPENOW, Mifare, No Relay S4BR2P0 SMARTair i-Reader R4N, BLK, UOC/OPENOW, Mifare, 1 Relay S4BR2P1 SMARTair i-Reader Design R4N, BLK, UOC/OPENOW, Mifare, No Relay S4BR2D0 SMARTair i-Reader Design R4N, BLK, UOC/OPENOW, Mifare, 1 Relay S4BR2D1 WIRELESS ONLINE SMARTair i-Reader R4N, BLK, Wireless, Mifare, No Relay S4FR2P0 SMARTair i-Reader R4N, BLK, Wireless, Mifare, 1 Relay S4FR2P1 SMARTair i-Reader Design R4N, BLK, Wireless, Mifare, No Relay S4FR2D0 SMARTair i-Reader Design R4N, BLK, Wireless, Mifare, 1 Relay S4FR2D1 WIRELESS ONLINE/OPEN NOW SMARTair i-Reader, R4N BLK, Wireless/OPENOW, Mifare, No Relay S4ZR2P0 SMARTair i-Reader, R4N BLK, Wireless/OPENOW, Mifare, 1 Relay S4ZR2P1 SMARTair i-Reader, R4N Design BLK, Wireless/OPENOW, Mifare, No Relay S4ZR2D0 SMARTair i-Reader, R4N Design BLK, Wireless/OPENOW, Mifare, 1 Relay S4ZR2D1 ACCESSORIES 1 Relay Module 12-24V STCRPLACA1 I-READER CABLE UTP CAT6 10M S4RUTPCAT610M
