Incedo Signo Readers
Secure contactless readers with a slimline design and a choice of mounts
Security meets modernity with Signo, the signature line of access control readers from ASSA ABLOY. Featuring a sleek, upscale design, Signo Readers extend ASSA ABLOY’s tradition of best in class performance while adding innovative features to keep organisations secure. To help organisations meet the security needs of our dynamic world, Signo Readers are designed to be highly versatile, powerful, and connected for the future.
- Highly Versatile
Support for the widest range of credential technologies, including HID Mobile Access via native Bluetooth and Near Field Communication (NFC) capability. Plus Apple’s Enhanced Contactless Polling (ECP) to support credentials in the Apple Wallet.
- Unparalleled Performance
Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that allows the reader to automatically recalibrate and optimize read range performance.
- Connected to the Future
All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication. Each reader is also designed to be connected and managed remotely without “sneakernet” or needing to be physically touched.
Moreover, Signo Readers are simple to order and install, making the upgrade process easy for everyone.

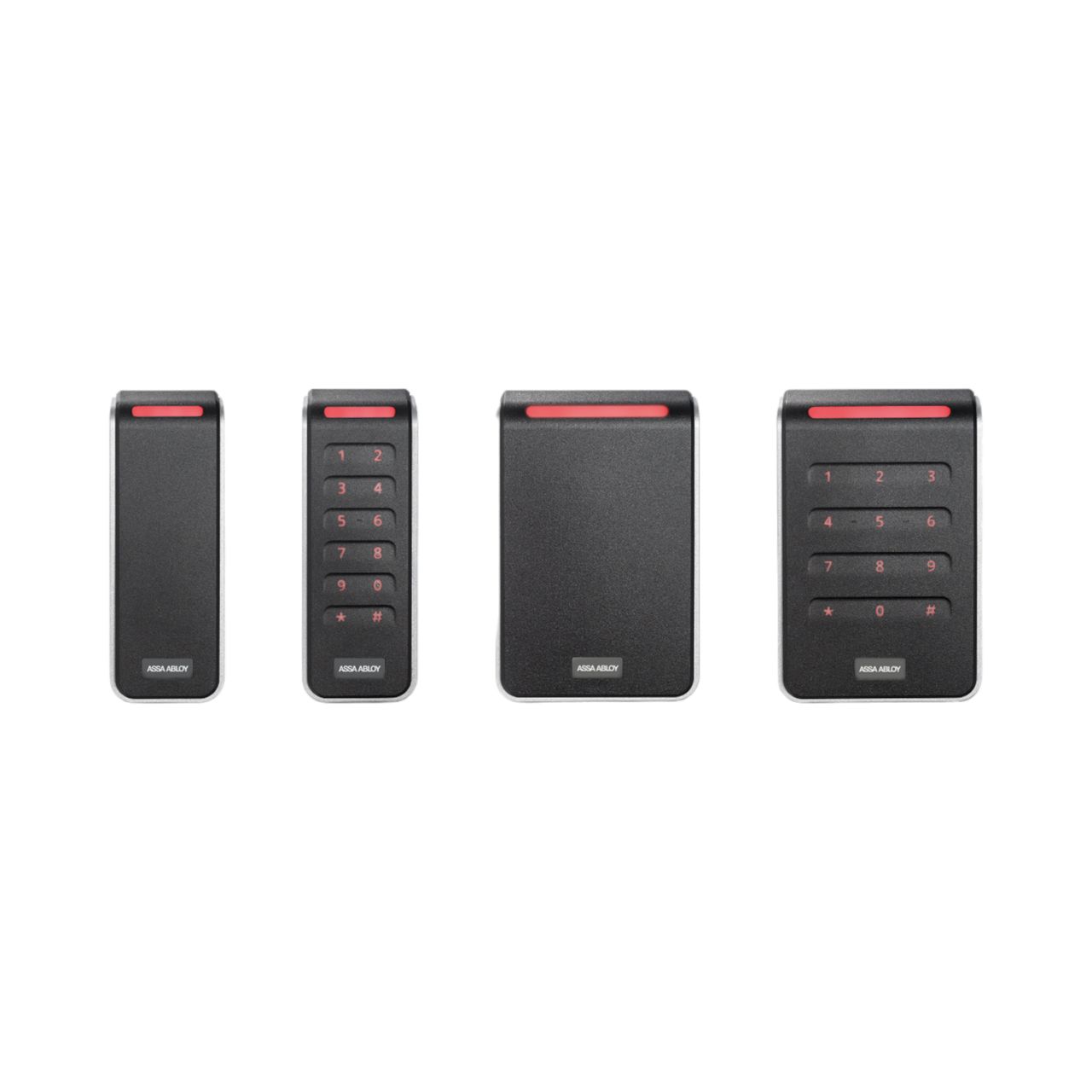

Incedo Signo Reader

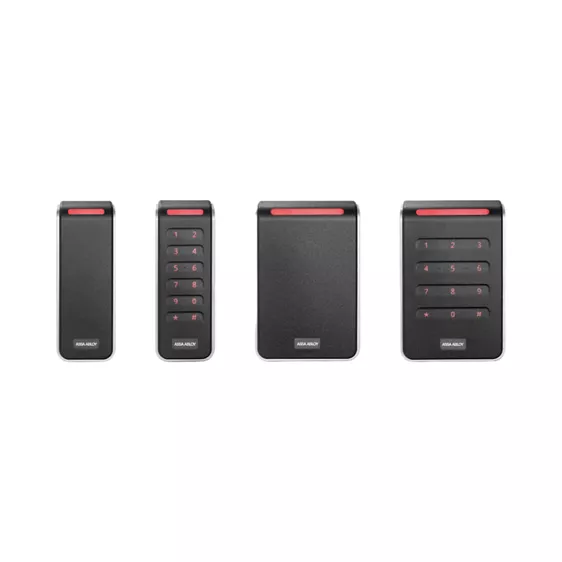

Incedo Signo Reader

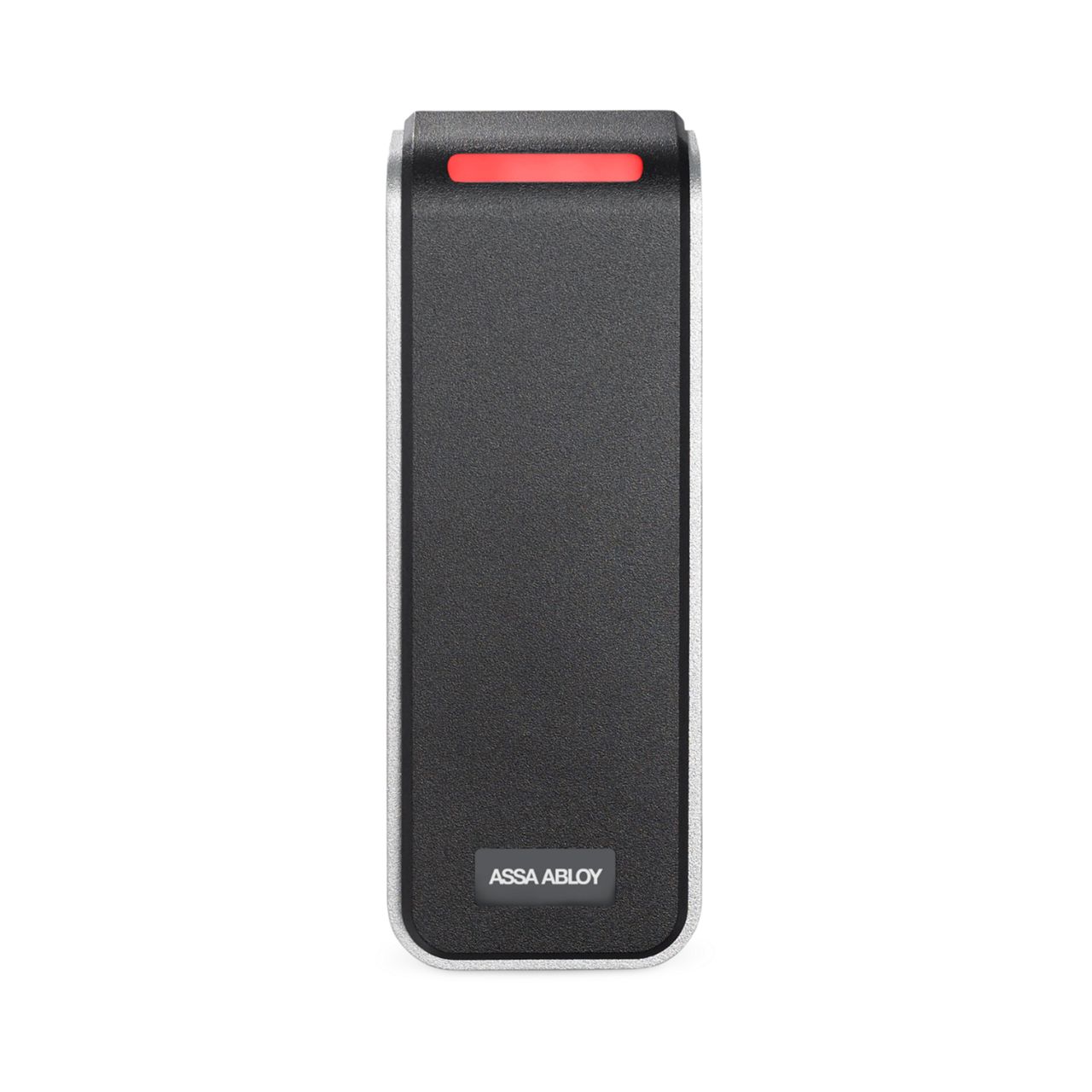

Incedo Signo Reader RDR-2P

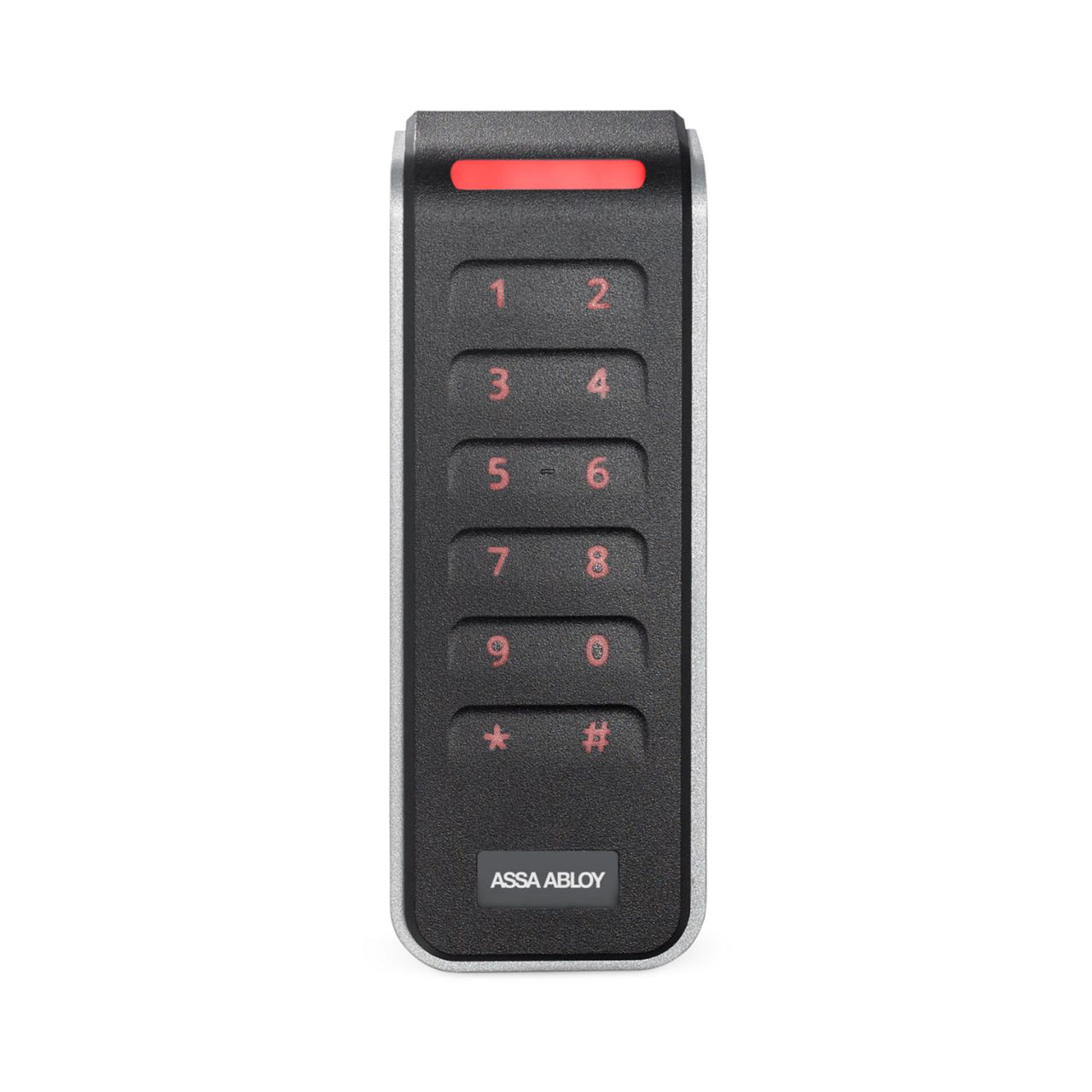

Incedo Signo Reader RDR-2N

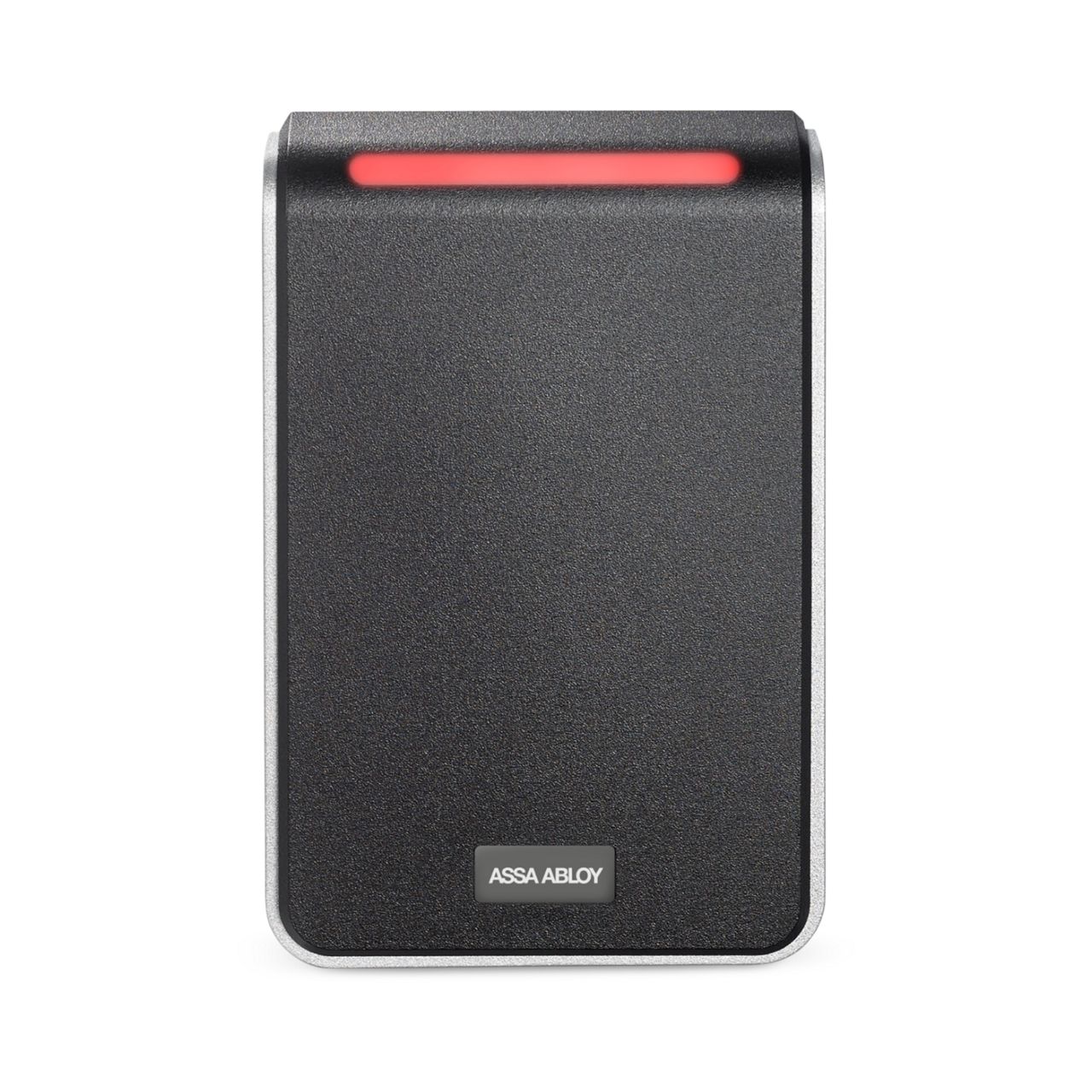

Incedo Signo Reader RDR-4P

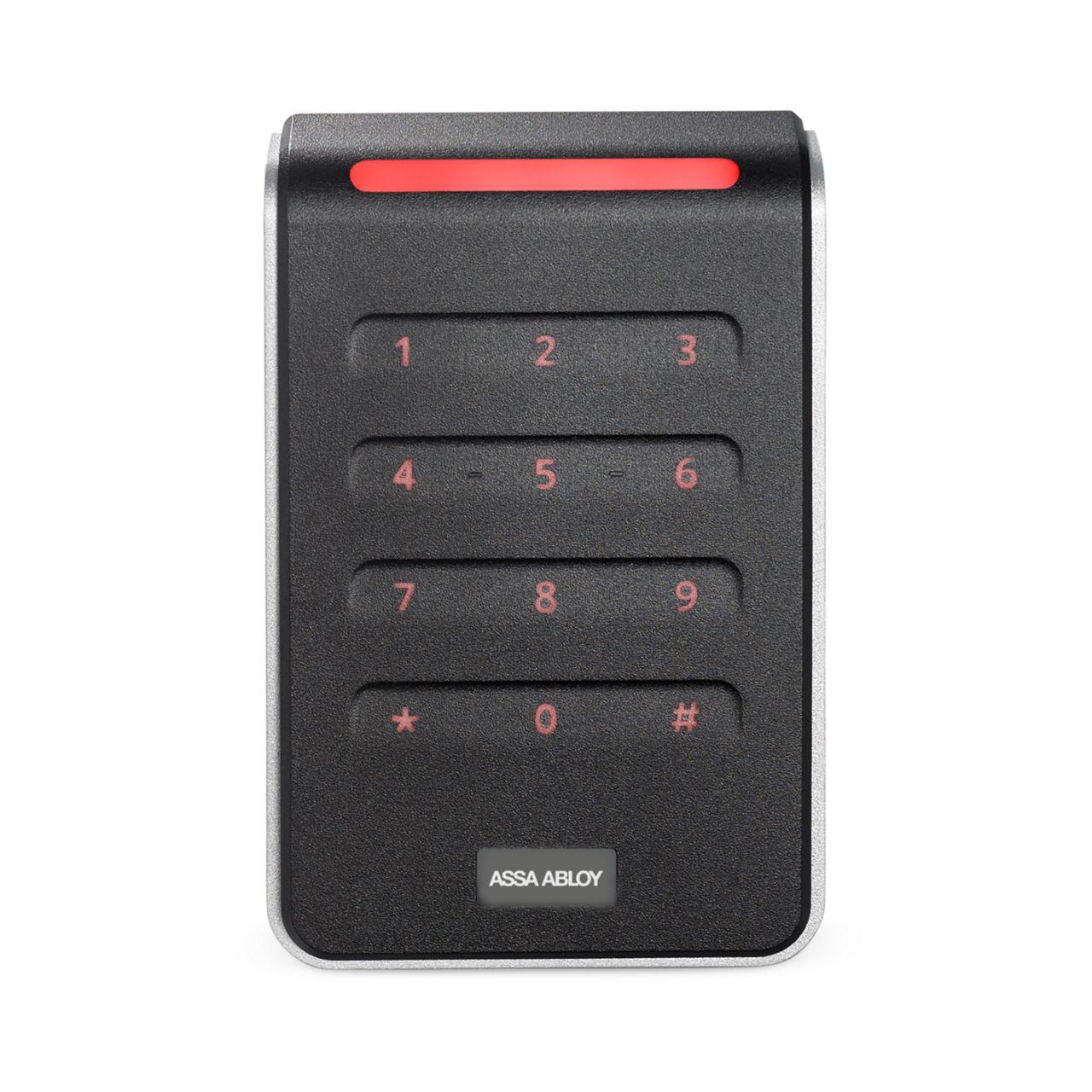

Incedo Signo Reader RDR-4N

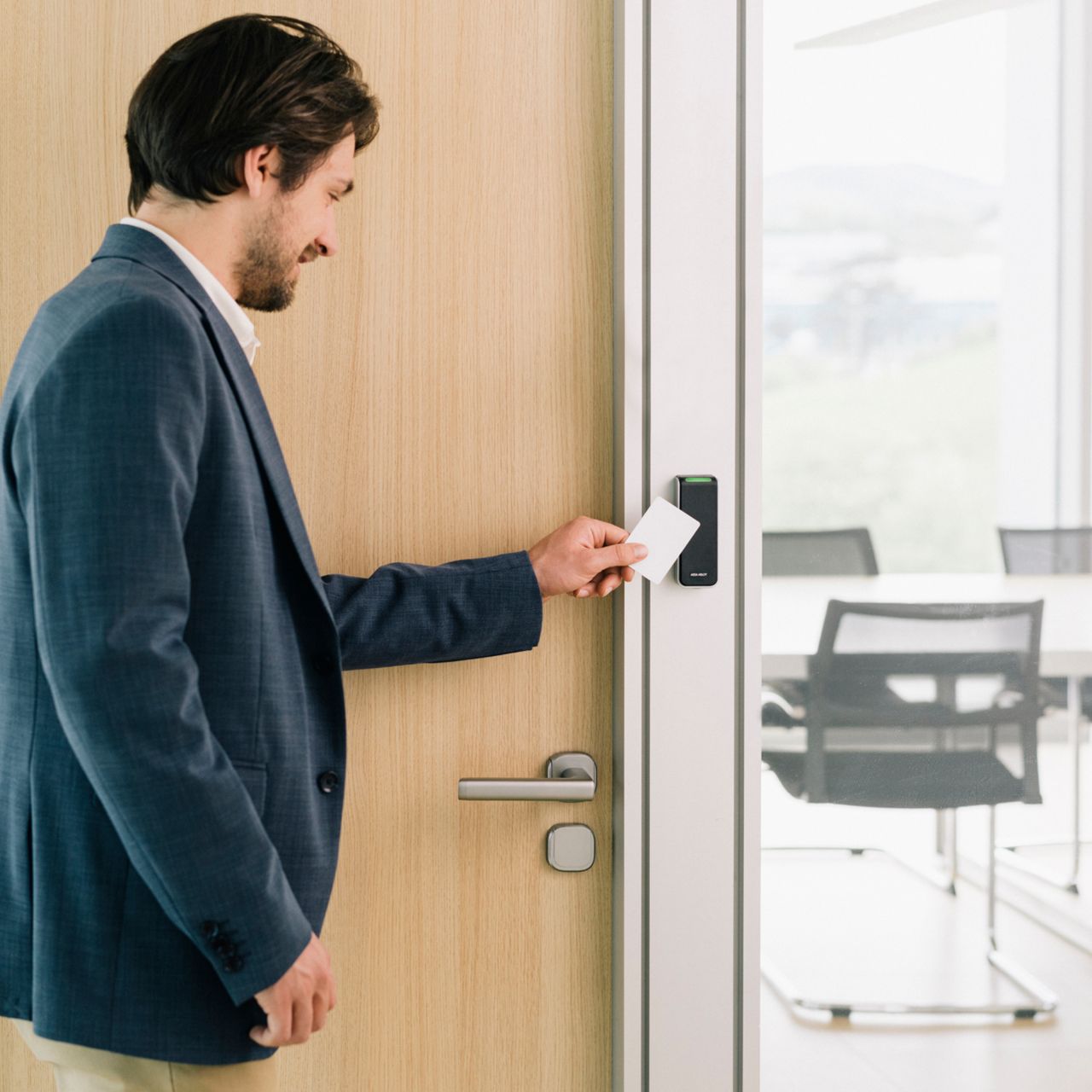

Incedo Signo with card

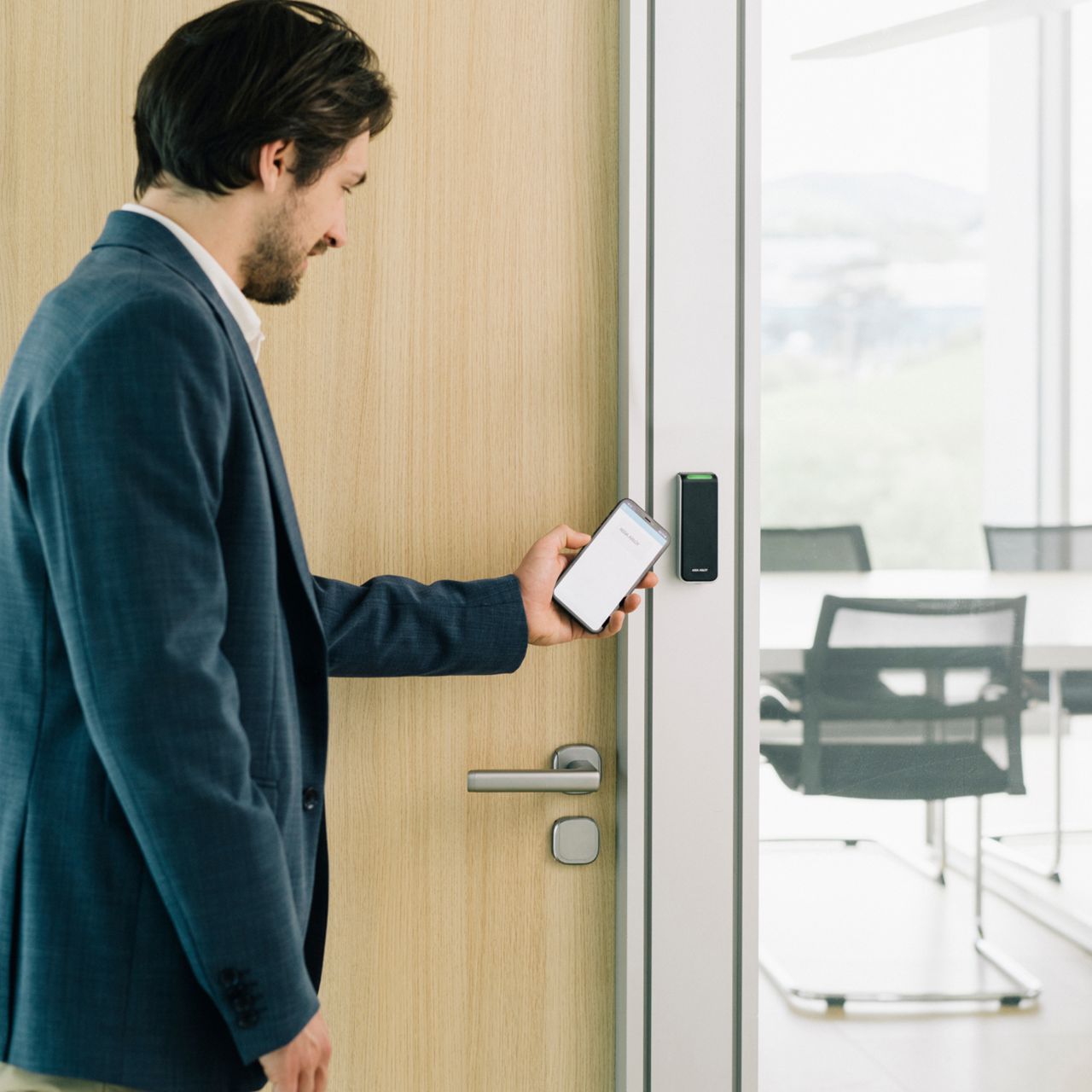

Incedo Signo with mobile

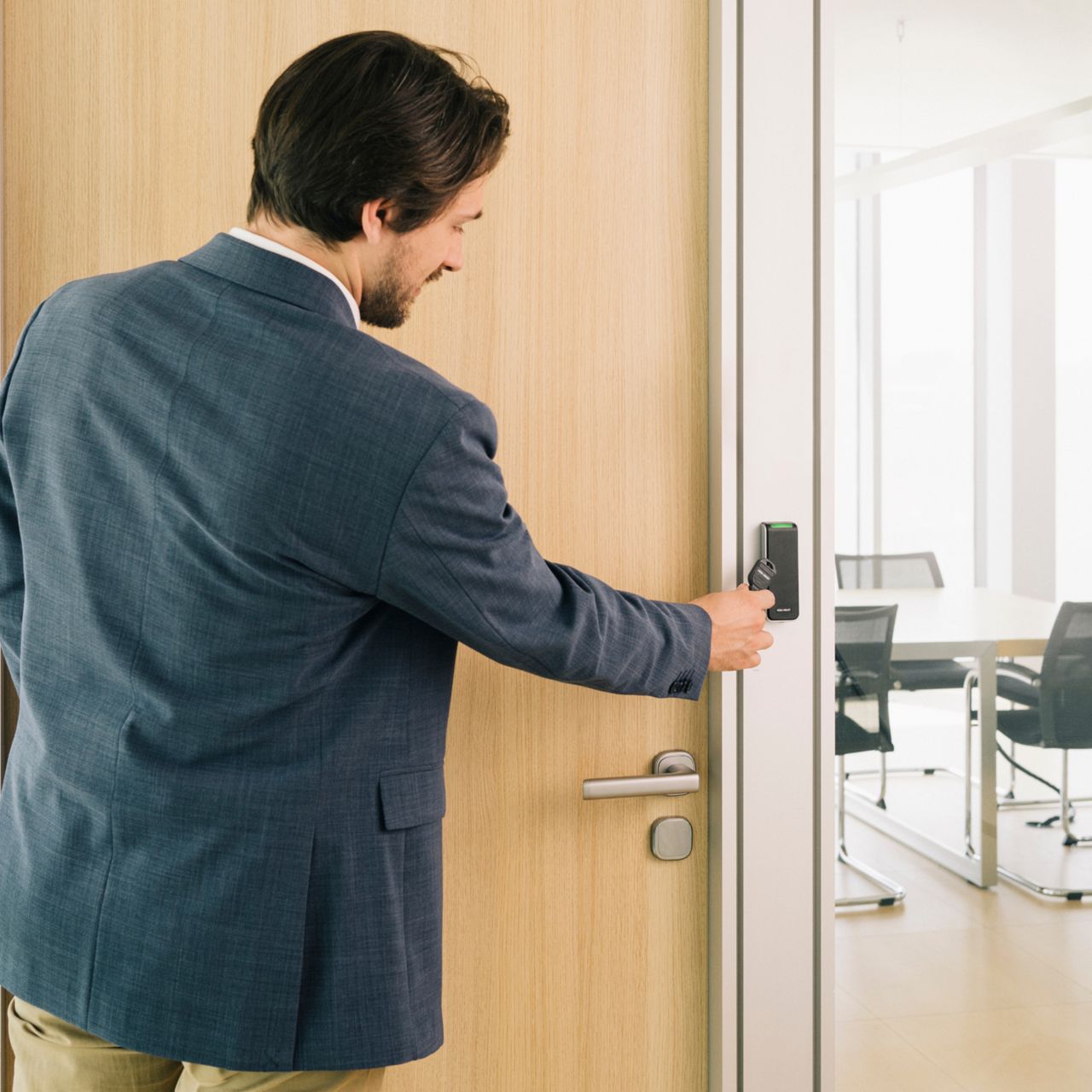

Incedo Signo with Pulse

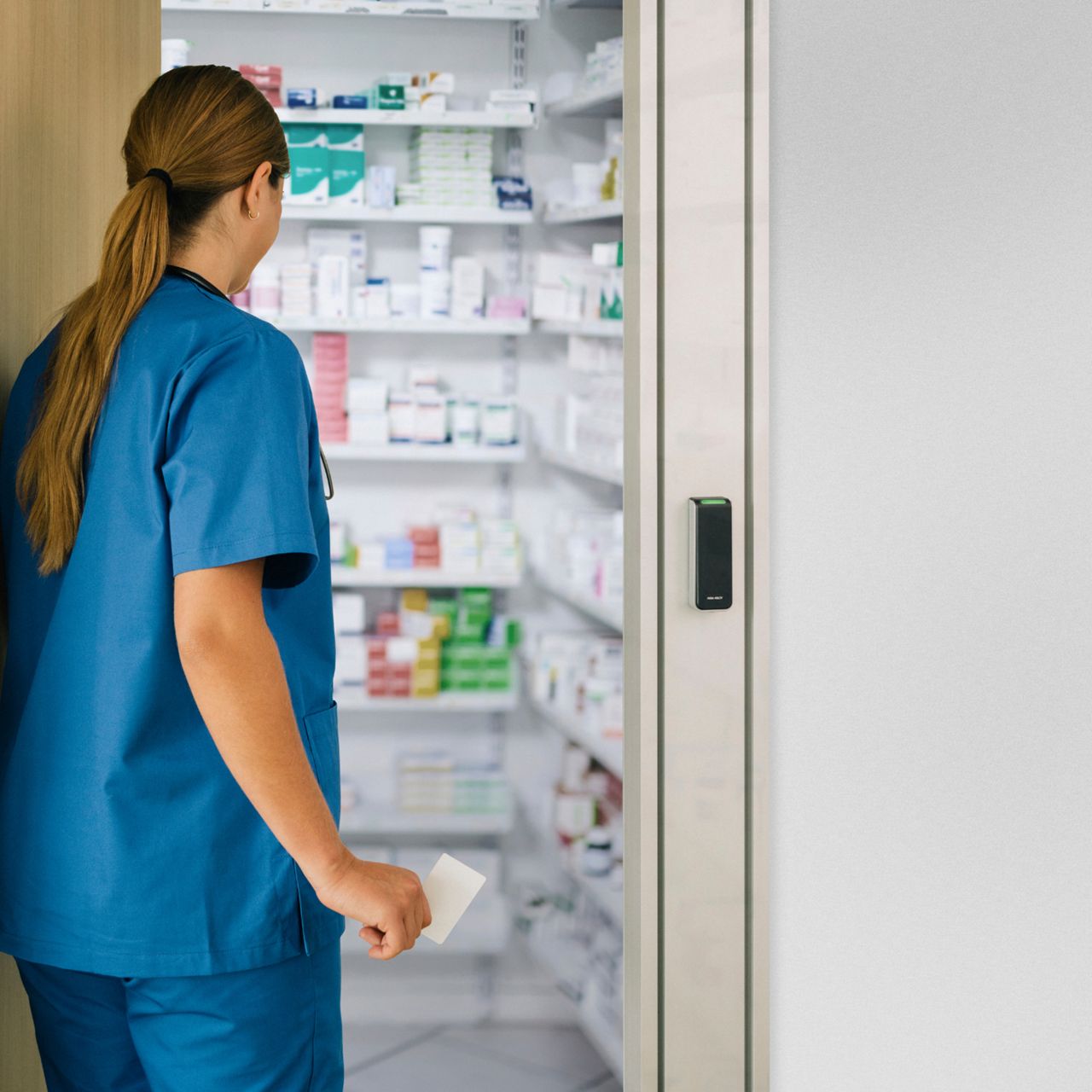

Incedo Signo in Healthcare
Key Features
Key Features
- Mullion and Plate style options with Reader or Reader/Keypad configurations
- Multi-Layered security to ensure data authenticity and privacy
- EAL5+ Certified Secure Element Hardware
- Native OSDP secure channel capability
- Trusted secure authentication using the SIO data model
- Supports iCLASS Elite™ and Corporate 1000 Program
- Go mobile with native Bluetooth and NFC support
- Integrated 125 kHz credential read support for easy migration
- Supports over 15 common credential technologies
- Flush mount terminal block and pigtail wiring options
- Robust outdoor performance with an IP65 rating
Native Support For The Widest Range Of Credential Technologies
When it comes to access control, choice matters. No access control reader available on the market today compares to Signo in the breadth of support for high-frequency technologies. In fact, Signo Readers are flexible by design, capable of interoperability with over 15 credential technologies, including Seos®, HID Mobile Access®, MIFARE® DESFire® EV1/EV2/ EV3, iCLASS®, and many more.
This unparalleled credential support also extends beyond just today’s technologies, a single HID Signo Reader is also capable of supporting all of the following legacy credential technologies:
- HID Proximity®
- Indala Proximity®
- AWID Proximity
- EM Proximity
Not only does this capability provide choice, it simplifies migration to modern credential technologies. Each HID Signo Reader also includes Apple’s Enhanced Contactless Polling (ECP) to support credentials in Apple Wallet.
In The Security Business, Time Is Money.
ASSA ABLOY Signo Readers are easy to install thanks to a new terminal block wiring design that enables flush mounting, requiring no additional spacer. These readers also tout an IP65 outdoor rating with no additional gasket needed. Once installed, Signo Readers are easy to upgrade and manage with BLE and OSDP capability onboard. They are fully compatible with HID Reader Manager to conveniently configure and upgrade firmware in the field. Even more, configuration can be streamlined through the controller via OSDP.
Voltage
12VDCCurrent (max Avg)
20: 70mA, 20K: 75mA, 40: 75mA, 40K: 80mA2.4 GHz Credential Compatibility
Mobile Credential powered by Seos13.56 MHz Credential Compatibility
Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2, FeliCa™ & Contactless e-Purse Application Specification (CEPAS), Mobile Credentials powered by Seos (HID Mobile Access)125 KHz Credential Compatibility
HID Proximity®, Indala® Proximity, AWID Proximity, and EM ProximityTypical Read Range
Seos®, MIFARE Classic, MIFARE DESFire EV1/EV2 & ISO14443A Single Technology Cards – 4 to 10 cm, HID / AWID Proximity®, Indala Proximity®, EM Proximity & 125 kHz Single Technology Cards – 6 to 10 cmCommunications Connection
Wiegand, Clock and Data and RS-485 Half Duplex (OSDP) via Pigtail (0.5 m) or Terminal StripInputs and Outputs
Input: Tri-Colour LED, Buzzer, Hold
Output: Tamper 0-60VDC @ 100mA Max (Dry Contact)Dimensions
20: 45 x 121.5 x 19.5 (mm)
20K: 45 x 121.5 x 21.5 (mm)
40: 80 x 121.5 x 19.5 (mm)
40K: 80 x 121.5 x 21.5 (mm)Environment
Weather resistant construction to IP65Operating Temperature
-35 to +66 Degrees CelciusDescription Part number Bar code SIGNO 20K Keypad Reader, Mullion, STD – INC.GDF&OSDP RDR-2NLO 9348313054862 SIGNO 20K Keypad Reader, Mullion, STD – INC.GDF&WIEG RDR-2NLW 9348313054978 SIGNO 20K Keypad Reader, Mullion, SEOS – INC.GDF&OSDP RDR-2NSO 9348313054879 SIGNO 20K Keypad Reader, Mullion, SEOS – INC.GDF&WIEG RDR-2NSW SIGNO 20 Reader, Mullion, STD – INC.GDF&OSDP RDR-2PLO 9348313054893 SIGNO 20 Reader, Mullion, STD - INC.GDF&WIEG RDR-2PLW 9348313054985 SIGNO 20 Reader, Mullion, SEOS - INC.GDF&OSDP RDR-2PSO 9348313054909 SIGNO 20 Reader, Mullion, SEOS - INC.GDF&WIEG RDR-2PSW 9348313054992 SIGNO 40K Keypad Reader, Wallplate, STD – INC.GDF&OSDP RDR-4NLO 9348313054916 SIGNO 40K Keypad Reader, Wallplate, STD - INC.GDF&WIEG RDR-4NLW 9348313054923 SIGNO 40K Keypad Reader, Wallplate, SEOS– INC.GDF&OSDP RDR-4NSO 9348313054930 SIGNO 40K Keypad Reader, Wallplate, SEOS - INC.GDF&WIEGA RDR-4NSW 9348313054947 SIGNO 40 Reader, Wallplate, STD – INC.GDF&OSDP RDR-4PLO 9348313054954 SIGNO 40 Reader, Wallplate, STD - INC.GDF&WIEG RDR-4PLW 9348313055005 SIGNO 40 Reader, Wallplate, SEOS – INC.GDF&OSDP RDR-4PSO 9348313054961 SIGNO 40 Reader, Wallplate, SEOS - INC.GDF&WIEG RDR-4PSW 9348313055012
