Aperio® AU100 V3 Australian Escutcheon

ASSA ABLOY’s Aperio® technology is leading the evolution of Online Wireless Door Locks.

ASSA ABLOY’s Aperio® technology is leading the evolution of Online Wireless Door Locks. The new AU100 is a fully commercial grade digital lockset that offers the durability and quality that is synonymous with ASSA ABLOY.

Aperio® is well known to provide a cost effective migration to an online electronic access control door. ASSA ABLOY’s AU100 is now fully retrofitable with Lockwood mortice variants without modification to the mortice whatsoever.

In addition, for the first time the internal lever and door position can now be wirelessly monitored. A capacitive keypad and proximity reader are also included in the one lock.

Sophisticated battery powered technology communicates wirelessly to a hub. The hub is then wired directly to the access control system and enables standard online access control functionality at significantly reduced costs to that of a hard wired door.

The AU100 features the V3 platform, which enables high frequency entrance doors to operate for two years on a standard set of batteries; maintaining remote opening functions of typically 5 seconds communication time between the Aperio lock and the access control system throughout the battery life.

ASSA ABLOY’s AU100 provides the benchmark for premium wireless digital locking. The strong vandal proof keypad is weather rated for outdoor conditions including protection against light rain, sun and dust.

The AU100 features ultra-smooth lever action provided by the ergonomic Lever: 77A. Designed to be compliant with the Australian Disabled Door Act, the AU100 has undergone severe vandal testing and has a strength rating of up to SL8.

Electronic Features

  • Wireless online access control
  • Authorisation changes in real time
  • Audit trails and time zones managed through existing system
  • Additional Key Override
  • Rex (internal lever monitoring)
  • Door position switch
  • Smart off line credential cache for last 200 users
  • Store last 200 events and audit trails locally in the lock
  • Battery powered – up to 40,000 operations
  • LED status
  • Battery low warning sent to EAC system

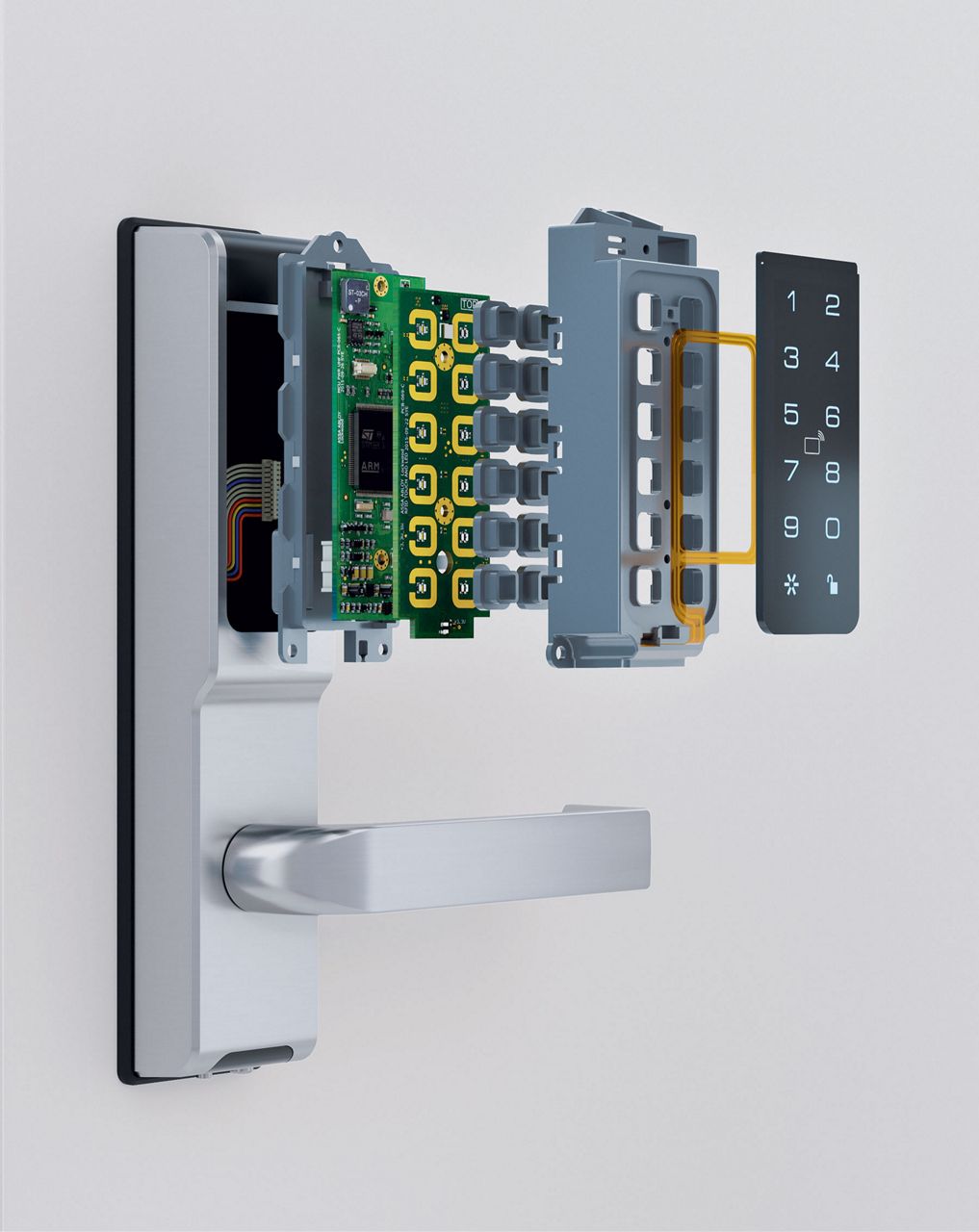

  • Powerful new electronics with USB interface
  • Heartbeat communication: 5-10 seconds
  • Remote door opening/locking functions
  • Supports multiple high frequency RFID technologies and (BLE) mobile access

Mechanical Features

  • Emergency egress
  • Compatible with Lockwood 3772 and 5782 Series Mechanical Mortice Locks
  • Additional key override
  • Fire rated
  • Multiple lockset formats
  • Emergency egress

Standards and Compliance

  Successfully tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1 2005 - Part 1: Fire Resistant Doorsets
  (Security) Australian Lock Standard (AS4145.2:1993)
  (Durability) Australian Lock Standard (AS4145.2:1993)
  Australian Electrical Regulatory Compliance
  European Electric Compliance

  • Satin Chrome

  • Matt Black

Contact Us

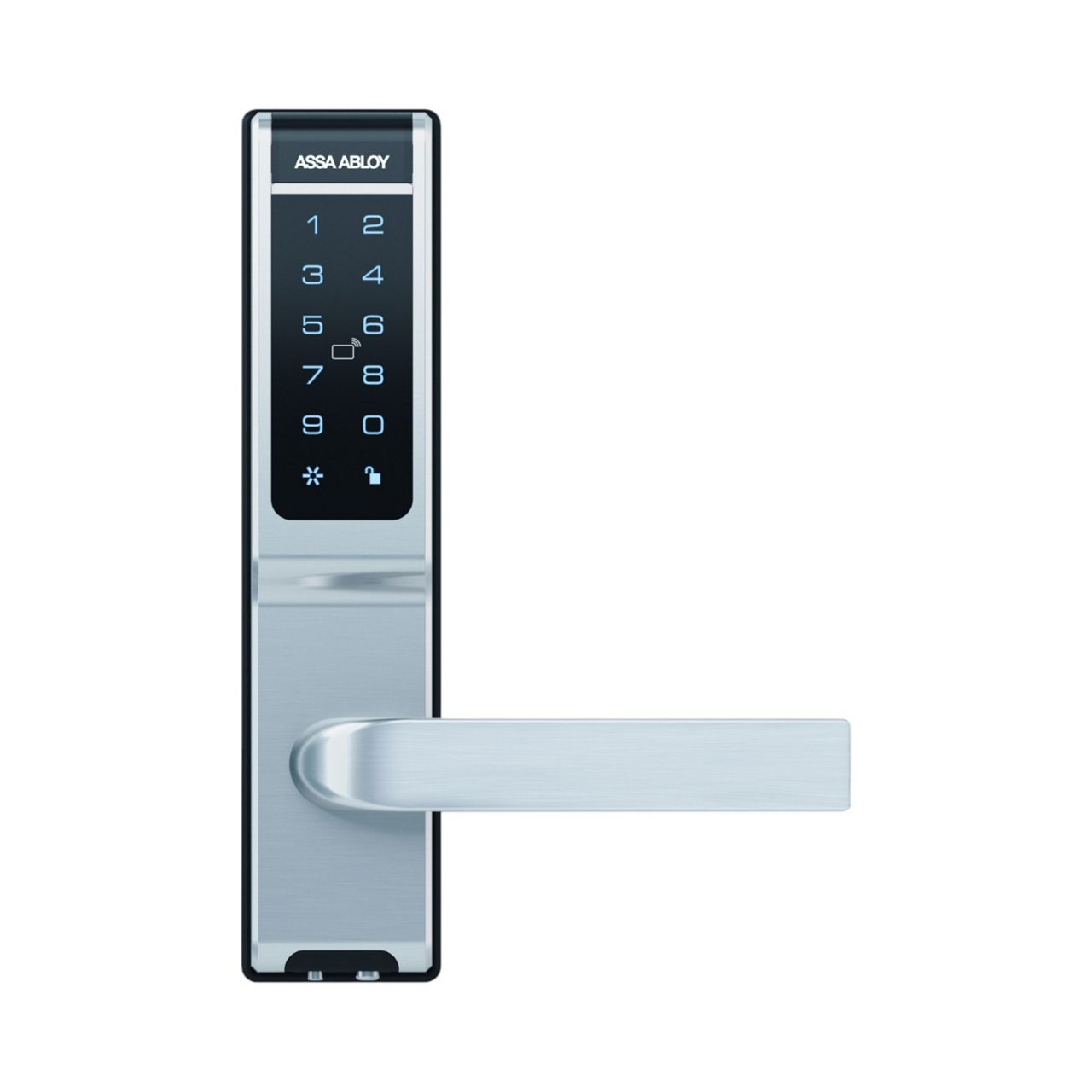

  • The AU100 is available in a range of form factors including: the popular 530 latch option (non key overide) and 60mm and 30mm backset variants.

    You may also use the 530 version on a Mortice lockset and not use the overide cylinder feature.


  • Aperio Online Mechanical Installation Manual-B(PDF, 2 MB)
    Aperio Online Quick Installation Guide-B(PDF, 1 MB)
    AU100 Installation Instructions(PDF, 2 MB)
    Aperio Online Programming Application Manual-C(PDF, 3 MB)
    3d IGS files(ZIP, 3 MB)
    Electromechanical Door Solutions Catalogue(PDF, 2 MB)
  • ItemPart number
    AU100 Escutcheons only
    Aperio AU100 V3 Keypad & Reader, Mobile Access, 530 Ver, 35-50mm Door with 530 Latch, Satin ChromeAU103BMU2SC1/1
    Aperio AU100 V3 Keypad & Reader, Mobile Access, 530 Ver, 35-50mm Door with 530 Latch, Matt BlackAU103BMU2MBK1/1
    Aperio AU100 V3 Keypad & Reader, Mobile Access, 3772 Ver, 35-50m Door, No Lock, Satin ChromeAU103BMU2SC1/2
    Aperio AU100 V3 Keypad & Reader, Mobile Access, 3772 Ver, 35-50m Door, No Lock, Matt BlackAU103BMU2MBK1/2
    Aperio AU100 V3 Keypad & Reader, Mobile Access, 3772 Ver, 35-50m Door, with 3772 Mortice, Satin ChromeAU103BMU2SC1/2/B
    Aperio AU100 V3 Keypad & Reader, Mobile Access, 5782 Ver, 35-50m Door, No Lock, Satin ChromeAU103BMU2SC1/3
    Aperio AU100 V3 Keypad & Reader, Mobile Access, 5782 Ver, 35-50m Door, No Lock, Matt BlackAU103BMU2MBK1/3
    Aperio AU100 V3 Keypad + Reader + Mobile Access 5782 Ver 35-50mm Door No Lock Matt Black with 5782AU103BMU2MBK1/3/B
    Aperio AU100 V3 Keypad + Reader + Mobile Access 530 Ver 35-50mm Door, Matt Black with 3772 No K/OAU103BMU2MBK1/1/B
    Aperio AU100 V3 Keypad + Reader + Mobile Access 3772 Ver 35-50mm Door Matt Black with 3772AU103BMU2MBK1/2/B
    Aperio AU100 V3 Keypad & Reader, Mobile Access, 5782 Ver, 35-50m Door, with 5782 Mortice Lock, Satin ChromeAU103BMU2SC1/3/B
    AU100 Accessories
    Aperio hub 1:16 rs485AH30-3-0
    AH40 Aperio 1:64 IP (Ethernet) Hub AH40-4-0
    Aperio AU100 55mm Door Spindle PackAU103-1186
    External Antenna for Hub - AH20/AH30/AH40500ZB-EXTANT-00

  • Electronic Technical Information

    Battery Type4 x AA Alkaline
    Battery Lifetime>40,000 cycles
    Radio StandardIEEE802.15.4 (2.SGHz)
    Encryption
    		AES128Bit
    Wireless Range5-25m depending on location of Hub & Environment
    RFID Technology
    		iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, Mifare Classic SE, Mifare  Ultralight, Mifare Plus, Mifare DESFire 0.6, Mifare DESFire EV1, Mifare DESFire EV2, Mifare DESFire EV3 (EV2 and EV3 only in Legacy mode), Mifare DESFire SE, PicoPass, ISO 14443A UID, ISO 14443B UID, ISO 15693 UID
    iClass, SEOS>85% Non condensating
    RFID Reading
    		UID/sector/block
    Card Range>2cm
    Operating Temperature
    		-20°C - 60°C
    Humidity<85% non condensing
    ApprovalsRCM CE
    Finish
    		Brushed Satin Chrome
    Door Thickness
    		35-50mm (Spindle kit available for 55mm door thicknesses.)



    Product Details

     AU100-530AU100-3772AU100-5782
    FinishSCSCSC
    Backset60mm60mm30mm
    Lever77A77A778A
    Door Thickness35-50mm35-50mm35-50mm
    Body MaterialZinc AlloyZinc AlloyZinc Alloy
    Override CylinderNoYesYes
    Lock TypeTubular Latch 530 & 3770Suited for 3570 and 3770
    		Suited for 5580 and 5780
    Door ApplicationRetrofit Latch & Timber door 60mm BacksetTimber door 60mm BacksetMetal or Aluminium narrow Style doors 30mm Backset

  • External - lever is always locked. To unlock badge card and activate lever

    Door automatically re-locks after set time. Can also be opened via key override

    Keypad – Touch keypad to wake up unit, enter pin and activate lever

    Internal - lever is set to escape free egress at all times

    REX - Allows the access control to recognise valid egress when the internal lever is pressed followed by DPS

    DPS – Allows the access control system to detect DOTL and forced door

      Applications

      • Internal doors and semi protected outdoor
      • Retrofit mechanical Mortice Locks
      • Expand existing access control installations
      • New access control installations
      • Doors that can’t be hard wired
      • Heritage listed buildings
