Easy hardware integration for greater efficiency and convenience

The Aperio KL100 is designed for minimal disruption to furniture. A tiny footprint and wire-free operation ensure it’s fitted quickly without causing damage or visual impact.

Yet within this small package is a powerful device which integrates seamlessly with any new or existing access control and security system — from over 100 different manufacturers and counting. Existing user credentials do not need to be replaced.

A KL100 may be connected Online, Offline or via OSS compliant integration — and switched between them at any time. Online management enables real-time control over every KL100 lock, with easy access rights administration and instant availability of audit trails for any opening or user — which makes incident investigation fast and accurate.

The Aperio KL100 Locker and Cabinet Lock joins a family of trusted wireless, battery-powered devices which includes cylinders, escutcheons, handles, security locks, server rack locks and more.  With its contemporary, low-profile design and power provided by a single, standard lithium battery, the KL100 is the modern choice for securing any site’s valuables and sensitive small spaces.

standards and compliancestandards and compliance
  • Key Features:

    • Cable Free

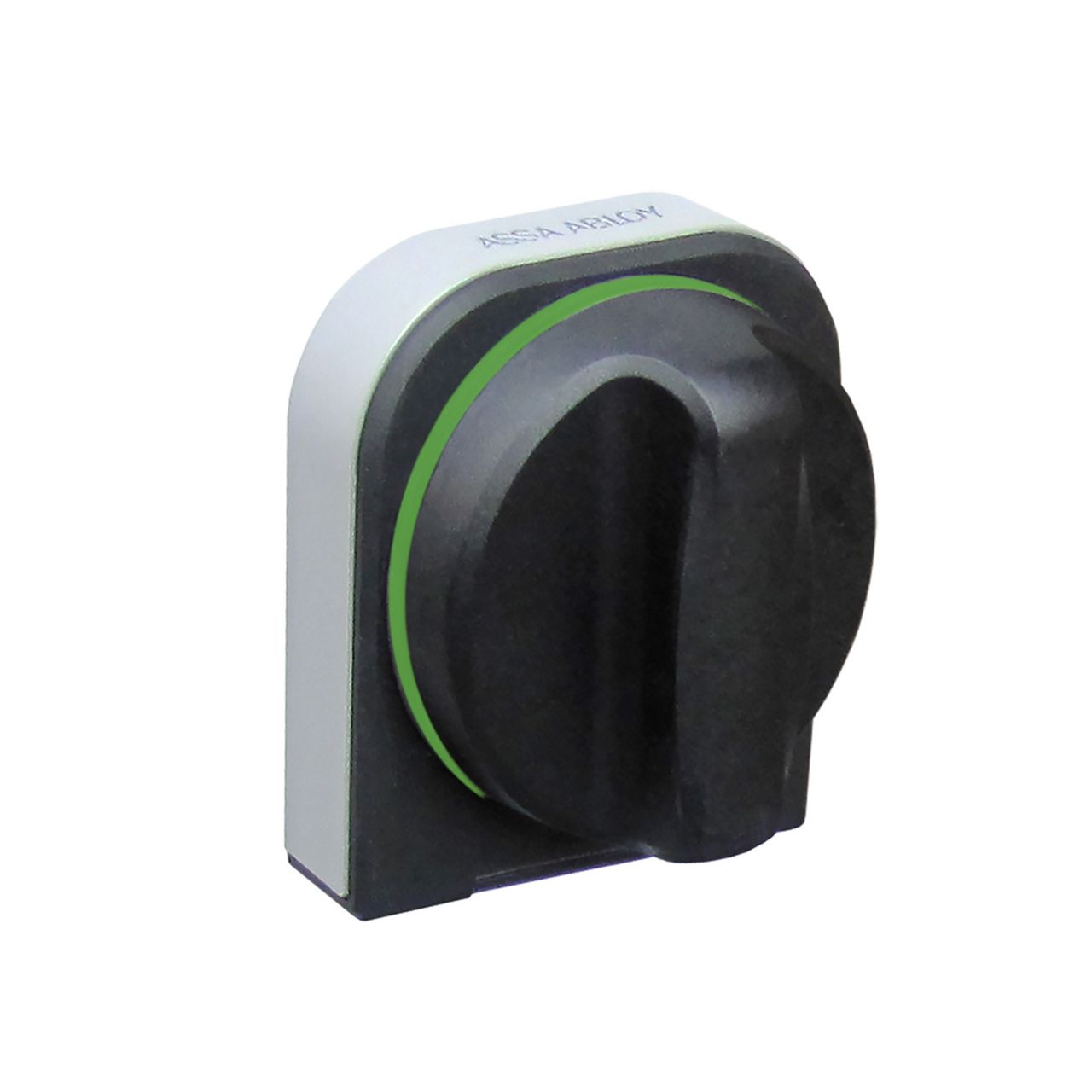

    • Inbuilt LED instantly communicates if access is granted or denied
    • Flexible, Four versions available to fit metal and timber doors, with two hole diameters – 19 & 22mm and two lengths

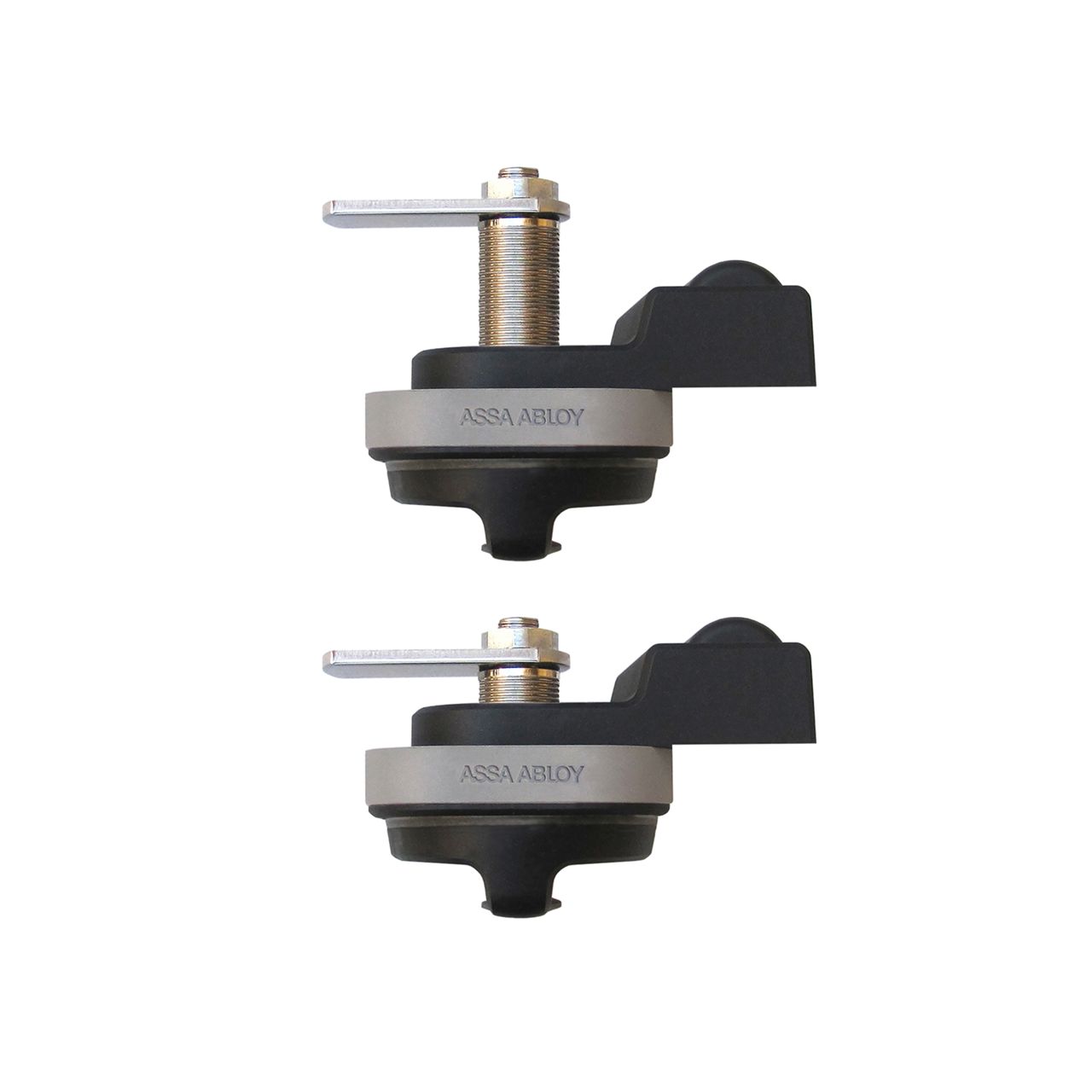

    • Several CAM versions available for multiple applications

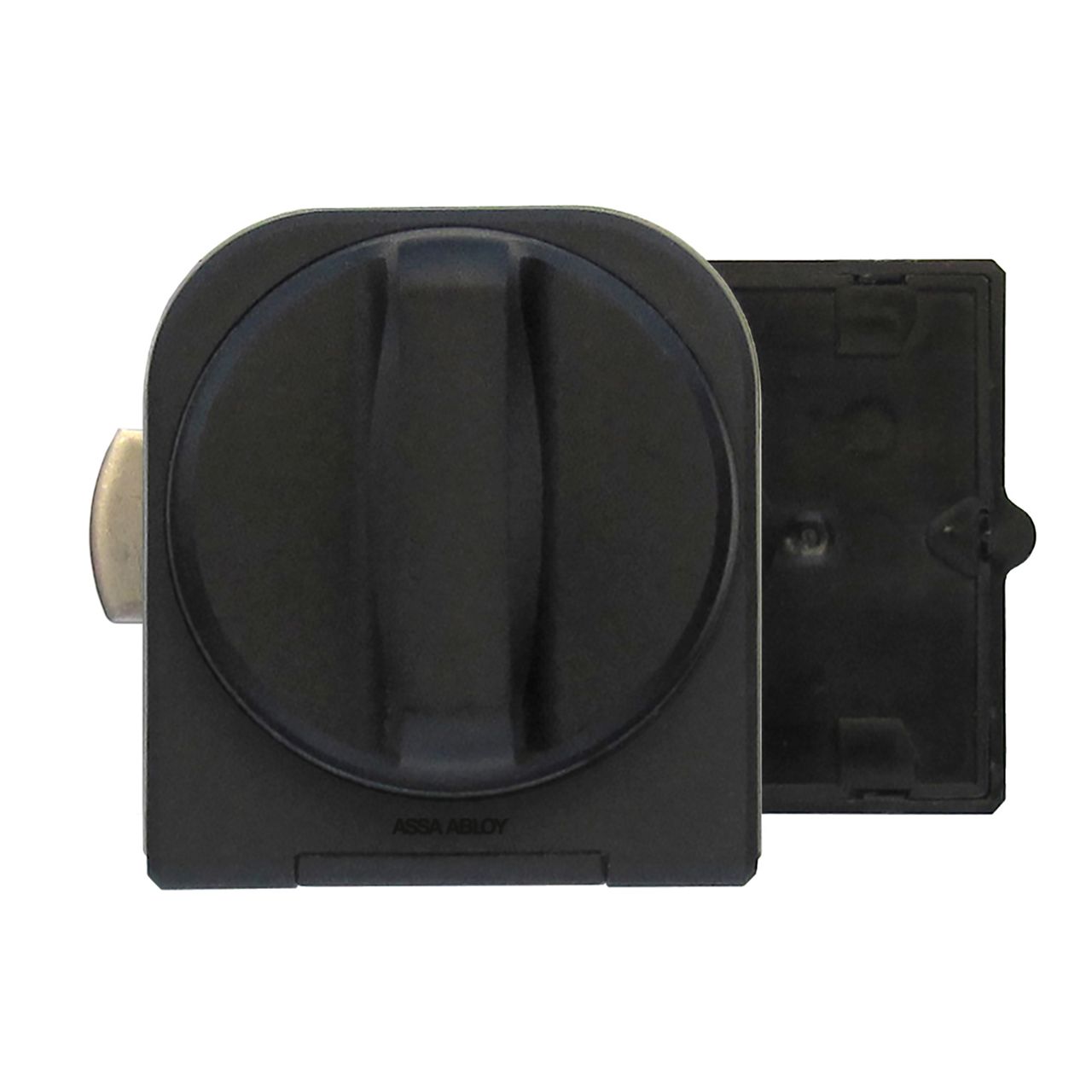

    • May be fitted to left or right-handed cabinet opening and vertically to secure drawers
    • Lock surface is designed to allow manual pull for opening lockers without a handle
    • Battery powered with a typical battery life of several years
    • Can be operated with Smart cards, Bracelets, Fobs and Smartphones (NFC & Bluetooth)

    Applications:

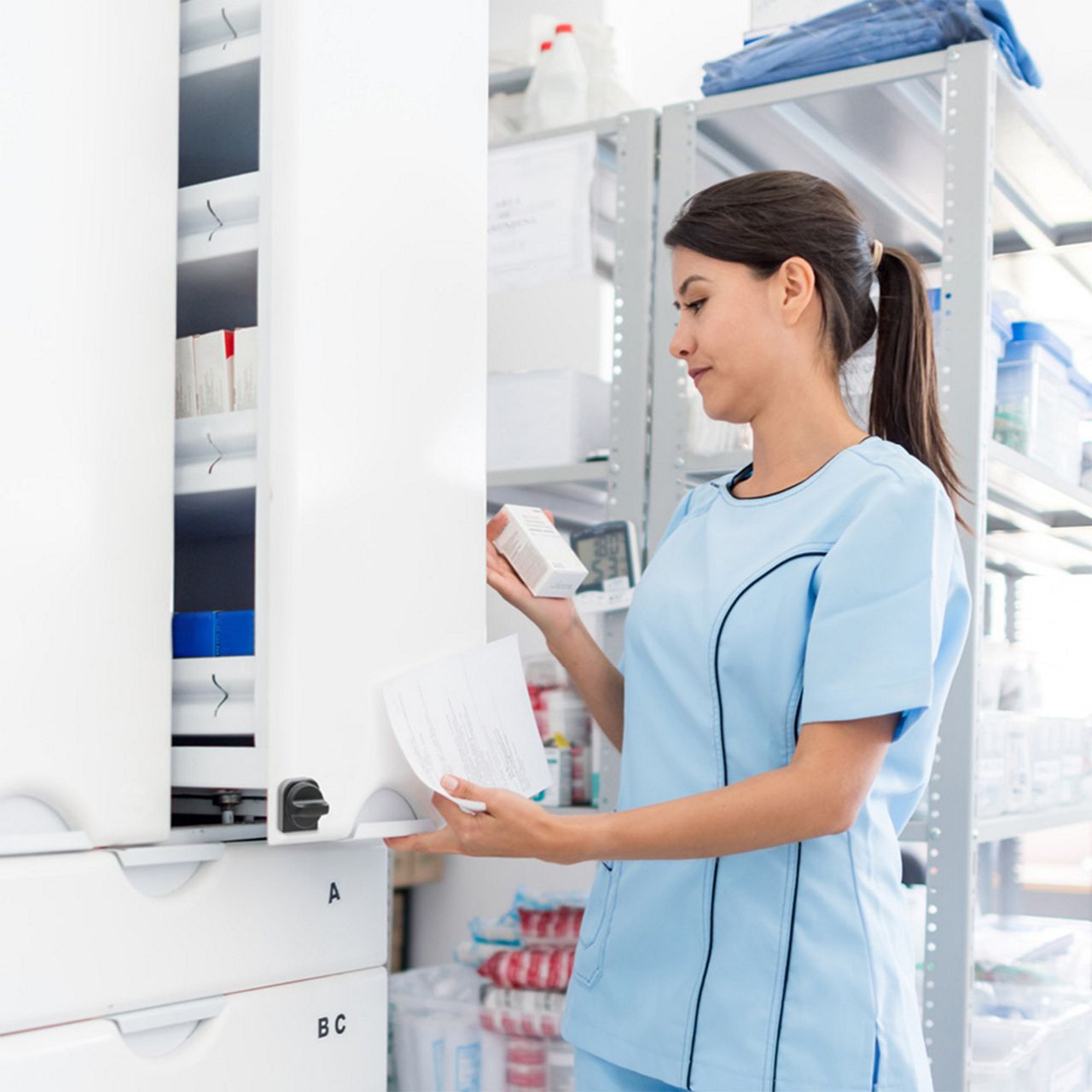

    • Hospital Medicine Cabinets and Drawers

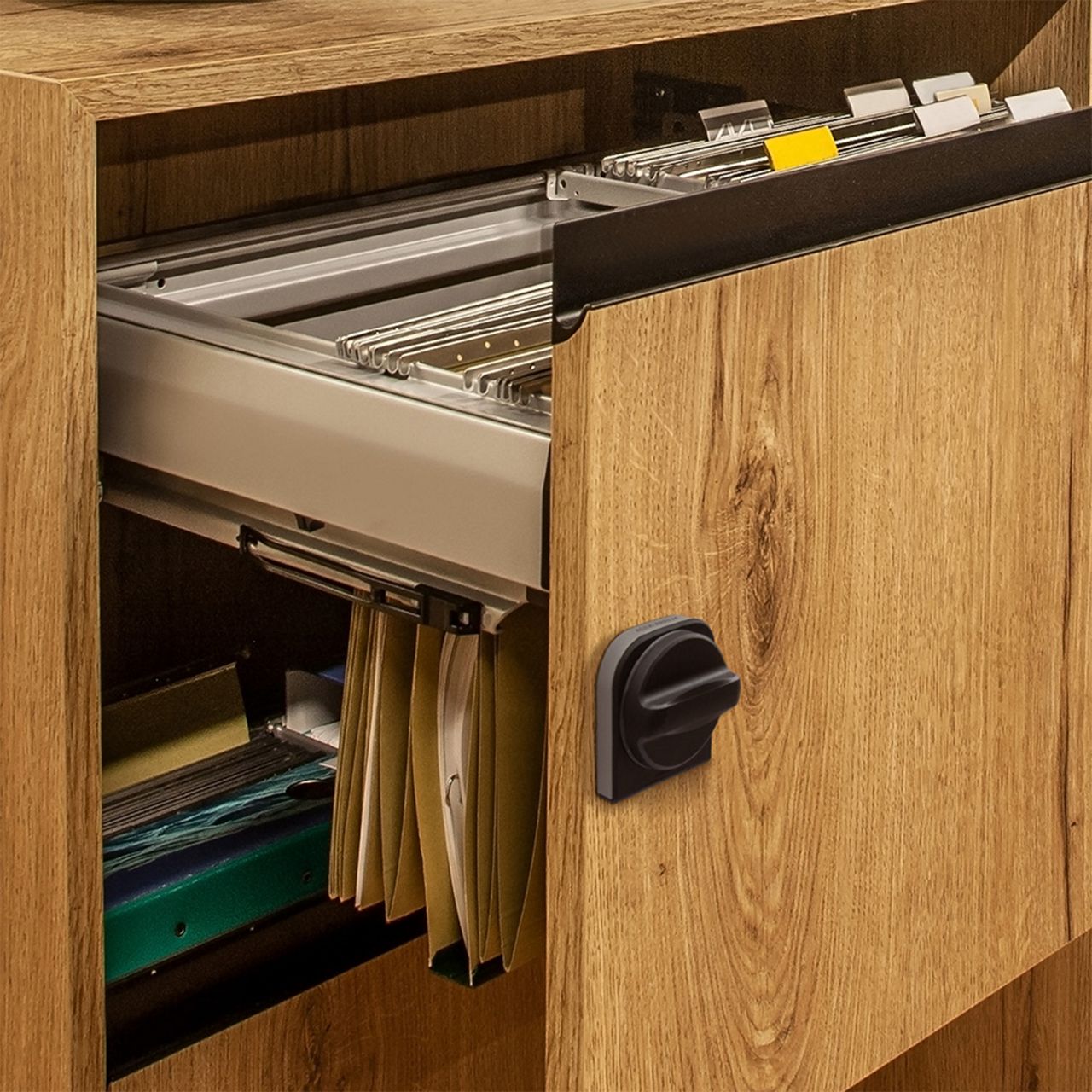

    • Document Cabinets
    • Retail Displays
    • Personal Belongings

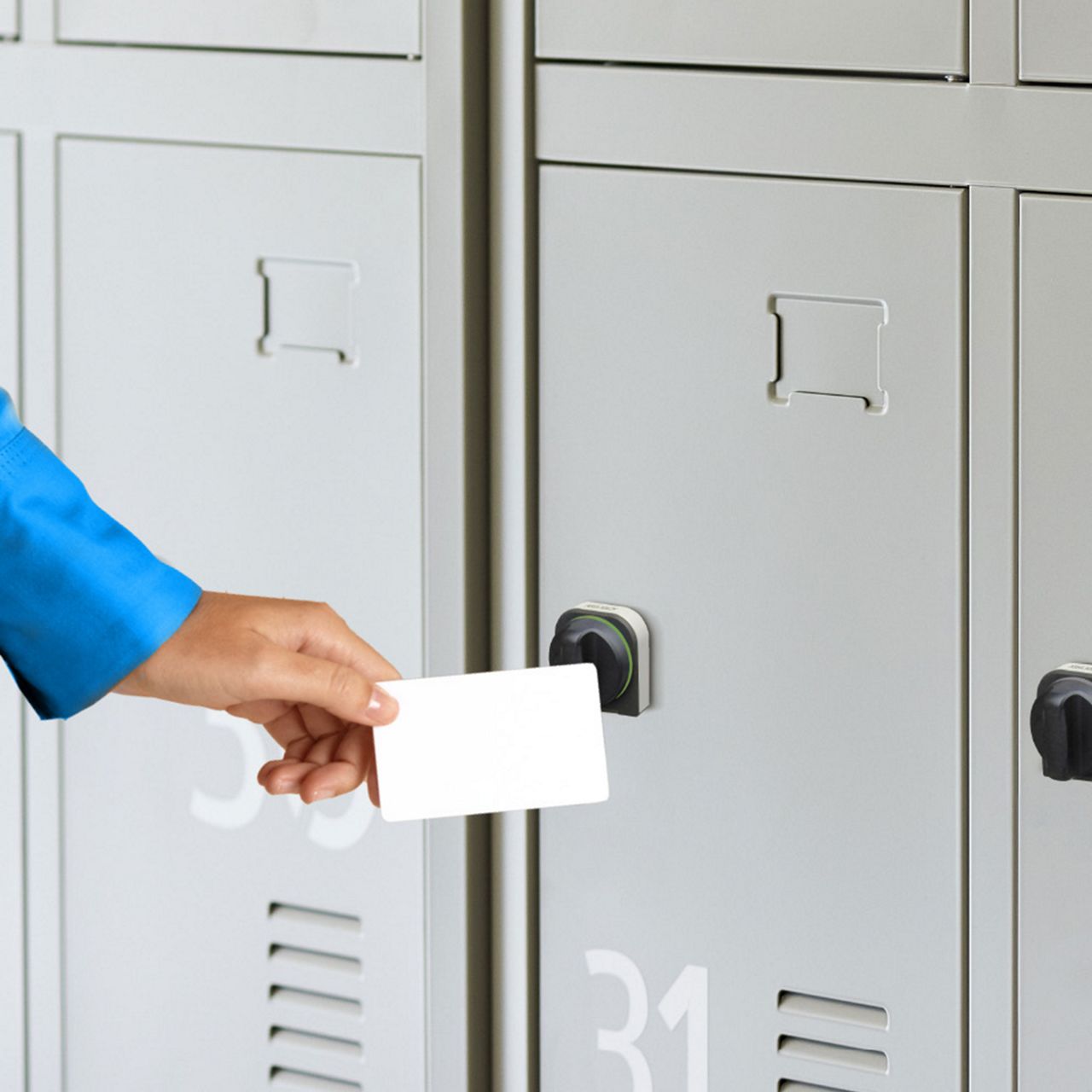

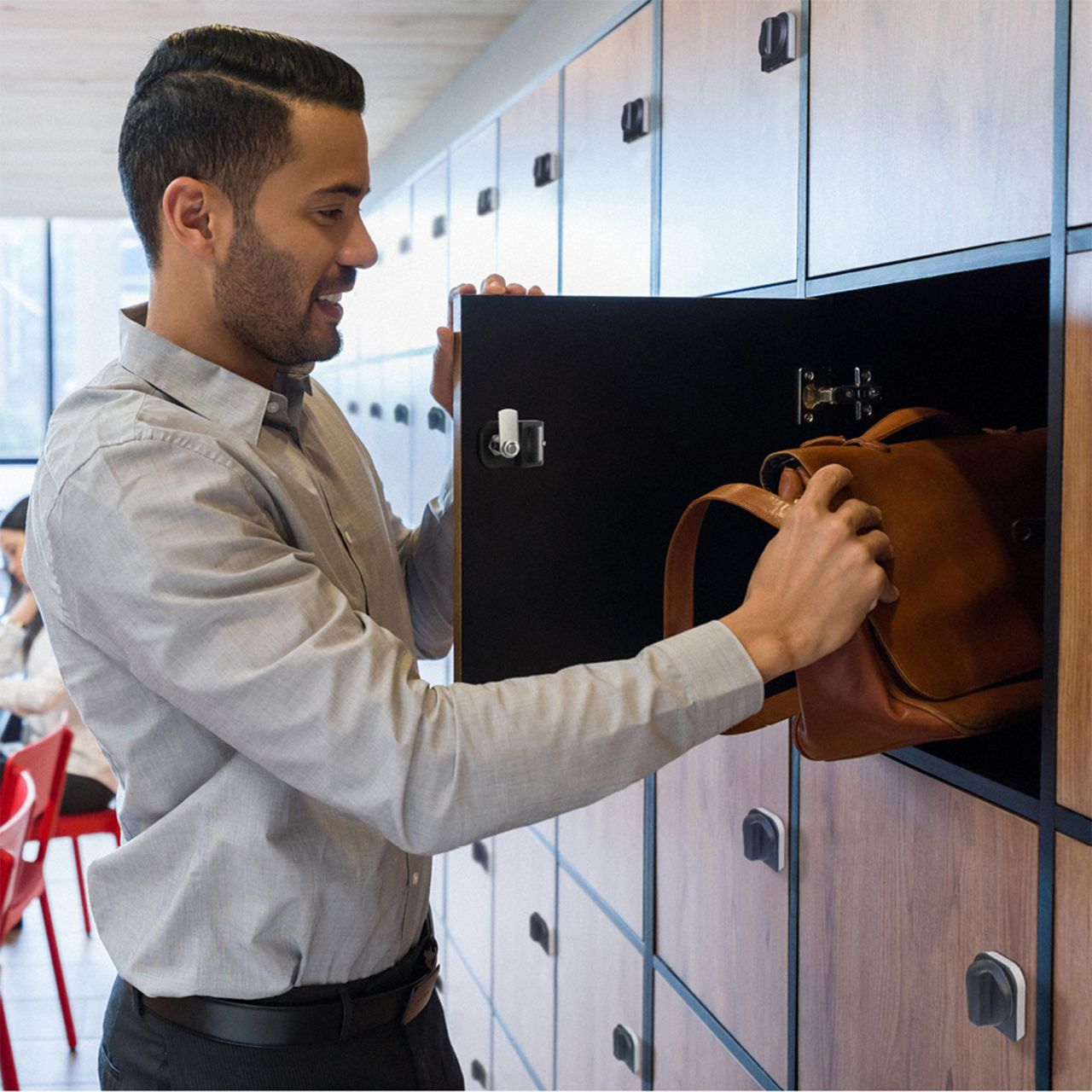

    • Staff Lockers
    • Almost any locker, cabinet or drawer, whether metal or timber.
  • Battery
    1 x Lithium CR123A

    Battery Life
    40,000 cycles

    Emergency Power
    Via micro-USB socket

    Environment
    Weather resistant construction to IP54

    Operating Temperature
    0 to 55 Degrees Celsius

    Status Indication
    Red/Green/Yellow LED

    Operating Modes
    Aperio Online, Aperio Offline, Standard OSS Offline

    Radio Standard
    IEEE 802.15.4 (2.4GHz)

    Encryption
    AES 128 bits

    RFID Technologies
    iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, Mifare Classic SE, Mifare  Ultralight, Mifare Plus, Mifare DESFire 0.6, Mifare DESFire EV1, Mifare DESFire EV2, Mifare DESFire EV3 (EV2 and EV3 only in Legacy mode), Mifare DESFire SE, PicoPass, ISO 14443A UID, ISO 14443B UID, ISO 15693 UID

    RFID Reading
    UID / Sector / Block / Application / File / Depending on the RFID technology

    Approvals
    CE, UKCA, RCM, R-NZ

    RFID Read range
    Up to 4cm

    Dimensions
    Front: 57W x 63Hmm x 31D

  • DescriptionPart number
    ASSA ABLOY Aperio KL100 Cabinet Lock, Long, 19mm DiameterKL100-19L
    ASSA ABLOY Aperio KL100 Cabinet Lock, Short, 19mm DiameterKL100-19S
    ASSA ABLOY Aperio KL100 Cabinet Lock, Long, 22mm DiameterKL100-22L
    ASSA ABLOY Aperio KL100 Cabinet Lock, Short, 22mm DiameterKL100-22S
    ACCESSORIES
    ASSA ABLOY Aperio KL100 Backing Plate, 19mm (10 pieces)AKL100-10
    ASSA ABLOY Aperio KL100 Backing Plate, 22mm (10 pieces)AKL100-11
    ASSA ABLOY Aperio KL100 CAM, Straight, 05 A38 D0 (10 pieces)AKL100-20
    ASSA ABLOY Aperio KL100 CAM, Straight, 17 A30 5 D0 (10 pieces)AKL100-21
    ASSA ABLOY Aperio KL100 CAM, Offset, 86 A49 B5 D0 (10 pieces) AKL100-22
    ASSA ABLOY Aperio KL100 CAM, Offset, 76 A41 B8 5 D0 (10 pieces)AKL100-23
    ASSA ABLOY Aperio KL100 CAM, Offset, 109 A38 B3 D0 (10 pieces)AKL100-24
    ASSA ABLOY Aperio KL100 CAM, Straight, 71 A50 D0 (10 pieces)AKL100-25
    ASSA ABLOY Aperio KL100 Plastic Rose AssemblyAKL100-30
    ASSA ABLOY Aperio KL100 Battery Holder AssemblyAKL100-31
    ASSA ABLOY Aperio KL100 Back CoverAKL100-32
    SSA ABLOY Aperio KL100 USB Cover AssemblyAKL100-33
    ASSA ABLOY Aperio KL100 Turn Stop WasherAKL100-40
    ASSA ABLOY Aperio KL100 Screw 2.5 x 8mmAKL100-41
    ASSA ABLOY Aperio KL100 InsertAKL100-42
    ASSA ABLOY Aperio KL100 Nut M11 x 1AKL100-43
    ASSA ABLOY Aperio KL100 Nut M22 x 1AKL100-44
    ASSA ABLOY Aperio KL100 Nut M19 x 1AKL100-45
