Aperio® H100 Handle
The new Aperio® H100 packs the power and flexibility of wireless access control into one slim, cleverly designed, battery-powered door handle. With easy retrofitting to almost any interior door and comprehensive RFID support, the new Aperio® H100 handle makes it cost effective to boost security for sensitive offices, storerooms, archives, meeting rooms and more.
Key Features
- The easiest way to add access control to a mechanical lock without drilling
- Robust, wireless device designed for high-traffic environments
- Compatible with Australian mortice locks (8mm)
- Suitable for wooden, steel, and tubular-frame doors (and glass doors with standard lock cases)
Keep your existing mechanical cylinder - Straightforward integration with third-party access control systems
- Available in Satin Pearl and Matt Black
- Works with an online system or as an offline lock
- Discreet handle with a minimal footprint and contemporary design
- LED for instant status visualization
- Requires only one screw to replace handle batteries
- Supports the following RFID technologies: MIFARE Classic®, MIFARE Ultralight®, MIFARE® DESFire®, MIFARE Plus®, MIFARE® SE, MIFARE® DESFire® SE;iCLASS SE; iCLASS Seos®, iCLASS Seos Elite
- Mobile Access BLE
Satin Pearl
Matt Black

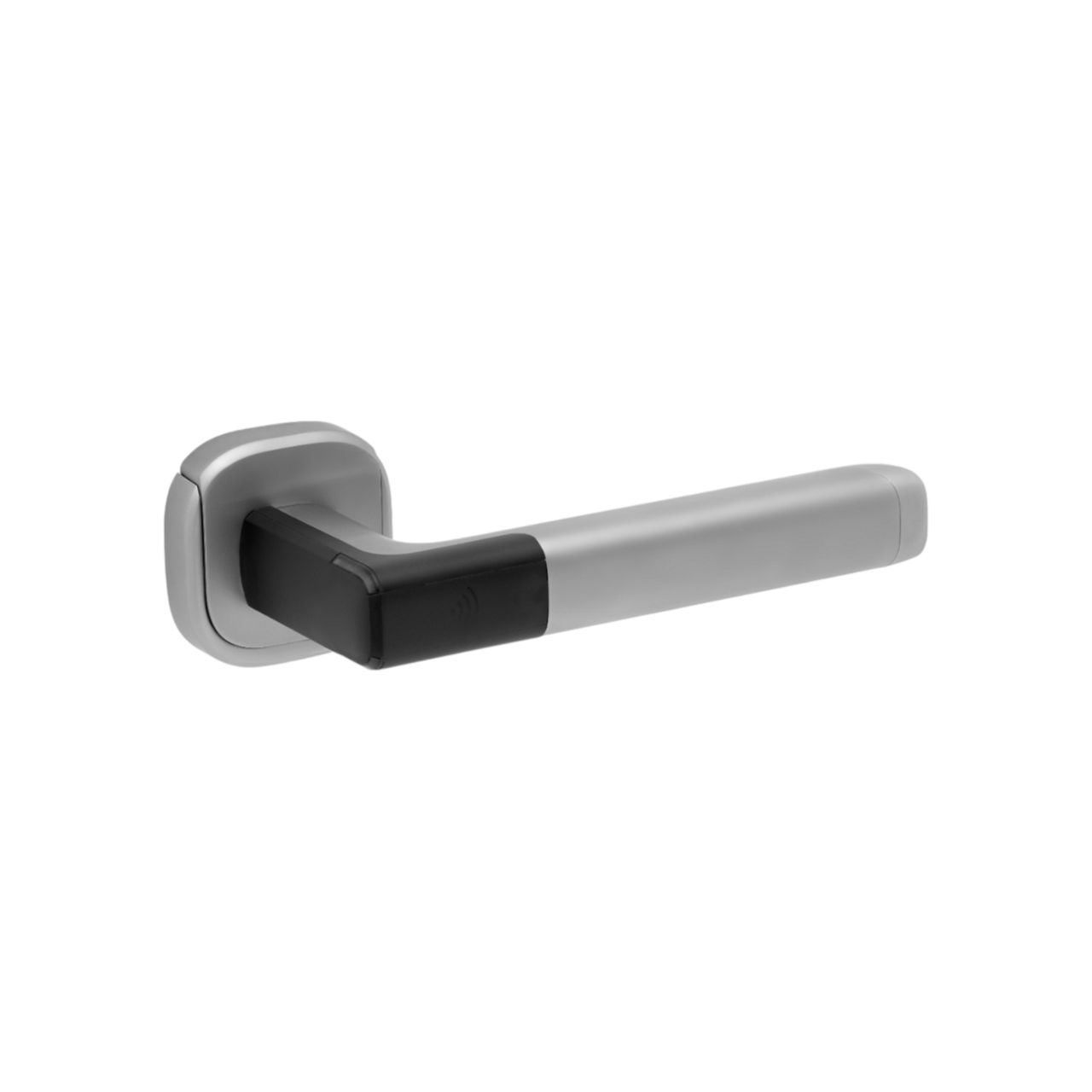

Aperio H100 Handle (Satin Pearl)

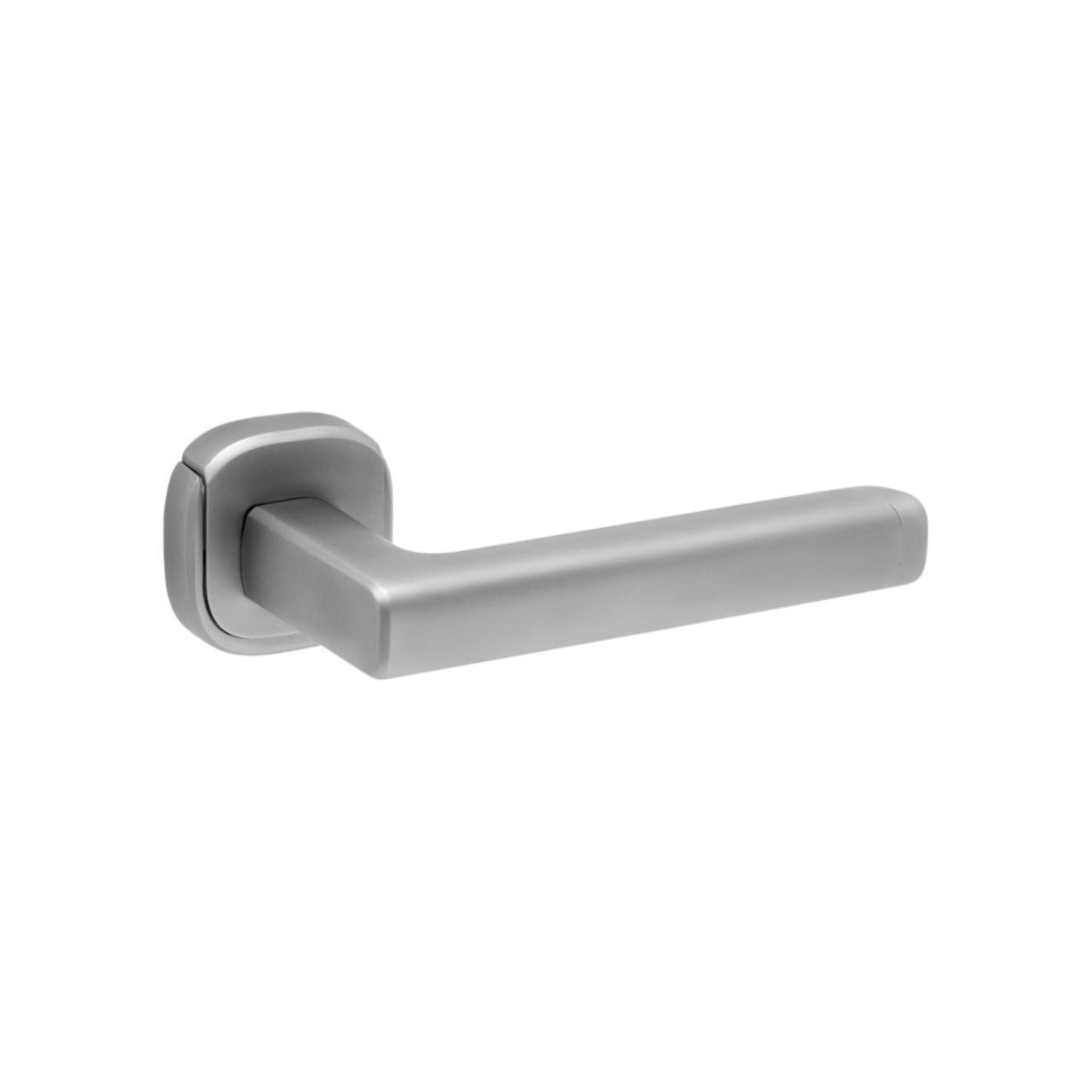

Aperio H100 Handle (Satin Pearl)
Aperio H100 Handle (Satin Pearl)
Aperio H100 Handle (Satin Pearl)

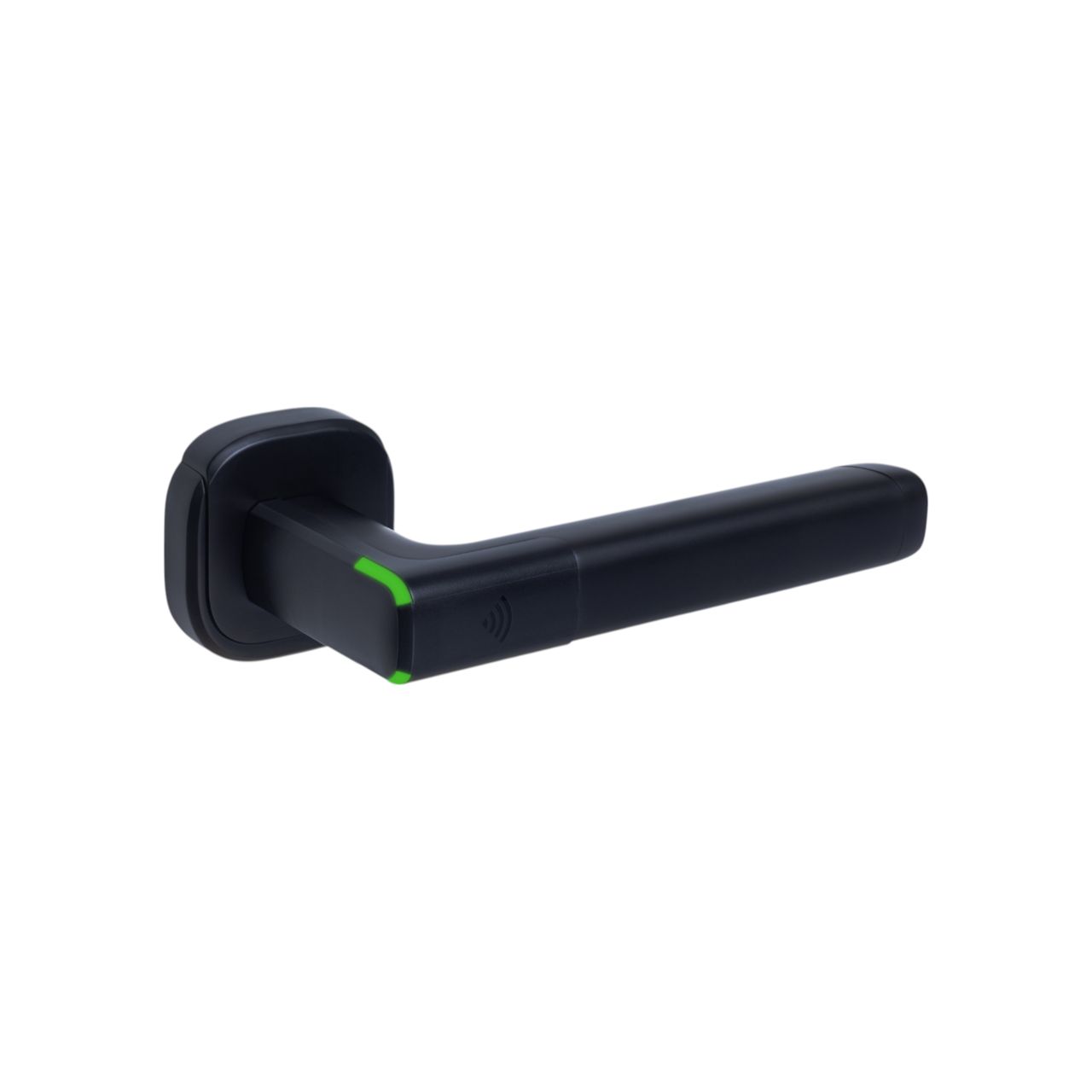

Aperio H100 Handle (Matt Black)

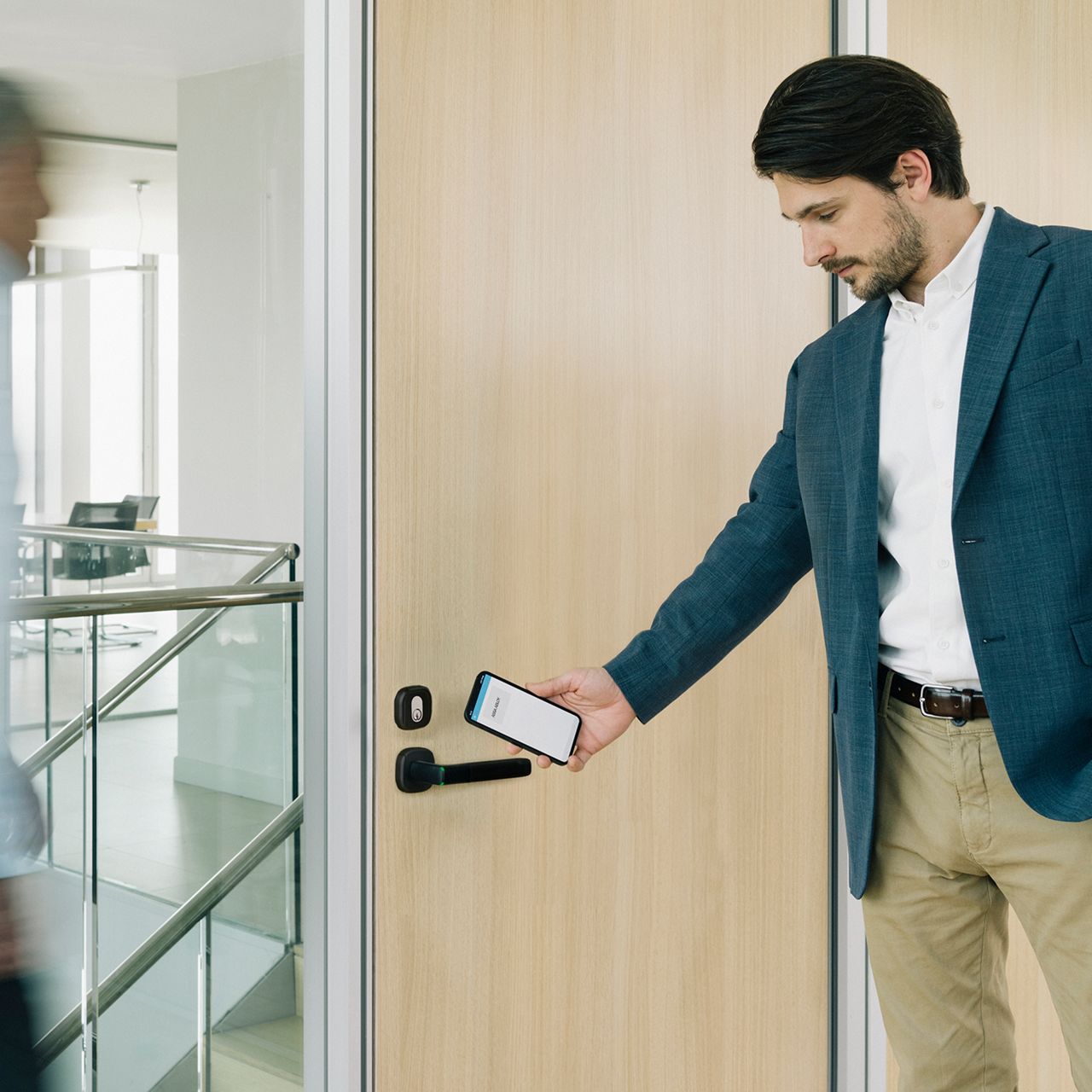

Aperio H100 Handle (Matt Black)

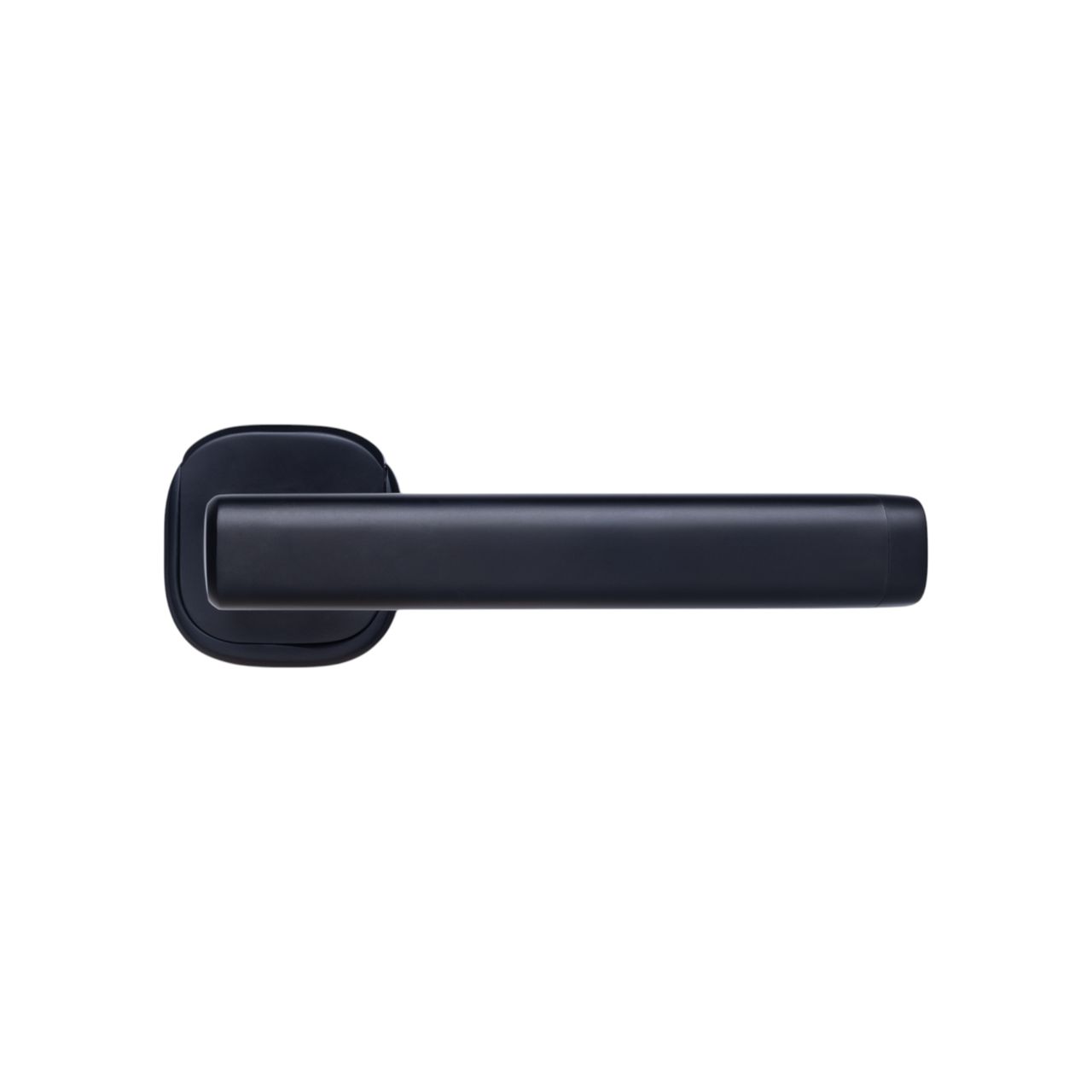

Aperio H100 Handle (Matt Black)
- Authentication: One level of authentication - CARD only
- Approvals: CE, EN1906: 26-B010B RCM

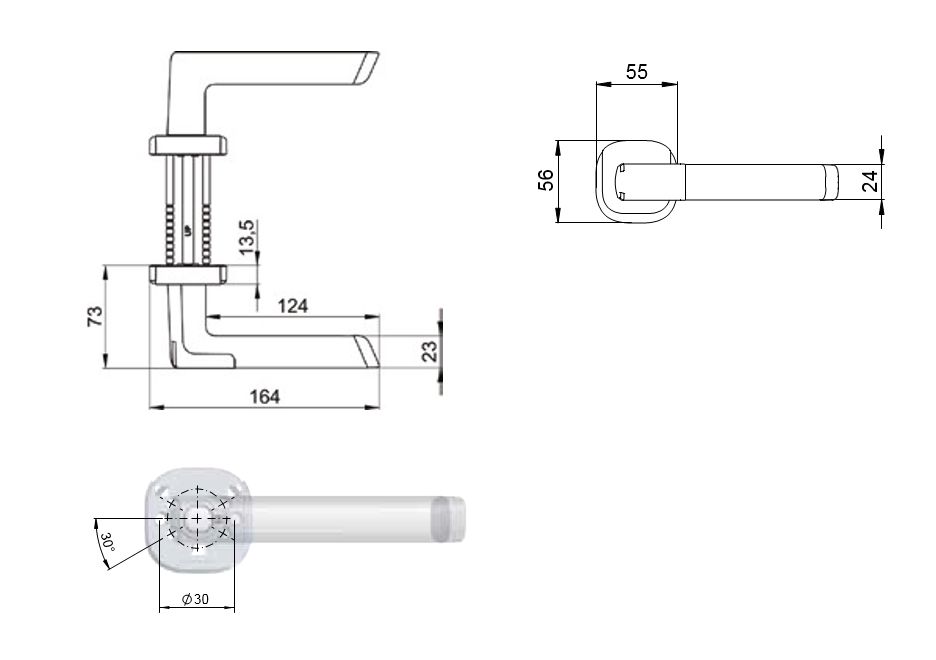

- Dimension: 55 x 55 x 13.5 mm (Rose dimensions H x W x D)
- Version: Interior doors
- Handle: L-Shape, U-Shape through adapter (accessory)
- Surface: Satin Pearl or Matt Black
- Spindle: 8mm Spindle
- Door leaf thickness: Between 35-80mm but with accessory “10mm distance ring” thinner doors can be used
- Battery: 1 x Lithium CR123A
- Battery life (Based on reader type): High Frequency Multiclass: 30 openings per day for 50 months
- Radio standard: IEEE 802.15.4 (2.4 GHz)
- Encryption (radio communication): AES 128 bits
- Distance between the RFIDReader and hub: Up to 25m depending on the building environment
- Class of protection: IP42
- Operating temperature range: 0°C to 55°C
- Relative humidity: < 85% (condensation-free)
- Status: LED (red/green/orange)
- RFID Technologies (Based on reader type): High Frequency Multiclass : iCLASS®/ISO 14443B; iCLASS® Seos; MIFARE™ Classic; MIFARE™ Plus;MIFARE™ DESFire™ EV1
- RFID reading: UID / Sector / Block / Application / File
- RFID Reading range: < 4 cm
- Communication interfaces: Communication via radio (USB dongle) or USB type B adapter (accessory)
- Offline and Online operation modes: Aperio® Online; Aperio® Offline; Aperio® Standard OSS Offline
Installation Instructions
Item Part number Aperio H100 Handle, Right, 8mm Spindle, Satin Pearl, Mobile Access H100B8R-SC-AU Aperio H100 Handle, Right, 8mm Spindle, Matt Black, Mobile Access H100B8R-MBK-AU Aperio H100 Handle, Right, 8mm Spindle, Satin Pearl, Mobile Access with 3772 Mortice Lock H100B8R-SC-AU-B Aperio H100 Handle, Left, 8mm Spindle, Satin Pearl, Mobile Access H100B8L-SC-AU Aperio H100 Handle, Left, 8mm Spindle, Matt Black, Mobile Access H100B8L-MBK-AU Aperio H100 Handle, Right, 8mm Spindle, Satin Pearl, Mobile Access with 3773 Sliding Door Mortice Lock - Timber H100B8R-SC-AU-SB Aperio H100 Handle, Left, 8mm Spindle, Satin Pearl, Mobile Access with 3772 Mortice Lock H100B8L-SC-AU-B Aperio H100 Handle, Left, 8mm Spindle, Satin Pearl, Mobile Access with 3773 Sliding Door Mortice Lock - Timber H100B8L-SC-AU-SB Accessories - Aperio USB Firmware Adapter for use in battery compartment AH100-010 Accessories - H100 Distance Ring for inner doors thinner than 35mm AH100-020 Accessories - 3772 Mortice Lock to suit Aperio H100 60mm backset 3772H100SS ‘U-Handle’ or RTD Adapter (set of 2) – Satin Pearl AH100-002 ‘U-Handle’ or RTD Adapter (set of 2) – Matt Black AH100-002-B H100 DDA Grip for Disability Access AH100-005 Kit comprising AH100-001 ‘U-Handle’ Satin Chrome & H100 DDA Grip AH100-006 Kit comprising AH100-002 ‘U-Handle’ Satin Pearl & H100 DDA Grip AH100-106 H100 530 Latch 8mm plus Adaption Plate Small 60mm Backset AH100-085 H100 530 Latch 8mm plus Adaption Plate Large 60mm Backset AH100-086 H100 530 Latch 8mm plus Adaption Plate Large 70mm Backset AH100-096 H100 530 Latch 8mm plus Adaption Plate Small 70mm Backset AH100-095 H100 Cylinder Escutcheon – Satin Chrome AH100-070 H100 Cylinder Escutcheon – Satin Pearl AH100-071 H100 Cylinder Escutcheon – Matt Black AH100-072 Aperio Gen 5 Wireless Communications Hub, 1:16, RS485 AH30-3-0 Aperio Gen 5 Wireless Communications Hub, 1:64, TCP/IP AH40-4-0
