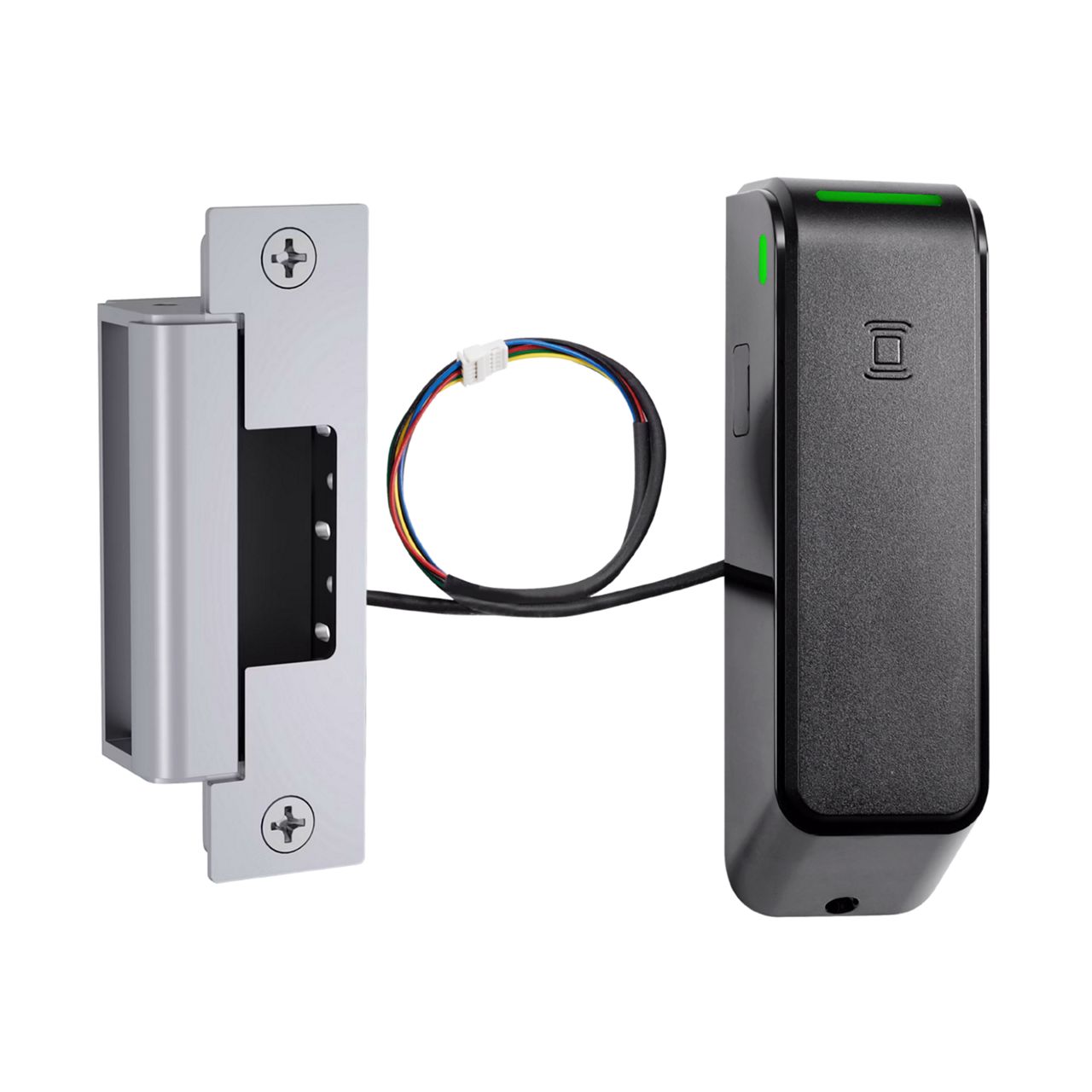

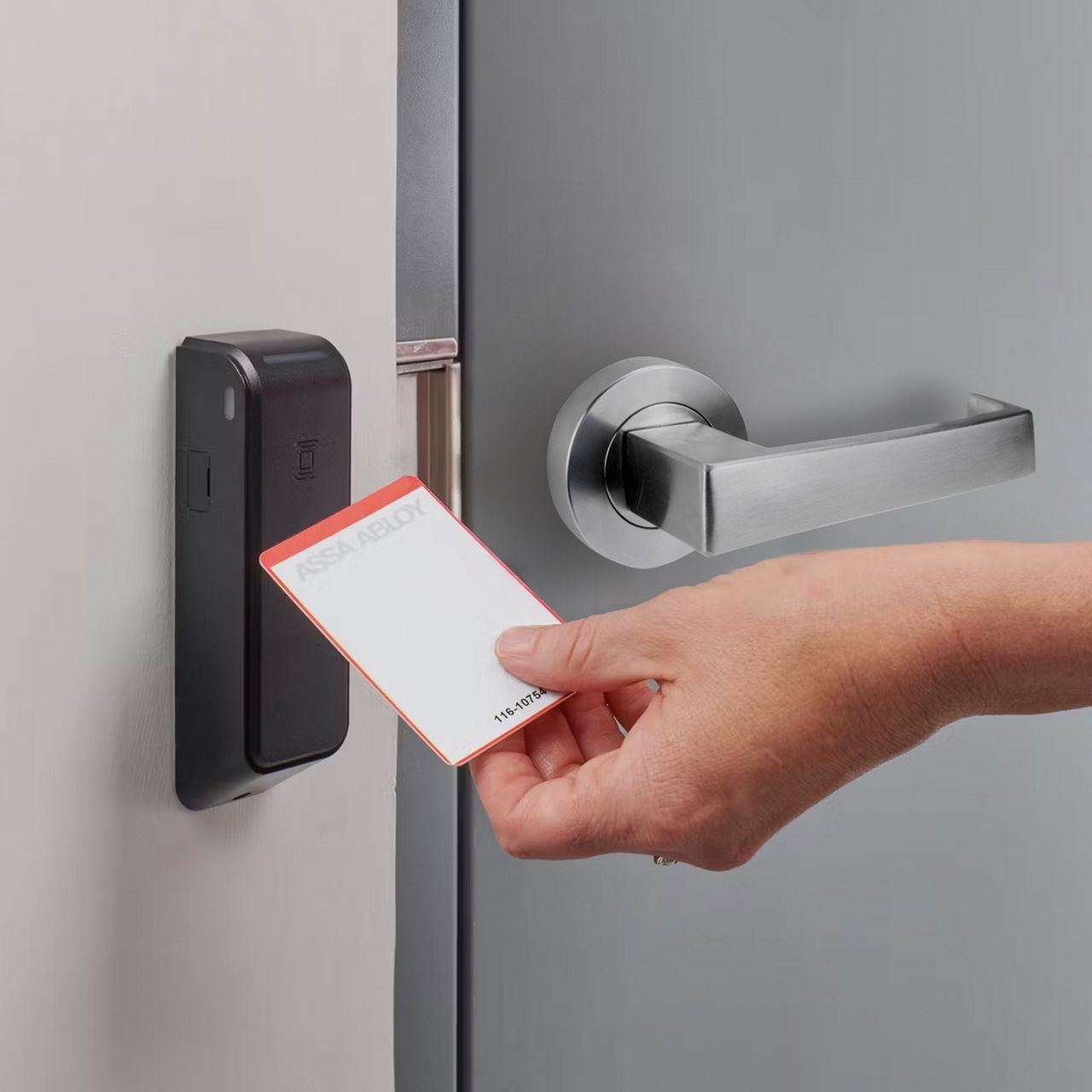

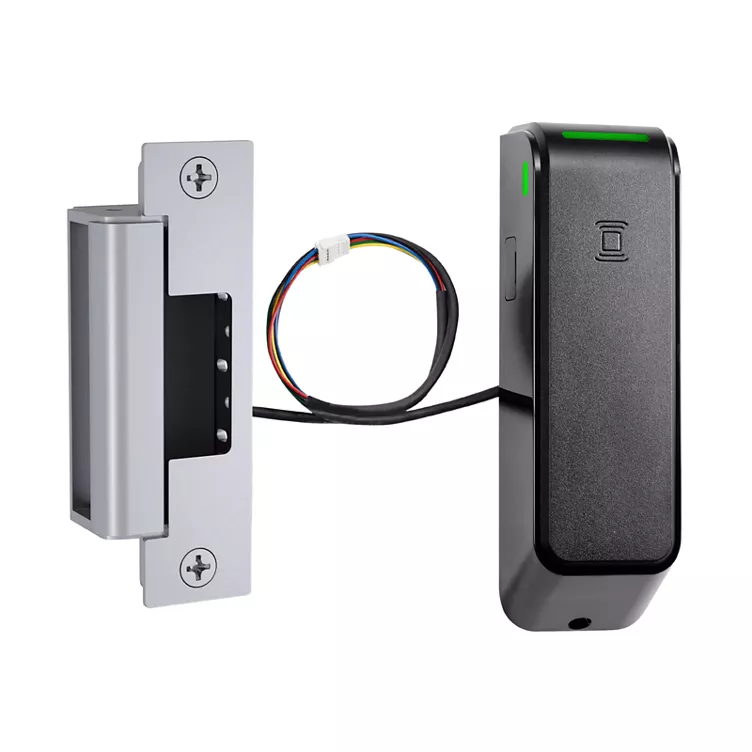

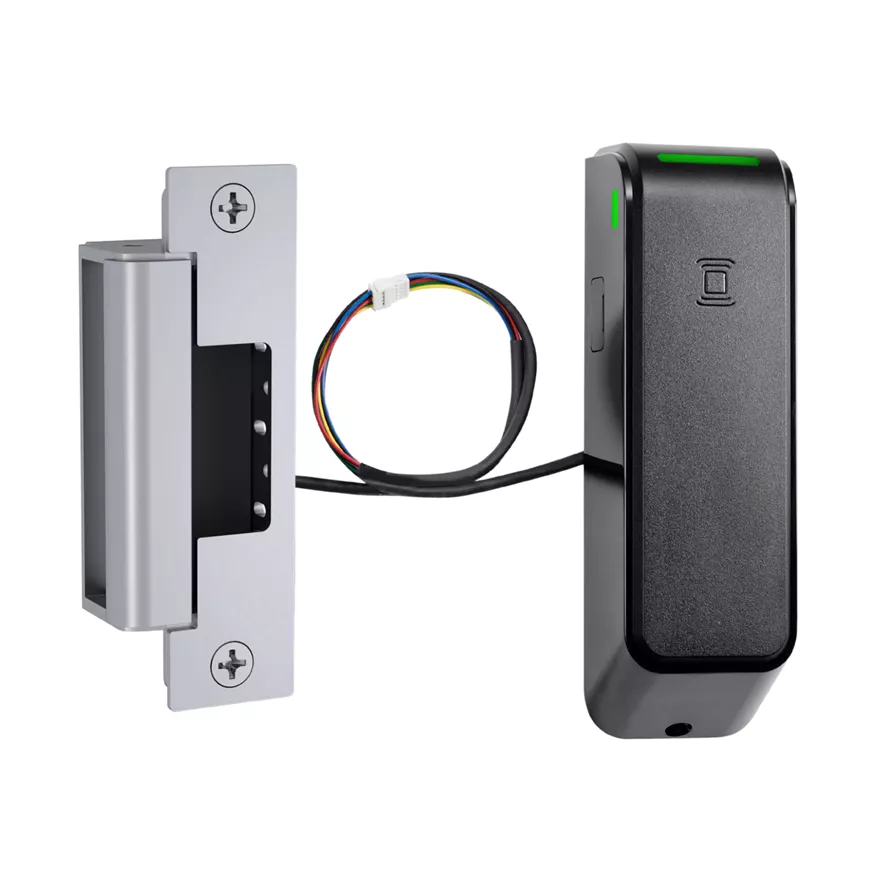

Aperio® ES100 Series Wireless Integrated Electric Strike
The The ES100 Series Wireless Electric Strikes make online access control simple and affordable.
For the first time, an electric strike has been paired with Aperio® wireless technology to provide even more affordable access control retrofit option for remote control and monitoring. Available in both Convenient (non-monitored) and Secure (monitored) model options, the ES100 is compatible with most models of cylindrical and mortise latch bolt locksets.
Key Features
Standard Features (All Models)
- 2.4 GHz Aperio wireless technology
- Integrates with existing access control systems and credentials
- Audit trail limited by access control system
- Battery operated for stand-alone operation
- SecuriCare three-year, no-fault, no questions asked warranty
Electric Strike Features
- Non-handed
- Fail secure operation (standard)
- Static strength 680 (KG)
- Dynamic strength 1 (KG)
- Interchangeable faceplates and accessories
- Factory configured monitored (M) and non-monitored options
» M Security – Monitored (Latch and Door Position Monitor)
» MH Security – Monitored Kit with AH20 1:1 Wiegand Hub
- Field adjustable integrated shim for changing door conditions
- Fully finished faceplate, keeper, case, trim, and strike body
- Stainless steel construction
- Tamper resistant
- Strike body depths
1500: 1-3/8” [35mm]
1600: 1-5/8” [41mm]
Card Reader Features
- Supports HID multiCLASS SE® card technologies
- Supports NFC & BLE mobile access credentials
- BiColor LED visual status indicators; Red/Amber or Green/Amberasked warranty
ES100-15 Dimensions

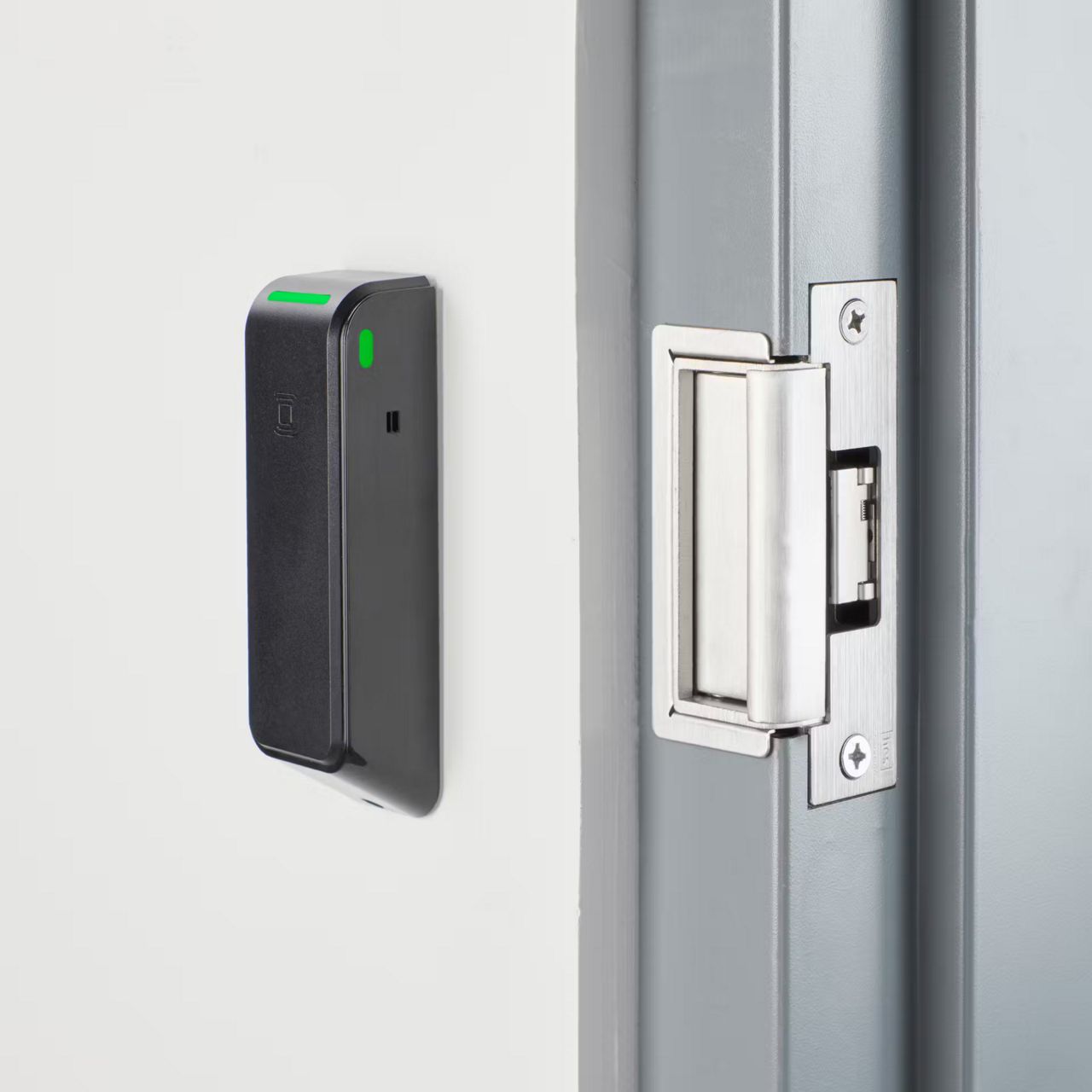

ES100 Reader Dimensions
- Reader Harness Length 228.6 mm
- Strike Harness Length 177.8 mm
- Strike DPS/Latch Monitor Harness Length 254mm
Certifications
- UL 294 listed
- FCC Part 15 & Industry Canada Compliant
- CE Red – Radio Equipment Directive – 2014/53/EU
- UL 1034 burglary-resistant
- UL 10C fire rated, 3-hour single door (fail secure only)
- UL 10C fire rated, 1-1/2 hour double door (fail secure only)
- CAN/ULC-S2014 fire door conformant
- NFPA-252 fire door conformant
- ASTM-E152 fire door compliant
- California Fire Marshall listed
- ANSI/SDI A250.13 windstorm resistant
- Florida Building Code approved TAS 201, 202, 203
- ANSI-ASTM E330
- RoHS compliant
Frame Application
- Metal
- Wood
Electrical
- Estimated Battery Life: 45,000 Cycles
- (2) “AA” lithium batteries (included)
» AA LR6 (1.5 V) Lithium Ion Batteries required. Use of other types of batteries, such as alkaline, will significantly decrease battery life. - microUSB port for emergency power
Environmental
Electric Strike
- Operating Temperature
-25° to 60° C - Operating Humidity 0 to 90% relative humidity non-condensing
Card Reader
- Operating Temperature -10° to 60° COperating Humidity 0 to 90% relative humidity non-condensing
- Tested to IP65
Card Technology HID® multiCLASS SE®
Electric Strike
- Operating Temperature -25° to 60° C
- Operating Humidity 0 to 90% relative humidity non-condensing
Card Reader
- Operating Temperature -10° to 60° C
- Operating Humidity 0 to 90% relative humidity non-condensing
- Tested to IP65
Card Technology HID® multiCLASS SE®
- High Frequency (13.56 MHz)
» HID iCLASS®
» HID iCLASS SE® (SIO®-enabled)
» HID iCLASS® Seos®
» HID MIFARE® SE
» HID DESFire® EV1 SE
» MIFARE CLASSIC
» DESFire® EV1
» DESFire® EV2 (legacy mode) - Low Frequency (125 kHz)
» HID Prox®
» AWID
» EM4102
» IOProx - Mobile Access Credentials
» NFC
» HID BLE Mobile Access
» SEOS iOS Apple Wallet
Description Part number Bar code Aperio Wireless Electric Strike & Reader, Suits Latch Bolts, Monitoring, BLE, SS ES100-15LM-BIPS-630 7400900300508
