Aperio® AU100 V3 Australian Escutcheon
Fully commercial grade digital lockset that offers the durability and quality.

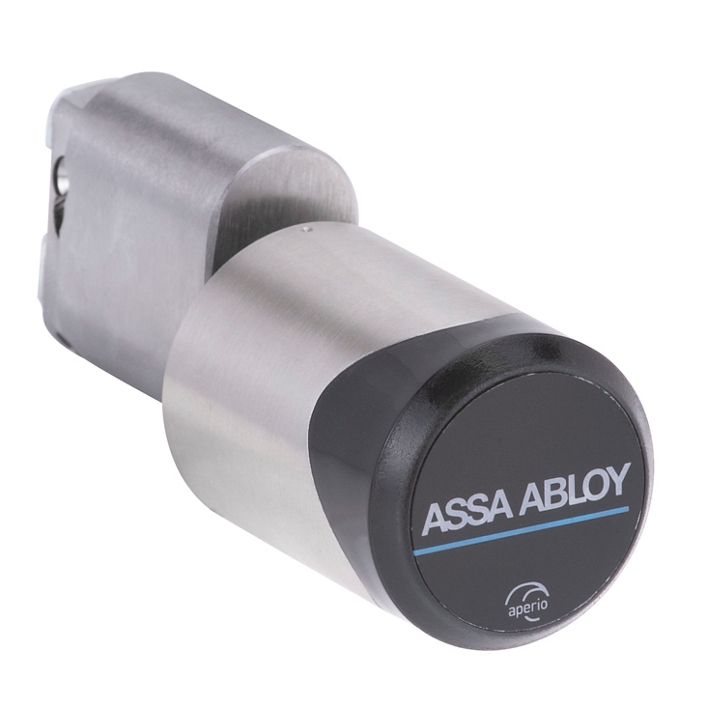

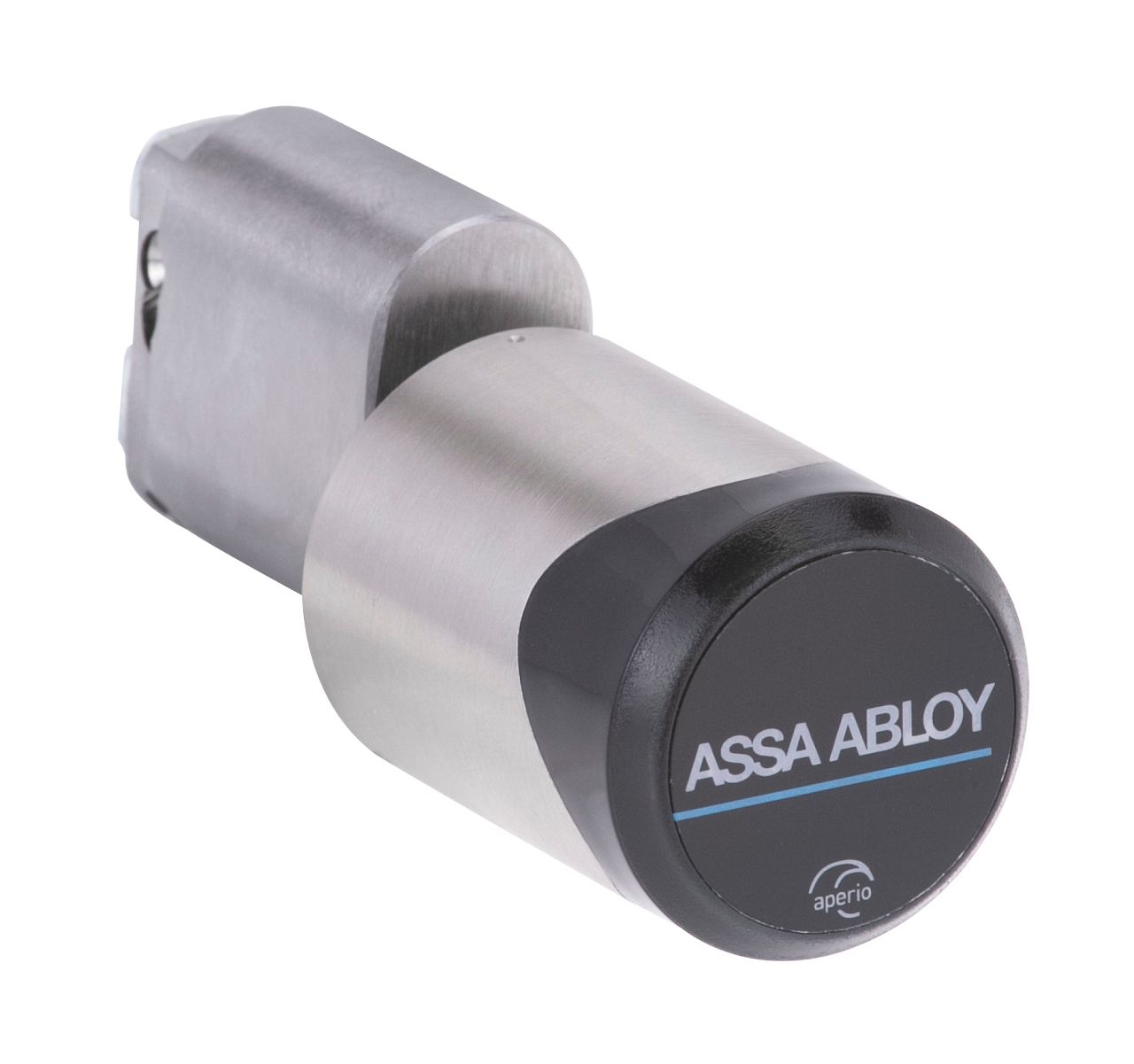

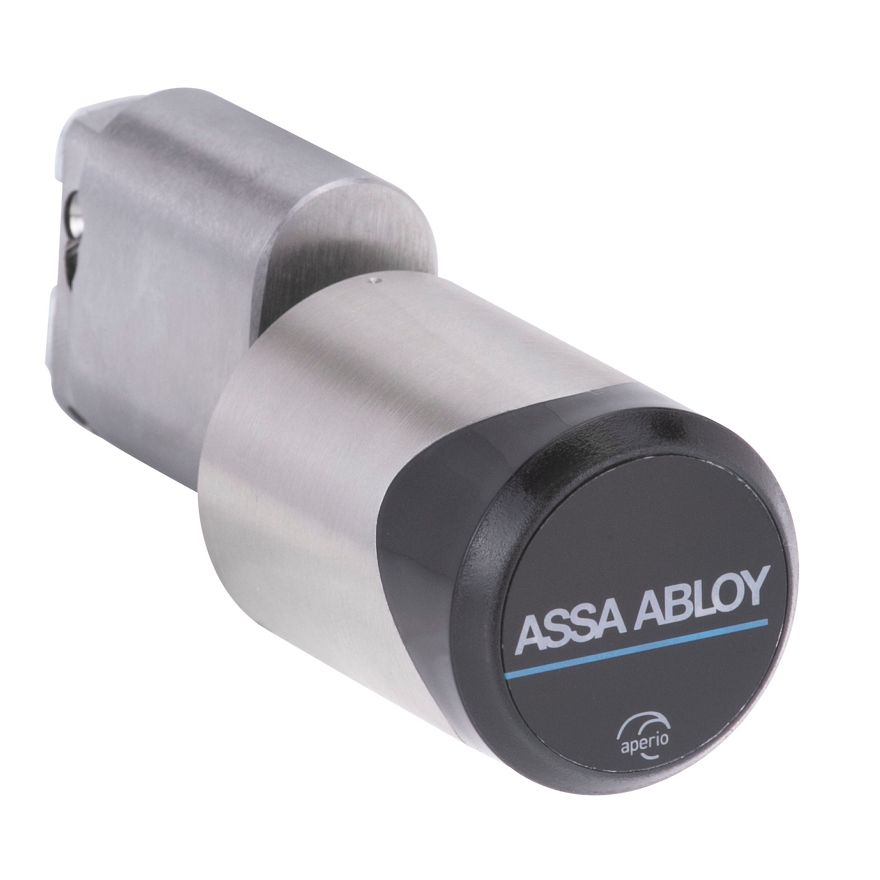

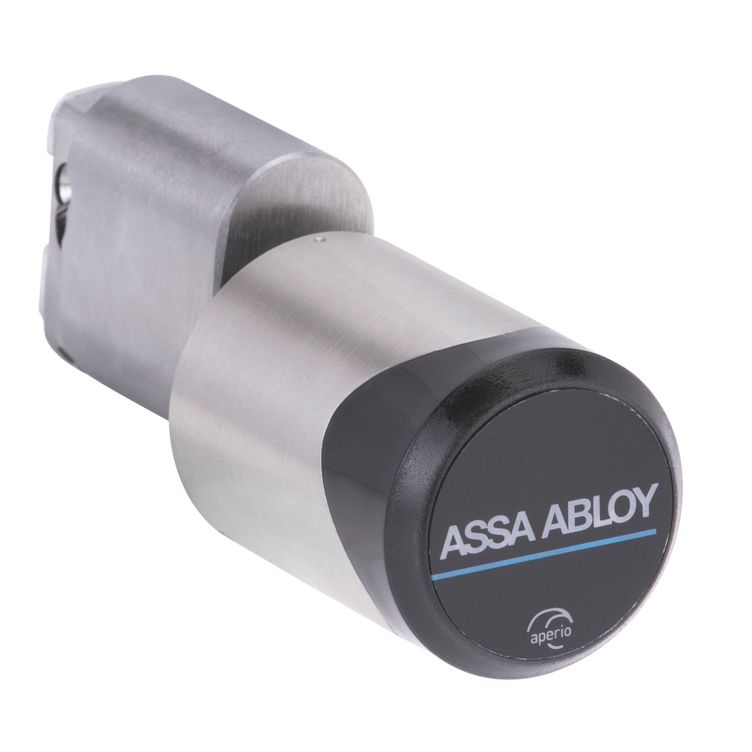

Aperio® C100 Knob Cylinder
Aperio® C100 Knob Cylinder

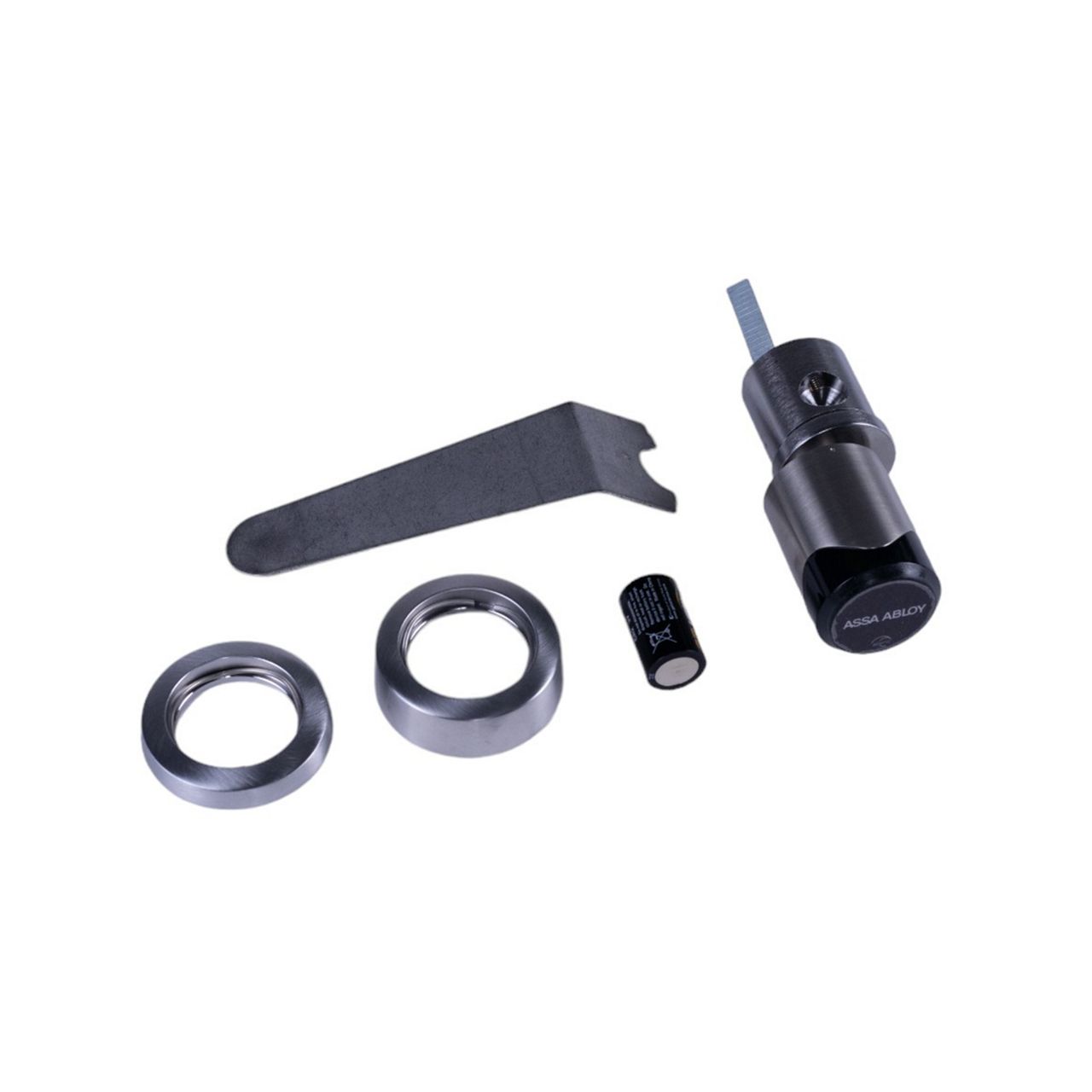

C103HF201SS

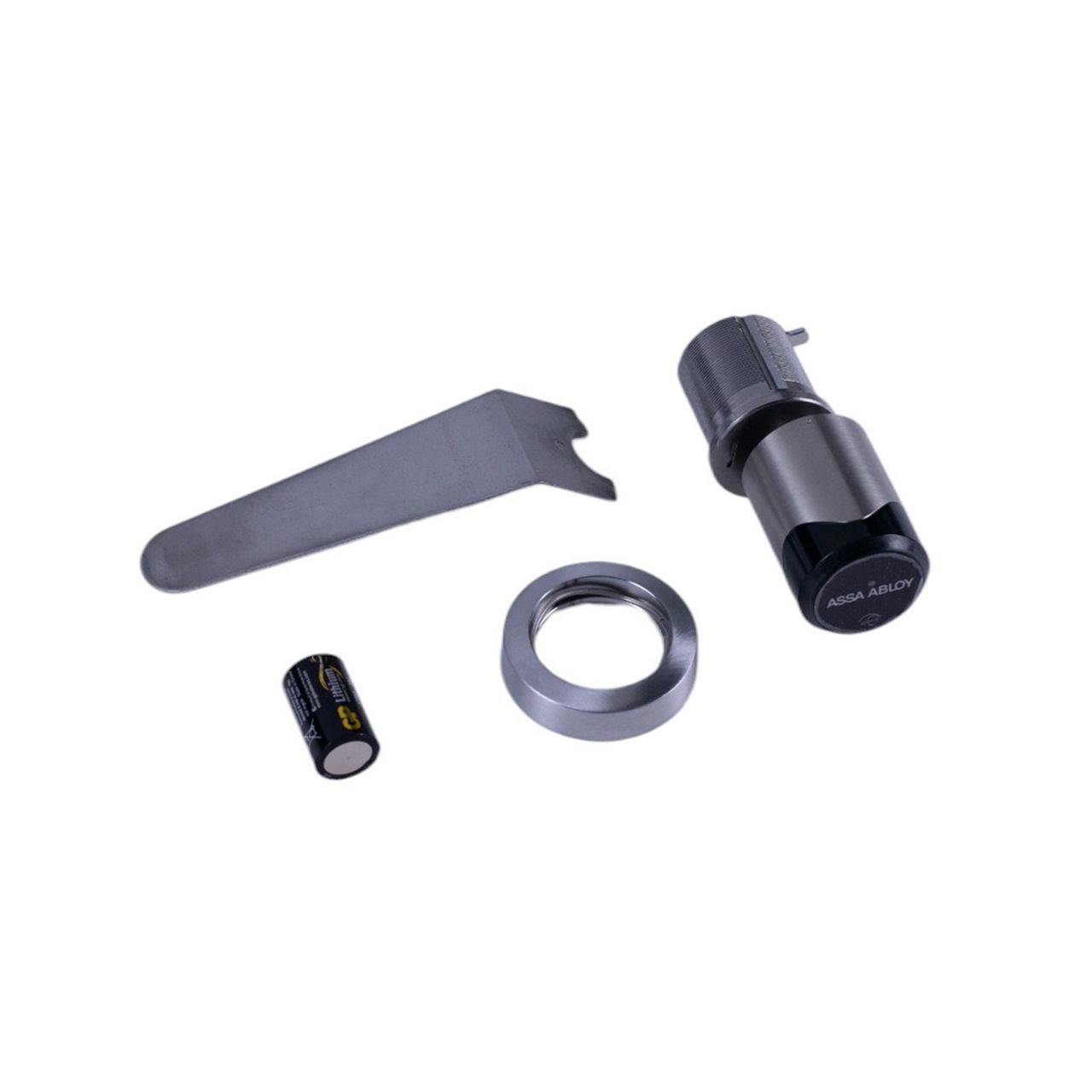

C103HFKAWSS
Item | Part number |
---|---|
Aperio C100 Cylinder to suit the Lockwood 570 series oval cylinder | C103HFASS |
Aperio C100 Cylinder to suit the Lockwood 201 series Cylinders | C103HF201SS |
Aperio C100 Cylinder to suit the Lockwood 8466 Kawneer Cylinders | C103HFKAWSS |
Aperio Gen 5 Wireless Communications Hub, 1:16, RS485 | AH30-3-0 |
Aperio Gen 5 Wireless Communications Hub, 1:64, TCP/IP | AH40-4-0 |
Battery type | 1 x Lithium CR2 |
Battery lifetime | <30,000 cycles (max 2 years) |
Radio standard | IEEE 802.15.4 (2.4GHz) |
Encryption | AES 128 Bit |
Wireless range: Cylinder to Hub | 5-25 m depending on location of Hub & environment |
RFID technology** | MIFARE Classic®, MIFARE Ultralight®,MIFARE® DESFire®, MIFARE Plus®, MIFARE® SE, MIFARE® DESFire® SE;iCLASS SE; iCLASS Seos®, iCLASS Seos Elite |
RFID reading | UID / Sektor / Block / Application / File |
Card reading range | < 4cm |
Operating temperature | -20° to +55°C |
Knob colour | Black / Satin Chrome |
Cylinder Colour | Satin Chrome |
Cylinder format | Lockwood Australian Oval 570, 201 Rim and 8466 Kawneer series Cylinders |
Door thickness | Suits standard doors up to 50mm |
Approvals | CE and RCM |
Status | LED (red/green/orange) |
