Ordering Procedures

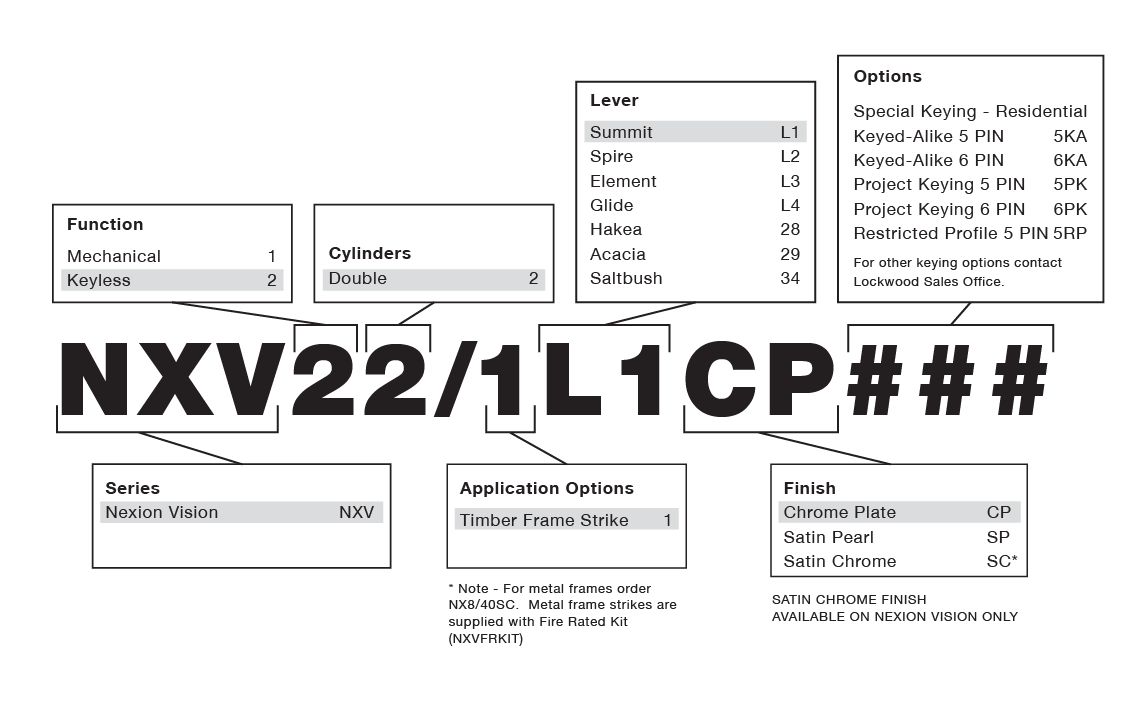

Example part number: NXV22/1L1SC###

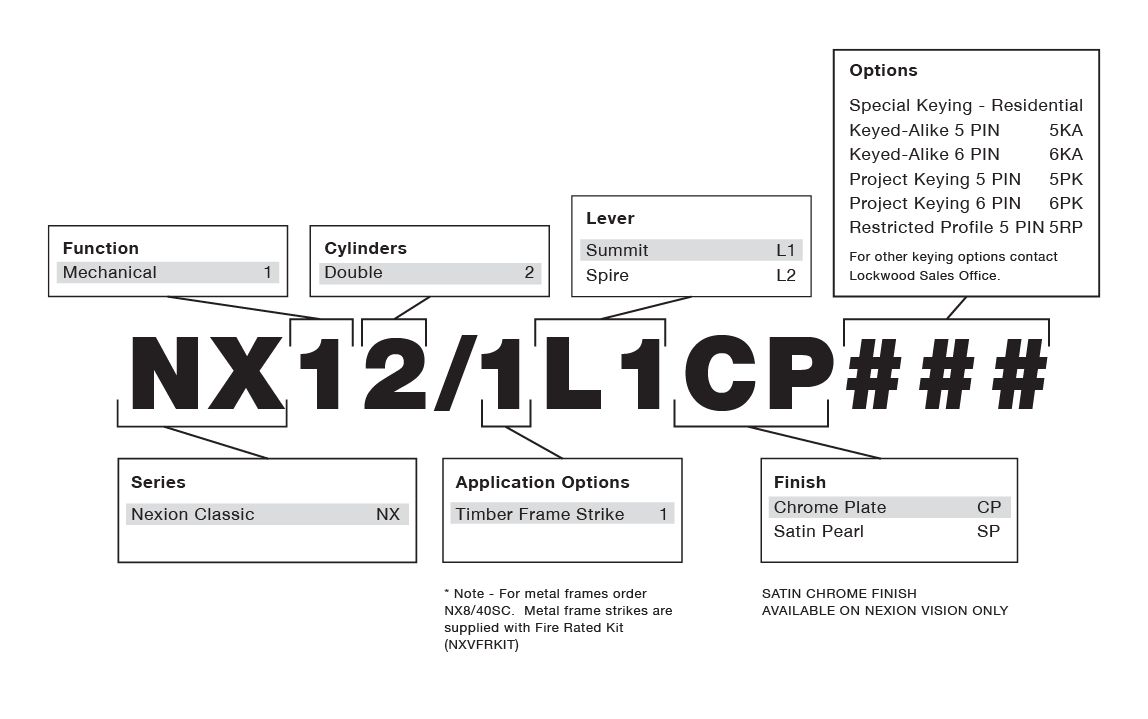

Example part number: NX12/1L1CP###

Lockwood has developed a service called Home Locking Solutions that enables locks for all door types to be keyed alike or construction keyed, packed, labelled and delivered by house lot.

Locks can be keyed alike or construction keyed using Lockwood’s industry standard C4 profile pin cylinders, which means every external door on the home can be key locked, giving better security than latches or locks using disc cylinders.

Furthermore, because one key operates all the locks on the same house, there are less keys to manage, reducing the chance of lost keys. Lockwood products, such as the Nexion Lockset and Onyx can also be deadlocked. Deadlocking enables the door to be secured from the inside as well as outside.

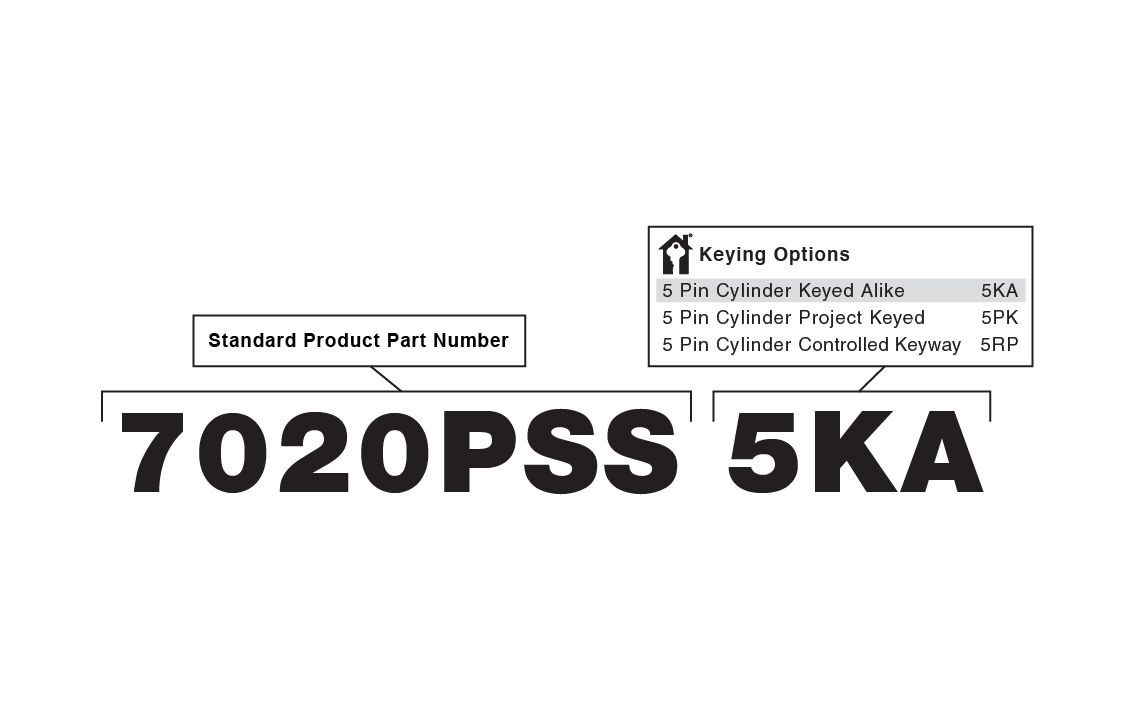

How to order:

Simply order the standard product and add keying options to the end of the part number.

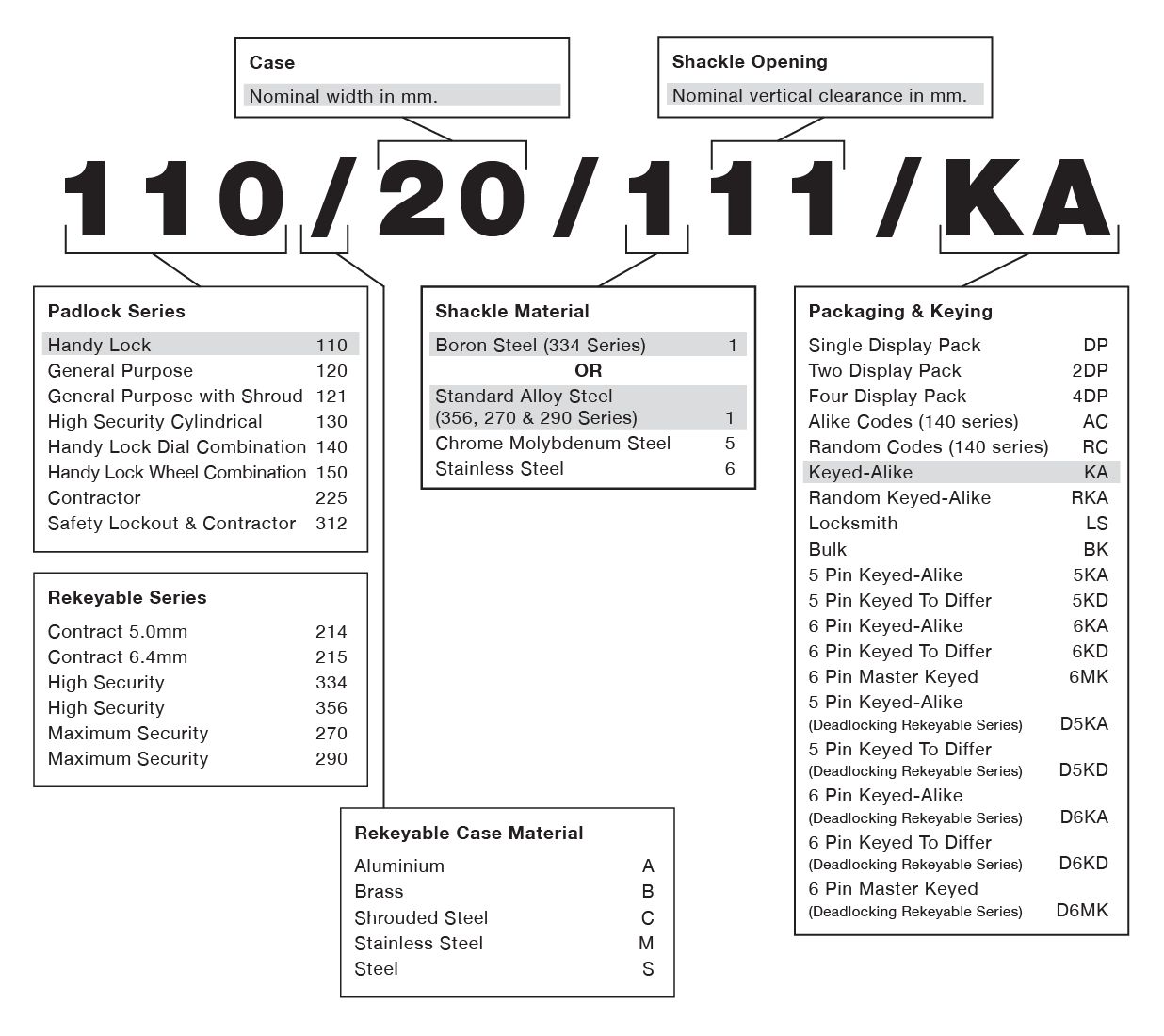

Example part number: 110/20/111/KA

Note: Not all padlock series numbers are available in every packaging and keying combination.

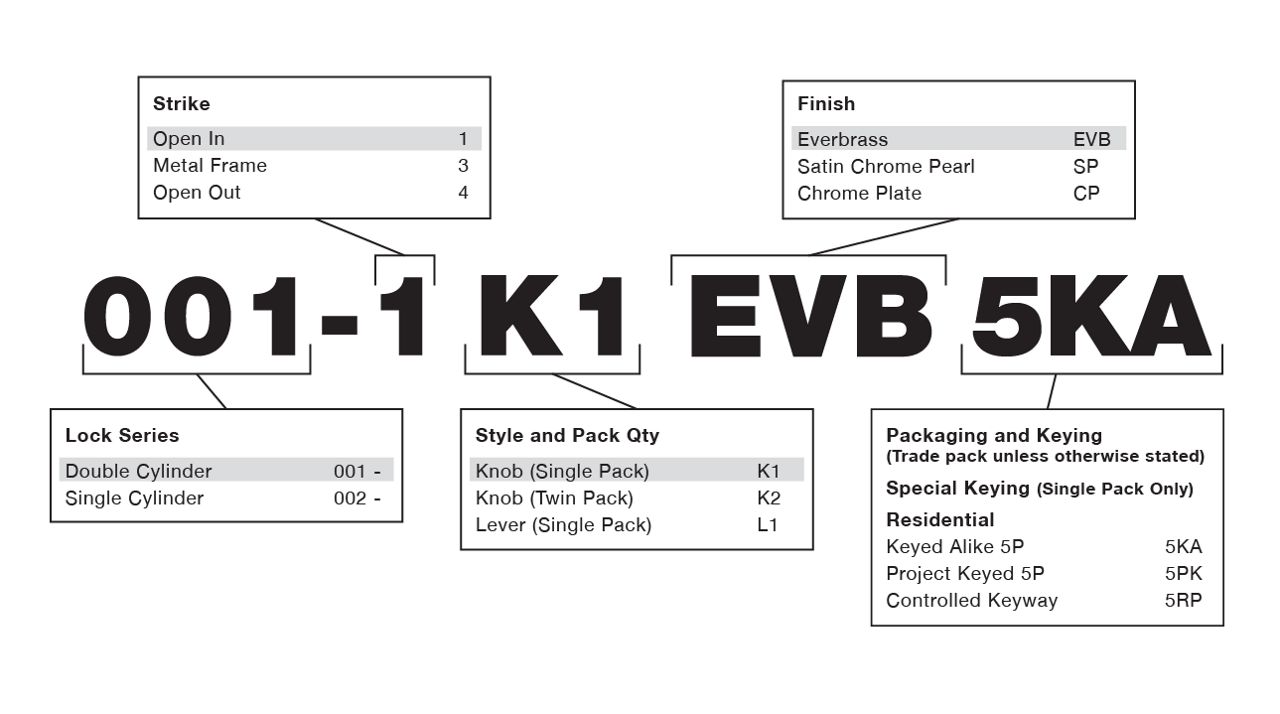

Example part number: 001 – 1K1GLD##

Note: Not all part number combinations are available for ordering, and require standard product and additional spare parts available separately.

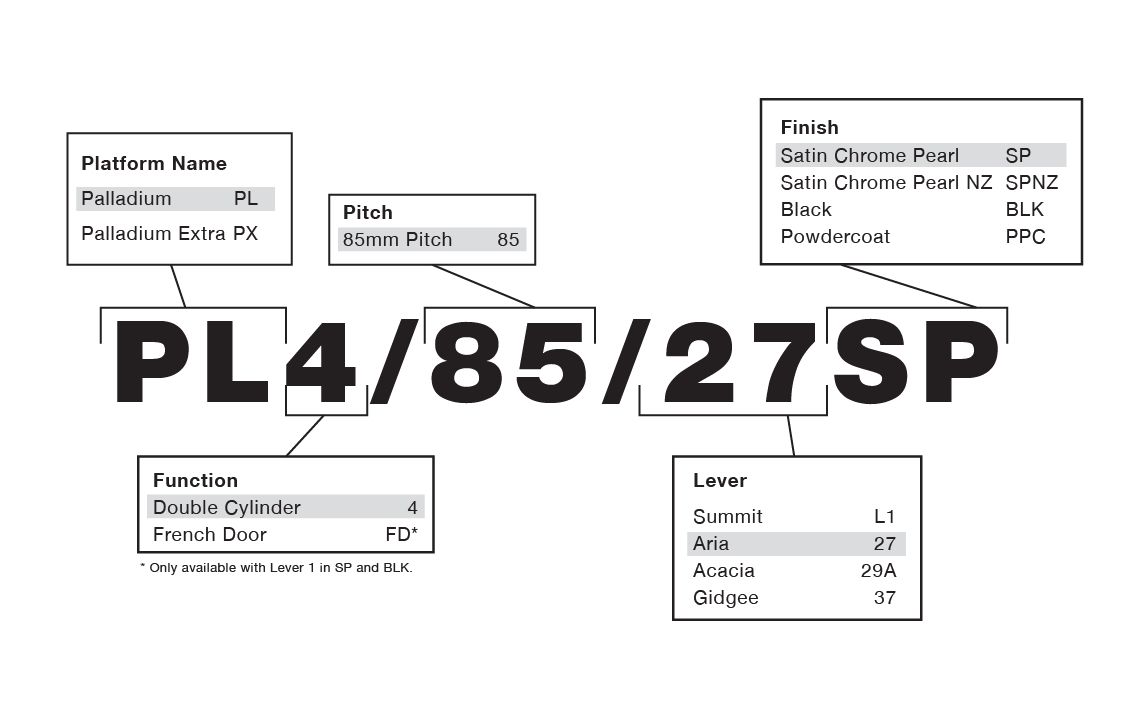

Example part number: PL4/85/27SP

85 MM PITCH MORTICE LOCKSDESIGNED TO SUIT LOCKWOOD OPTIMUMMORTICE LOCKS

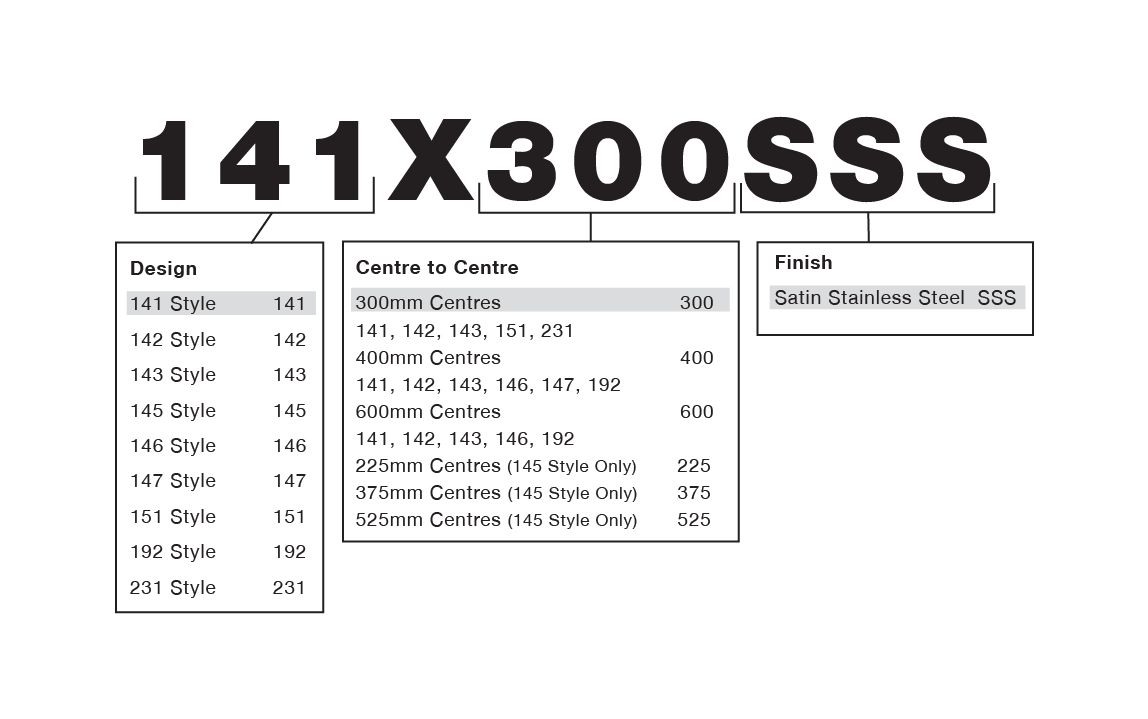

Example part number: 141X300SSS

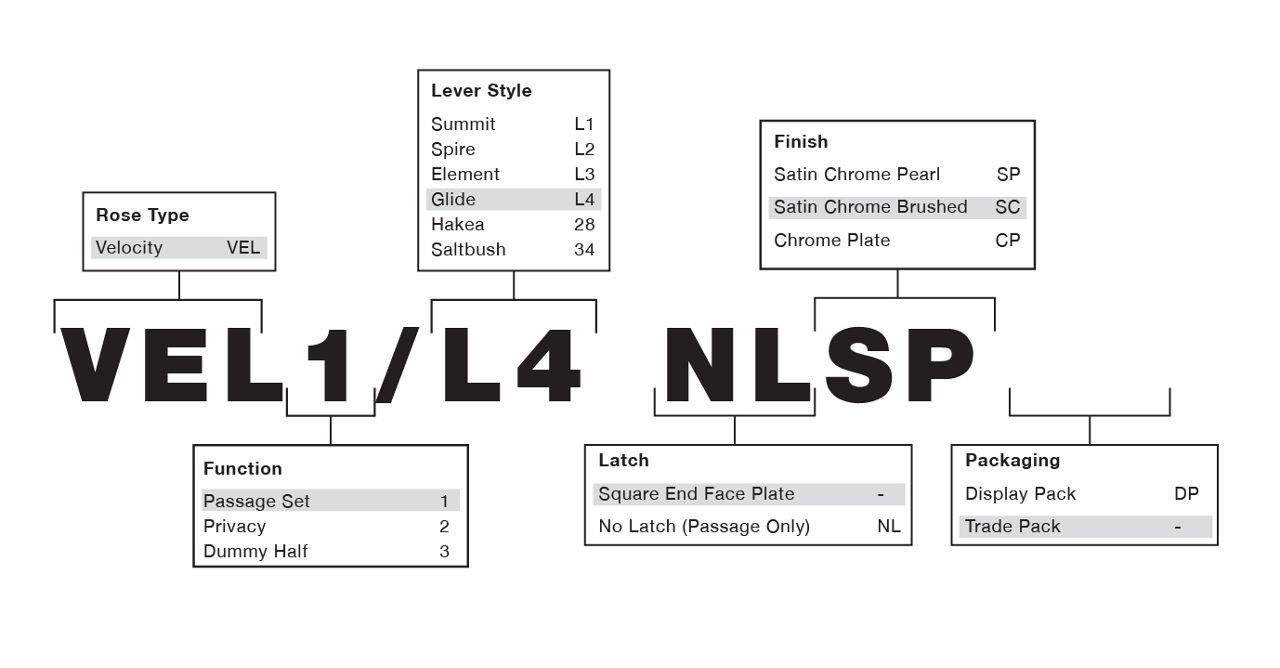

Example part number: VEL1/L4NLSP

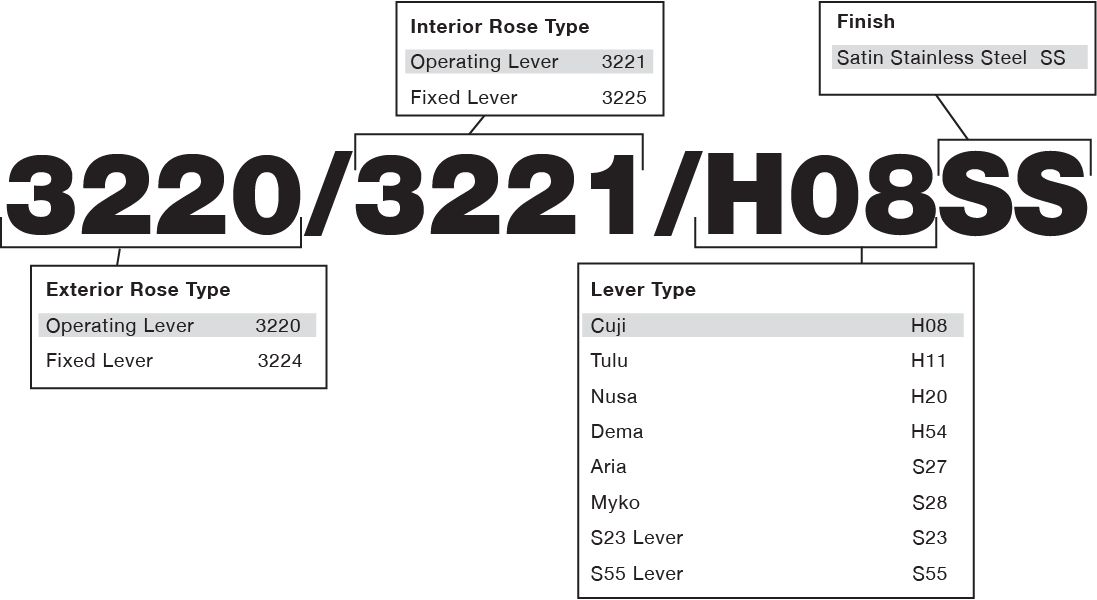

Example part number: 3220/3221/H08S

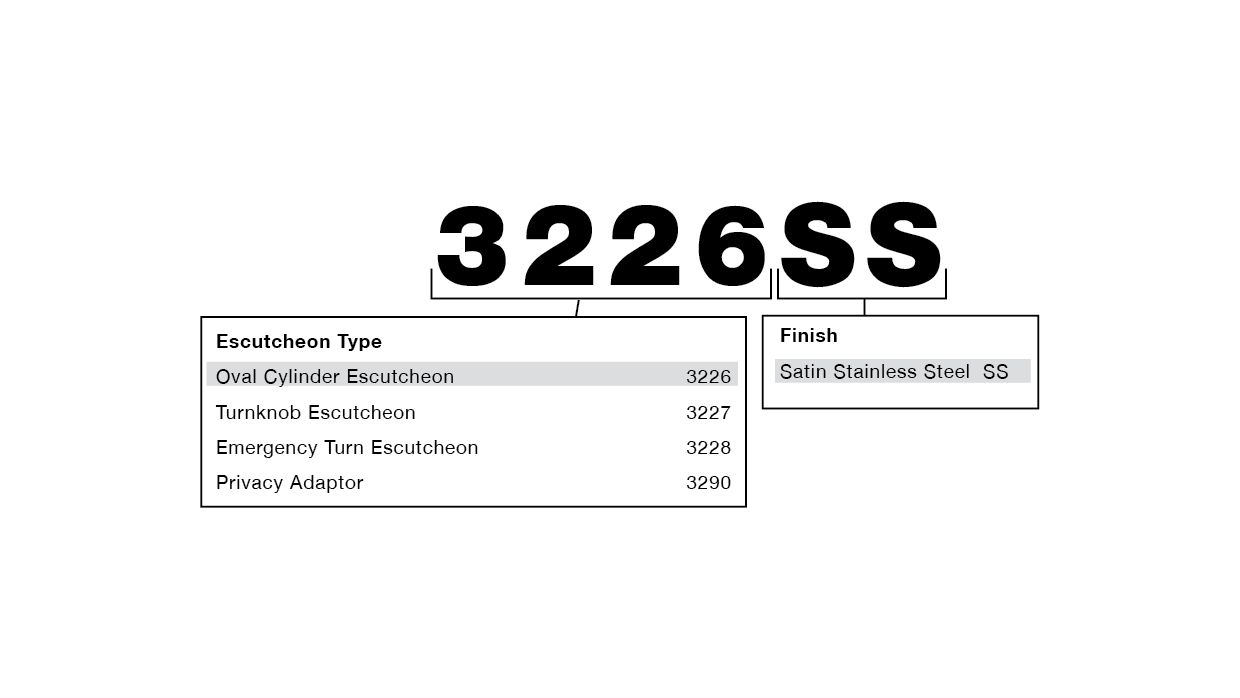

Example part number: 3226SS

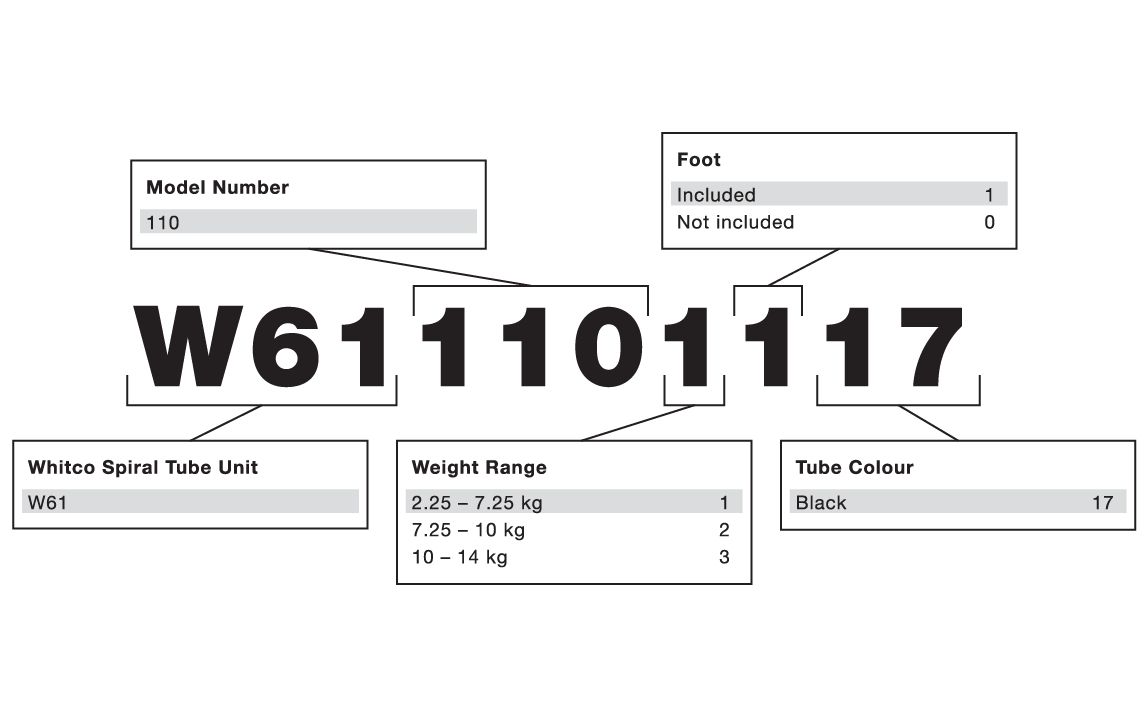

Example part number: W611101117

Note: the Sash model number is not the length of the balance, if you need help contact Customer Service on 1300 Lockup.

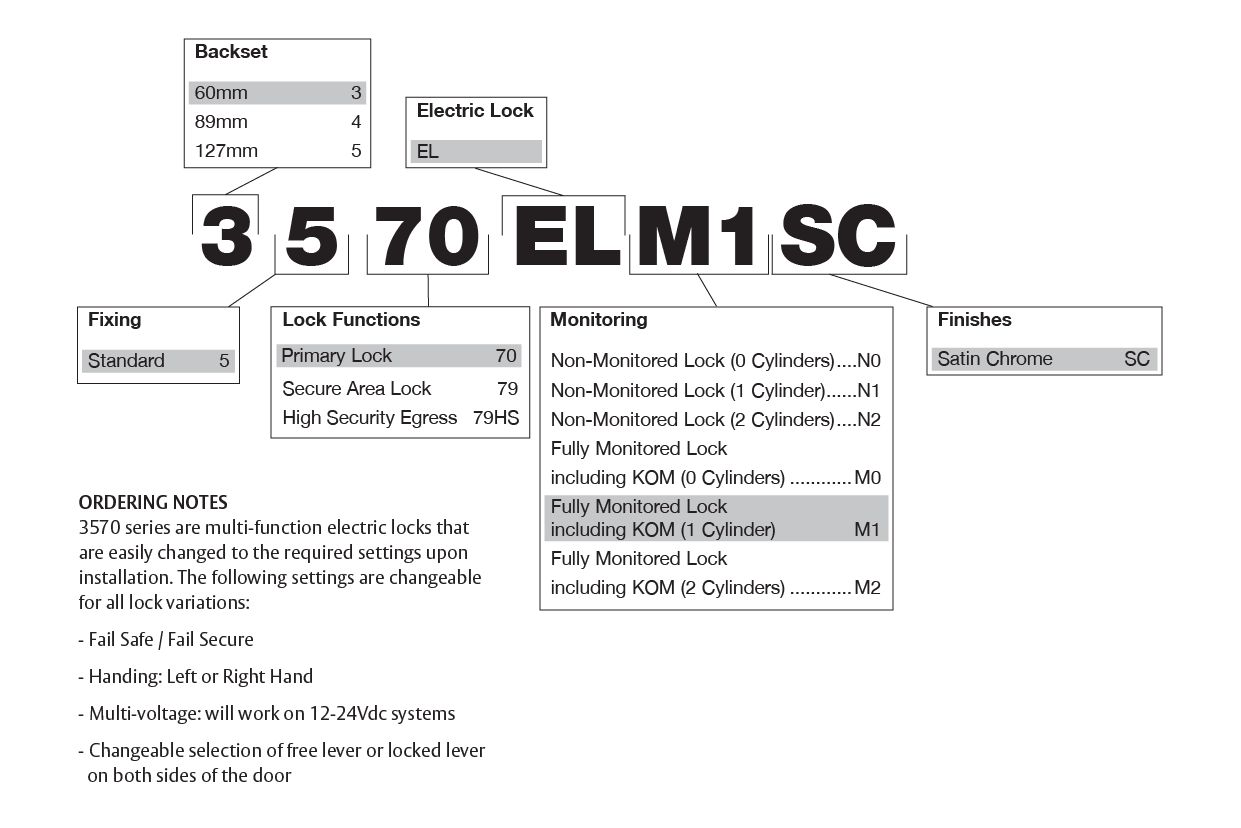

1. BACKSET

Nominate backset as required, e.g. 60= 3

2. FIXING

Select the desired fixing method, e.g. Standard Fixing = 35

3. LOCK FUNCTION

Select whether lock is delivered as a Primary Lock or Secure Area Primary Lock = 3570

4. ELECTRICAL VARIANT

Indicate that this is an Electric Lock = .3570EL

5. MONITORING

Select monitoring and cylinders to be supplied, e.g. Monitored with 1 Cylinder = 3570ELAM1

6. FINISH

Select appropriate finish, e.g. Satin Chrome =.3570ELAM1RSC

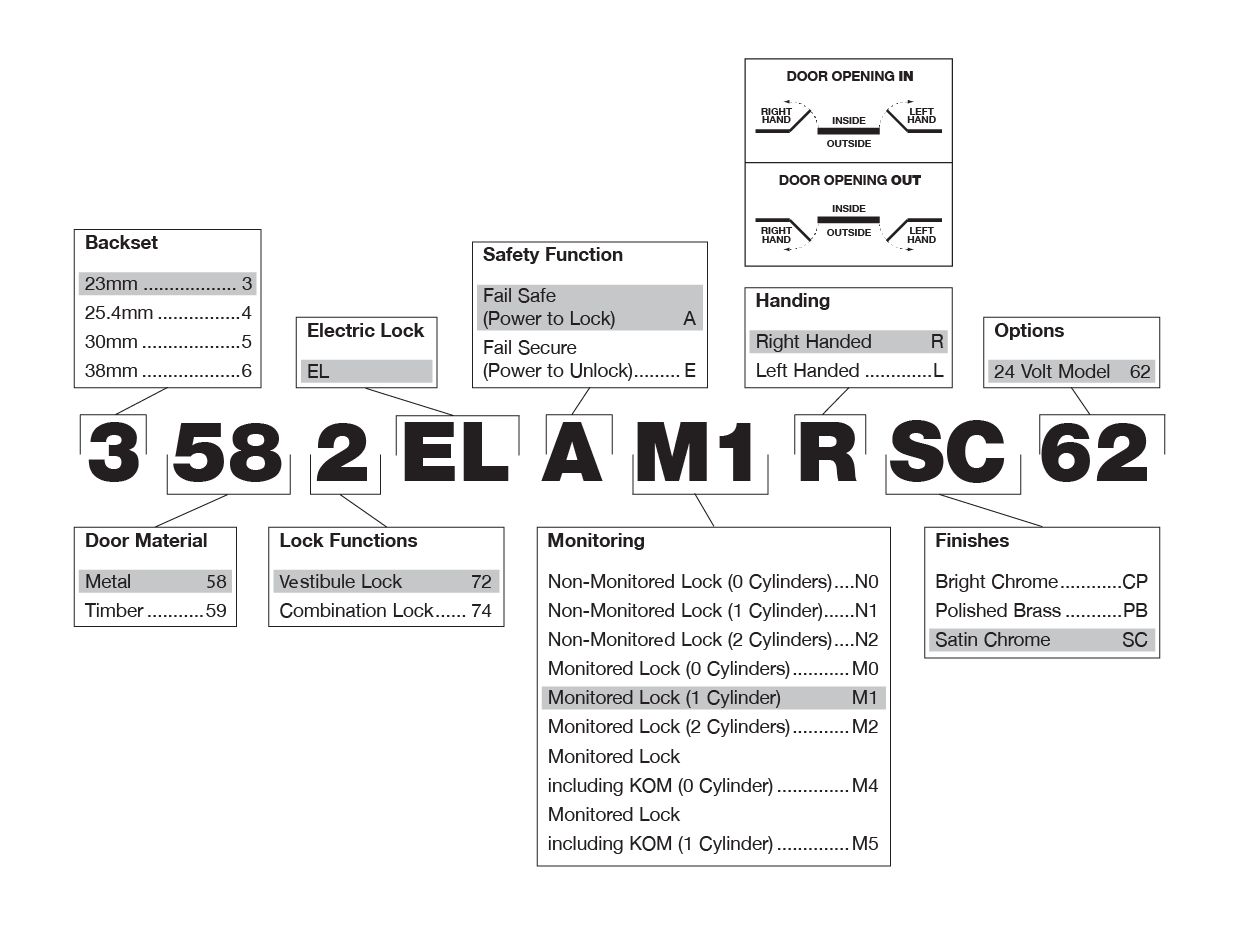

1. BACKSET

Nominate backset as required, e.g. 23mm = .3

2. DOOR MATERIAL

Select the desired fixing method, e.g. Standard Fixing = 358

3. LOCK FUNCTION

Select function, e.g. Vestibule Lock = 3582

4. ELECTRICAL VARIANT

Indicate that this is an Electric Lock - New Model = 3582EL

5. SAFETY FUNCTION

Select whether lock should Fail Secure or Fail Safe, e.g. Fail Safe = 3582ELA

6. MONITORING

Select monitoring and cylinders to be supplied, e.g. Monitored with 1 Cylinder = .3582ELAM1

7. HANDING

Determine left or right handing, e.g. Right Handed = 3582ELAM1R

8. FINISH

Select appropriate finish, e.g. Satin Chrome = 3582ELAM1RSC

9. OPTIONS

Specify 24VDC option when required = 3582ELAM1RSC62
