Functions
Functionality of key in knob and key in lever locksets are the same. Images below are provided as a reference only.

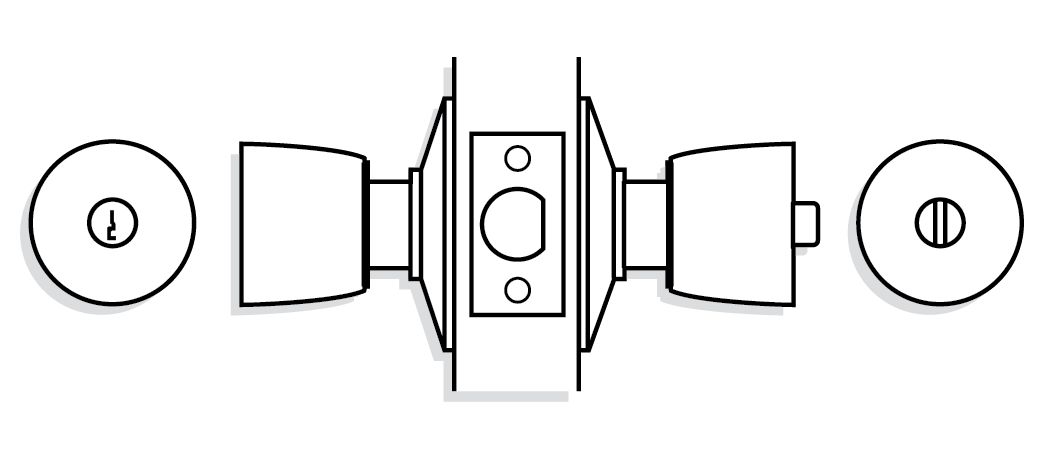

Entrance / Exterior Lockset Outside
Entrance / Exterior Lockset Outside
Outside: Opened by knob when free. Key locks or unlocks both knobs but does not retract bolt.
Inside: Opened by knob when free. Turnbutton locks or unlocks both knobs.
Bolt: Plainlatch.

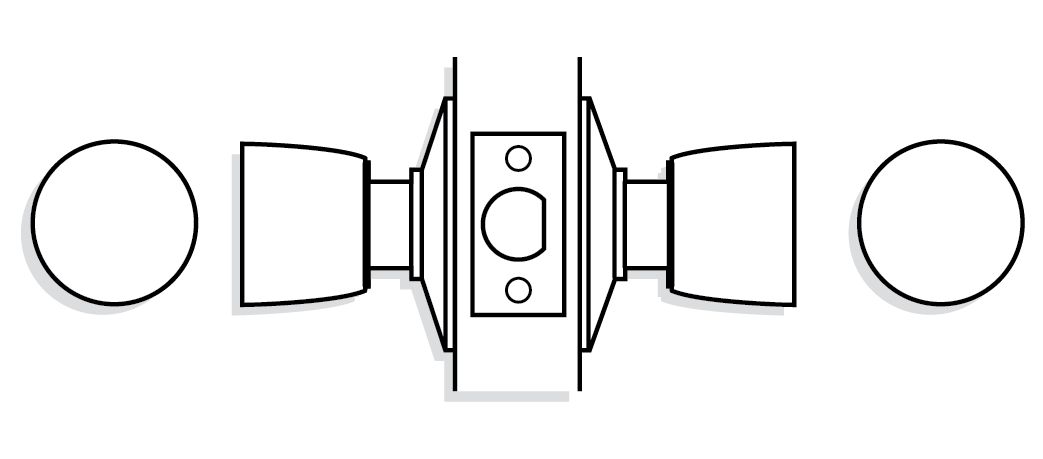

Passage Lockset
Passage Lockset
Outside: Opened by knob at all times.
Inside: Opened by knob at all times.
Bolt: Plainlatch.

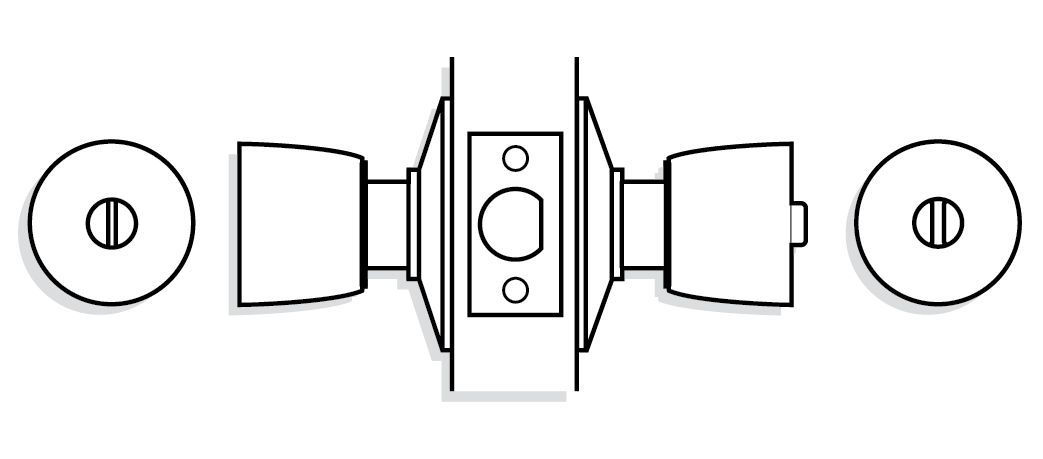

Privacy Lockset
Privacy Lockset
Outside: Opened by knob when free. Key locks or unlocks both knobs but does not retract bolt.
Inside: Opened by knob when free. Key locks or unlocks both knobs but does not retract bolt.
Bolt: Deadlatch.
For additional security against the removal of the interior handle & rose, special one-way mounting screws are supplied in addition to the standard mounting screws.

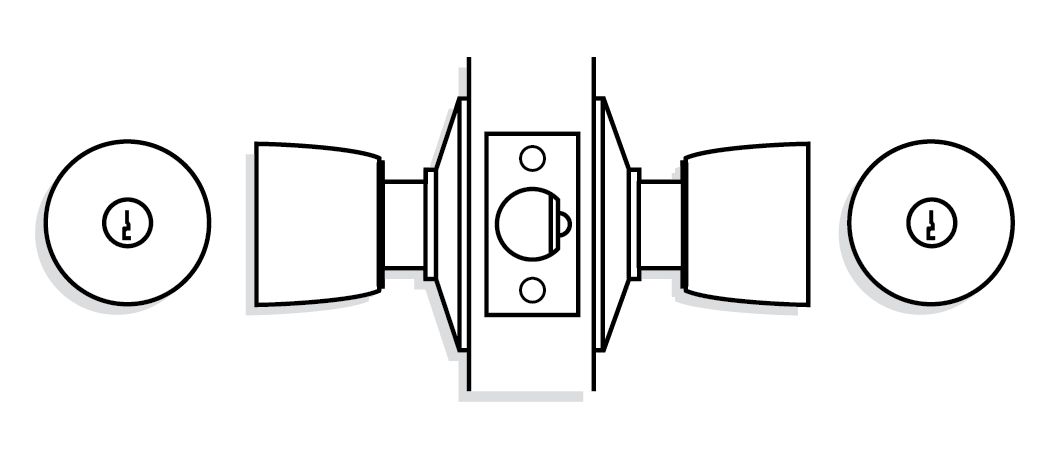

Glass Door Lockset
Glass Door Lockset
Outside: Opened by knob when free. Key locks or unlocks both knobs but does not retract bolt.
Inside: Opened by knob when free. Key locks or unlocks both knobs but does not retract bolt.
Bolt: Deadlatch.
For additional security against the removal of the interior handle & rose, special one-way mounting screws are supplied in addition to the standard mounting screws.

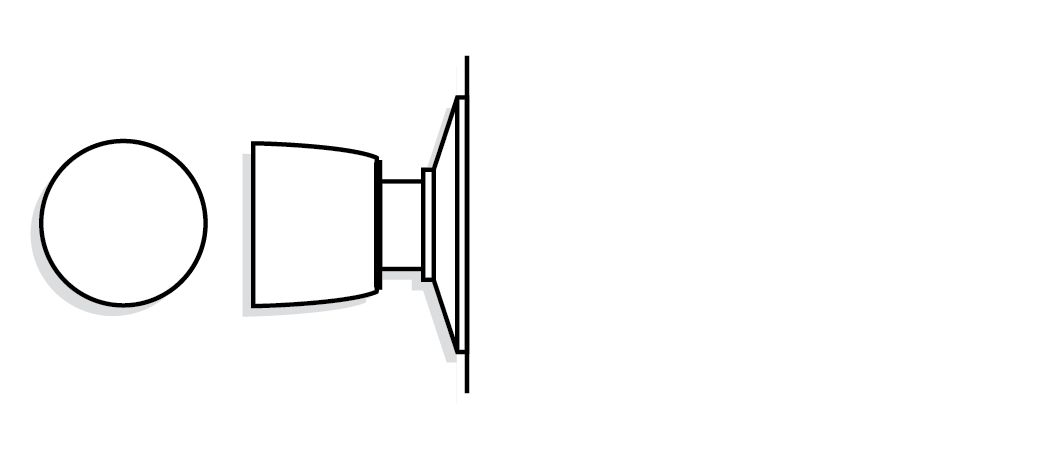

Dummy Trim
Dummy Trim
For use where only a door pull is required. Available with either concealed or wood screw fixing.

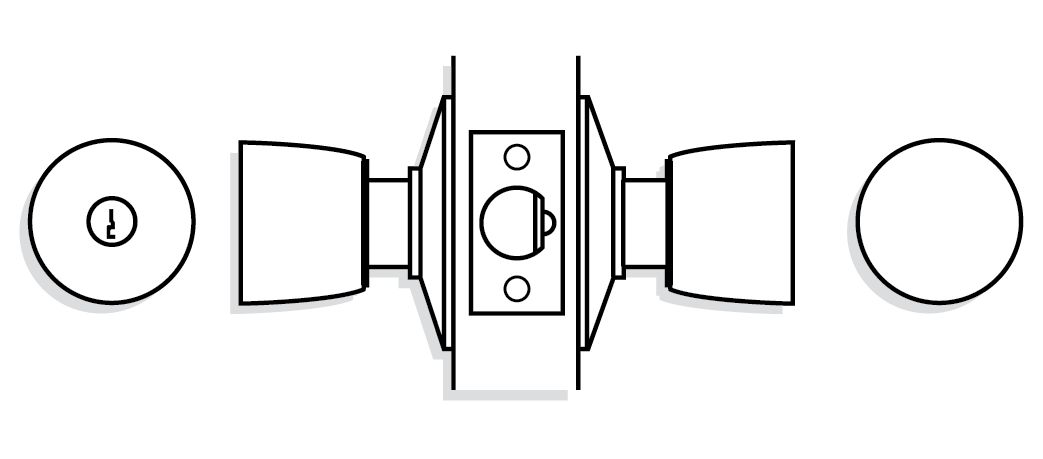

Escape Lockset / Classroom Lockset
Escape Lockset / Classroom Lockset
Outside: Opened by knob when free. Key locks or unlocks exterior knob but does not retract bolt.
Inside: Opened by knob at all times.
Bolt: Deadlatch.

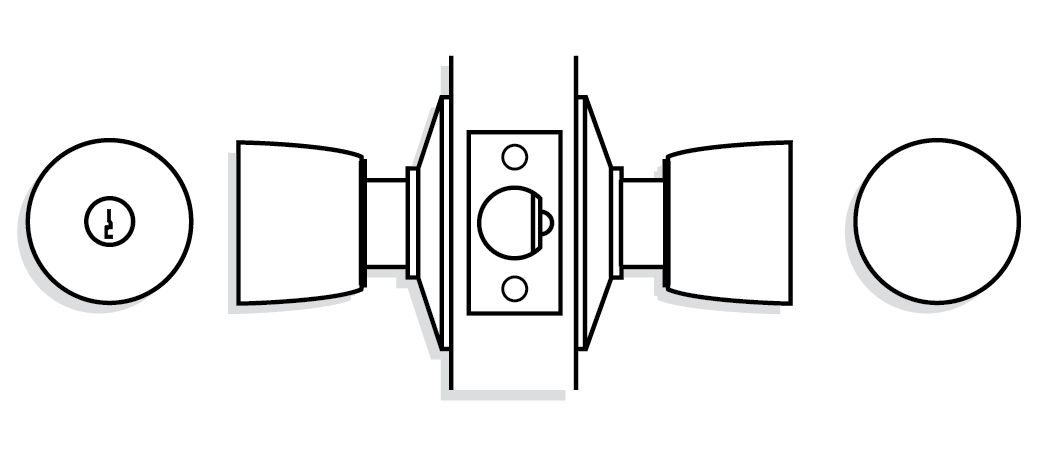

Escape Lockset – Rigid Knob
Escape Lockset – Rigid Knob
Outside: Opened by key only. Knob always rigid.
Inside: Opened by knob at all times.
Bolt: Deadlatch
Note: Functionality of key in knob and key in lever locksets are the same. Images are provided for reference only. Please contact your Sales Representatitve or Customer Service on 1300 LOCKUP for more assistance.
