Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

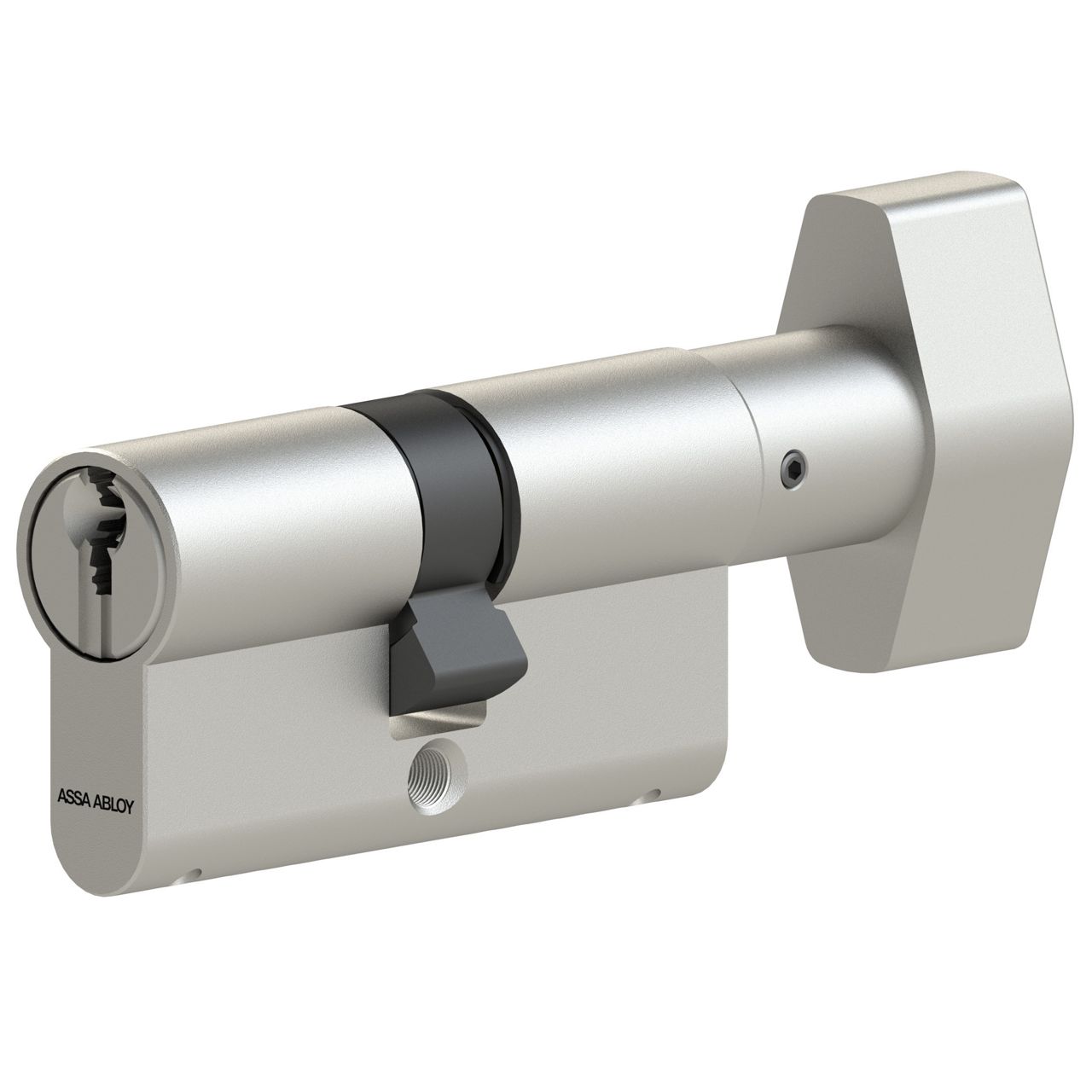

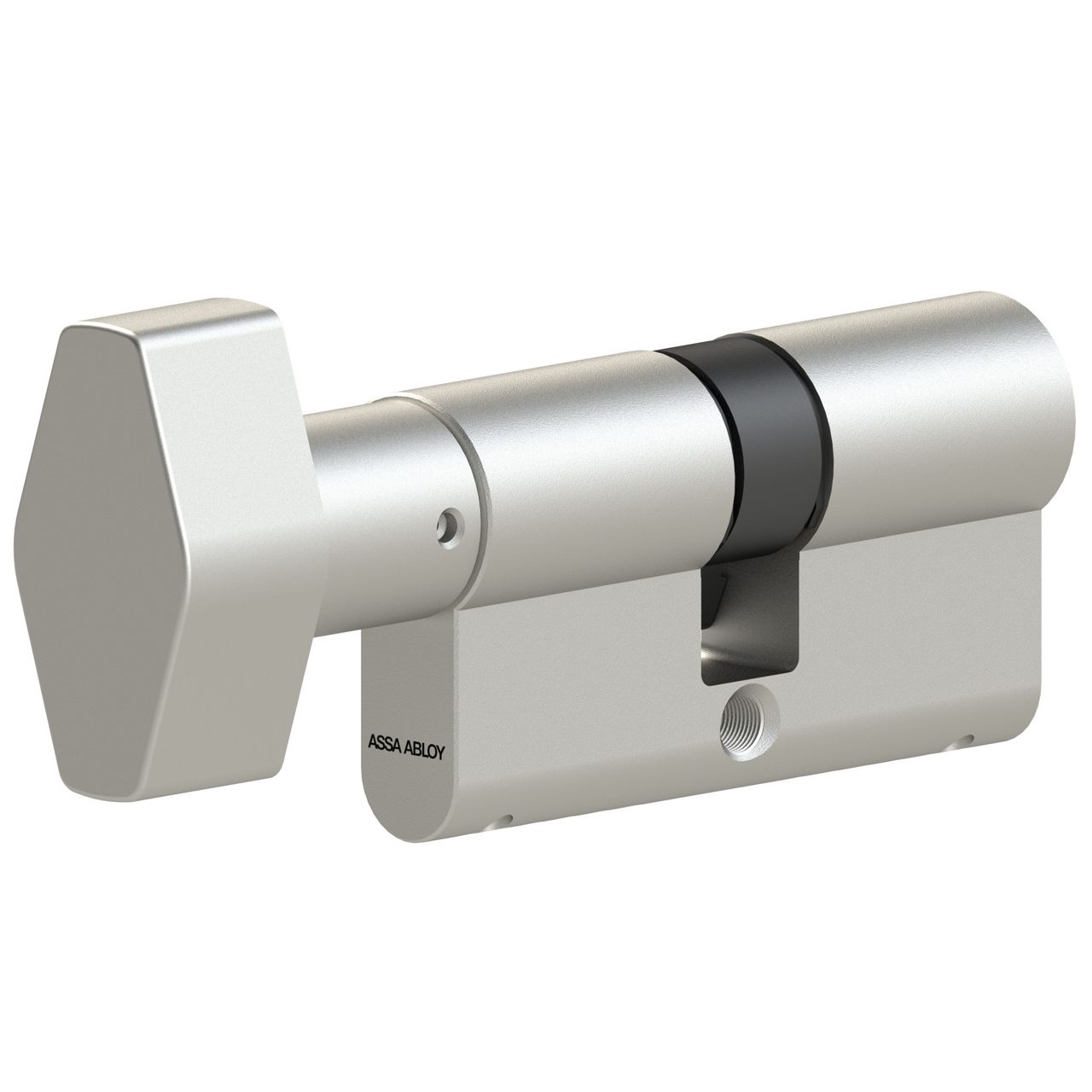

A reliable solution when privacy is required: CYS10 Thumbturn Cylinders securely lock doors and can quickly unlock to provide a faster exit.
Various optional features, such as clutch release and classroom function, make it ideal for a wide range of applications.
Applications:
Optional functionality:
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.
Feature | Detail |
---|---|
Security | SKG*** certified (optional) | EN 1303:2015 tested, 1 6 – B – C 6 0/D (D optional) | Cam DIN 18252 compliant |
Attack resistance | Anti-pick | Anti-bump (for MKS consult your master key specialist) | Anti-drill: 5 minutes’ drilling resistance (optional) | Anti-pull: 15 kN pulling resistance (optional) |
Number of keys | MKS and KA: according to order | KD: 3 |
Max. number of effective key differs | 144,729 |
Max. number of MKS profiles | 63 |
Number of pins | 6 |
Raw material | Brass |
Finish | Satin Nickel |

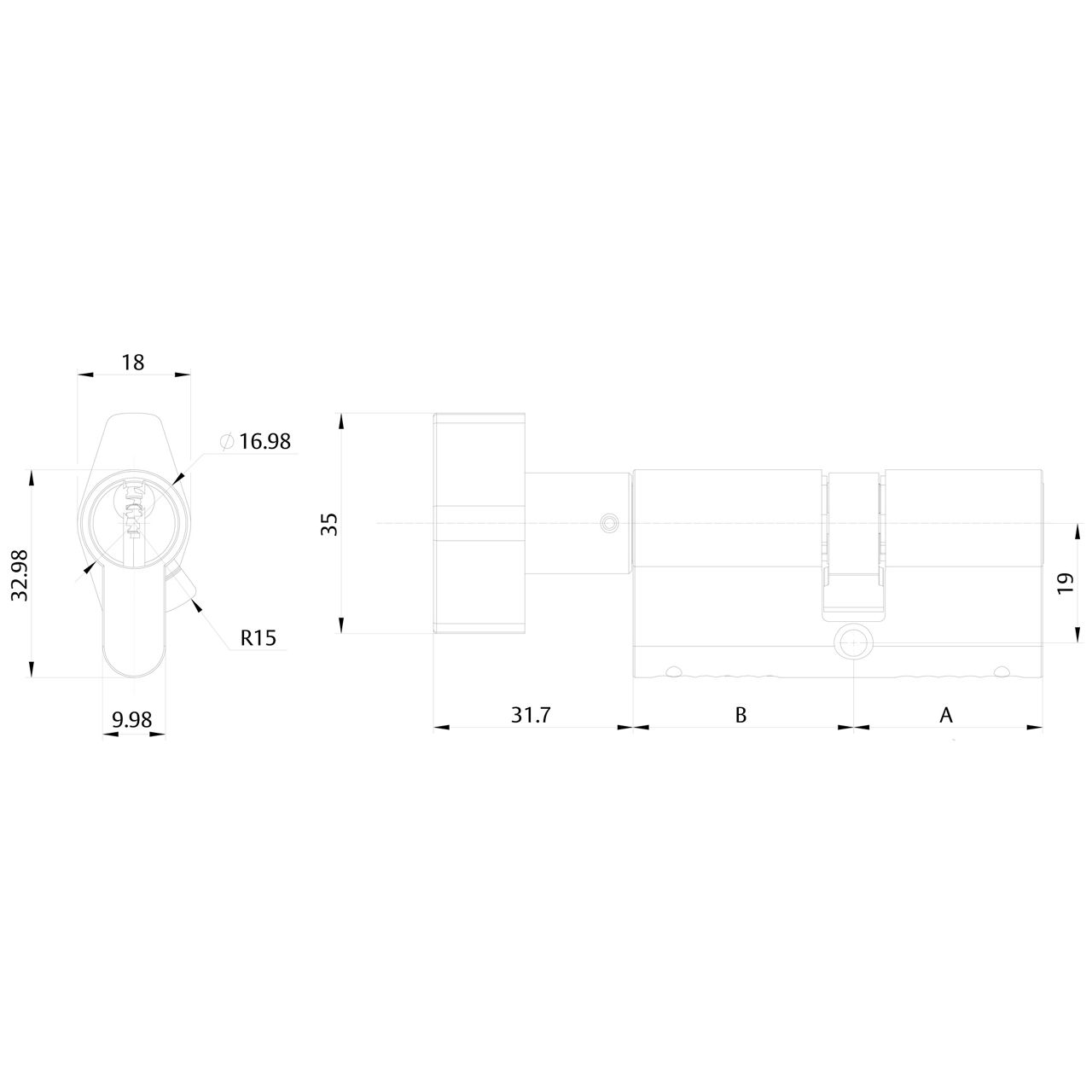

Cylinder length | Minimum: 27/27 mm | Maximum: 90/90 mm | Increments: 5 mm (starting from 30/30 mm) |
Thumbturn dimensions | 16 x 35 x 31.5 mm (W x H x D) |
Weight | 300 g (length 30/35 mm) |
