Certified security
Compliant with European standards for home security and rigorous in-house testing at ASSA ABLOY labs.

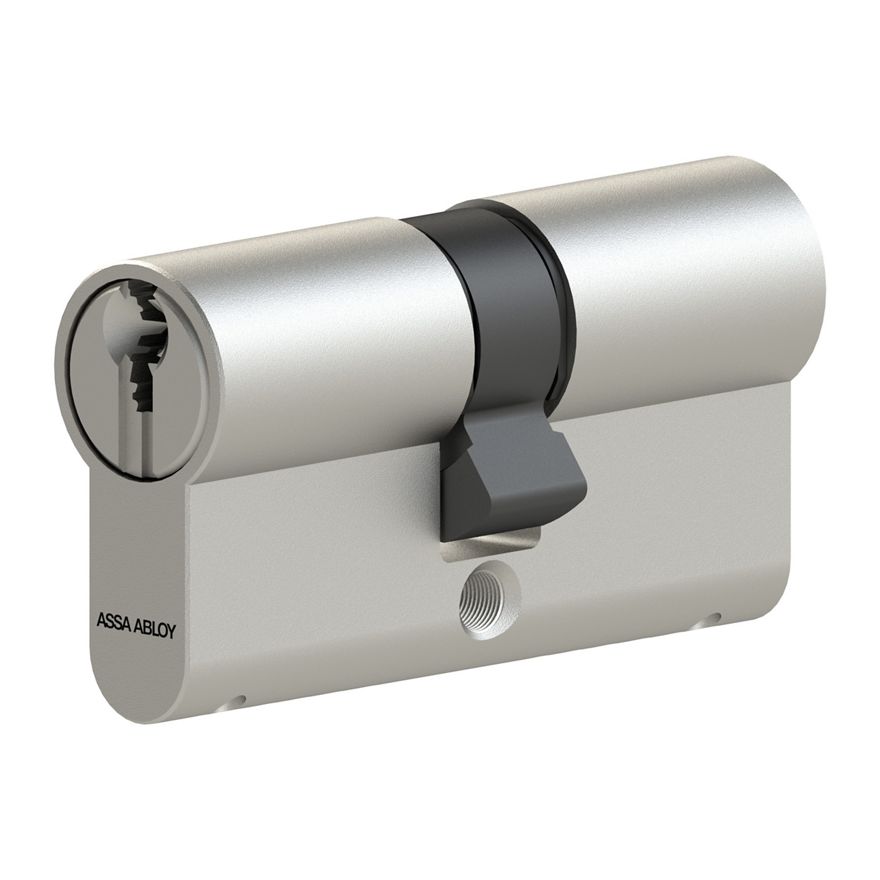

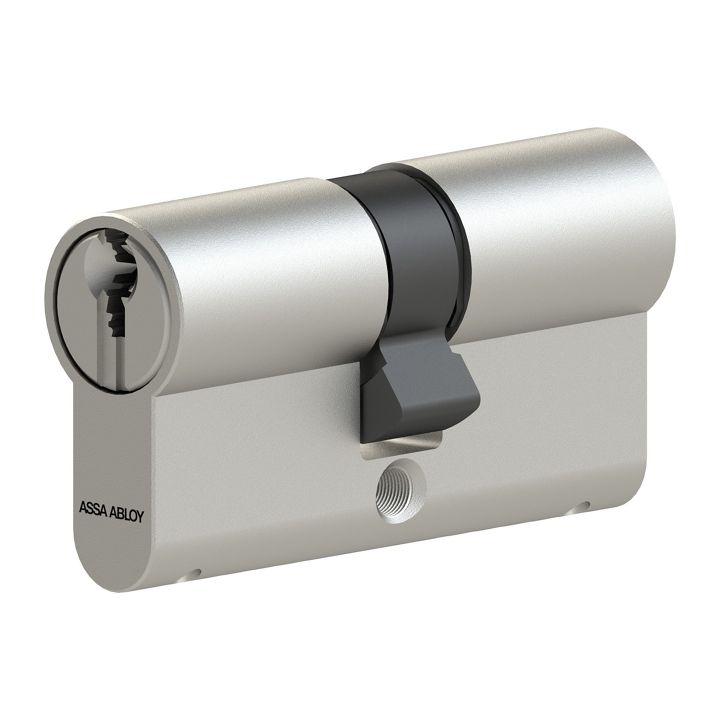

CYS10 Double Euro Cylinder
Durable and secure, the CYS10 Double Euro Cylinder with 6-pin technology provides the protection you need to lock your building's doors ‒ inside or out.
Various optional features, such as free wheeling cam and gear wheel cam, make it ideal for a wide range of applications.
Applications:
- External and internal doors
- Master Key System (MKS), Keyed Alike (KA), Keyed to Differ (KD)
Optional functionality:

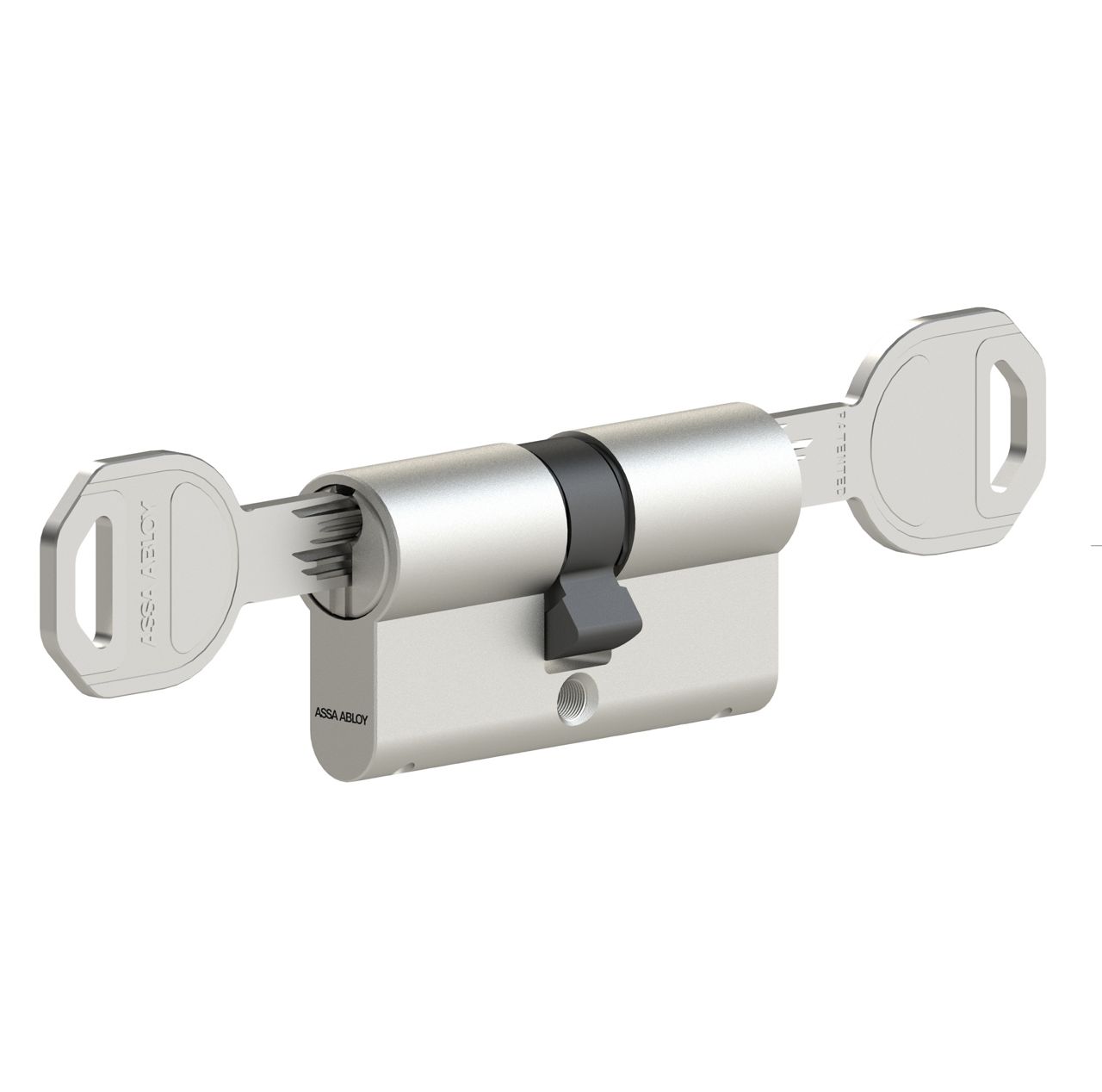

- Emergency clutch
- Free wheeling cam
- Gear wheel cam
- Anti-snap design
- Construction keying
- Local cam designs (French, Adriatic Jus)
Optional: Gear wheel

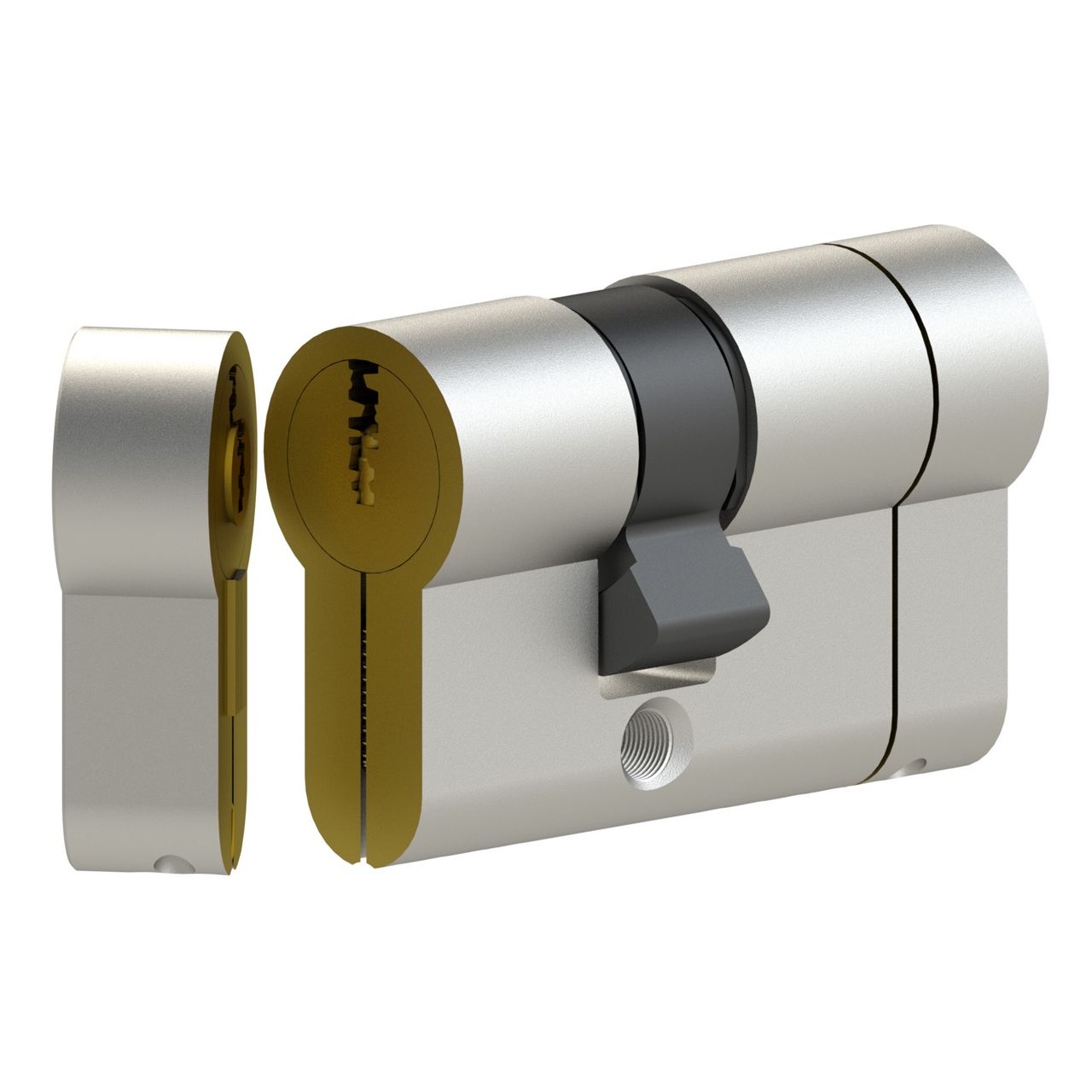

Optional: Anti-snap cylinder
Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Reliable construction
Durable design with 96-hour corrosion resistance and tested for 300,000 lock/unlock cycles.
Datasheet and Functionality Glossary

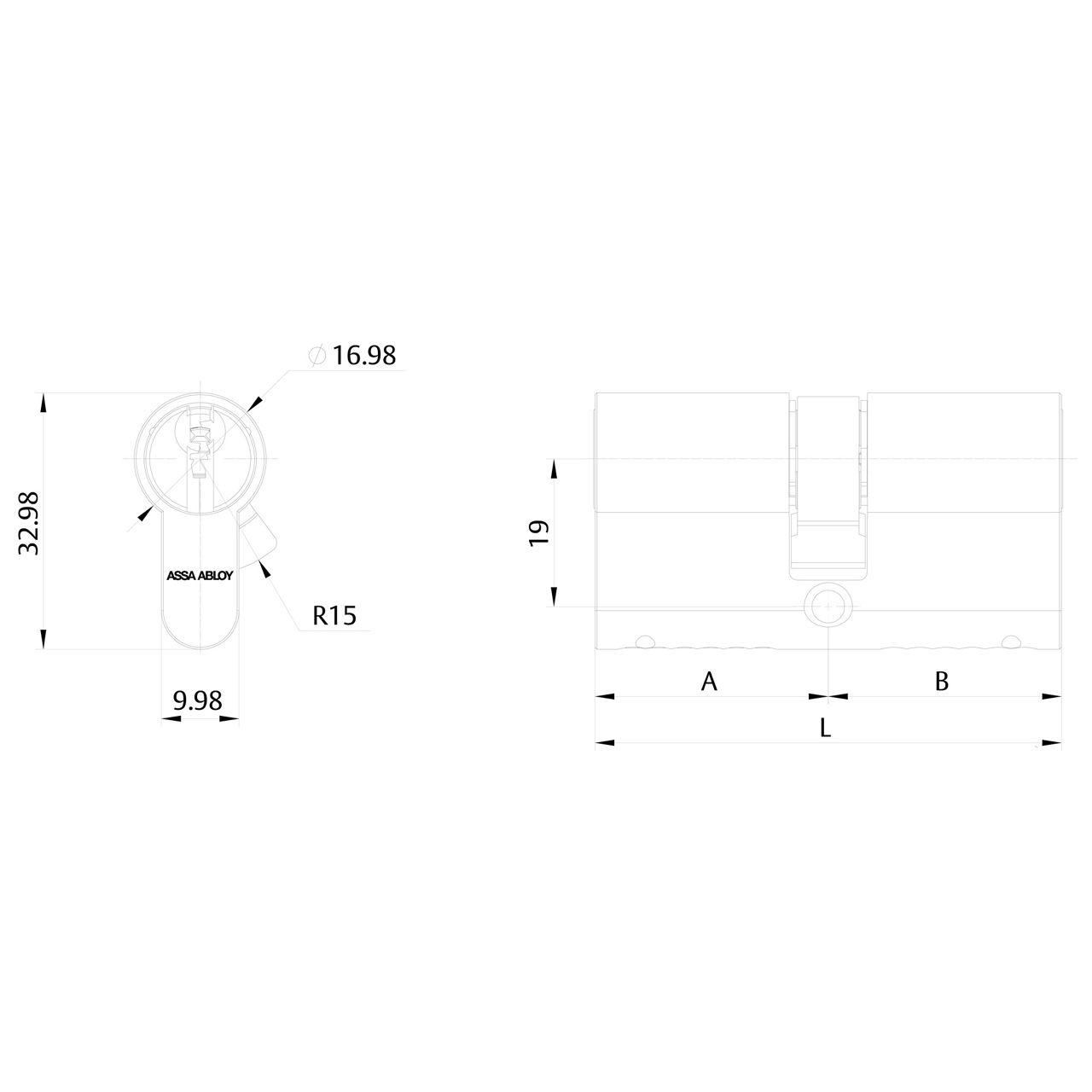

Technical Drawing
Feature Detail Security SKG*** certified (optional) | EN 1303:2015 tested, 1 6 – B – C 6 0/D (D optional) | Cam DIN 18252 compliant Attack resistance Anti-pick | Anti-bump (only for KA and KD) Number of keys MKS and KA: according to order | KD: 3 Max. number of effective key differs 144,729 Max. number of MKS profiles 63 Number of pins 6 Raw material Brass Finish Satin Nickel Cylinder length Minimum: 27/27 mm | Maximum: 90/90 mm | Increments: 5 mm (starting from 30/30 mm) Weight 234 g (length 30/35 mm)
