Attack resistance
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Secure entrances while at the same time, enabling anyone inside to make an easy exit.

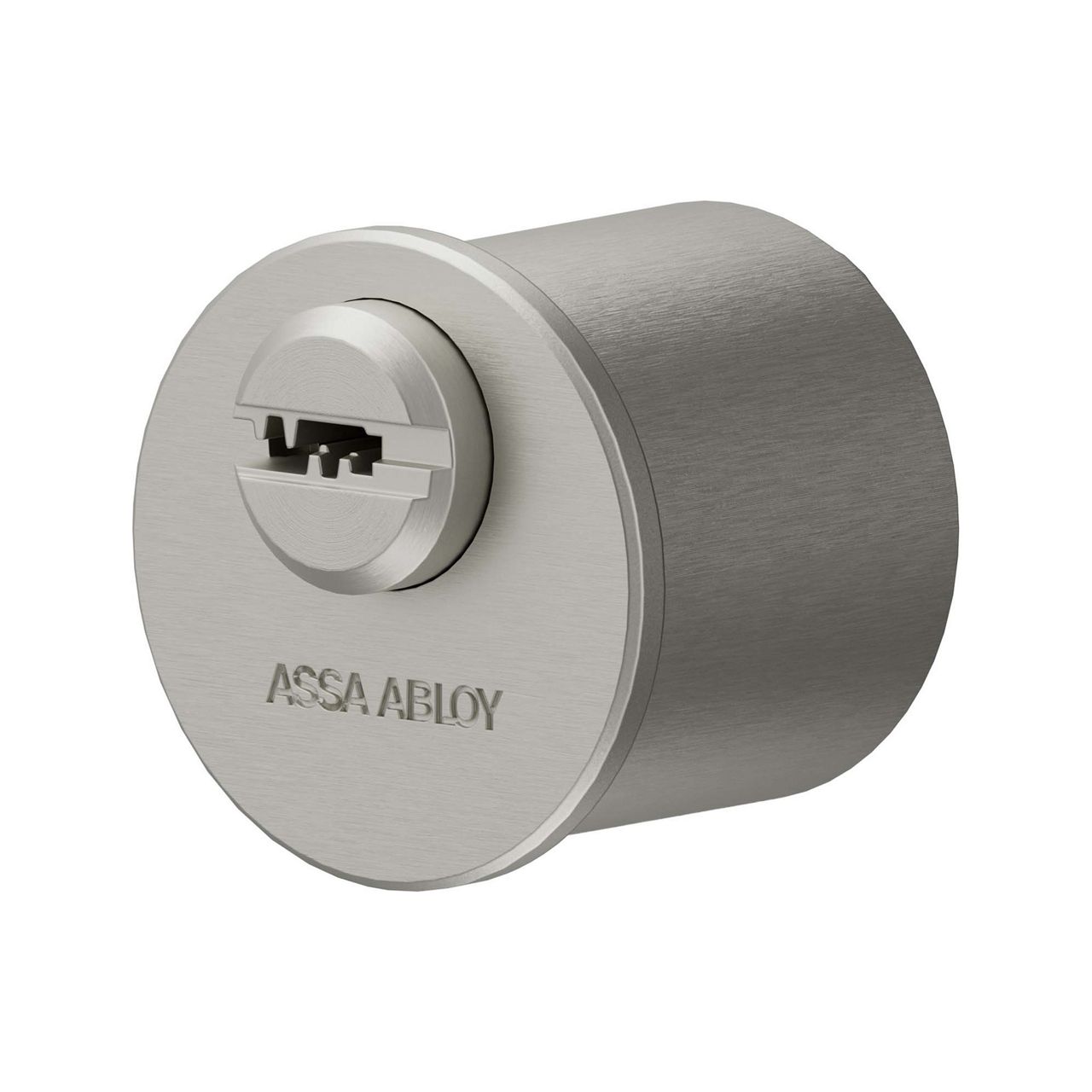

The CY100 Rim Cylinder can be used with night latches or other locking devices which are operated from a tailbar.
Applications:
Secure anti-pick design with 15 kN pulling resistance, 5 minutes’ drilling resistance, and bumping resistance.
Feature | Detail |
---|---|
Attack resistance | Anti-pick | Anti-drill | Anti-pull | Anti-bump (only for KA and KD) |
Number of keys | 3 |
Max. number of effective key differs | 39,411 |
Max. number of MKS profiles | 4 |
Number of pins | 6 |
Raw material | Brass |
Finish | Satin Nickel |
Dimensions | Face diameter: 32 mm | Body diameter: 29 mm | Tailbar length: 53 mm |
Weight | 175 g |
