PED 300 + PED/GV

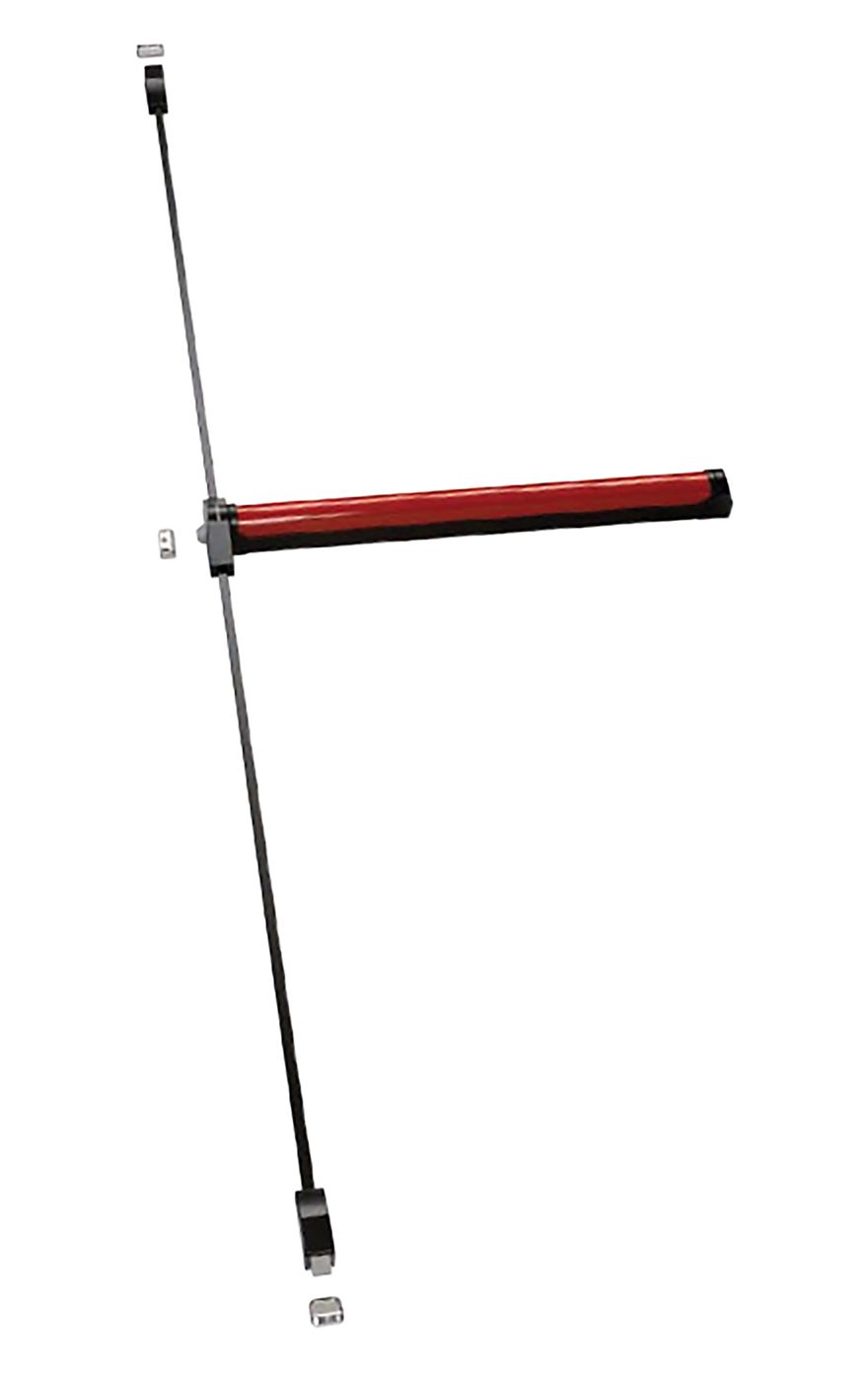

Panic Exit Device PED 300+PED/GV Push Bar - Vertical Device Vertical locking points
Description:
- Set of 2/3 locking points PED composed of Modular Push Bar and kit for 2 vertical locking points
Characteristics:
- Modular push bar type
- For fire and smoke applications
- High durability 2,00,000 cycles
- One central locking point
- For one or double leaf door up to 200 kg
- For all types of door
- For doors up to 1200mm width in standard
- For doors up to 1400mm width in option
- Steel pulman latch in standard
- Dead latch in standard
- Steel or zinc alloy swing latch
- Zinc alloy cover 38mm width
- Aluminium touch bar 1046mm long
- Bar to be cut
- 73mm projection
- HO function in option
- Micro switch version in option

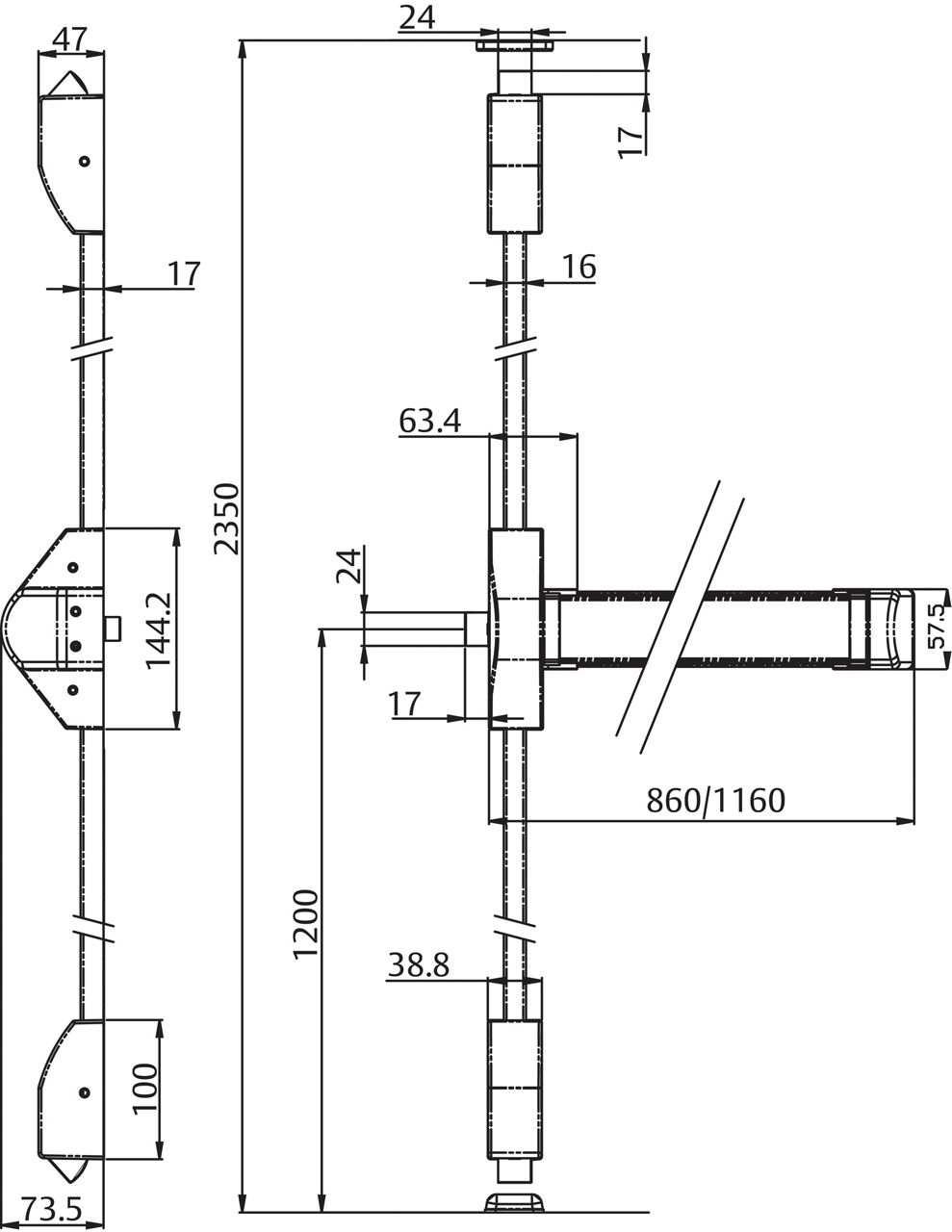

Characteristics of PED 300+PED/GV:
- Set of rods, rod covers and vertical latches
- To fit modular cross bar
- For 2 (top & bottom) vertical locking points installation
- For one or double leaf door
- For doors up to 2350mm high in standard
- For doors up to 3200mm high in option
- Steel pulman latches
Model No. Part no. Type Description PED 300/--/GG MNBT101M02SGGAA Push bar Central locking point PED with steel latch and dead latch, 1200mm wide door, silver support and bar PED 300/--/NR MNBT101M02SNRAA Push bar Central locking point PED with steel latch and dead latch, 1200mm wide door, black support and red bar PED 300/--/SA MNBT101M02SSAAA Push bar Central locking point PED with steel latch and dead latch, 1200mm wide door, s/steel effect support and s/steel bar PED 300/HO/GG MNBT111M02SGGAA Push bar Central locking point PED with steel latch and dead latch, 1200mm wide door, silver support and bar - HO function PED 300/HO/NR MNBT111M02SNRAA Push bar Central locking point PED with steel latch and dead latch, 1200mm wide door, black support and red bar - HO function PED 300/HO/SA MNBT111M02SSAAA Push bar Central locking point PED with steel latch and dead latch, 1200mm wide door, s/steel effect support and s/steel bar - HO function PED/GV/G KITMNCF1S3SVFG Vertical KIT Modular KIT for two vertical locking points and rod cover PED with steel latch silver support and vertical rod cover PED/GV/N KITMNCF1S3SVFN Vertical KIT Modular KIT for two vertical locking points and rod cover PED with steel latch black support and vertical rod cover PED/GV/S KITMNCF1S3SVFS Vertical KIT Modular KIT for two vertical locking points and rod cover PED with steel latch satin support and vertical rod cover
