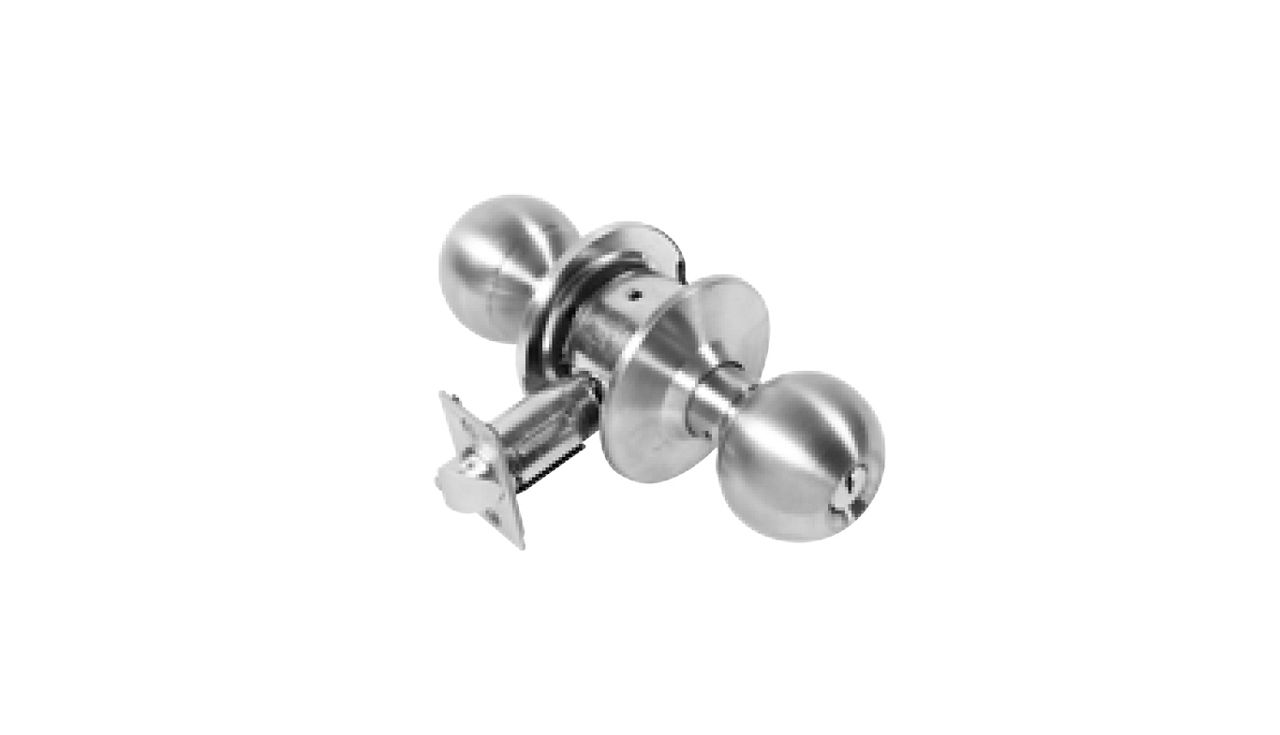

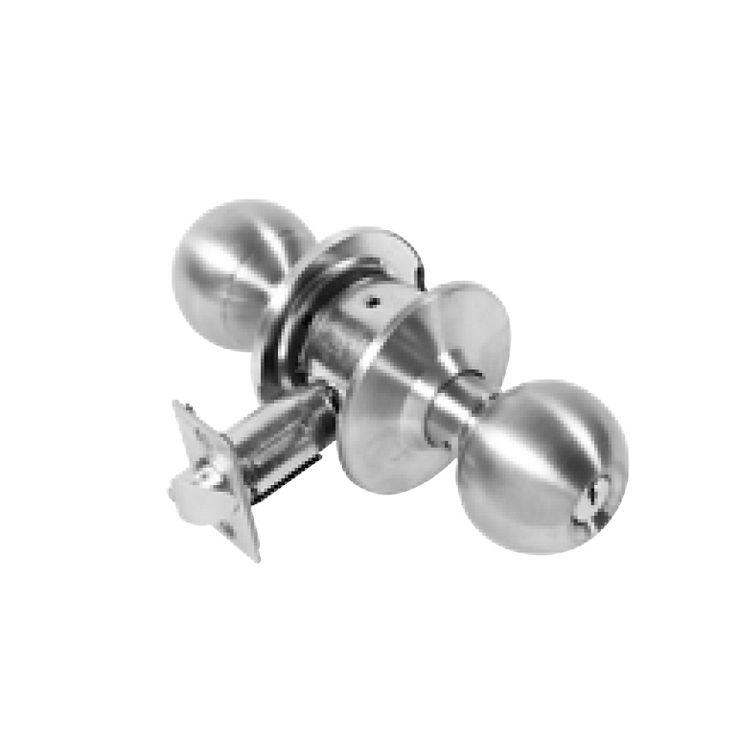

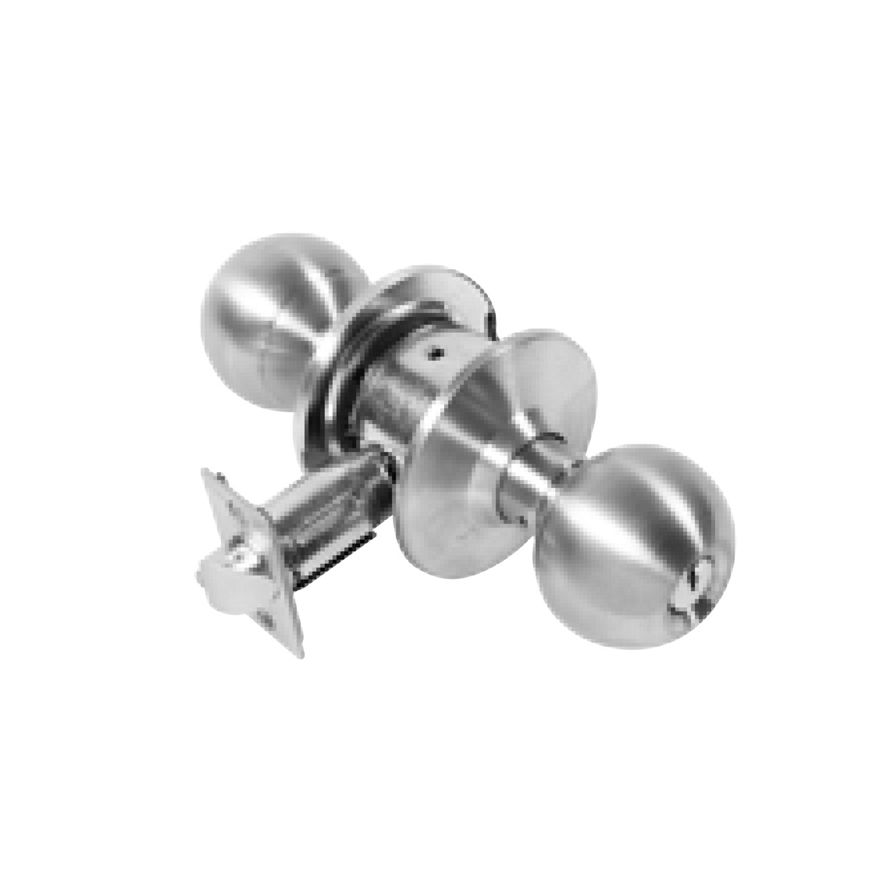

Cylindrical Grade

Standard Duty

Description:

Designed for medium to high traffic commercial applications. Interior office doors, banks, retail spaces and hotel guest areas. No exposed mounting screws. Non-handed.

Features:

• Heavy gauge cold rolled steel spindles
• The rose assembly is adjustable for door thickness

Specifications:

• For Doors: 1-3/8” to 1-3/4” (35mm to 44mm)
• Backset : 2-3/4” (70mm) standard; 2-3/8” (60mm) available
• Front: Stainless Steel or Brass, 2-1/4” x 1-1/8” (57mm x 29mm)
• Strike: ANSI (4-7/8” x 1-1/4”) strike standard, Wood Door strike (T-Strike) available
• Roses: 2-3/4” (70mm) Stainless steel or brass
• Handing : Non-handed
• Latchbolt: Stainless steel 1/2” (12.5mm) throw standard
• Cylinder: Solid brass 6-pin cylinder Schlage C keyway with two keys per lock standard. Weiser keyway available by order keying. Keyed Different (KD) standard. Available Masterkeyed (MK), Keyed Alike (KA) and Contruction Master keyed (CMK) see Keysand Keying section for additional options
• Finishes: US32D (630) for knobs. Other finishes available by special order
