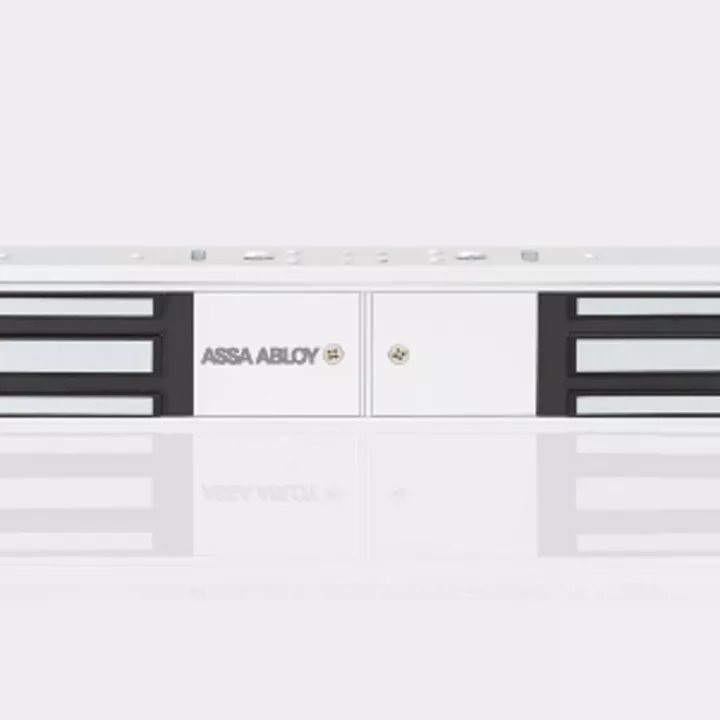

A4 Double Leaf
Double Series
The Electromagnetic Locks operate with holding forces from 500kgup to 560kg. Covering a range of applications these magnets are ideal for applications from access ways through to high use commercial swing doors. With fixing options including wood, aluminium and steel constructions as well as glass door applications, the range caters to most electromagnetic needs.
With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.
Key Features
- Fail-safe: unlocks when power is removed
- Easy installation: suitable for both new and retrofit usage
- High holding force: refer to the technical data overleaf
- Self-alignment: armature plate pivots to accommodate door drop
- Silent operation: no humming or buzzing
- Dual voltage: site selectable 12 or 24 Vdc
- Instantaneous Release: smart electronics on the Z Series Electromagnets eliminate residual magnetism
- 3 Year ASSA ABLOY Warranty
Applications
- Aluminium doors
- Glass doors
- IT Storage rooms
- Access control

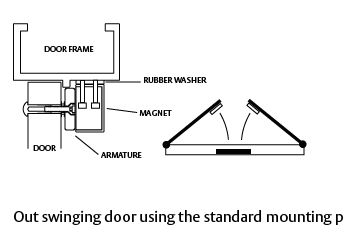

- Surface mount for inswing and outswing doors
Standards and Compliance
- CE Approved
- UL Listed
Non Monitored
Holding Force 500 - 560 Kg
Dimensions (L)500 x (H)47 x (D) 26mm
Voltage 12Vdc/ 24Vdc ±10%
Current 900mA @ (12Vdc) 450mA @ (24Vdc)
Monitoring Hall-Effect (Optional)
Operating Temperature -10 to 55 Degrees
Operating Humidity 0 - 90%Monitored
Holding Force 550-560 Kg
Dimensions (L)500 x (H)47 x (D) 26mm
Voltage 12Vdc/ 24Vdc ±10%
Current 900mA @ (12Vdc) 450mA @ (24Vdc)
Monitoring Hall-Effect & Reed Switch
Operating Temperature -10 to 55 Degrees
Operating Humidity 0 - 90%Specification Statement
The Double Series Electromagnetic Lock should be constructed in an aluminium case with heavy duty electromagnet. The range only operates in Fail Safe mode and relies on a secondary lock or battery backup system.The lock needs to be equipped with “smart electronics” that have zero residual magnetism (instantaneous release). This is crucial for correct operation.Non Monitored A4 Double Electromagnetic Lock

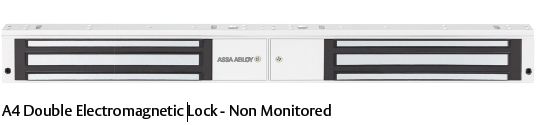

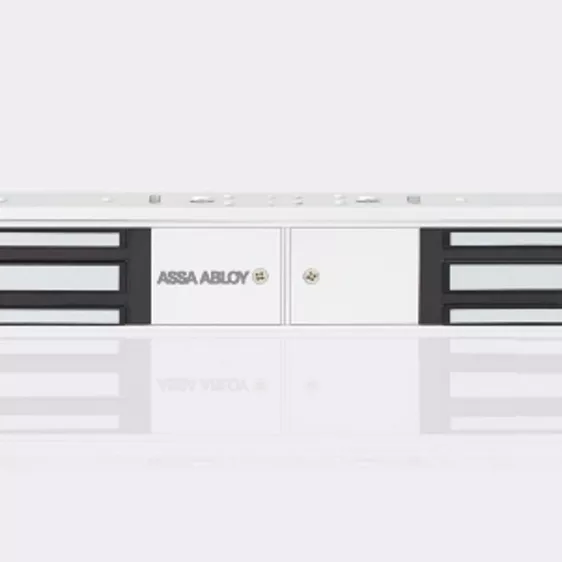

Non Monitored Lock

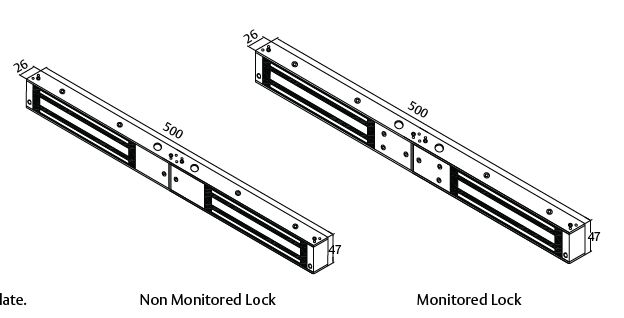

Dimensions

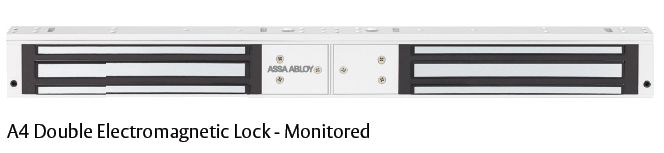

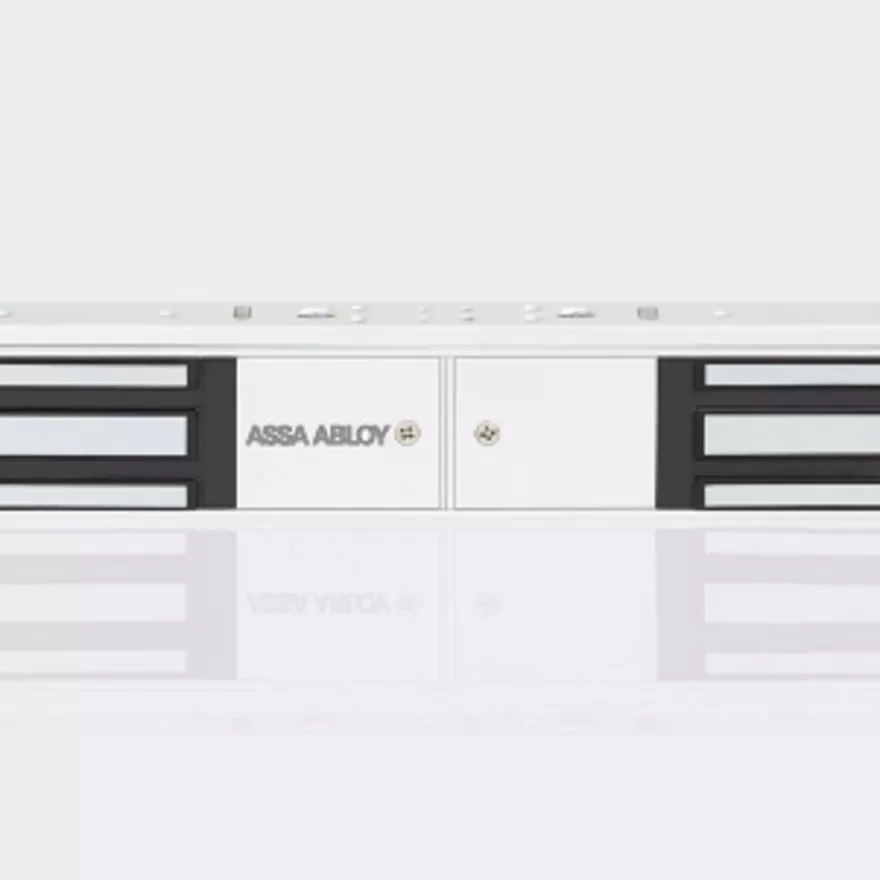

Monitored and Non Monitored Lock
